From Surface Landmarks to Real-Time Imaging: 16–20 MHz Wireless Ultrasound for Facial Injections

Facial aesthetic procedures require clinicians to work within small, anatomically complex areas where vessels, fascia, muscles, fat compartments, and previously injected materials may sit only millimeters apart. A 16–20 MHz wireless ultrasound probe can add real-time, patient-specific imaging to this workflow. For qualified practitioners, it may support facial mapping, selected injection guidance, filler assessment, and complication evaluation at the point of care.

Ultrasound does not make an injection risk-free and does not replace anatomical knowledge, clinical training, or an emergency protocol. Its value is more practical: it can provide additional information that cannot be obtained from surface inspection and palpation alone.

What Is a 16–20 MHz Wireless Ultrasound Probe?

Ultrasound frequency affects the balance between image detail and penetration depth. Higher frequencies generally improve the resolution of superficial anatomy while reducing penetration. This makes a high-frequency linear ultrasound probe relevant to facial applications, where many targets are close to the skin surface.

Published aesthetic-imaging literature describes high-resolution linear transducers in approximately the 15–22 MHz range. A 2024 review of ultrasound-guided upper-face filler techniques reports systems using linear probes extending to 18, 20, and 24 MHz, depending on the platform (PMC).

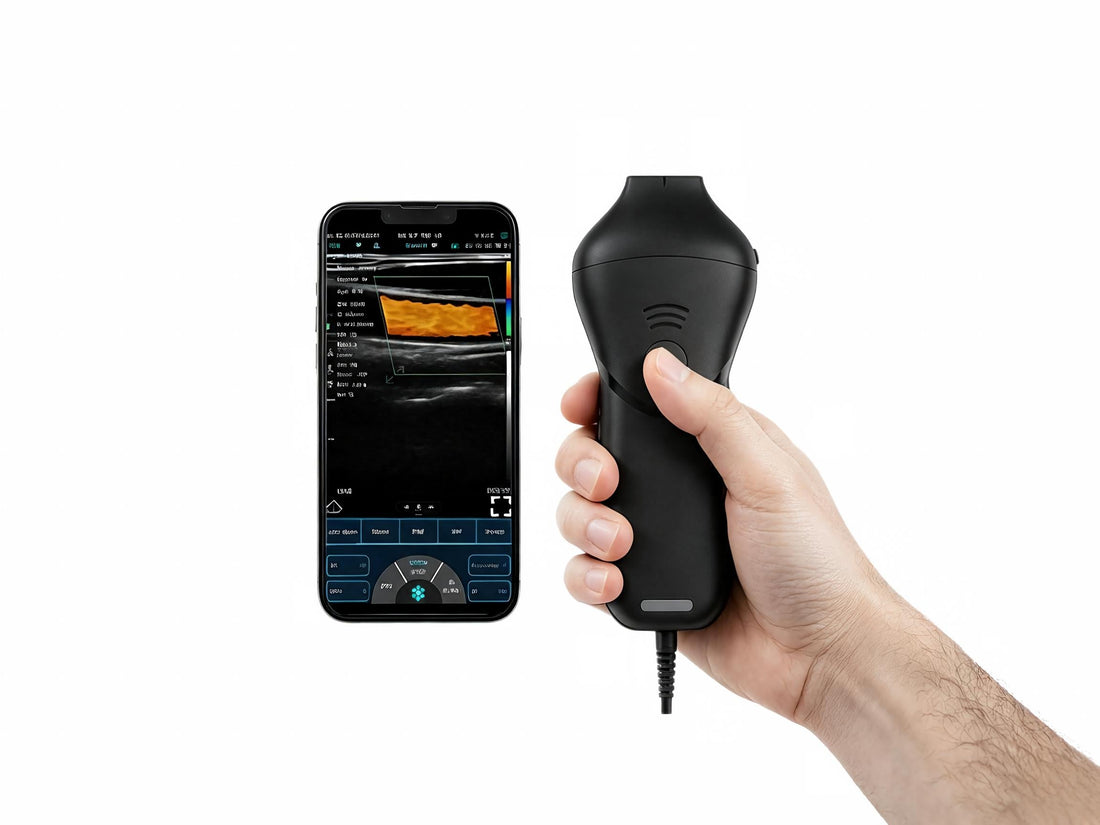

The GHM C10MB Pro uses a 192-element linear array with a selectable 16–20 MHz range and scan depths of 10, 20, 30, and 40 mm. These specifications are designed for superficial imaging, but actual visibility depends on the target, settings, probe contact, Doppler conditions, and operator skill.

Clinical Applications in Aesthetic Medicine

Pre-Injection Facial Mapping

Facial vascular anatomy varies between patients, so vessel course and depth cannot be predicted reliably from a diagram or an assumed “safe” plane.

B-mode imaging can show tissue layers and structural relationships, while Color or Power Doppler can help identify blood flow. Pre-injection Doppler vascular mapping may therefore support planning of the entry point, target plane, and needle or cannula path. It remains an additional risk-management measure rather than a guarantee against vascular injury.

Real-Time Facial Injection Ultrasound Guidance

During selected procedures, the clinician may use ultrasound to visualize the needle or cannula relative to vessels and the intended tissue plane. This “scan while injecting” approach differs from scanning only before the procedure because the instrument is followed dynamically.

A 2024 best-practice review describes in-plane and out-of-plane approaches and emphasizes instrument visualization relative to vascular structures. Wireless operation may improve room flexibility, but specialized equipment, training, and competency assessment remain essential.

Evaluation of Existing Fillers

Patients do not always know the type, location, or date of previous injections. Aesthetic ultrasound imaging may help trained clinicians assess visible filler deposits, their anatomical plane, and their relationship to surrounding tissues.

Ultrasound can also support the evaluation of concerns such as product migration, nodules, fluid collections, inflammatory changes, or suspected vascular compromise. A recent review describes applications before, during, and after injectable procedures while noting that standardized protocols remain limited (PMC).

Targeted Complication Management

When clinically appropriate, ultrasound findings may inform targeted treatment planning, including image-guided hyaluronidase delivery for hyaluronic acid filler. This use should be performed only by trained healthcare professionals working within local regulations and an established complication-management protocol.

Ultrasound supports localization and guidance; it does not determine the correct treatment by itself. Clinical history, physical examination, product information, urgency, and referral pathways remain essential.

Technical Advantages of the GHM C10MB Pro

High-Frequency Linear Imaging

The product specification lists a 192-element linear array, 64 physical channels, a 24 × 6 mm footprint, and adjustable 10–40 mm imaging depth. Its compact footprint is intended for superficial facial regions where probe access and contact can be challenging.

Supported modes include B, B/M, Color, PW, and PDI. This combination allows grayscale assessment of anatomy together with Doppler-based blood-flow evaluation when settings and flow conditions permit.

Wireless and Wired Connectivity

The probe connects through built-in WiFi or dual USB-C ports and supports iOS, Android, and Windows devices. Clinics can use a smartphone, tablet, or compatible computer as the display, subject to their data-security and device-management policies.

Portable Point-of-Care Design

The device measures 151 × 62 × 30 mm and weighs 223 g. Its replaceable 4400 mAh battery is specified for up to four hours of operation, with wireless and USB charging options.

The product also lists an IP68 enclosure and a four-sided anti-slip design. Cleaning must still follow the manufacturer’s validated instructions, including compatible disinfectants, contact times, probe covers, and restrictions on immersion or sterilization.

Image Storage and Clinical Documentation

The MY USG application supports JPG, AVI, MP4, and DICOM formats. Facilities considering DICOM archiving should test compatibility with their PACS or documentation system before purchase.

Clinical Value for Aesthetic Practices

The main benefit of a 16–20 MHz wireless ultrasound probe is not a single specification. It is the ability to bring image-informed decision-making into the treatment room.

A structured workflow may help clinicians:

• Examine patient-specific anatomy before an injection.

• Assess tissue planes and visible vascular structures.

• Document baseline and follow-up findings.

• Investigate previously injected materials.

• Plan selected image-guided interventions.

• Review cases for training and quality improvement.

Ultrasound remains operator-dependent. Probe pressure can alter low-flow Doppler signals, small vessels may not be visible, artifacts may be misinterpreted, and wireless displays can introduce workflow or security considerations. Clinics should implement the technology as a clinical program rather than treating it as a standalone safety feature.

Purchasing Considerations for Aesthetic Ultrasound Equipment

Verify Imaging Performance with Representative Cases

Ask for a live demonstration using superficial facial targets. Evaluate near-field detail, penetration at each depth setting, Color and Power Doppler sensitivity, needle visualization, screen latency, and image stability.

Assess Training and Governance

Confirm what application training is included and how competency will be assessed. Define who may scan, interpret images, guide procedures, store studies, and manage complications. Written protocols should cover informed consent, infection control, documentation, escalation, and equipment checks.

Review Compatibility and Total Cost

Check operating-system support, device requirements, DICOM integration, software updates, battery replacement, warranty coverage, accessories, and local service response. The product record lists a two-year warranty, but buyers should confirm regional terms in the quotation.

Procurement teams comparing the broader ultrasound equipment range should also verify local regulatory status and ensure the intended application matches device labeling and professional scope-of-practice requirements.

Building a More Image-Informed Injection Workflow

High-frequency ultrasound is shifting aesthetic medicine from generalized surface landmarks toward real-time, patient-specific imaging. The 16–20 MHz range, linear-array design, Doppler modes, and portable connectivity of the GHM C10MB Pro make it relevant to clinics exploring facial injection ultrasound guidance.

Responsible adoption depends on training, validated protocols, performance testing, and clinical governance. The probe provides additional information; the practitioner and clinical system determine how that information is used.
