How a 3-Part Hematology Analyzer Improves Routine CBC Workflow in Clinics and Hospitals

Complete blood count testing is one of the most frequently requested laboratory investigations in primary care, emergency medicine, inpatient services, and diagnostic centers. Laboratories need an efficient way to measure red blood cells, white blood cells, platelets, hemoglobin, and related indices while maintaining quality-control and result-review procedures.

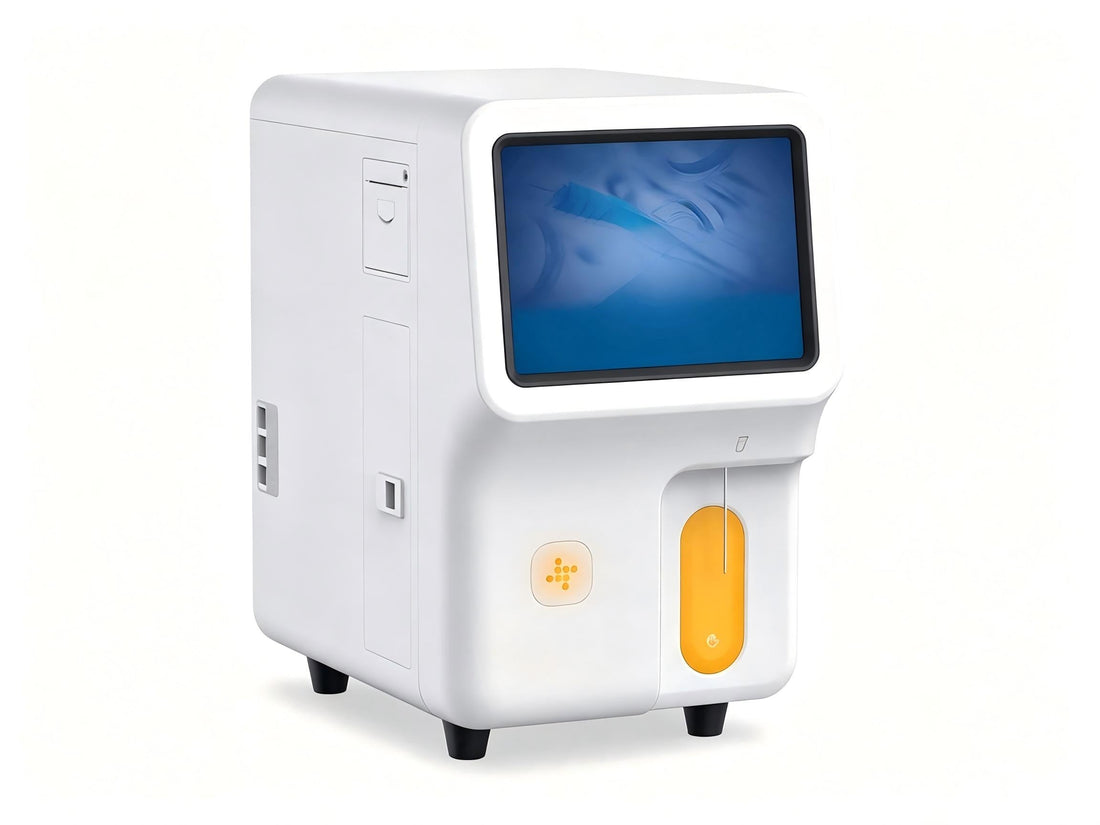

The GHM XN3000 fully automated 3-part hematology analyzer is designed for professional CBC testing in clinical laboratories. It reports 21 parameters and three histograms, processes up to 60 samples per hour, and supports whole blood, capillary whole blood, and prediluted sample modes.

With a 10.4-inch touchscreen, 50,000-result storage capacity, integrated printing, and HL7-compatible connectivity, this 3-part hematology analyzer is positioned for hospitals, clinics, and laboratories that need routine CBC automation without the complexity of a five-part differential system.

What Is a 3-Part Hematology Analyzer and What Is Its Core Clinical Working Principle?

A 3-part hematology analyzer is an in vitro diagnostic instrument that automates cell counting, hemoglobin measurement, calculation of red-cell and platelet indices, and three-part white-cell differentiation.

The instrument provides analytical data that trained laboratory personnel and clinicians use alongside symptoms, medical history, blood-film findings, and other diagnostic results. It does not independently diagnose a disease or replace professional medical judgment.

Electrical Impedance Cell Counting

The GHM XN3000 uses electrical impedance to count white blood cells, red blood cells, and platelets. Blood cells suspended in a conductive diluent pass through a small aperture between electrodes.

Each cell passing through the aperture produces a change in electrical resistance. The analyzer detects these pulses and uses their number and characteristics to estimate cell counts and volume distributions.

Proper reagent quality, aperture cleanliness, specimen mixing, calibration, and quality control are essential. Clots, fibrin, bubbles, abnormal cells, and extreme cell concentrations can interfere with automated counting.

Cyanide-Free Hemoglobin Measurement

Hemoglobin is measured using a cyanide-free colorimetric method. Red blood cells are lysed, the released hemoglobin reacts with the designated reagent, and the analyzer measures the resulting optical signal.

The cyanide-free method reduces the need for cyanide-containing chemistry. Laboratories must still follow reagent safety data sheets, chemical-waste procedures, and local environmental requirements.

Three-Part White Blood Cell Differential

A 3-part hematology analyzer groups white blood cells into three populations:

• Lymphocytes, reported as LYM# and LYM%
• Mid-sized cells, reported as MID# and MID%
• Granulocytes, reported as GRAN# and GRAN%

The MID population may include monocytes, eosinophils, basophils, and other cells that fall within the relevant size range. Unlike a five-part system, a 3-part analyzer does not separately report neutrophils, monocytes, eosinophils, and basophils as individual populations.

Abnormal flags, unusual histograms, or results inconsistent with the clinical picture may require repeat analysis, a peripheral blood smear, manual differential counting, or testing on a more advanced system.

Reportable CBC Parameters

The GHM XN3000 3-part hematology analyzer reports 21 parameters:

• WBC
• LYM#, MID#, and GRAN#
• LYM%, MID%, and GRAN%
• RBC
• HGB
• HCT
• MCV
• MCH
• MCHC
• RDW-CV and RDW-SD
• PLT
• MPV
• PDW
• PCT
• P-LCR
• P-LCC

It also produces WBC, RBC, and PLT histograms. Histograms help trained operators assess cell-distribution patterns and identify results that may need further review.

Key Clinical Application Scenarios for a 3-Part Hematology Analyzer

A fully automated 3-part hematology analyzer is typically most suitable for routine CBC workloads in small and medium-sized clinical laboratories. The correct placement depends on daily volume, patient population, staffing, referral pathways, and the complexity of abnormal samples.

Hospital Clinical Laboratories

Hospitals use CBC results to support the evaluation of anemia, infection, inflammation, bleeding risk, platelet abnormalities, and many other clinical conditions.

With throughput of up to 60 samples per hour, the GHM XN3000 can support routine inpatient and outpatient workloads. Laboratories should compare this capacity with peak-hour demand, STAT volume, repeat testing, quality-control frequency, and instrument downtime.

A three-part differential may be sufficient for many routine samples. Hospitals treating oncology, hematology, neonatal, or other complex patient populations may require a five-part analyzer, additional reflex testing, or more extensive microscopy review.

Primary Care and Private Clinics

Clinics with licensed laboratories may use a 3-part hematology analyzer to provide routine CBC testing closer to the patient. Local testing can shorten specimen transport and result availability when the instrument is supported by trained personnel and documented quality procedures.

Clinics must consider more than the purchase price. Ongoing costs include diluent, lysing reagent, cleaner, controls, calibrators, printer paper, preventive maintenance, proficiency testing, and biomedical waste management.

Independent Diagnostic Centers

Independent laboratories need consistent processing, traceable results, and efficient data management. The GHM XN3000 stores up to 50,000 numeric and graphical results and supports LIS communication through an HL7-compatible LAN connection.

Before installation, the laboratory should confirm interface specifications, patient-demographic fields, result codes, reference-range configuration, barcode workflow, and cybersecurity requirements.

Emergency and Urgent-Care Laboratories

CBC testing is frequently requested in emergency care. A 3-part hematology analyzer can support rapid routine processing, but turnaround time depends on specimen collection, transport, accessioning, clot detection, quality-control status, repeat testing, and result authorization.

Critical values and abnormal flags require a documented escalation procedure. Automated results should never bypass laboratory review solely because the clinical request is urgent.

Satellite and Low-Volume Laboratories

The analyzer’s dimensions are 270 × 470 × 420 mm, and it weighs approximately 20 kg. This compact footprint may suit satellite laboratories and facilities with limited bench space.

The operating environment must remain within the specified range of 15°C–30°C, 20%–85% relative humidity, and 70–106 kPa air pressure. Adequate ventilation, stable power, reagent storage, waste handling, and service access should be included in installation planning.

Blood Collection and Donor Facilities

CBC testing may support selected donor-assessment or blood-component workflows where permitted by local regulations and facility procedures. Buyers should verify that the intended tests, specimen types, reference criteria, and quality requirements match the analyzer’s registered intended use.

The instrument should not be assumed to replace specialized blood-bank testing or transfusion-transmitted infection screening.

Core Technical Advantages of the GHM XN3000 3-Part Hematology Analyzer

The clinical value of a 3-part hematology analyzer depends on its fit with the laboratory’s workflow. Throughput, sample modes, data handling, reagent availability, and service support should be evaluated together.

Up to 60 Samples per Hour

The GHM XN3000 has a specified throughput of up to 60 samples per hour. This capacity can support routine testing in small and medium-sized laboratories while reducing manual counting and calculation steps.

Actual productivity may be lower when samples require predilution, repeat testing, manual review, maintenance, or troubleshooting. Procurement teams should evaluate peak workload rather than relying only on average daily volume.

Whole Blood, Capillary, and Prediluted Modes

The analyzer supports whole blood, capillary whole blood, and prediluted testing modes. This offers flexibility for different collection environments and patient populations.

The reviewed product page does not specify the sample volume required for each mode. Buyers should request the current technical data sheet and confirm minimum volume, compatible anticoagulants, aspiration method, open-vial requirements, and pediatric sample procedures.

Twenty-One Parameters and Three Histograms

The 21-parameter CBC profile covers routine WBC, RBC, hemoglobin, red-cell index, and platelet measurements. Three histograms provide graphical information about WBC, RBC, and PLT size distributions.

Histograms and flags support result review but are not diagnoses. Laboratories need rules defining when to repeat a sample, inspect the specimen, perform a blood smear, conduct a manual differential, or refer testing to a higher-level laboratory.

Touchscreen and Integrated Printing

A 10.4-inch color touchscreen supports instrument setup, sample processing, result review, and data access. The system also includes a built-in thermal printer and supports an external printer.

The standard package is listed as including:

• GHM XN3000 main unit
• Built-in thermal printer
• Power cable
• User manual
• Calibration certificate

Purchasers should confirm whether starter reagents, controls, calibrators, sample adapters, barcode equipment, printer paper, or cleaning supplies are included in the final quotation.

Data Storage and LIS Integration

The analyzer can store up to 50,000 results, including numeric and graphical information. Four USB ports and an Ethernet connection support peripherals and data transfer.

The product page states that the LAN connection supports the HL7 protocol. Laboratories should confirm whether communication is unidirectional or bidirectional and whether middleware, interface licenses, or supplier engineering services are required.

Cyanide-Free Hemoglobin Testing

Cyanide-free hemoglobin colorimetry can simplify chemical-safety management compared with cyanide-based methods. It does not eliminate the need for protective equipment, spill procedures, reagent documentation, or regulated waste handling.

Only the recommended lysing reagent should be used unless an alternative has been formally validated and authorized for the instrument.

Three-Part Versus Five-Part Differentiation

A 3-part hematology analyzer usually has lower acquisition and reagent complexity than a five-part system. It can be a practical choice for routine CBC testing in facilities with reliable smear review and referral pathways.

A five-part analyzer separately reports neutrophils, lymphocytes, monocytes, eosinophils, and basophils. Laboratories processing complex hematology cases or requiring more detailed leukocyte differentiation should evaluate whether a five-part platform offers better clinical and operational value.

Clinical Operation Standard Steps for a 3-Part Hematology Analyzer

The following workflow is a general professional overview. Operators must follow the GHM XN3000 user manual, reagent instructions, laboratory procedures, and local regulatory requirements.

1. Complete Startup and Environmental Checks

Confirm that the 3-part hematology analyzer is installed on a stable bench within the specified temperature, humidity, and air-pressure ranges.

Check reagent levels, expiration dates, waste capacity, tubing, printer paper, aperture status, background counts, and maintenance records. Investigate leakage, unusual noise, error messages, or failed background checks before patient testing.

2. Inspect and Mix the Specimen

Verify the patient identifier, collection time, tube type, fill volume, and specimen condition. CBC specimens commonly use properly filled EDTA tubes, but the required anticoagulant and stability period must follow the instrument and laboratory instructions.

Mix the sample gently and thoroughly before aspiration. Do not test clotted, leaking, mislabeled, excessively delayed, or otherwise unacceptable specimens without following the facility’s rejection and escalation procedures.

3. Run Calibration and Quality Control

Use compatible calibrators and hematology controls according to the required schedule. Run appropriate control levels and evaluate results against established ranges before releasing patient results.

Calibration and quality-control acceptance criteria should be documented. The WHO Laboratory Quality Management System handbook emphasizes quality processes across pre-examination, examination, and post-examination laboratory activities.

4. Select the Correct Sample Mode

Choose whole blood, capillary whole blood, or prediluted mode according to the specimen and validated procedure. Incorrect mode selection can produce invalid calculations or dilution errors.

Predilution requires accurate pipetting and thorough mixing. Record the dilution procedure when required by the laboratory quality system.

5. Enter or Scan Patient Information

Enter the sample identification, patient details, department, and other required information. If a barcode scanner or LIS connection is used, verify that transmitted identifiers match the physical specimen.

Barcode automation reduces transcription work but does not eliminate the need for positive patient and sample identification.

6. Analyze the Sample

Present the specimen according to the analyzer’s aspiration procedure and begin the test. Keep the sample probe and surrounding area clean to reduce contamination and carry-over.

Observe instrument messages during analysis. Do not release results from runs affected by aspiration errors, aperture blockage, insufficient sample, reagent problems, or unresolved system alarms.

7. Review Results, Histograms, and Flags

Review all CBC parameters, reference intervals, WBC/RBC/PLT histograms, abnormal flags, and critical-value indicators.

Results that are physiologically improbable, inconsistent with previous values, or associated with abnormal histograms may require repeat testing, specimen inspection, dilution, smear review, or analysis on another system.

8. Authorize and Report Results

Qualified personnel should verify that quality control is acceptable before authorizing results. Critical results must follow the institution’s notification and documentation policy.

LIS transmission should be validated to ensure that parameter names, units, decimal places, flags, and reference intervals are transferred correctly.

9. Perform Cleaning and Shutdown

Complete daily cleaning, probe rinsing, aperture maintenance, waste disposal, and shutdown procedures. Use only approved cleaning solutions and follow the recommended maintenance schedule.

Document preventive maintenance and corrective actions. Persistent background errors, blockages, or control failures should be escalated to qualified technical support.

Who Needs to Purchase a 3-Part Hematology Analyzer?

A 3-part hematology analyzer is primarily intended for professional healthcare and laboratory organizations. It is not a home-use device.

Small and Medium-Sized Hospitals

Hospitals with routine CBC demand and access to microscopy or referral testing may benefit from the GHM XN3000. Procurement teams should confirm that three-part differentiation is appropriate for the hospital’s patient mix.

Private Clinics and Diagnostic Laboratories

Private laboratories may use the analyzer for routine CBC testing when they have trained staff, quality controls, proficiency testing, and local authorization.

The system’s 60-sample-per-hour capacity, touchscreen, printer, and LIS connectivity may support clinics moving from manual counting to automated hematology.

Satellite and Rural Laboratories

The compact format may fit decentralized laboratories with limited space. These buyers should carefully evaluate reagent supply continuity, technical support, replacement-part lead times, and power stability.

Medical Equipment Distributors

Distributors can offer the system to suitable hospitals and clinics after verifying destination-market registration. Important considerations include documentation language, reagent import requirements, installation services, operator training, warranty support, and spare-parts inventory.

Facilities That May Need a Five-Part System

Specialist hematology services, oncology centers, large referral laboratories, and facilities with complex leukocyte-differential requirements may need a five-part analyzer.

Purchasing a lower-cost three-part system is not economical if a large percentage of specimens must be referred or repeatedly reviewed manually.

Frequently Asked Clinical and Purchasing Questions About a 3-Part Hematology Analyzer

1. What Does the GHM XN3000 3-Part Hematology Analyzer Measure?

The analyzer reports 21 CBC parameters covering WBC populations, RBC count, hemoglobin, hematocrit, red-cell indices, platelet count, and platelet indices. It also provides WBC, RBC, and PLT histograms.

The results support clinical evaluation but must be interpreted by qualified professionals.

2. How Is a 3-Part Hematology Analyzer Different From a 5-Part Analyzer?

A three-part system groups white blood cells into lymphocytes, mid-sized cells, and granulocytes. A five-part system separately reports neutrophils, lymphocytes, monocytes, eosinophils, and basophils.

The better choice depends on the test menu, patient population, abnormal-sample rate, staffing, and referral workflow.

3. What Sample Types Does the GHM XN3000 Support?

The product page lists whole blood, capillary whole blood, and prediluted modes. The required sample volume is not stated on the reviewed page.

Request the current technical specification and confirm the minimum volume, anticoagulant, tube compatibility, aspiration method, and pediatric sampling requirements.

4. What Is the Analyzer’s Throughput?

The GHM XN3000 3-part hematology analyzer processes up to 60 samples per hour under specified operating conditions.

Real-world throughput depends on sample quality, predilution, repeats, maintenance, abnormal flags, manual smear review, and result authorization.

5. Which Reagents and Consumables Are Required?

A typical three-part CBC workflow requires compatible diluent, lysing reagent, cleaner, hematology controls, calibrator, specimen tubes, printer paper, and maintenance materials.

Exact formulations and part numbers must be confirmed for the GHM XN3000. Reagents from another analyzer should not be substituted without documented compatibility and validation.

6. Does the 3-Part Hematology Analyzer Support LIS Connectivity?

The product page lists an HL7-compatible LAN connection, four USB ports, and one Ethernet port. It also supports peripherals such as a printer, keyboard, mouse, and barcode scanner.

Confirm message formats, bidirectional capability, interface licensing, middleware, and installation support before purchase.

7. Is the GHM XN3000 FDA Cleared, CE Marked, or ISO Certified?

The reviewed product page does not list FDA clearance, CE marking, or a specific ISO certificate. It states that a calibration certificate is included, but a calibration certificate is not equivalent to regulatory market authorization.

Request the manufacturer’s current declaration of conformity, product registration, intended-use statement, labeling, and quality-system documents. The FDA overview of IVD regulation explains that IVD instruments are subject to market-specific premarket and postmarket requirements.

8. What Is the GHM XN3000 Hematology Analyzer Price?

The product page currently lists the GHM XN3000 at US$2,700. Shipping, taxes, customs charges, installation, reagents, controls, and optional accessories may not be included.

Request a formal quotation because pricing and availability can change.

9. What Are the Delivery Time and Warranty?

The product page states an estimated delivery period of approximately 7–30 days, depending on order quantity and requirements. It also lists a one-year warranty.

Buyers should request written confirmation of warranty coverage, exclusions, response time, remote support, replacement parts, and international service arrangements.

10. Can International Distributors Purchase in Bulk?

International hospitals and distributors can request quotations based on quantity and destination. Provide the destination country, required units, power requirements, documentation needs, consumable quantities, training expectations, and preferred shipping terms.

Regulatory eligibility should be confirmed before import or resale.

Supporting Consumables and Matching Devices for a 3-Part Hematology Analyzer

A sustainable hematology service requires more than the analyzer. Reagents, controls, calibrators, cleaning supplies, sample materials, printer supplies, and technical support should be included in the procurement plan.

Hematology Reagents

The GHM XN3000 requires compatible diluent and lysing reagent for cell counting and hemoglobin measurement. A designated cleaner may also be required for probe, tubing, and aperture maintenance.

Ask for reagent pack sizes, onboard stability, storage temperature, expiration period, estimated consumption per test, hazardous-material classification, and local supply lead time.

Controls and Calibrators

Hematology controls help monitor analytical stability, while calibrators establish or verify measurement relationships. Buyers should confirm the compatible product codes and recommended testing frequency.

Controls and calibrators should be managed under the laboratory’s lot-tracking, temperature-monitoring, acceptance, and inventory procedures.

General Laboratory Supplies

EDTA collection tubes, sample racks, printer paper, cleaning materials, gloves, and other routine supplies may be sourced through the laboratory consumables collection.

The diagnostic consumables collection provides additional testing supplies. Compatibility with the GHM XN3000 must be confirmed before ordering.

Comparable Three-Part CBC Systems

Purchasers can compare the GHM XN3000 with this 21-parameter 3-part blood cell counter. Compare sample volume, throughput, storage capacity, LIS functionality, reagent consumption, maintenance, warranty, and service availability.

The broader hematology analyzer collection includes systems for different laboratory volumes and budgets.

Five-Part Hematology Upgrade Options

Laboratories requiring separate neutrophil, monocyte, eosinophil, and basophil reporting may consider the GHM-5000 five-part hematology analyzer.

The decision should be based on clinical requirements, abnormal-sample frequency, reagent cost, staffing, microscopy capacity, and the total cost per reportable result.

For hospitals, clinics, diagnostic centers, and distributors evaluating an automated CBC platform, the GHM XN3000 3-part hematology analyzer combines 21 parameters, three histograms, throughput of up to 60 samples per hour, touchscreen operation, and LIS-ready connectivity. Confirm reagent availability and destination-market documentation, then request a quote for the analyzer, consumables, shipping, training, and support package.
