GHM X40 Anaesthetic Workstation | Anesthesia Machine Guide

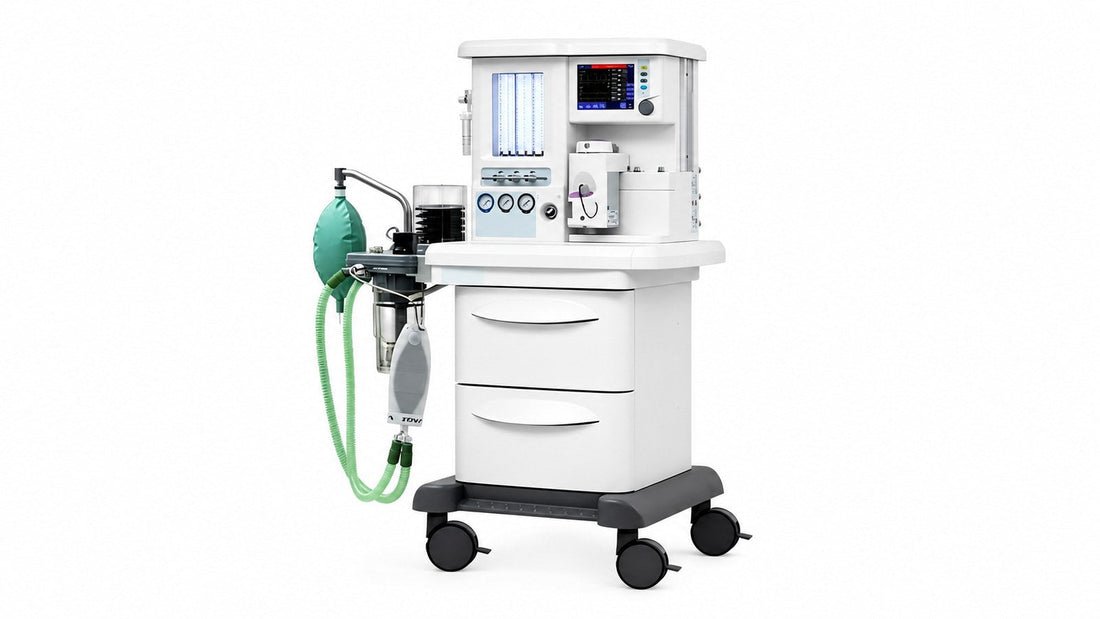

The GHM X40 Anaesthetic Workstation is designed for healthcare facilities seeking a compact, versatile anesthesia platform for operating rooms, intensive care environments, ambulatory surgical centers, and veterinary applications. It combines an 8.4-inch touchscreen interface, a wide tidal-volume range, multiple ventilation modes, electronic PEEP control, and an integrated breathing circuit in a mobile workstation format.

This overview highlights the X40's key functions and the practical questions procurement teams should review when evaluating an anesthesia machine for neonatal, pediatric, or adult use.

Clinical and Workflow Highlights

• Wide tidal-volume range: settings from 10 mL to 1600 mL support a broad range of patient sizes and clinical scenarios.
• 8.4-inch touchscreen: a clear graphical interface provides access to ventilation settings, waveforms, monitored parameters, and alarm information.
• Dual-side flow sampling: the front-end variable-orifice flow sensor measures inspiratory and expiratory flow to support responsive ventilation monitoring.
• Electronic PEEP control: an active expiratory valve supports precise pressure adjustment and lung-protective ventilation strategies.
• Integrated breathing circuit: the heated CO2 absorber assembly is designed to reduce condensation and simplify routine handling.
• Flexible gas delivery: auxiliary oxygen delivery and an optional ACGO configuration help accommodate different operating workflows.
• Built-in battery: backup power helps maintain operation during temporary power interruptions or approved intra-facility movement.

Ventilation Modes

The standard X40 configuration supports commonly used ventilation modes:

• VCV - Volume Controlled Ventilation
• PCV - Pressure Controlled Ventilation
• SIMV-V - Synchronized Intermittent Mandatory Ventilation, volume controlled
• Sigh, manual, and standby modes

Depending on the selected configuration, optional functions may include SIMV-P, SPONT/PSV, backup ventilation, and ACGO. Buyers should confirm the required modes and options on the final quotation because configurations can vary by market and project.

Key Technical Specifications

Parameter	Specification
Display	8.4-inch color touchscreen
Tidal volume	10-1600 mL
Flow measurement	Front-end variable-orifice sensor with inspiratory and expiratory sampling
PEEP control	Electronically controlled active expiratory valve
CO2 absorption circuit	Integrated heated assembly with bypass design
Patient range	Neonatal, pediatric, and adult, subject to selected configuration
Power support	Built-in backup battery
Available documentation	CE, ISO 13485, and applicable market documentation should be confirmed before purchase

Where the X40 Can Be Used

The workstation is suitable for procurement consideration in hospital operating rooms, intensive care and emergency support environments, ambulatory surgical centers, teaching facilities, and veterinary hospitals. Suitability for a specific procedure depends on the chosen configuration, local regulations, facility gas supply, accessories, and the clinical team's requirements.

What Overseas Buyers Should Confirm

Before ordering an anesthesia workstation, request a written configuration sheet covering the following points:

1. Required ventilation modes and patient categories
2. Gas source and pipeline connection standards for the destination country
3. Vaporizer type, mounting system, and agent compatibility
4. Included monitoring modules, sensors, breathing circuits, and accessories
5. Power voltage, plug type, battery specification, and installation requirements
6. Language options for the interface and operating documentation
7. Regulatory documents, warranty terms, training, spare parts, and after-sales support
8. Packing dimensions, lead time, shipping method, and import requirements

Why Source Through Global Healthcare Medical

Global Healthcare Medical supports international hospitals, clinics, distributors, and project buyers with product selection, configuration confirmation, export documentation, shipping coordination, and after-sales communication. Our team can help compare anesthesia workstation options according to patient range, ventilation requirements, budget, and destination-market needs.

Need a quotation or configuration recommendation? Contact our medical equipment team with your destination country, intended application, required quantity, and preferred specifications. You can also browse our medical equipment catalog for related operating-room and patient-care solutions.

Product specifications and available options may change. Final configuration, certification, accessories, and clinical suitability must be confirmed in the official quotation and technical documents before purchase.
