How to Choose the Right MRI System for Your Medical Facility: 9 Factors That Matter

Choosing an MRI system is a long-term clinical and operational decision. The right scanner should support your expected examinations, patient population, available space, staffing model, and budget—not simply offer the highest field strength or the longest list of features.

Before requesting a quotation, your procurement team should define which examinations the facility plans to perform, how many patients it expects to scan, and what infrastructure is already available. You can then compare MRI systems on clinical capability, installation requirements, workflow, patient accessibility, safety planning, service coverage, and total cost of ownership.

This guide explains how to choose an MRI system using a practical framework for hospitals, diagnostic centers, outpatient clinics, orthopedic facilities, and other medical imaging providers.

Important: MRI system selection, installation, and clinical use should be reviewed by qualified radiologists, medical physicists, MRI technologists, facility engineers, and the relevant regulatory authorities in your market.

1. Start with Your Clinical Requirements

The first step in MRI machine selection is to define the examinations your facility expects to perform. Avoid selecting a scanner based only on headline specifications.

Create a projected examination mix covering areas such as:

• Brain and spine imaging
• Musculoskeletal and orthopedic examinations
• Abdominal and pelvic imaging
• Vascular imaging
• Cardiac applications
• Pediatric or geriatric imaging
• Whole-body or advanced functional applications

A specialist hospital performing complex neurological, abdominal, or cardiac studies may have different requirements from an orthopedic clinic focused mainly on joints and spine examinations.

Ask your radiologists and technologists to identify the required sequences, coils, post-processing tools, software packages, and expected image reconstruction capabilities. These requirements should become part of the written equipment specification supplied to potential vendors.

Questions to ask your clinical team

• Which examinations will represent most of the scan volume?
• Which applications are required at launch?
• Which applications may be added during the next three to five years?
• Are dedicated coils needed for specific anatomy?
• Will the facility perform contrast-enhanced examinations?
• Does the system need to support advanced cardiac, vascular, diffusion, or whole-body workflows?

This process prevents the facility from paying for functions it may not use—or selecting a configuration that cannot support future clinical plans.

2. Compare MRI Field Strength in Context

MRI field strength is measured in Tesla. It influences signal performance, imaging protocols, scan workflow, system design, and infrastructure requirements. However, field strength alone does not determine whether a scanner is appropriate for your facility.

Low-field permanent MRI systems

Permanent magnet systems, such as a 0.3T MRI system, may suit clinics with defined routine applications, limited space, or tighter operating budgets.

The referenced 0.3T configuration lists a permanent magnet, four-channel RF system, 28 mT/m gradients, a motor-driven patient table, and a cryogen-free design. These specifications should still be evaluated against your required protocols, projected workload, and local regulatory requirements.

Potential considerations include:

• Lower infrastructure and power requirements
• No liquid-helium refill requirement
• A more accessible capital-cost category
• Suitability for selected routine or specialty workflows
• Possible limitations for examinations that require higher signal performance or advanced applications

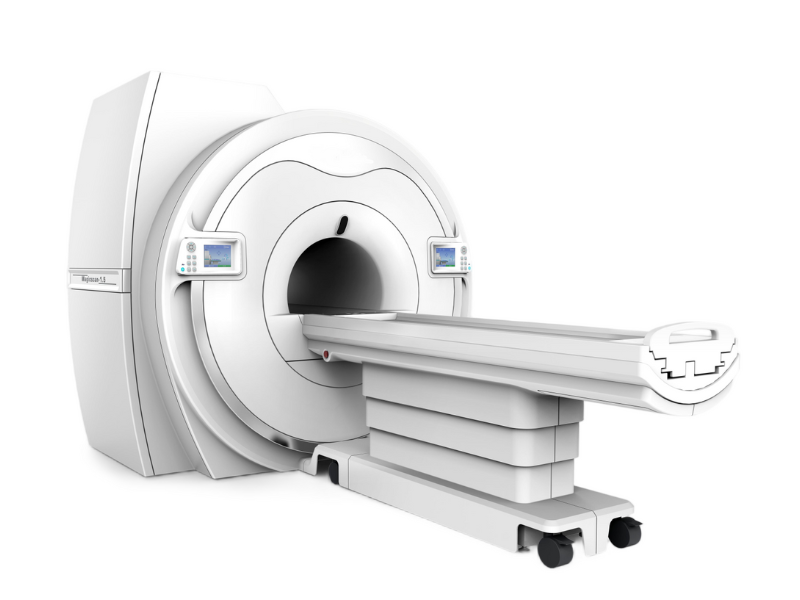

1.5T superconducting MRI systems

A 1.5T scanner is often considered for broader clinical workloads. Depending on its coil, gradient, software, and channel configuration, it may support routine imaging as well as more demanding applications.

For example, the referenced 1.5T MRI-SC system lists 36 mT/m gradients, 16- or 32-channel configuration options, parallel acquisition technology, workflow assistance, motion-correction functions, and zero-boil-off helium technology.

A 1.5T system may be relevant when a facility requires:

• A wider range of examination types
• Higher-volume imaging workflows
• Advanced clinical software
• Multiple coil configurations
• Faster acquisition or reconstruction options
• Greater flexibility for future service development

Do not assume that every 1.5T scanner provides the same clinical performance. Compare the complete system configuration, including coils, channels, gradient performance, sequences, reconstruction tools, and licensed applications.

3. Evaluate Magnet and Cooling Technology

Magnet technology affects installation planning, maintenance, energy use, and operational risk.

Permanent magnet MRI systems do not depend on liquid helium. Conventional superconducting systems may use helium with different boil-off and refill requirements. Some newer superconducting designs use very low-helium or helium-free cooling architectures.

The referenced 1.5T MRI-HMF system lists a zero-liquid-helium conduction-cooling design and states that no quench pipe is required. These points may simplify some site-planning considerations, but the final installation requirements must be confirmed through the manufacturer’s site-planning documents and local building regulations.

When comparing cooling designs, ask vendors to document:

• Initial helium volume, if applicable
• Expected refill requirements
• Cold-head maintenance requirements
• Behavior during power interruptions
• Magnet recovery procedures
• Quench-management requirements
• Cooling-system warranty coverage
• Availability of trained local service engineers

A lower-maintenance cooling design may reduce certain operating burdens, but it should be considered alongside acquisition cost, service response, parts availability, and the facility’s electrical reliability.

4. Confirm MRI Installation Requirements Before Purchase

An MRI scanner cannot be evaluated separately from the building that will contain it. Site limitations can change the total project cost and installation schedule.

Your facility team should conduct a site survey covering:

• Minimum scan-room dimensions
• Equipment delivery path
• Floor loading
• Ceiling height
• Electrical capacity
• Cooling and ventilation
• RF shielding
• Magnetic shielding, where required
• Equipment and control rooms
• Emergency access
• Quench pipe requirements, when applicable
• The location of the controlled magnetic field

A product page may provide a minimum room size, but that figure is not a complete architectural plan. The scan room must also accommodate the patient table, service clearances, coils, accessories, staff movement, emergency procedures, and applicable safety zones.

Before signing a purchase agreement, request a written site-planning package and have it reviewed by an experienced MRI planner, engineer, medical physicist, and local authority.

5. Plan MRI Safety into the Facility

MRI does not use ionizing radiation, but the MR environment introduces hazards related to the static magnetic field, changing gradient fields, radiofrequency energy, acoustic noise, implants, and ferromagnetic objects.

The U.S. Food and Drug Administration emphasizes careful screening of people and objects entering the MR environment. It also notes potential risks involving projectiles, heating, hearing, implants, and external medical devices.

A facility should therefore evaluate more than the scanner itself. Its MRI safety program may need:

• Controlled access and appropriate safety zoning
• Patient, visitor, and staff screening procedures
• Implant and device verification procedures
• Ferromagnetic detection policies
• Hearing protection
• MR-compatible monitoring and emergency equipment
• Staff training and recurring safety reviews
• Emergency shutdown and evacuation procedures
• Clearly assigned MRI safety responsibilities

The ACR MR Safety Resources provide additional guidance for planning and operating an MR environment.

Safety requirements should be included in the project budget from the beginning rather than added after equipment installation.

6. Examine Workflow and Patient Throughput

A vendor’s theoretical throughput figure does not automatically reflect real operating capacity. Actual throughput depends on patient preparation, protocol length, positioning, coil changes, contrast administration, cleaning, image review, and unexpected delays.

Estimate capacity using your expected case mix:

1. Calculate the average room time for each examination category.
2. Add time for screening, positioning, cleaning, and changeover.
3. Account for patients who require additional assistance.
4. Include planned maintenance and quality-control time.
5. Model both typical and peak daily demand.

Workflow-related features may include guided positioning, protocol management, automated planning, parallel acquisition, motion correction, image reconstruction, and integration with existing information systems.

Ask for a demonstration using representative examinations. A real workflow demonstration is more useful than comparing feature names because similar terms may describe different capabilities across vendors.

7. Consider Patient Accessibility and Experience

Patient experience can affect motion, examination completion, scheduling, and staff workload.

Evaluate:

• Bore diameter and magnet length
• Patient-table width and weight limit
• Table access height
• Acoustic noise management
• Ventilation and lighting
• Patient communication system
• Positioning aids
• Support for children, elderly patients, and patients with limited mobility
• Procedures for patients who experience claustrophobia

An open or low-field design may feel more accessible for some patients, but it may not support every examination required by the facility. Conversely, a higher-field system with appropriate comfort features and shorter protocols may work well for other patient groups.

The best choice depends on the relationship between patient population, clinical coverage, and workflow—not one specification in isolation.

8. Review Coils, Software, and System Integration

The base scanner price may not include every coil or software package required for your planned services. Request a line-by-line configuration list.

RF coils

Confirm which coils are included and which are optional. Review:

• Anatomy coverage
• Number of coil elements
• Coil compatibility
• Simultaneous connection options
• Replacement cost
• Warranty terms
• Availability of local replacements

Clinical and workflow software

Identify which applications are included in the initial license. Ask whether software access is perpetual, subscription-based, or tied to a service agreement.

Also confirm whether future updates require additional fees.

PACS, RIS, and network integration

The system should be evaluated for compatibility with the facility’s existing workflow. Confirm requirements for:

• DICOM storage and transfer
• Modality worklists
• PACS and RIS connectivity
• Image export
• User access controls
• Network security
• Data backup
• Remote-service access

Remote support should follow the facility’s cybersecurity and access-control policies. Vendor convenience should not override patient-data protection requirements.

9. Calculate the Total Cost of Ownership

The purchase price is only one part of the MRI total cost of ownership. A lower initial quotation can become more expensive if installation, maintenance, downtime, software, or parts are excluded.

Build a cost model that includes:

Request clear definitions of warranty coverage, preventive maintenance, response time, parts availability, remote support, and escalation procedures.

For imported equipment, confirm who is responsible for customs documentation, installation permits, registration, and post-installation support in the destination country.

A Practical MRI System Selection Checklist

Before choosing an MRI system for your medical facility, confirm that you have:

• Defined the expected examination mix
• Estimated daily and annual patient volume
• Identified required coils and clinical software
• Compared complete configurations instead of field strength alone
• Completed a preliminary site survey
• Reviewed safety zoning and screening requirements
• Calculated installation and operating costs
• Verified PACS, RIS, DICOM, and network requirements
• Reviewed warranty and service terms
• Checked applicable regulatory documentation
• Requested a written delivery, installation, and training scope
• Consulted radiology, technical, safety, and facility stakeholders

Frequently Asked Questions

What MRI field strength is best for a medical facility?

There is no single field strength that is appropriate for every facility. The selection should reflect the planned examinations, patient volume, required image protocols, infrastructure, staffing, and budget. Compare the complete scanner configuration rather than relying only on its Tesla rating.

Is a low-field MRI suitable for a clinic?

A low-field system may be considered for clinics with a defined examination mix, appropriate radiologist approval, and limited infrastructure. The facility should verify that the available coils, sequences, image quality, and throughput meet its clinical requirements before purchase.

What should be included in an MRI quotation?

A detailed quotation should identify the scanner configuration, coils, software, workstation, accessories, delivery, installation, training, warranty, service coverage, lead time, and exclusions. Site-preparation and regulatory responsibilities should also be documented.

How much space does an MRI system require?

Space requirements vary by scanner and site conditions. In addition to the scan room, facilities may need a control room, equipment space, screening areas, safety zones, storage, patient preparation areas, and suitable delivery access. Always use the manufacturer’s site-planning documentation for the selected model.

What is the most important factor when choosing an MRI system?

The most important factor is alignment with the facility’s clinical and operational needs. A technically advanced scanner creates limited value if the facility cannot support its infrastructure, staffing, safety, service, or application requirements.

Conclusion

Learning how to choose an MRI system starts with clinical demand and ends with a verified implementation plan. Field strength matters, but so do coils, software, patient access, safety, workflow, service support, installation requirements, and lifecycle cost.

Before making a procurement decision, compare written configurations and ask suppliers to respond to the same clinical, technical, site, service, and commercial requirements.
