Veterinary Patient Monitoring & Life Support Equipment: Essential Tools for Animal Surgery and Critical Care

The Role of PMLS Equipment in Veterinary Practice

Patient monitoring and life support (PMLS) equipment encompasses the devices that sustain animal patients through anesthesia, surgery, and critical care. Unlike diagnostic imaging equipment that tells you what is happening inside the body, PMLS devices tell you how the patient is tolerating the procedure — tracking cardiac rhythm, blood pressure, oxygen saturation, body temperature, and medication delivery in real time.

Why Integrated PMLS Infrastructure Matters

A well-equipped veterinary practice needs monitoring, fluid delivery, surgical positioning, and illumination working together as a system:

• Pre-operative assessment: ECG and vital sign monitors establish baseline cardiac function and identify arrhythmias before anesthesia induction.

• Intra-operative monitoring: Continuous SpO₂, NIBP, and ECG tracking alert the surgical team to physiological deterioration during procedures.

• Fluid and drug delivery: Infusion and syringe pumps deliver precise medication doses — critical for anesthetic agents, analgesics, and emergency resuscitation drugs where dosing errors can be fatal.

• Surgical positioning: Operation tables provide stable, adjustable platforms that position patients correctly for specific procedures while protecting staff from ergonomic strain.

• Surgical illumination: Operating lights provide shadow-free, color-accurate visualization of the surgical field.

• Post-operative recovery: Vital sign monitors track patients through recovery, detecting early signs of complications.

Four Product Categories in the PMLS Collection

Category	Products	Price Range	Key Function
Monitoring & Diagnostics	3	$89 – Request Quote	Cardiac rhythm, vital signs, ovulation timing
Infusion & Syringe Pumps	5	$339 – $620	Precise fluid and drug delivery
Surgical Tables	5	$440 – $540	Patient positioning for surgery
Surgical Lighting & Endoscopy	3	$300 – $700	Illumination and endoscopic accessories

---

Patient Monitoring & Diagnostics

VE3 Handheld Veterinary ECG

Price: Request a Quote (free worldwide shipping included)

The VE3 is a handheld veterinary ECG designed for true mobility — a small, thin body with a 5-inch tilted screen that goes from exam room to house call to field without a cart. It features simultaneous 6-lead or 7-lead display, multi-species presets with automatic reference values, intelligent ECG analysis with abnormal parameter annotation, and 1,500+ case storage for paperless electronic medical records.

Key Specifications:

• Display: 5-inch tilted screen with grid background

• Lead Display: Simultaneous 6-lead or 7-lead

• Species Presets: Cat, puppy, small dog, medium dog, large dog (with automatic marking), equine + user-defined

• Analysis: Automatic ECG parameter measurement, abnormal parameter annotation, lead-off detection

• Storage: 1,500+ cases on-board

• Battery: Built-in rechargeable Li-ion — prints 500+ reports continuously

• Connectivity: Wired and wireless data transmission

• Export Formats: PDF, ZQECG, PNG, JPG, XML, HL7, DICOM-WAVEFORM, DICOM-IMAGE, DICOM-PDF, GDT

• Printing: Z-fold and roll thermal recording paper

• Languages: 17 supported

• Design: Small, thin, handheld — true portability

The VE3 stands out for its veterinary-specific species presets with automatic abnormal marking — pre-programmed accurate reference values for cats, puppies, and small/medium/large dogs eliminate manual reference checking. The 10 export formats including DICOM and HL7 enable seamless integration with hospital information systems and PACS, while the 1,500+ case storage supports paperless EMR workflows.

View Product Details →

GHM RNpet100N US Veterinary Handheld Vital Sign Monitor

Price: $499.00

The GHM RNpet100N US consolidates four core monitoring parameters — NIBP, SpO₂, pulse rate (PR), and body temperature (TEMP) — into a single 250g handheld device. With SPOT mode for rapid single readings and Monitor mode for continuous tracking, it supports both triage and ongoing patient surveillance. The blood pressure algorithm was specifically developed for different animals by veterinary experts, with URYNCARE motion-tolerant technology ensuring a high success rate for BP readings across species.

Key Specifications:

• Parameters: NIBP, SpO₂, PR (pulse rate), TEMP (body temperature), PI (Perfusion Index during SpO₂)

• NIBP — Large Animals: SYS 40–270 / MEAN 20–230 / DIA 10–210 mmHg

• NIBP — Small Animals: SYS 40–200 / MEAN 20–165 / DIA 10–150 mmHg

• NIBP Accuracy: ±3 mmHg

• Pulse Rate: 40–240 bpm; accuracy ≤2%

• SpO₂ Range: 0–100% (large animals ±2%, small animals ±3%)

• Temperature: 25–45°C; resolution 0.1°C; accuracy 0.1°C

• Display: 3.5-inch color TFT, 320×480

• Dimensions: 146 × 67 × 30 mm

• Weight: Approximately 250g

• Battery: Rechargeable lithium, up to 8 hours operation

• Charging Time: 4 hours

• Measurement Modes: SPOT mode (100 patient IDs, 200 data sets each), Monitor mode (48 hours continuous)

• Alarms: Configurable audible and visual alarm limits

• Connectivity: Wi-Fi support for optional data transfer

• Species: Dogs, cats, select large animals

• Certifications: ISO 13485, CE

The RNpet100N US is one of the few handheld monitors that provides separate NIBP ranges for large and small animals — reflecting the physiological differences between species that human-grade monitors cannot accommodate. The 250g weight and 8-hour battery make it ideal for mobile veterinary care, emergency response, and multi-department use.

View Product Details →

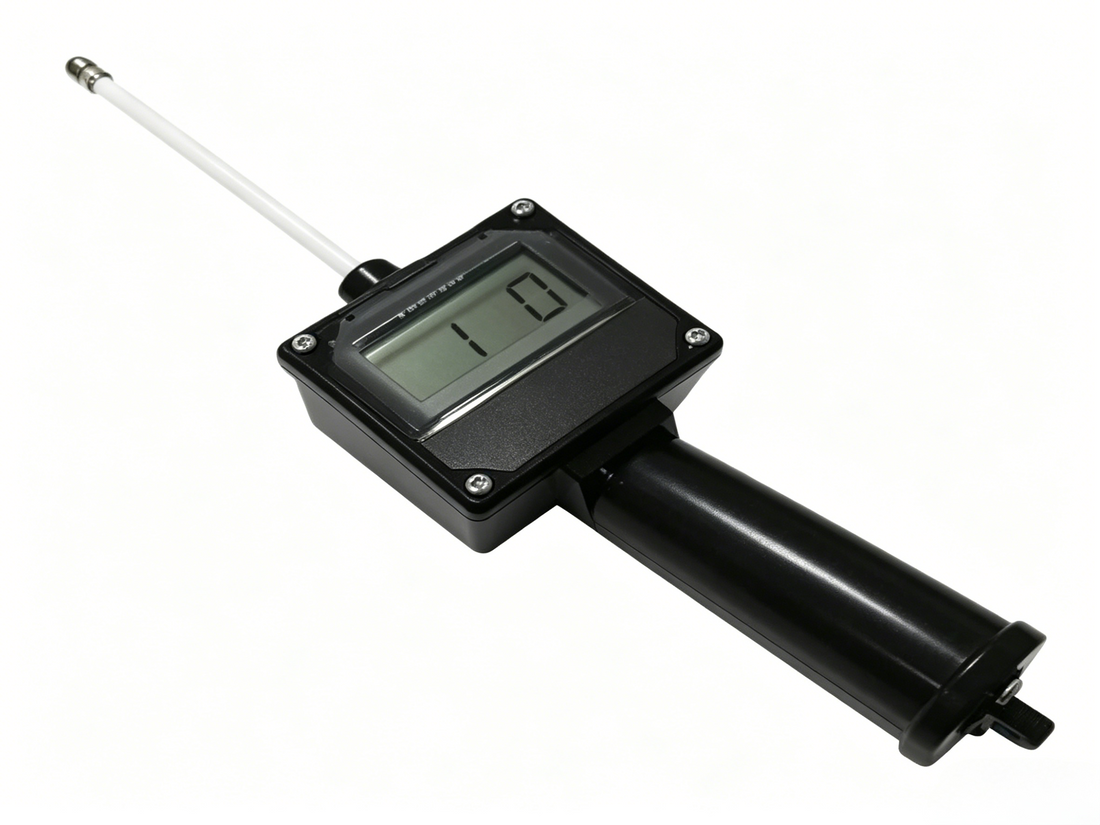

GHM Dog Ovulation Detector

Price: $89.00

The GHM Dog Ovulation Detector is a compact, handheld device specifically designed for canine estrus detection — helping breeders and veterinarians identify optimal breeding timing with one-touch automatic testing and results within 3 seconds. At just $89, it is the most affordable product in the PMLS collection and an essential tool for canine breeding programs.

Key Specifications:

• Price: $89.00

• Testing: Fully automatic, one-touch operation

• Result Time: Within 3 seconds

• Display: 2.6-inch LCD screen

• Measuring Range: 10–1990

• Power Consumption: 15mA input — battery-friendly

• Working Temperature: 0–50°C

• Humidity Tolerance: Up to 85%

• Design: Portable, handheld, pocket-sized

• Species: Dogs (canine-specific)

• Application: Estrus detection, optimal breeding timing

For breeding kennels, veterinary reproduction specialists, and mobile breeding services, this $89 device delivers rapid return on investment by improving conception rates through precise timing of artificial insemination or natural breeding.

View Product Details →

---

Infusion & Syringe Pumps

GHM Veterinary Infusion Pump

Price: $339.00

The GHM Veterinary Infusion Pump delivers precise fluid and medication administration across a 0.1–1200 ml/h flow range, with ±5% accuracy and four infusion modes. At just 1.4 kg, it is one of the most compact veterinary infusion pumps available, with an IP×3 water-resistant rating for clinical environments.

Key Specifications:

• Price: $339.00

• Flow Rate Range: 0.1–1200 ml/h

• Accuracy: ±5%

• Infusion Modes: Rate mode, drip mode, time mode, body weight mode

• KVO Rate: 1–5 ml/h (keeps vein open)

• Bolus Rate: 300–1200 ml/h (rapid delivery)

• Purge Rate: 600 ml/h

• Compatibility: Works with various brands of standard infusion sets

• Display: Large color LCD

• Dimensions: 145 × 100 × 120 mm

• Weight: 1.4 kg

• Power Consumption: 25VA

• Water Resistance: IP×3 rated

• Operation: Quiet and reliable — keeps patients calm

The four infusion modes provide clinical flexibility: rate mode for continuous delivery, drip mode for gravity-set integration, time mode for target-volume calculations, and body weight mode for weight-based dosing.

View Product Details →

GHM Veterinary Syringe Pump

Price: $499.00

The GHM Veterinary Syringe Pump delivers high-precision drug administration with ±2% accuracy — critical for potent veterinary medications where dosing errors can be dangerous. It supports 5 ml, 10 ml, 20 ml, 30 ml, 50 ml, and 60 ml syringes from various brands, with variable bolus rates scaled by syringe size and five infusion modes including an optional drug library.

Key Specifications:

• Price: $499.00

• Flow Rate Range: 0.1–1200 ml/h

• Accuracy: ±2% (higher than the infusion pump's ±5%)

• Syringe Compatibility: 5 ml, 10 ml, 20 ml, 30 ml, 50 ml, 60 ml (various brands)

• Infusion Modes: Rate, time, body weight, intermittent infusion, optional drug library

• KVO Rate: 0.1–2 ml/h (default 0.1 ml/h)

• Bolus Rates (by syringe size): 5ml: 100–150 ml/h; 10ml: 100–300 ml/h; 20ml: 100–600 ml/h; 30ml: 100–900 ml/h; 50/60ml: 100–1500 ml/h

• Optional Features: Nurse call interface, wireless monitoring system

• Display: Large color LCD

• Dimensions: 300 × 130 × 125 mm

• Weight: 1.8 kg

• Power Consumption: 25VA

• Water Resistance: IP×3 rated

The ±2% accuracy is the key differentiator from the infusion pump (±5%) — syringe pumps are the choice for delivering concentrated, potent medications like anesthetics, analgesics, and insulin where precision is paramount.

View Product Details →

---

Surgical Tables & Operating Room Equipment

Veterinary Use Operation Table GHM-F01

Price: $440.00

The GHM-F01 is a veterinary operation table designed for animal surgical positioning — providing a stable, adjustable platform for procedures ranging from routine spay/neuter to orthopedic surgery. At $440, it is the most affordable operation table in the collection.

View Product Details →

GHM-D200A Deep Irradiation Surgical Light

Price: $620.00

The GHM-D200A is a deep irradiation surgical light designed for veterinary operating rooms — providing shadow-free, color-accurate illumination of the surgical field. Deep irradiation technology ensures light penetration into deep surgical cavities, allowing clear visualization of tissue layers, vessels, and anatomical structures during procedures.

View Product Details →

GHM-10 Gastroscope Light Cord

Price: $300.00

The GHM-10 Gastroscope Light Cord is a fiber optic light guide that connects a light source to a veterinary gastroscope, transmitting high-intensity illumination for endoscopic examination of the gastrointestinal tract.

View Product Details →

---

Additional PMLS Products

Beyond the eight core products detailed above, Global Healthcare Medical offers eight additional PMLS products:

• Veterinary Use Operation Table GHM-XP02 — $460.00

• Veterinary Use Operation Table GHM-F02 — $480.00

• Veterinary Use Operation Table GHM-XZ-02 — $520.00

• Veterinary Infusion Pump GHM-112 — $540.00

• Veterinary Syringe Pump GHM-112 — $540.00

• Veterinary Use Operation Table GHM-XP01 — $540.00

• Veterinary Use Infusion Pump GHM-P30 — $620.00

• GHM-10 Trolley for Gastroscope — $700.00

---

Choosing the Right PMLS Equipment for Your Practice

Practice Type to Product Matching

Practice Type	Monitoring	Fluid Delivery	Surgical	Endoscopy
Small Animal Clinic	VE3 ECG + RNpet100N ($499)	Infusion Pump (339) + Syringe Pump (499)	Operation Table F01 (440) + Surgical Light D200A (620)	—
Breeding / Reproduction	Dog Ovulation Detector ($89)	—	—	—
Surgical Practice	RNpet100N (intra-op monitoring)	Syringe Pump ($499, ±2%)	Operation Table + Surgical Light ($620)	—
Emergency / Critical Care	VE3 ECG + RNpet100N (8hr battery)	Syringe Pump (bolus rates)	—	—
Mobile / Ambulatory	VE3 ECG (handheld) + RNpet100N (250g)	Infusion Pump ($339, 1.4kg)	—	—
Endoscopy Practice	—	—	—	Light Cord (300) + Trolley (700)
Equine / Large Animal	VE3 ECG (equine presets)	Syringe Pump (50/60ml syringes)	—	—

Infusion Pump vs. Syringe Pump: When to Choose Which

Factor	Infusion Pump ($339)	Syringe Pump ($499)
Accuracy	±5%	±2%
Best for	Crystalloids, fluids, routine IV therapy	Concentrated drugs, anesthetics, analgesics
Delivery Volume	Large volumes (bags)	Small volumes (syringes)
Flow Range	0.1–1200 ml/h	0.1–1200 ml/h (up to 1500 ml/h bolus)
Weight	1.4 kg	1.8 kg
Key Feature	Universal infusion set compatibility	Universal syringe compatibility (5–60ml)
Clinical Scenario	Post-op fluids, maintenance hydration	Intra-op anesthetic delivery, ICU drug infusion

Recommendation: Most surgical practices need both — the infusion pump for fluid maintenance and the syringe pump for precise drug delivery. If budget allows only one, choose based on your case mix: fluid-heavy practices benefit from the infusion pump, while drug-heavy practices need the syringe pump's ±2% accuracy.

Building a PMLS Budget by Practice Scale

Entry-Level Surgical Suite (Small Animal Clinic):

• Operation Table GHM-F01: $440

• GHM Veterinary Infusion Pump: $339

• GHM RNpet100N Vital Sign Monitor: $499

• GHM-D200A Surgical Light: $620

• Total: $1,898

Mid-Range Surgical Practice:

• Entry-level setup + GHM Veterinary Syringe Pump ($499) + VE3 ECG (Request Quote)

Complete PMLS Infrastructure:

• All monitoring, fluid delivery, surgical, and endoscopy products

• Range: 89–700 per item

---

FAQ

What is veterinary PMLS equipment?

PMLS stands for Patient Monitor and Life Support — the category of veterinary equipment that monitors animal patients' physiological parameters (ECG, blood pressure, SpO₂, temperature) and delivers life-sustaining therapies (fluids, medications) during surgery, anesthesia, and critical care. Global Healthcare Medical's PMLS collection includes 16 products across monitoring, infusion/syringe pumps, surgical tables, and operating room lighting.

What parameters does the GHM RNpet100N vital sign monitor measure?

The GHM RNpet100N US measures four vital sign parameters: non-invasive blood pressure (NIBP), pulse oxygen saturation (SpO₂), pulse rate (PR), and body temperature (TEMP). It also displays Perfusion Index (PI) during SpO₂ measurement. The device provides separate NIBP ranges for large animals (SYS 40–270 mmHg) and small animals (SYS 40–200 mmHg), reflecting species-specific physiological differences.

What is the difference between the GHM Veterinary Infusion Pump and Syringe Pump?

The Infusion Pump (339) delivers fluids from IV bags with ±5% accuracy and is suited for crystalloids and maintenance fluids. The Syringe Pump (499) delivers from syringes (5–60ml) with ±2% accuracy — the higher precision is critical for concentrated drugs like anesthetics and analgesics. Both cover a 0.1–1200 ml/h flow range. Most surgical practices benefit from having both.

What species does the VE3 Handheld Veterinary ECG support?

The VE3 comes with pre-programmed accurate measurement reference values for cats, puppies, small dogs, medium dogs, and large dogs — with automatic abnormal marking. For equines and other species, parameters can be user-defined and saved. The device supports 17 languages and stores over 1,500 electronic medical records on-board.

How much does veterinary PMLS equipment cost?

The PMLS collection ranges from $89 for the GHM Dog Ovulation Detector to $700 for the GHM-10 Gastroscope Trolley. Infusion pumps start at $339, syringe pumps at $499, operation tables at $440, surgical lights at $620, and the handheld vital sign monitor is $499. An entry-level surgical suite can be assembled for approximately $1,898.

How long does the RNpet100N battery last?

The GHM RNpet100N US features a rechargeable lithium battery that supports up to 8 hours of normal operation on a 4-hour charge. In Monitor mode, it can continuously record up to 48 hours of measurement data. In SPOT mode, it supports 100 patient IDs with 200 data sets per patient.

Does Global Healthcare Medical offer free shipping on PMLS equipment?

Yes. Global Healthcare Medical includes free worldwide shipping in the displayed prices for all PMLS products.

What operation table models are available?

Five operation table models: GHM-F01 (440), GHM-XP02 (460), GHM-F02 (480), GHM-XZ-02 (520), and GHM-XP01 ($540). The models differ in features such as table dimensions, height adjustment range, tilt mechanism, and construction material.

---

Equip Your Practice with Complete PMLS Infrastructure

From the $89 GHM Dog Ovulation Detector for breeding programs, to the VE3 Handheld ECG with 17 languages and DICOM export for multi-species cardiac diagnostics, to the ±2% accuracy Syringe Pump for precise drug delivery, Global Healthcare Medical's 16-product PMLS collection provides the monitoring, fluid delivery, surgical, and endoscopy equipment that veterinary practices need to keep patients safe through every stage of care. With free worldwide shipping included and prices from $89 to $700, you can build a PMLS infrastructure scaled to your practice — from an entry-level surgical suite at $1,898 to a comprehensive monitoring and life support system.

Shop the Full PMLS Collection →

---

All prices include free worldwide shipping. Products are intended for professional veterinary use by qualified veterinary professionals. Contact Global Healthcare Medical for configuration details, specifications, and current availability before ordering.
