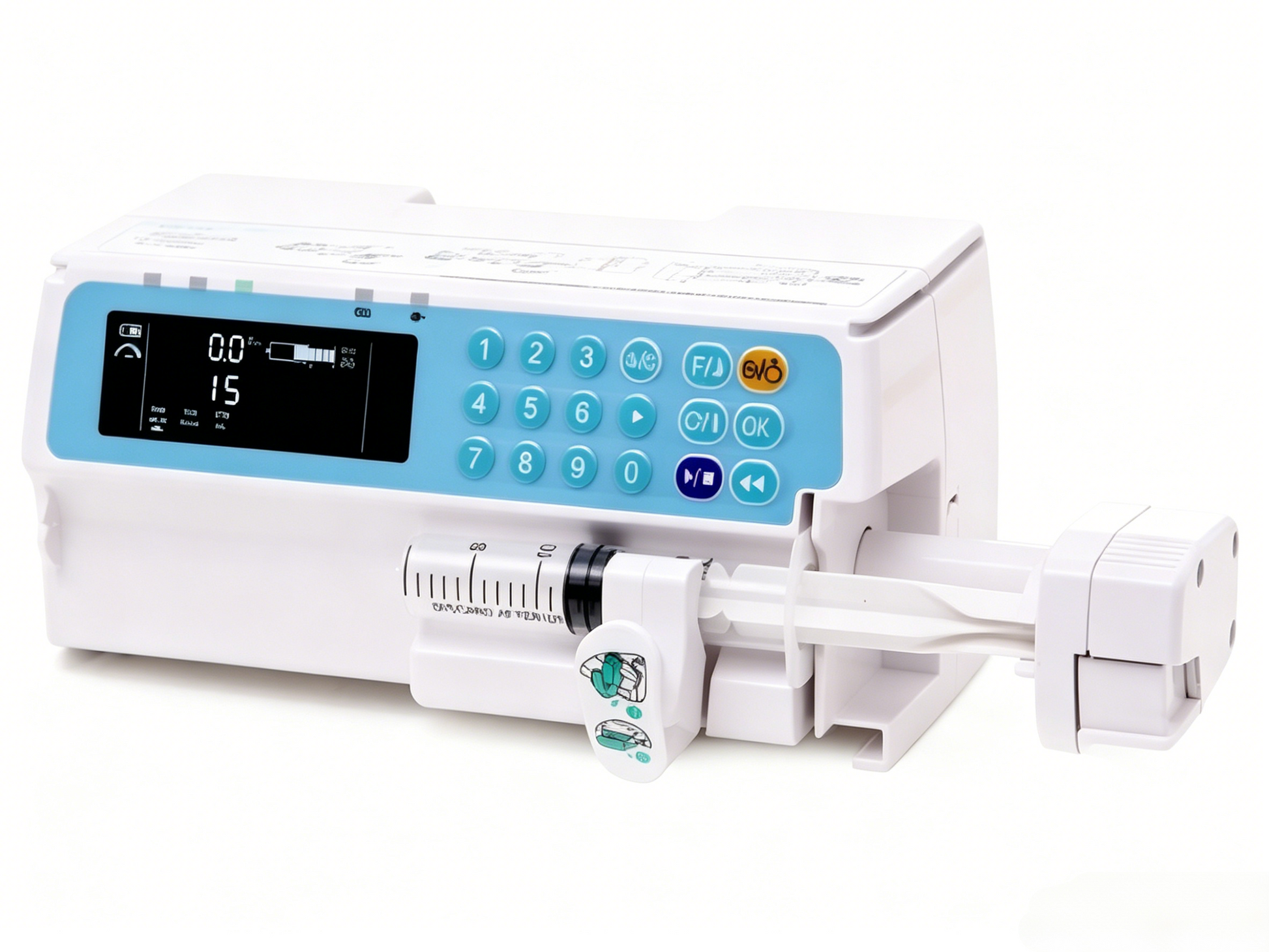

GHM Veterinary Syringe Pump #

Key Features

• Large Color LCD Display
  Clear, easy-to-read colorful screen shows real-time infusion parameters for confident monitoring.

• Wide Infusion Rate Range
  Adjustable from 0.1 ml/h to 1200 ml/h, suitable for precise drug delivery in small and large animals.

• High Accuracy
  Accuracy of ±2% ensures reliable medication administration, critical for potent veterinary drugs.

• Universal Syringe Compatibility
  Works with various brands of sterile syringes in sizes: 5 ml, 10 ml, 20 ml, 50 ml, and 60 ml.

• Multiple Infusion Modes
  Supports rate mode, time mode, body weight mode, intermittent infusion mode, and optional drug library mode – flexible for different clinical needs.

• Adjustable KVO Rate
  Keep-vein-open rate adjustable from 0.1–2 ml/h (default 0.1 ml/h) to prevent venous occlusion.

• Variable Bolus Rates by Syringe Size

• 5 ml syringe: 100–150 ml/h

• 10 ml syringe: 100–300 ml/h

• 20 ml syringe: 100–600 ml/h

• 30 ml syringe: 100–900 ml/h

• 50/60 ml syringe: 100–1500 ml/h

• Optional Nurse Call Interface
  Can be integrated with nurse call systems for enhanced patient safety.

• Optional Wireless Monitoring
  Wireless monitoring system available for remote observation and data logging.

• Water-Resistant Design
  Rated IP×3, protecting against splashing water in clinical environments.

• Low Power Consumption
  Operates at 25VA, energy-efficient for long-term continuous use.

• Compact & Lightweight
  Weighs only 1.8 kg with dimensions of 300×130×125 mm – easy to mount on IV poles and transport.
