11. H30 Vet 3-Part Veterinary Hematology Analyzer (1)

Specifications

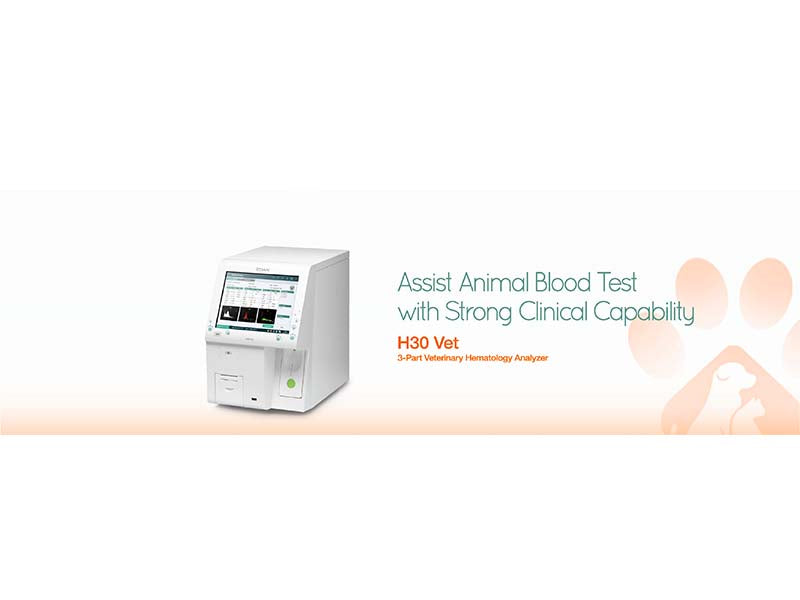

Cost-effective 3-part Hematology Analyzer H30

The H30 is powered by leading-edge technology with mature technical platform, adopting the new user-centered design philosophy, adopting the new user-centered design philosophy. This 3-part differential automated hematology analyzer brings along higher stability and reduced maintenance cost-ideal for those looking for cost-effective solution with no comprise on quality.

Cost-effective 3-part Hematology Analyzer H30

CBC+3-DIFF, 20 parameters+3 histograms
 Throughput: 60 samples per hour
 9.6 uL whole blood sampling
 Intuitive operation system with 10.4 inch TFT touch screen
 Direct current voltage under safety limit (24V)
 Open vial sampling
 35,000 results storage with histograms

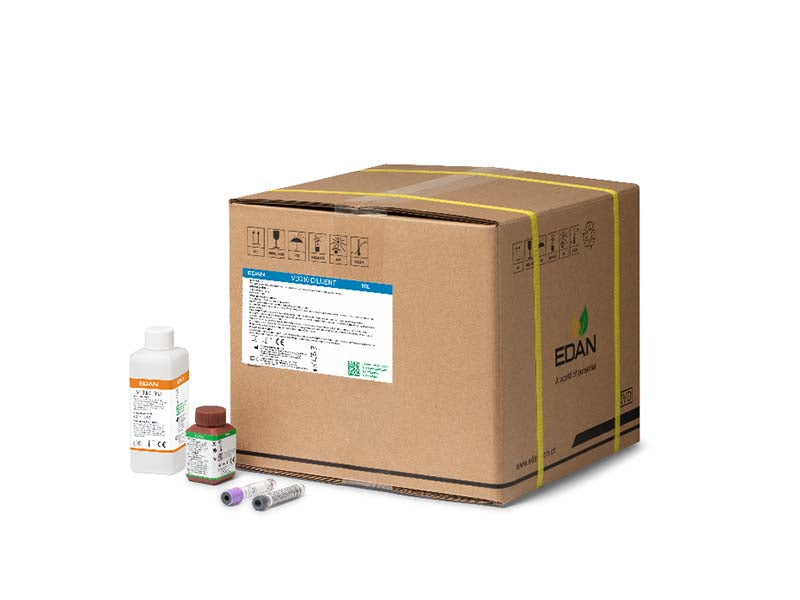

 3 routine reagents: Diluent, Lyse and Cleaner
 Low reagent consumption
Cost-effective 3-part Hematology Analyzer H30

Specifications

Parameters

20 parameters: WBC, LYM%, MID%, GRA%, LYM#, MID#, GRA#, RBC, HGB, HCT, MCV, MCH,

MCHC, RDW, RDW-SD, PLT, MPV, PDW, PCT, P-LCR

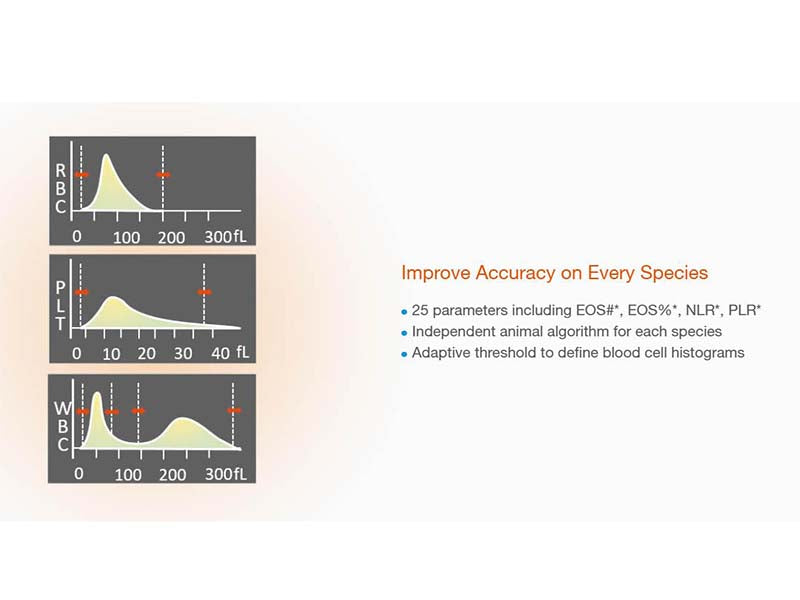

Histograms: WBC (3-Diff), RBC and PLT

Principles

Electrical impedance method for cell counting and cyanide free lyse for hemoglobin measurement

Throughput

60 samples per hour

Sample Volume

9.6μL for whole blood mode ; 20μL for predilution mode

Display

10.4 inch TFT color touch screen

interface

5 x USB Port, LAN

Operating Environment

Temperature: 18°C~32°C ; Humidity: ≤80% ; Air pressure: 70 kPa~106 kPa

Input Device

Built-in virtual keyboard and external barcode scanner

Power Supply

100V-240V, 50Hz/60Hz

Dimensions and Weight

Depth (430 mm) x Width (275 mm) x Height (406 mm) ; Weight: <15kg

Data Storage Capacity

35,000 files including demographics, results and histograms, 12 QC files (100 data per file)
