Sysmex PCB3061 Analog Board for XS-500i, XS-80i & XS-1000i

The PCB3061 analog board is listed as a replacement circuit board for Sysmex XS-500i, XS-80i and XS-1000i hematology analyzers. Before ordering, compare the PCB number, connector positions, mounting points and overall board layout with the part currently installed in your analyzer. This listing is intended for service teams sourcing a specific replacement board rather than a complete analyzer.

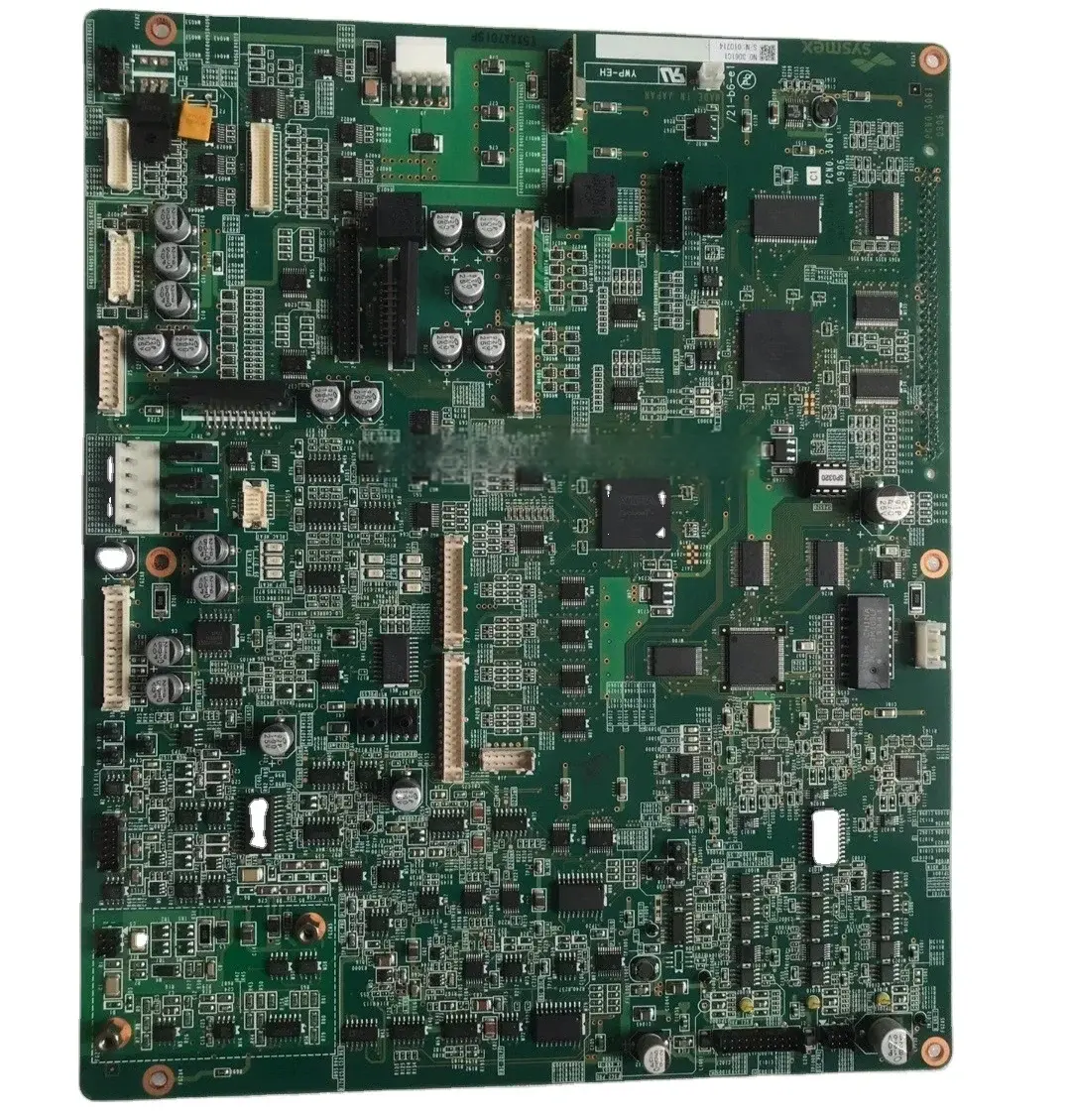

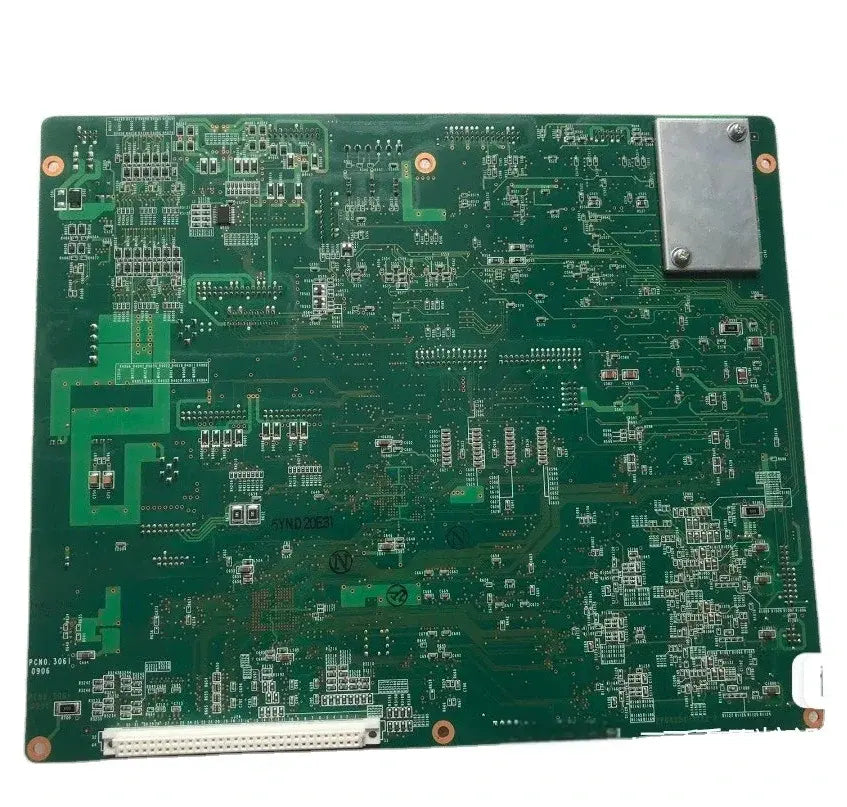

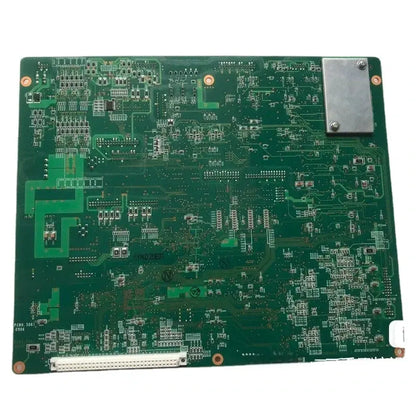

Product images show the front and rear sides of the circuit board, including its connectors and component layout. Browse related hematology equipment and parts.

Compatibility checks before ordering

• Confirm the exact analyzer model.
• Match the PCB3061 part number with the original board.
• Compare the connector layout, mounting points and board shape.
• Check the required quantity and service requirements.

Ordering support

Send the analyzer model, serial number, original board photos and required quantity when you contact our sales team. We will confirm the listing details available for this item before purchase. Installation and functional verification should be completed by qualified service personnel.
