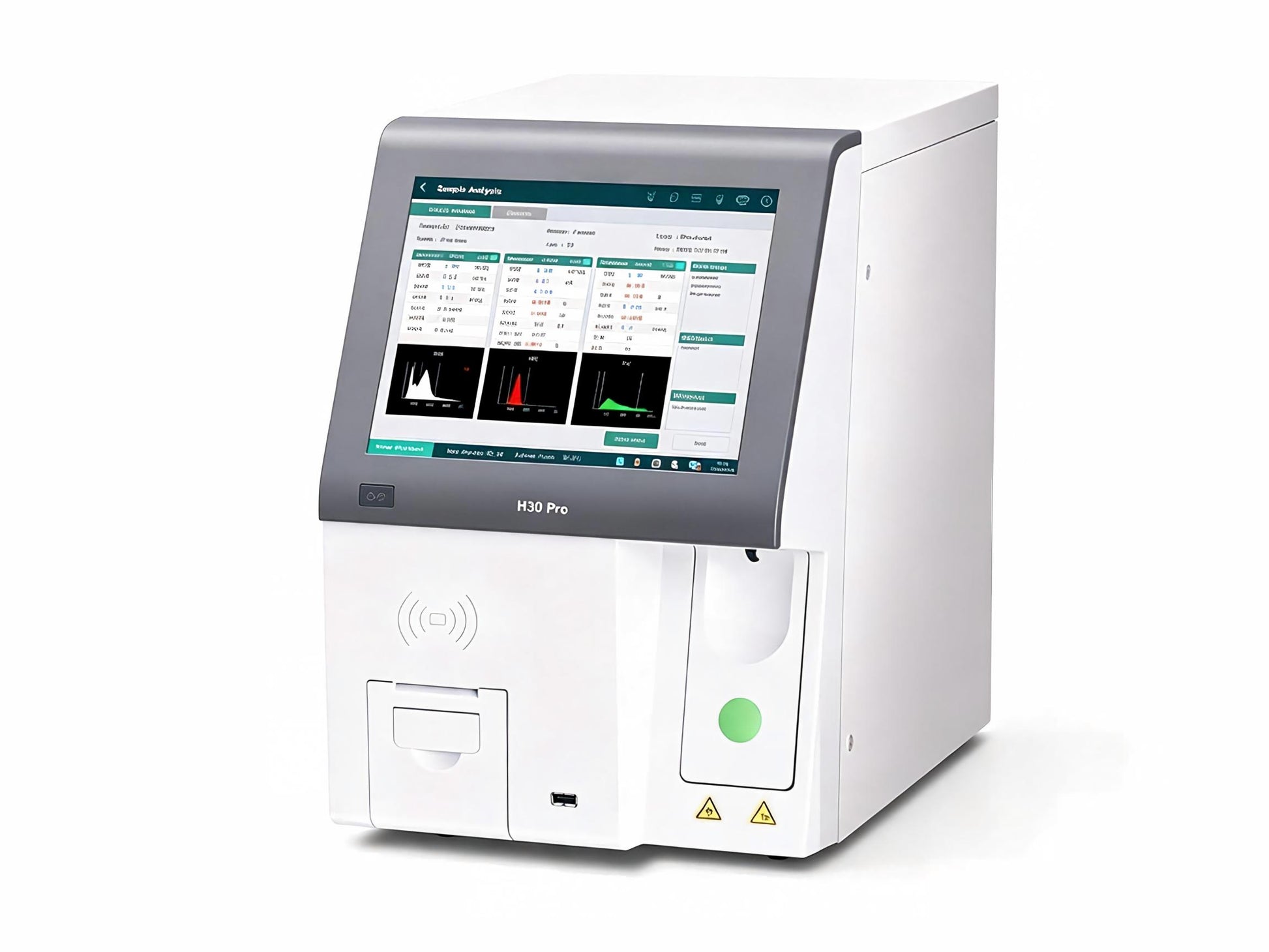

3-Part Hematology Analyzer | 23-Parameter CBC Testing System

Model: GHM H30 Pro

The Global Healthcare Medical 3‑Part Hematology Analyzer is a robust, feature‑packed diagnostic instrument engineered to deliver comprehensive complete blood count (CBC) testing with maximum clinical capabilities. Designed for cost‑minded and quality‑focused clinical laboratories, this analyzer integrates advanced features including an expanded 23‑parameter test menu, an extended linearity range for WBC and PLT, and an adaptive threshold algorithm that enhances accuracy across diverse patient populations.

With a throughput of 60 samples per hour and a minimal sample volume requirement of just 10 μL in whole blood mode, the system is ideally suited for pediatric patients and difficult draws. The 10.4‑inch color touchscreen with an intuitive operating system simplifies the workflow, while the built‑in thermal printer and bidirectional LIS connectivity via HL7 ensure seamless integration into any laboratory environment.

The system delivers 21 reportable parameters plus 2 research‑use‑only parameters—NLR (neutrophil‑to‑lymphocyte ratio) and PLR (platelet‑to‑lymphocyte ratio)—which aid in the prognosis of infectious and cardiovascular diseases. With a generous data storage capacity of 100,000 results including histograms, support for up to 60 QC files, and low reagent consumption with up to 180 days of on‑board stability, this analyzer delivers the performance, reliability, and cost‑effectiveness that modern laboratories demand.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

📊 23‑Parameter Comprehensive CBC Testing

Delivers a complete hematology profile for confident clinical decision‑making:

• 21 reportable parameters – WBC, LYM%, MXD%, NEUT%, LYM#, MXD#, NEUT#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW‑CV, RDW‑SD, PLT, MPV, PDW, PCT, PLCC, PLCR

• 2 research parameters – NLR (neutrophil‑to‑lymphocyte ratio) and PLR (platelet‑to‑lymphocyte ratio) for prognosis of infectious and cardiovascular diseases

• 3 histograms – Visual distributions for WBC, RBC, and PLT

• Absolute neutrophil count – Provides critical information for infection and inflammation assessment

🎯 Extended Linearity and Enhanced Precision

Delivers reliable results across a wide range of clinical cases:

• WBC linearity: 0.0–300 × 10⁹/L – Accommodates extreme leukocytosis

• PLT linearity: 0–4000 × 10⁹/L – Handles severe thrombocytosis

• RBC linearity: 0.0–8.5 × 10¹²/L

• HGB linearity: 0–250 g/L

• Adaptive threshold algorithm – Differentiates WBC, RBC, and PLT with superior accuracy

🧪 Minimal Sample Volume – Ideal for Pediatrics

Reduces patient discomfort and enables testing in challenging scenarios:

• Whole blood mode: 10 μL – Perfect for pediatric patients and difficult draws

• Capillary whole blood mode: 10 μL

• Prediluted mode: 20 μL

⚡ High Throughput for Busy Laboratories

Efficient processing for high‑volume clinical settings:

• Up to 60 samples per hour – Rapid turnaround for routine CBC testing

• Minimal maintenance – Ensures maximal uptime

🖥️ Intuitive 10.4‑Inch Touchscreen Interface

Designed for ease of use and minimal training:

• 10.4‑inch TFT color touchscreen – Clear visualization and easy navigation

• Innovative operating system – Simple‑to‑use and easy‑to‑navigate

• Handheld barcode scanner – Allows easy entry of patient ID

💾 Ample Data Storage and Connectivity

Streamlines workflow and data management:

• 100,000 result storage – Includes results and histograms

• 60 QC files – 100 QC data points for each file

• Bidirectional LIS connectivity – HL7 protocol for seamless integration

• 5 USB ports – Supports external printer, software upgrade, barcode scanner, keyboard, mouse

• 1 LAN port – Network connectivity

🖨️ Flexible Print Options

Accommodates various documentation needs:

• Built‑in thermal printer – Instant, on‑demand result printing

• External printer support – Connect to standard laboratory printers

💰 Effective Cost Control

Delivers value without compromising quality:

• Two routine reagents – HD310 Diluent and HL310 Lyse for sample analysis

• Up to 180 days on‑board stability – Reduces waste and frequent reagent changes

• Low reagent consumption – Cost‑effective operation

• Reliable diagnostics – Keep costs to a minimum

• Original hematology calibrator and controls – ED‑30D and ED‑CAL PLUS guarantee performance

🏥 Broad Clinical Applications

Suitable for a wide range of healthcare settings:

• Hospital clinical laboratories – High‑volume CBC testing for inpatient and outpatient care

• Primary care clinics – Routine hematology testing with comprehensive parameters

• Emergency departments – Rapid blood count assessment for acute care

• Pediatric clinics – Minimal sample volume ideal for children

• Small to medium‑sized laboratories – Compact, cost‑effective solution

✅ Quality and Certification

• CE certified – Meets rigorous European regulatory standards

• ISO 13485 certified – Quality management system for medical devices

• RFID transducer – Secures reagent business and inventory management

Specifications

What's Included

• 3‑Part Hematology Analyzer Main Unit

• Built‑in Thermal Printer

• Power Cable

• User Manual

• Calibration Certificate

Why Choose the 3‑Part Hematology Analyzer?

FAQ

Q: What is a 3‑part hematology analyzer?
A: A 3‑part hematology analyzer is an automated diagnostic instrument that performs complete blood count (CBC) testing, classifying white blood cells into three categories: lymphocytes (LYM), mid‑sized cells (MXD), and neutrophils (NEUT).

Q: How many parameters does the analyzer measure?
A: The analyzer delivers 21 reportable parameters plus 2 research parameters (NLR and PLR), totaling 23 parameters.

Q: What sample types are supported?
A: The analyzer supports whole blood, capillary whole blood, and prediluted sample modes.

Q: How much sample is required?
A: Only 10 μL is required for whole blood and capillary whole blood modes, and 20 μL for prediluted mode.

Q: How many samples can be processed per hour?
A: The analyzer has a throughput of up to 60 samples per hour.

Q: What is the data storage capacity?
A: The analyzer can store up to 100,000 results, including histograms, plus 60 QC files with 100 data points each.

Q: What size is the display?
A: The analyzer features a 10.4‑inch TFT color touchscreen.

Q: What connectivity options are available?
A: The analyzer offers 5 USB ports and 1 LAN port with HL7 protocol for bidirectional LIS connectivity.

Q: What reagents are required?
A: The system uses HD310 Diluent, HL310 Lyse, and HC310 Cleaner.

Q: What are the operating environment requirements?
A: The analyzer operates at 15°C–35°C temperature, 20%–85% humidity, and 70–106 kPa air pressure.

Q: What is the weight and size of the instrument?
A: The analyzer weighs 18 kg and measures 415 × 275 × 406 mm (L×W×H).

Q: What is the warranty period?
A: Please contact Global Healthcare Medical for warranty details.
