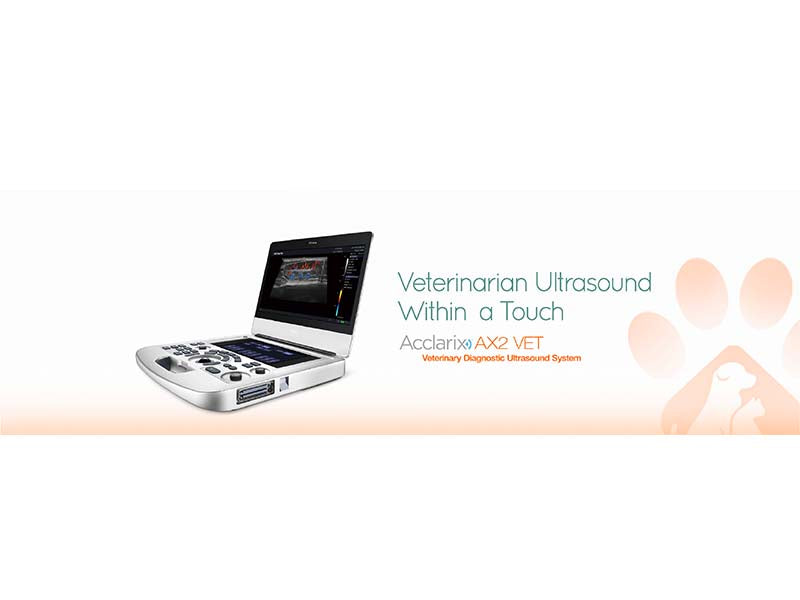

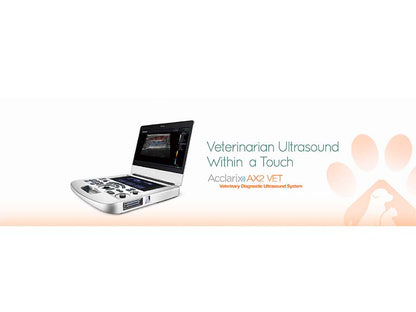

7. Acclarix AX2 VET Veterinary Portable Ultrasound (1)

Redefining Innovation Through Value and Performance

The Acclarix AX2 VET has been designed from the relentless focus on delivering uncompromising performance at a cost-effective price. Alone with the unique dual-batteries inspiration in a 4.5kg lightweight magnesium alloy body, the remarkable Acclarix AX2 VET delivers a surprising value to meet all the demands for animals.

Intelligent Workflow

• High sensitive touch screen for daily operation
• Dedicated presets and measurement packages for veterinary applications
• Customizable user interface for personalized design
• Multiple data management methods: DICOM, network, PDF, AVI and BMP file export

Definitive Image Quality

• Revolutionary platform results in superb detail resolution, particularly at depth
• Tissue Adaptive Imaging (TAI) continuously and automatically optimizes imaging allowing more focus on different kinds of animals

Distinctive Design

• 15’’ high definition medical monitor maximizes the performance with a 180° large opening angle
• Unique dual-batteries design support ultra-long continuous scanning more than two hours
• Ergonomic control panel with high sensitive touch screen ensures everything at fingertips
• Ultra-light and ultra-compact design facilitates maneuverability and portability

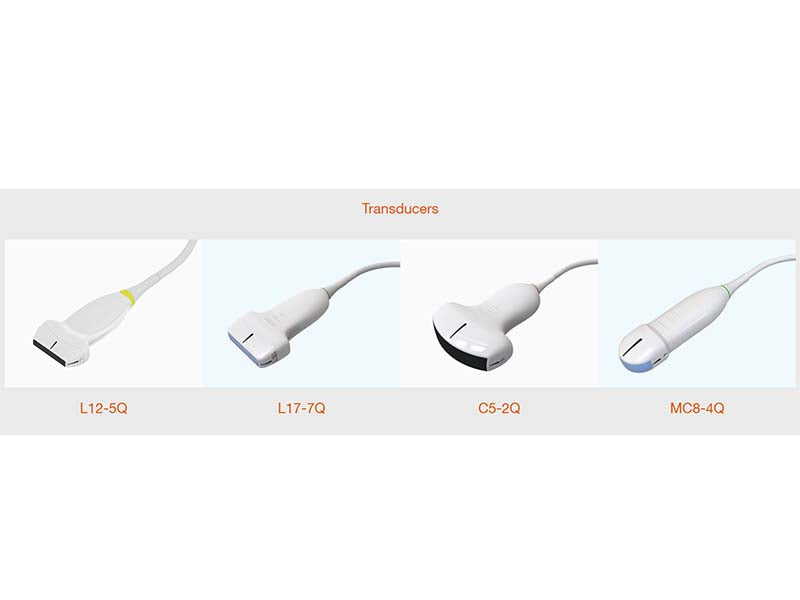

Transducers

• 5 -12 MHz, Linear Array
  Small parts, abdomen

• 7 -17 MHz, Linear Array
  Small parts, abdomen

• 2 – 5 MHz, Curved Array
  Large breed abdomen

• 4 – 8 MHz, Micro-convex Array
  Abdomen, basic cardiac

• 1 – 5 MHz, Phased Array
  Cardiac

• 3 – 7 MHz, Phased Array
  Cardiac

• 5 – 12 MHz, Endocavity Linear Array
  Reproduction

• 3 – 8 MHz, Endorectal Linear Array
  Reproduction

• 3 – 9 MHz, Micro-convex Array
  Equine hoof, abdomen, cardiac
