Advanced Auto-Adjusting Bi-Level Ventilator | 8-Mode Respiratory Support with 30 hPa

Model: GHM SS195

Advanced auto-adjusting bi-level ventilator with 8 modes (CPAP, AutoCPAP, S, T, S/T, AutoS, PC, TVAPS), 30 hPa pressure, and target tidal volume setting. Ideal for COPD, respiratory insufficiency, and complex ventilation needs.

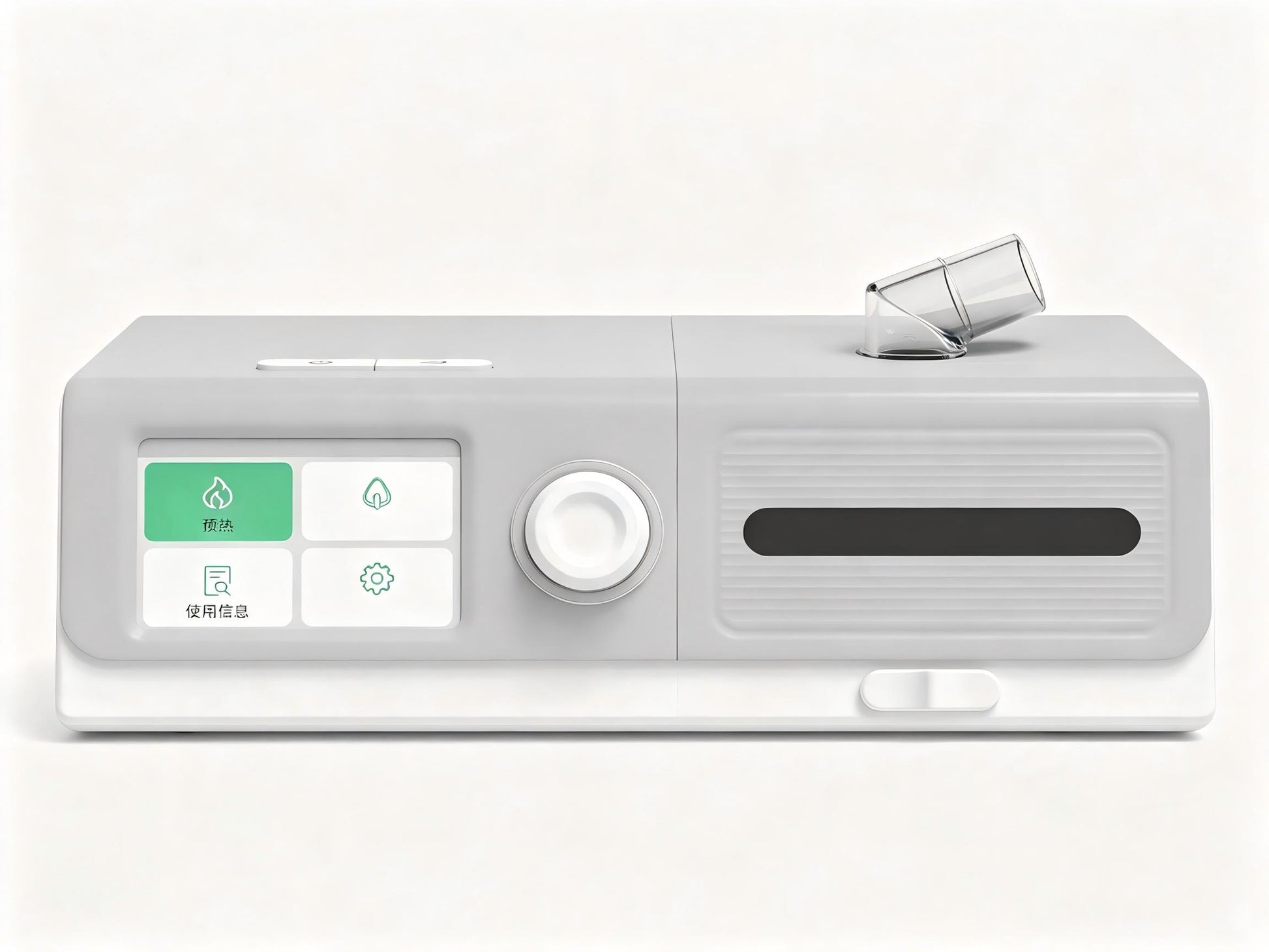

The Global Healthcare Medical Advanced Auto-Adjusting Bi-Level Pulmonary Ventilator is a sophisticated, high-performance non-invasive ventilator engineered for patients with complex respiratory conditions requiring advanced ventilatory support. Featuring an extensive range of eight therapy modes—CPAP, AutoCPAP, S, T, S/T, AutoS, PC, and TVAPS—with a maximum pressure of 30 hPa, this device delivers the comprehensive capabilities that clinicians need for challenging pulmonary cases.

Designed for both hospital and home use, this intelligent ventilator accurately calculates air leakage and completes respiratory phase transitions based on lung flow and estimated advance volume, ensuring excellent patient-ventilator synchrony. The target tidal volume can be precisely set according to the patient's weight, condition, and pulmonary function, helping patients exchange gas more effectively.

Built-in sensors continuously record sleep data—including usage time, respiratory events, and pressure levels—enabling users and healthcare providers to evaluate treatment efficacy with confidence. Whether for COPD management, complex sleep apnea, or respiratory insufficiency, this advanced ventilator delivers the clinical power, intelligent automation, and patient comfort that modern respiratory care demands.

This device is intended for professional use under physician prescription. Not a substitute for professional medical diagnosis.

Key Features

🌬️ Eight Comprehensive Therapy Modes

Unmatched versatility for complex respiratory conditions:

• CPAP mode – Continuous positive airway pressure for stable airway support

• AutoCPAP mode – Automatic pressure adjustment responding to patient's breathing patterns

• S mode (Spontaneous) – Triggers IPAP on patient inspiratory effort

• T mode (Timed) – Delivers breaths at a set timed interval

• S/T mode (Spontaneous/Timed) – Combines spontaneous triggering with backup rate

• AutoS mode – Automatic switching between spontaneous and timed ventilation

• PC mode (Pressure Control) – Pressure-controlled ventilation for precise pressure delivery

• TVAPS mode (Targeted Ventilation with Auto Pressure Support) – Automatically adjusts pressure support to achieve target tidal volume

💨 Extended 30 hPa Pressure Range

Delivers the higher pressure capabilities required for challenging cases:

• Maximum pressure: 30 hPa – Suitable for patients with severe pulmonary conditions and complex respiratory needs

• Dual-level IPAP/EPAP therapy – Inspiratory pressure supports inhalation; expiratory pressure maintains airway patency

• Target tidal volume setting – Adjustable by patient weight, condition, and pulmonary function for effective gas exchange

🧠 Intelligent Patient-Ventilator Synchrony

Ensures comfortable, effective therapy:

• Accurate leak calculation – Precisely calculates air leakage for optimal pressure delivery

• Lung flow-based phase transition – Completes respiratory phase transitions based on actual lung flow

• Estimated advance volume – Anticipates patient needs for seamless breath delivery

• Excellent synchrony – Reduces patient effort and improves therapy comfort

📊 Comprehensive Data Recording and Analysis

Empowers clinicians with actionable insights:

• Built-in sensors – Continuous monitoring of therapy parameters

• Sleep data recording – Tracks usage time, respiratory events, and pressure levels

• Treatment efficacy evaluation – Enables users and doctors to assess therapy effectiveness

• Compliance monitoring – Easy tracking of therapy adherence

🏥 Broad Clinical Applications

One device, comprehensive respiratory support:

• Chronic Obstructive Pulmonary Disease (COPD) – Advanced non-invasive ventilation for respiratory insufficiency

• Complex Sleep Apnea – Multiple modes for obstructive, central, and mixed sleep apnea

• Respiratory Insufficiency – Support for patients with compromised breathing

• Neuromuscular Disorders – Ventilatory support for conditions affecting respiratory muscles

• Obesity Hypoventilation Syndrome (OHS) – Comprehensive ventilatory support

• Restrictive Lung Diseases – Pressure support for conditions limiting lung expansion

Specifications

What's Included

• Advanced Auto-Adjusting Bi-Level Ventilator Main Unit

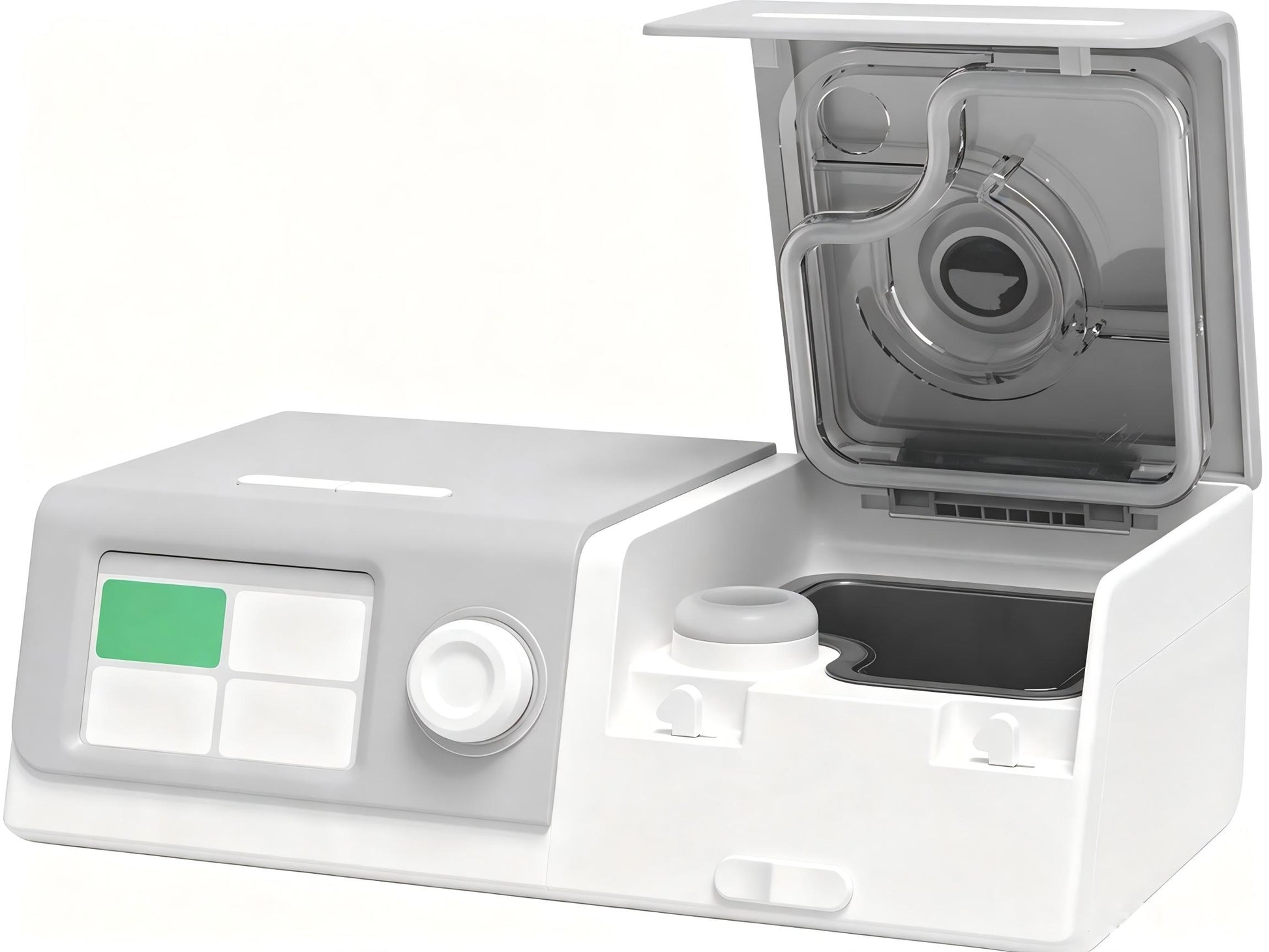

• Integrated Humidifier

• AC/DC Power Adapter

• Power Cord

• Air Tubing

• Air Filter

• Carrying Case

• User Manual

• Quick Operation Guide

Applications

The Advanced Auto-Adjusting Bi-Level Ventilator is suitable for:

• Chronic Obstructive Pulmonary Disease (COPD) – Advanced non-invasive ventilation for respiratory insufficiency

• Complex Sleep Apnea – Obstructive, central, and mixed sleep apnea management

• Respiratory Insufficiency – Support for patients with compromised breathing

• Neuromuscular Disorders – Ventilatory support for conditions affecting respiratory muscles

• Obesity Hypoventilation Syndrome (OHS) – Comprehensive ventilatory support

• Restrictive Lung Diseases – Pressure support for conditions limiting lung expansion

• Hospital Use – Clinical-grade ventilation in institutional settings

• Home Therapy – Convenient, comfortable treatment in the patient's own environment

Why Choose the Advanced Auto-Adjusting Bi-Level Ventilator?

FAQ

Q: What is an auto-adjusting bi-level pulmonary ventilator?
A: This is an advanced non-invasive ventilator that delivers two alternating pressure levels—inspiratory (IPAP) and expiratory (EPAP)—with automatic pressure adjustment capabilities. It is designed for patients with complex respiratory conditions requiring sophisticated ventilatory support.

Q: How many therapy modes does the device support?
A: The device supports eight therapy modes: CPAP, AutoCPAP, S, T, S/T, AutoS, PC, and TVAPS.

Q: What is the maximum pressure of the device?
A: The device delivers a maximum pressure of 30 hPa.

Q: What is TVAPS mode?
A: TVAPS (Targeted Ventilation with Auto Pressure Support) is an advanced mode that automatically adjusts pressure support to achieve a preset target tidal volume, optimizing gas exchange for each patient.

Q: How does the device ensure patient-ventilator synchrony?
A: The device accurately calculates air leakage and completes respiratory phase transitions based on lung flow and estimated advance volume, ensuring excellent synchrony.

Q: Can the target tidal volume be adjusted?
A: Yes, the target tidal volume can be set according to the patient's weight, condition, and pulmonary function.

Q: What data does the device record?
A: Built-in sensors record sleep data including usage time, respiratory events, and pressure levels.

Q: What conditions can this device treat?
A: The device is suitable for COPD, complex sleep apnea (obstructive, central, mixed), respiratory insufficiency, neuromuscular disorders, obesity hypoventilation syndrome, and restrictive lung diseases.

Q: Is the device certified?
A: Yes, the device is CE certified and manufactured under ISO 13485 quality management standards.

Q: What is the warranty period?
A: The device comes with a 3-year warranty.

Q: What is the delivery lead time?
A: The delivery lead time is approximately 5–30 working days, depending on quantity and request.
