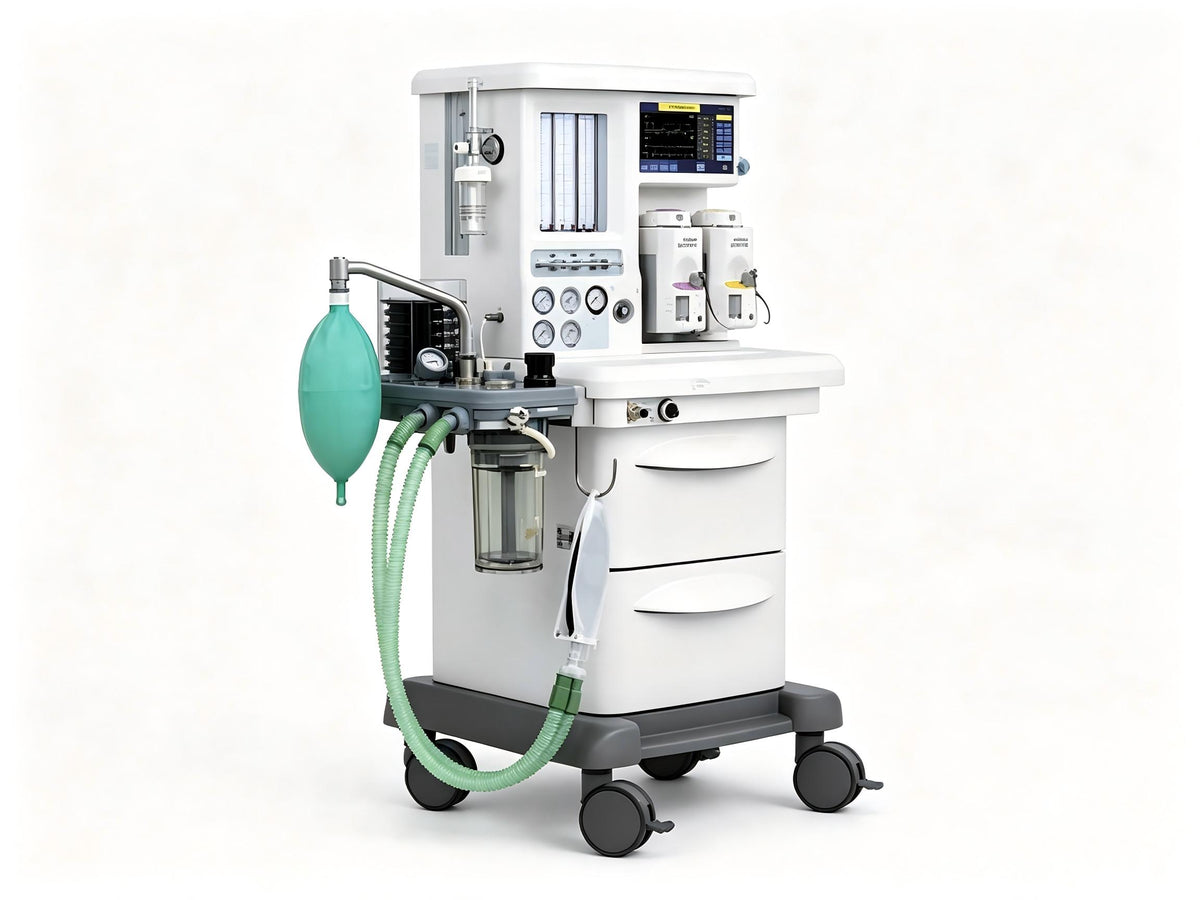

Anaesthetic Workstation | Advanced Anesthesia Delivery System with Touchscreen

Model: GHM X45 Anesthesia Machine

Compact anaesthetic workstation with 10.4″ touch screen, 10–1600 mL tidal volume, VCV/PCV/SIMV modes, CO2/AG monitoring, and integrated absorbent circuit. Ideal for ORs, ambulatory surgery, and veterinary use.

The Global Healthcare Medical Anaesthetic Workstation is a sophisticated, high-performance anesthesia delivery system engineered to meet the diverse needs of modern operating rooms. Combining innovative sensor technology with an intuitive user interface, this workstation delivers precise, reliable anesthesia care for patients ranging from neonates to adults.

At the heart of the system is an exclusive front-end variable aperture flow sensor that samples both inspiratory and expiratory flows, ensuring exceptional accuracy in gas delivery. The 10.4-inch color TFT touchscreen with rotary knob and hard key input provides a user-friendly human-machine interaction experience, making complex anesthesia management straightforward and efficient.

With a tidal volume range of 10–1600 mL, this workstation accommodates the full spectrum of patient sizes—from premature neonates to bariatric adults. The integrated breathing circuit features uniform heating to prevent condensation and is fully autoclavable at 134°C for rigorous infection control. A comprehensive suite of ventilation modes, including VCV, PCV, SIMV-V, SIMV-P, SPONT/PSV, and SIGH, with optional PRVC and SIMV-PRVC, provides clinicians the flexibility to tailor ventilation strategies to individual patient needs.

The workstation incorporates multiple safety and convenience features: an AGSS (Anesthesia Gas Scavenging System) for safe waste gas removal, an ACGO auxiliary common gas outlet for connectivity with other devices, an auxiliary oxygen delivery unit, and a negative pressure suction device. The central four-wheel locking system ensures stability during procedures. Optional features including a centralized braking system, CO₂/AG gas monitoring, and dual battery power supply further enhance the system's versatility.

Whether for routine surgical procedures or complex cases, this anaesthetic workstation delivers the clinical performance, safety, and ease of use that modern healthcare professionals demand.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🩺 Precision Gas Delivery with Innovative Flow Sensor

• Exclusive front-end variable aperture flow sensor – Samples both inspiratory and expiratory flows for exceptional accuracy

• Precise electronic PEEP control – Enables fine-tuned positive end-expiratory pressure management

• 10–1600 mL tidal volume range – Accommodates patients from neonates to adults

• 6-tube flowmeter system – Delivers stable, accurate gas flow with O₂, N₂O, and Air supply

• Hypoxic guard system with ORC and O₂ flush – Prevents delivery of hypoxic gas mixtures

🖥️ Intuitive User Interface

• 10.4-inch color TFT touchscreen – High-resolution display for clear visualization

• Rotary knob and hard key input – Dual-operation mode for flexibility and reliability

• LED-illuminated work surface – Enhances visibility in low-light surgical environments

• Adjustable screen tilt – Optimizes viewing angle for different user preferences

📊 Comprehensive Ventilation Modes

• Standard modes: VCV, PCV, SIMV-V, SIMV-P, SPONT/PSV, SIGH, Standby, Manual

• Backup modes: VCV, PCV

• Optional advanced modes: PRVC, SIMV-PRVC

• Lung mechanics parameters and loops – P-V, V-F loops for comprehensive respiratory monitoring

• 24-hour trend data – Tracks Ppeak, Pmean, Pmin, Pplat, PEEP, Vti, Vte, MV, and more

🛡️ Safety and Infection Control

• Integrated breathing circuit with uniform heating – Prevents condensation buildup

• 134°C autoclave-capable circuit – Enables high-temperature steam sterilization

• Bypass function – Supports intraoperative soda lime replacement without interrupting ventilation

• Real-time soda lime canister removal alarm – Ensures patient safety during canister changes

• AGSS anesthesia gas scavenging system – Safely removes waste anesthetic gases, protecting OR staff

• Comprehensive alarm system – Alerts for MV, Paw, Vte, Rate, FiO₂, apnea, gas supply failure, and battery status

🔌 Versatile Connectivity and Integration

• ACGO auxiliary common gas outlet – Connects to semi-open circuits for single-tube ventilation

• Auxiliary oxygen delivery unit – Provides supplemental oxygen when needed

• Negative pressure suction device – Integrated suction for airway management

• RS232, VGA, and USB interfaces – Seamless integration with hospital information systems

• Optional CO₂/AG gas monitoring module – Real-time monitoring of anesthetic gas concentrations

• Optional SpO₂ monitoring – Continuous pulse oximetry

🏥 Robust, Ergonomic Design

• Central four-wheel locking system – Ensures stability during procedures

• Optional centralized braking system – Enhanced mobility control

• Dual battery power option – Up to 6 hours of backup power for uninterrupted operation

• Integrated drawer storage – Convenient organization of accessories

• Weight: 110 kg – Stable, durable construction

✅ Quality and Certification

• CE certified – Meets rigorous European regulatory standards

• ISO 13485 certified – Quality management system for medical devices

• NMPA registered – Approved for the Chinese market

• National High-tech Enterprise – Recognized for innovation and quality

Specifications

What's Included

• Anaesthetic Workstation Main Unit

• 10.4-inch Touchscreen Display

• Integrated Breathing Circuit (heated, autoclavable)

• CO₂ Absorber Canister with Bypass Function

• 6-Tube Flowmeter System (O₂, N₂O, Air)

• 2 Vaporizer Mounts (Selectatec compatible)

• Manual Breathing Bag

• AGSS Anesthesia Gas Scavenging System

• Auxiliary Oxygen Delivery Unit

• Negative Pressure Suction Device

• Central Four-Wheel Locking System

• Power Cable

• User Manual

Applications

The Anaesthetic Workstation is suitable for:

• General Surgery – Routine anesthesia delivery for a wide range of surgical procedures

• Cardiac Surgery – Precise ventilation for hemodynamically unstable patients

• Neonatal and Pediatric Surgery – Low tidal volume capabilities for smallest patients

• Orthopedic Surgery – Stable anesthesia for prolonged procedures

• Emergency Surgery – Rapid setup and reliable performance for urgent cases

• Ambulatory Surgery Centers – Compact, efficient design for outpatient procedures

• Teaching Hospitals – Intuitive interface ideal for training environments

• Veterinary Clinics – Suitable for animal anesthesia (optional configurations)

Why Choose the Anaesthetic Workstation?

FAQ

Q: What is an anaesthetic workstation?
A: An anaesthetic workstation is a comprehensive medical device that delivers precise anesthesia gases and ventilatory support to patients during surgical procedures, integrating gas delivery, ventilation, monitoring, and waste gas scavenging in a single system.

Q: What patient populations does this workstation support?
A: The workstation supports patients ranging from neonates to adults, with a tidal volume range of 10–1600 mL.

Q: What ventilation modes are available?
A: Standard modes include VCV, PCV, SIMV-V, SIMV-P, SPONT/PSV, and SIGH, with optional PRVC and SIMV-PRVC.

Q: What is the front-end variable aperture flow sensor?
A: This is an exclusive sensor technology that samples both inspiratory and expiratory flows, ensuring exceptional accuracy in gas delivery.

Q: Does the workstation have a gas scavenging system?
A: Yes, the workstation features an AGSS (Anesthesia Gas Scavenging System) that safely removes waste anesthetic gases, protecting operating room staff.

Q: Can the breathing circuit be sterilized?
A: Yes, the integrated breathing circuit is designed for uniform heating to prevent condensation and can be autoclaved at 134°C.

Q: What is the bypass function?
A: The bypass function allows intraoperative replacement of soda lime (CO₂ absorbent) without interrupting ventilation, with a real-time alarm if the canister is removed.

Q: What monitoring options are available?
A: Optional monitoring includes CO₂, anesthetic gas (AG), SpO₂, and FiO₂ modules.

Q: Does the workstation have battery backup?
A: Yes, optional dual battery power provides up to 6 hours of backup operation.

Q: What is the weight and size of the workstation?
A: The workstation weighs 110 kg and measures 1410 × 950 × 650 mm (H×W×D).

Q: What certifications does the workstation hold?
A: The workstation is CE certified, ISO 13485 certified, and NMPA registered.

Q: What is the warranty period?
A: The system comes with a 1-year warranty.

Q: What is the delivery lead time?
A: The delivery lead time is approximately 10 working days, depending on quantity and request.
