Automated 5-Part Hematology Analyzer with Autoloader | 50-Position CBC System

Model: GHM XN6500

Fully automated 5-part hematology analyzer with 50-position autoloader, 29 parameters, flow cytometry, and 60 samples/hour throughput. Ideal for high-volume clinical labs.

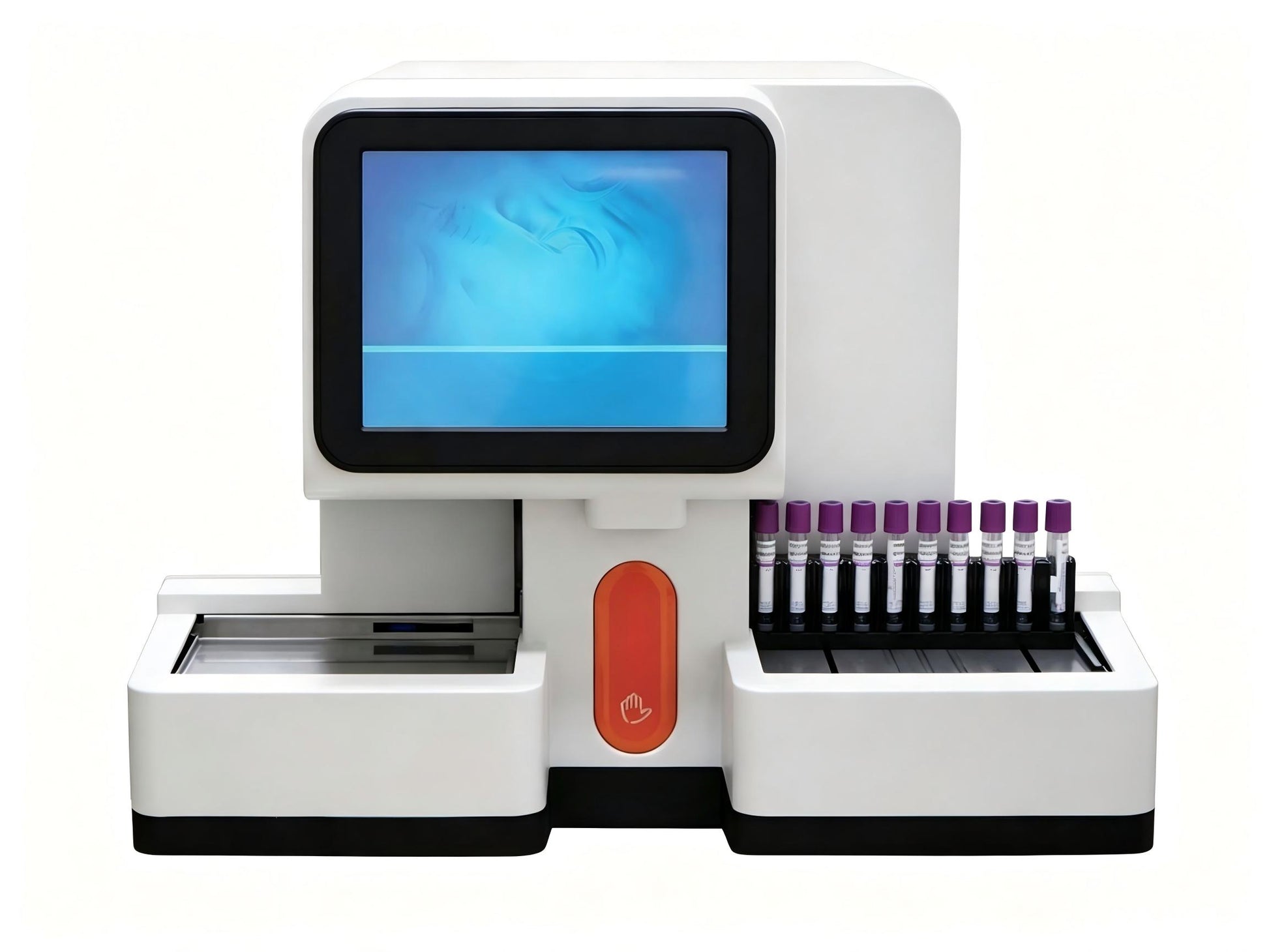

The Global Healthcare Medical Fully Automated 5-Part Hematology Analyzer with Autoloader is a high-capacity diagnostic instrument engineered for clinical laboratories with demanding CBC testing volumes. Featuring a built-in 50-position autoloader for continuous, uninterrupted sample processing, this analyzer delivers exceptional efficiency while maintaining the highest standards of accuracy through advanced flow cytometry, laser light scatter, and cytochemical staining technologies.

Designed for high-throughput hospital laboratories, diagnostic centers, and reference labs, this fully automated system delivers 29 reportable and research parameters from a minimal 20 μL sample volume. With a throughput of up to 60 samples per hour and a generous data storage capacity of 50,000 results—including scattergrams and histograms—the analyzer streamlines laboratory workflow while ensuring reliable, clinically actionable results.

The system features a cutting-edge dual acceleration flow cell system that reduces velocity gaps between sheath flow and blood cells, providing more stable signals for accurate measurement via laser scatter. The innovative tri-angle laser scattering technology contributes to more precise counting, while dual WBC differential channels and proprietary chemical dye methods ensure reliable 5-part cell classification. With a large 10.4-inch color touch screen, comprehensive connectivity options including HL7-compliant LAN ports, and seamless LIS integration, this analyzer delivers the performance, reliability, and efficiency that modern high-volume laboratories demand.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🧬 Advanced 5-Part Differential Technology

The analyzer employs cutting-edge technologies for precise cell classification:

• Flow cytometry + laser light scatter – Advanced optical detection for accurate WBC differentials

• Cytochemical staining method – Enhances cellular differentiation for reliable results

• Dual WBC differential channels – Separate "Diff" channel for lymphocytes, monocytes, neutrophils, and eosinophils; dedicated "Baso" channel for basophils

• Proprietary chemical dye method – Unique reagents differentiate basophils and eosinophils with high accuracy; reagents, controls, and calibrators work as a complete system

• Tri-angle laser scattering – Contributes to more accurate counting with optical detectors receiving scatter light signals

• Dual acceleration flow cell system – Reduces velocity gap between sheath flow and blood cells for stable, accurate measurement

📊 Comprehensive 29-Parameter Testing

Delivers a complete hematology profile for confident clinical decision-making:

• 25 reportable parameters – WBC, Bas#, Bas%, Neu#, Neu%, Eos#, Eos%, Lym#, Lym%, Mon#, Mon%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC

• 4 research parameters – ALY#, ALY%, LIC#, LIC%

• 4 scattergrams – Visual representations for WBC differential

• 2 histograms – For RBC and PLT distributions

⚡ High Throughput with 50-Position Autoloader

Engineered for high-volume clinical laboratories:

• 50-position autoloader – Continuous, uninterrupted sample tube loading

• Up to 60 samples per hour – Efficient processing for high-throughput CBC testing

• Massive sample testing capability – Meets the demands of busy hospital and reference laboratories

• Minimal sample volume – Only 20 μL required for whole blood, capillary whole blood, or prediluted modes

🖥️ Intuitive Touch Screen Interface

Designed for ease of use and minimal training:

• 10.4-inch color touch screen – Clear visualization of results and easy navigation

• User-friendly operation – Intuitive interface reduces operator error

• Smart maintenance system – Reduces downtime and extends instrument life

💾 Ample Data Storage and Connectivity

Streamlines workflow and data management:

• 50,000 result storage capacity – Includes scattergrams and histograms

• HL7 protocol support – Seamless integration with Laboratory Information Systems (LIS)

• Multiple connectivity options – 4 USB ports, 1 Ethernet port

• Peripheral support – Compatible with printers, keyboard, mouse, and barcode scanner

🖨️ Flexible Print Options

Accommodates various documentation needs:

• Multiple printer support – External laser printer, inkjet printer, or thermal printer

• Customizable print formats – Various printout formats and user-defined formats

🔬 Robust Performance and Reliability

Built for dependable, accurate results:

• Electrical impedance method – Proven technology for RBC and PLT counting

• Non-cyanide colorimetric method – Safe, environmentally friendly HGB testing

• Excellent linearity and precision – Wide linearity ranges with low coefficients of variation

• Low carryover – ≤0.5% for WBC and RBC, ≤1.0% for PLT

🌡️ Wide Operating Range

Suitable for diverse laboratory environments:

• Temperature: 10°C – 30°C

• Humidity: 70% max

Performance Specifications

Specifications

What's Included

• Fully Automated 5-Part Hematology Analyzer with Autoloader Main Unit

• 50-Position Autoloader

• Power Cable

• Reagent Starter Kit (Diluent, Lyse, Probe Cleanser)

• User Manual

• Calibration Certificate

Applications

The Fully Automated 5-Part Hematology Analyzer with Autoloader is suitable for:

• Hospital Clinical Laboratories – High-volume CBC testing for inpatient and outpatient care

• Reference Laboratories – Centralized testing with massive sample throughput

• Diagnostic Centers – Efficient CBC screening with 5-part differential

• Oncology & Hematology Clinics – Detailed WBC differentials for disease monitoring

• Infectious Disease Clinics – Immune response assessment through differential analysis

• Teaching Hospitals – Clinical laboratory education and research

• Large-Scale Screening Programs – Population health initiatives and epidemiological studies

Why Choose the Fully Automated 5-Part Hematology Analyzer with Autoloader?



FAQ

Q: What is a 5-part hematology analyzer with autoloader?
A: This is a fully automated diagnostic instrument that performs complete blood count (CBC) testing with 5-part WBC differentials, featuring a built-in 50-position autoloader for continuous, hands-off sample processing.

Q: What is the autoloader capacity?
A: The analyzer features a 50-position autoloader for continuous sample tube loading.

Q: What technology does the analyzer use for WBC differentials?
A: The analyzer uses flow cytometry combined with laser light scatter and cytochemical staining methods for precise 5-part WBC differentials.

Q: How many parameters does the analyzer measure?
A: The analyzer delivers 25 reportable parameters plus 4 research parameters, totaling 29 parameters.

Q: What sample types are supported?
A: The analyzer supports whole blood, capillary whole blood, and prediluted sample modes.

Q: How much sample is required?
A: Only 20 μL of sample is required for all modes.

Q: How many samples can be processed per hour?
A: The analyzer has a throughput of up to 60 samples per hour.

Q: What is the data storage capacity?
A: The analyzer can store up to 50,000 results, including scattergrams and histograms.

Q: What size is the display?
A: The analyzer features a 10.4-inch color touch screen.

Q: What connectivity options are available?
A: The analyzer offers LAN (HL7 protocol), 4 USB ports, and 1 Ethernet port for LIS integration and peripheral connectivity.

Q: What print options are available?
A: The analyzer supports external laser printers, inkjet printers, and thermal printers with various customizable print formats.

Q: What is the weight and size of the instrument?
A: The analyzer weighs 45 kg and measures 615mm × 495mm × 570mm (W×H×D).

Q: What is the delivery lead time?
A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?
A: The system comes with a 1‑year warranty.
