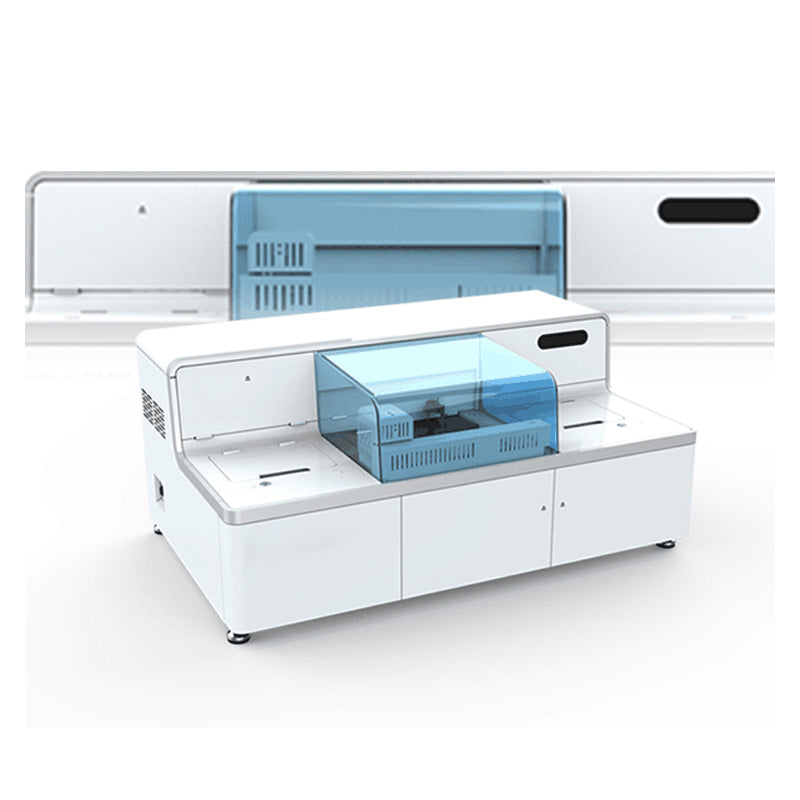

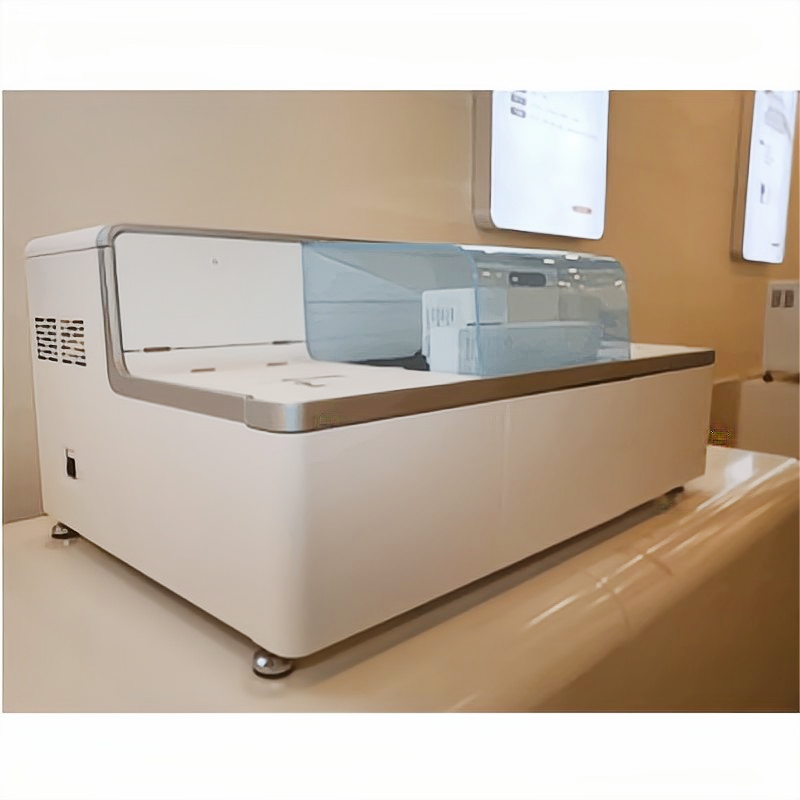

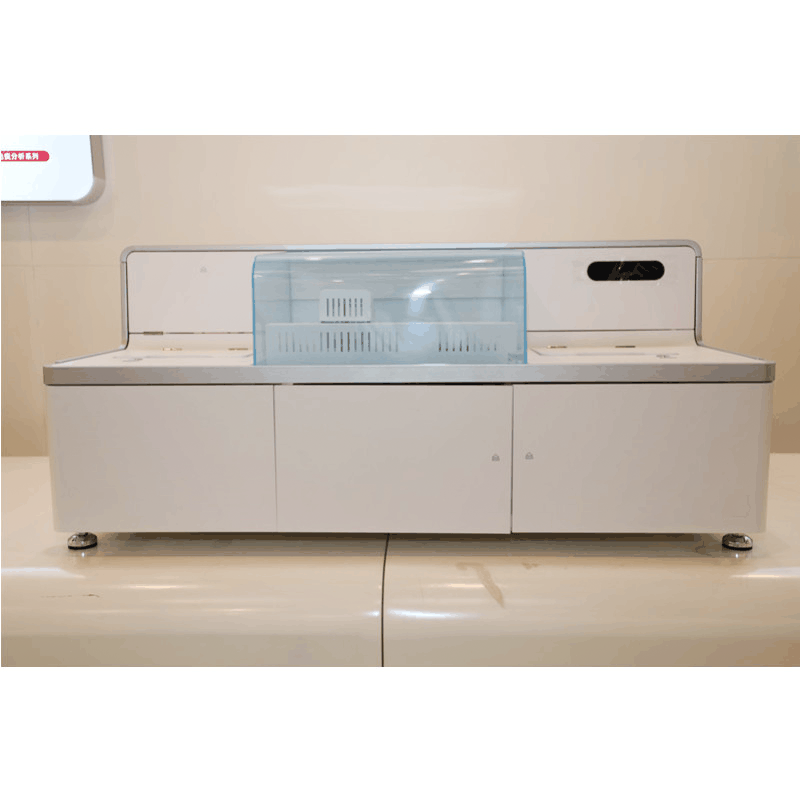

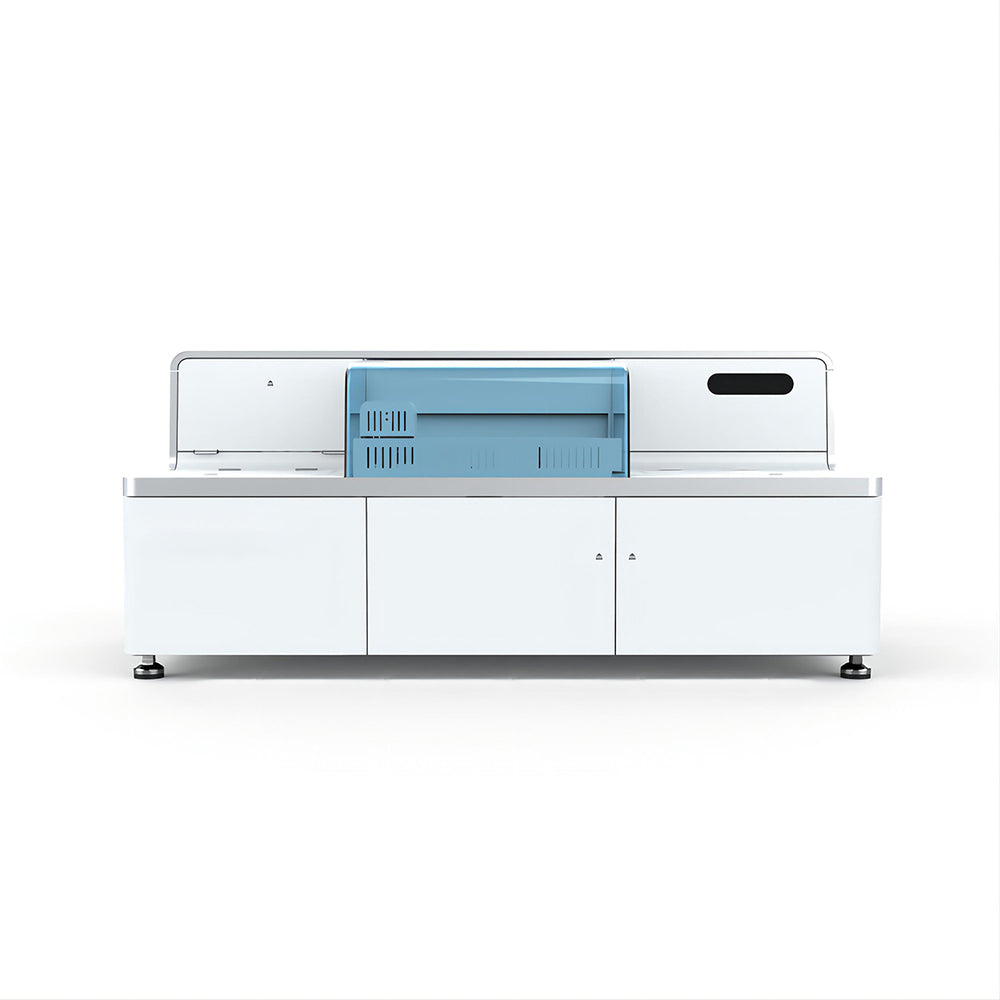

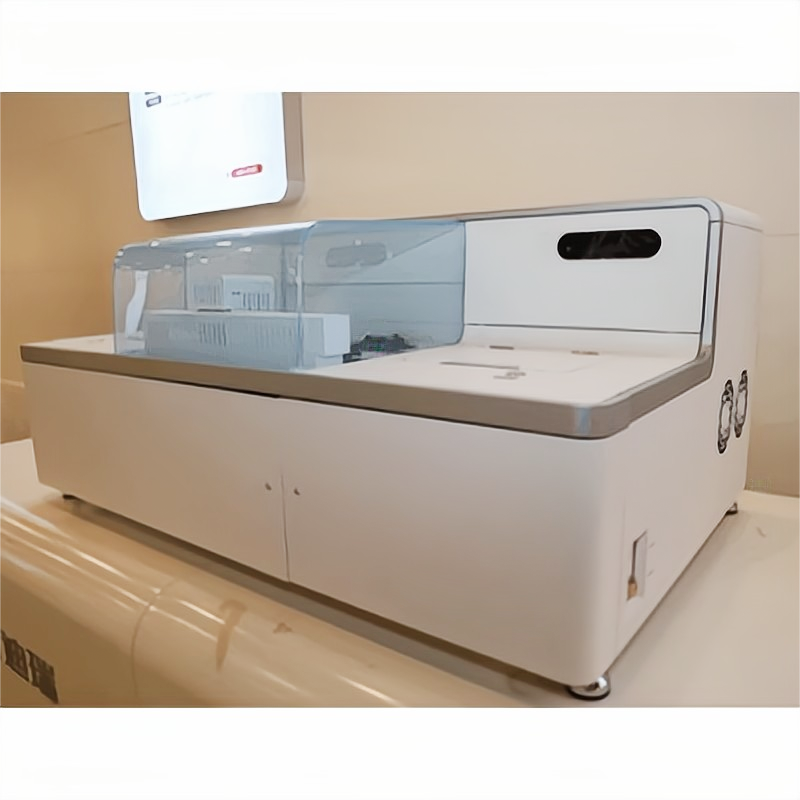

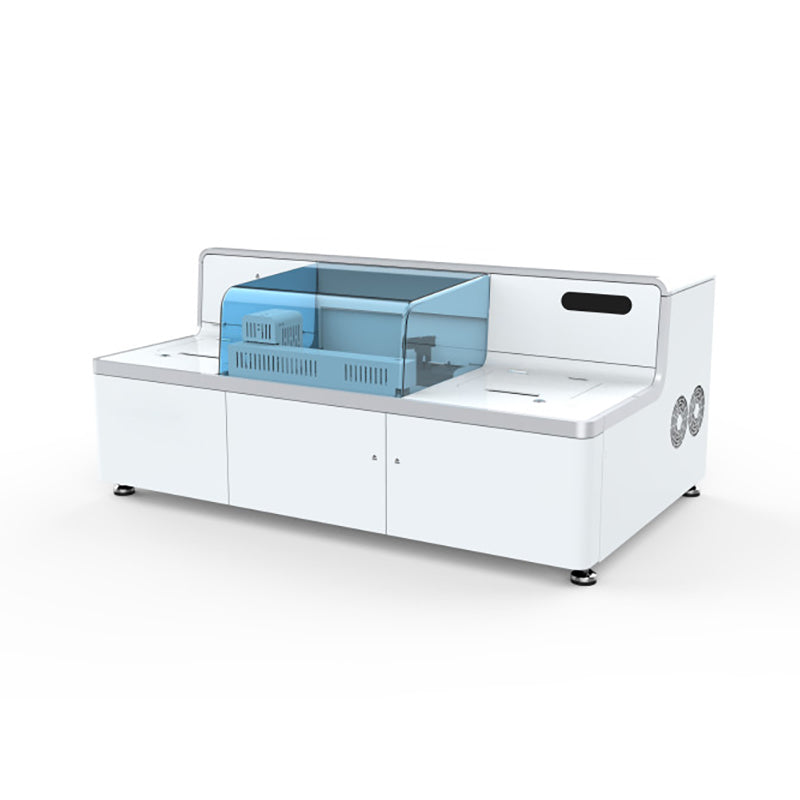

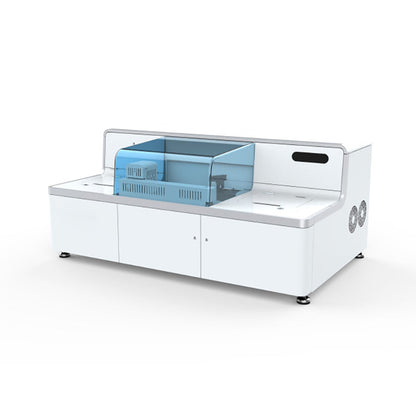

Automatic Chemiluminescence Immunossay CLIA Analyzer

The GHM030501 is a chemiluminescence immunoassay analyzer with a listed throughput of 180 tests per hour, 90 sample positions and 25 reagent positions. The specification lists 110V and 220V supply options; confirm the actual supplied version, reagent menu and installation requirements for the intended site.

Model:GHM030501

A Chemiluminescence Immunoassay Analyzer (CLIA) is a fully or semi-automated laboratory instrument that detects and quantifies specific analytes (such as hormones, tumor markers, infectious agents, or cardiac markers) using chemiluminescent reactions.  These reactions emit light, which the analyzer detects to measure the presence and concentration of target substances with high sensitivity and specificity.

ACCURATE TEST RESULT
●Sample probe with function of clot detection
●Reagent disk refrigerated at2-8 C
●Unique design of reagent kits, non-contact mixing method
●Non-contact multi-position mixing method of reaction disk
●Precise magnetic particles separation technology
●Quality control and calibrators need no pre-treatment

HUMANIZED FUNCTIONAL DESIGN
●Unique sample rack design
●Integrate reagent kits design, flexible test package setting
●Intelligent & personalized software design
Test countdown
Standby countdown
Maintenance countdown

EFFICIENT WORKING MODE
●Time to first result: 11 minutes
●Batch test throughput up to 180T/H
●90 sample positions
●Flexible STAT priority function
●25 reagent positions
●Reagents auto registered
●Samples and consumables on board loading

COMPREHENSIVE QUALITY MANAGEMENT SYSTEM
●GHM030501 has a complete quality assurance system including calibrators, quality control and full panel of reagents. Calibrators can be traced to national or international standard materials

●GHM030501 has a comprehensive list of test panel with clinical application value, covering tumor markers, thyroid, fertility, cardiac markers,infection, metabolism and more than 70 items in total

Specifications:
