Model:GHM030401A
THE ON-BOARD HEMOLYSIS FUNCTION
●NGSP certification of whole blood latex-agglutination method on analyzer
●Whole blood testing function for HbA1c to avoid artificial error
●Not necessary for centrifugation
●Automatically hemolysis function, easy operation and standardization for HbA1c test
HIGH CAPACITY

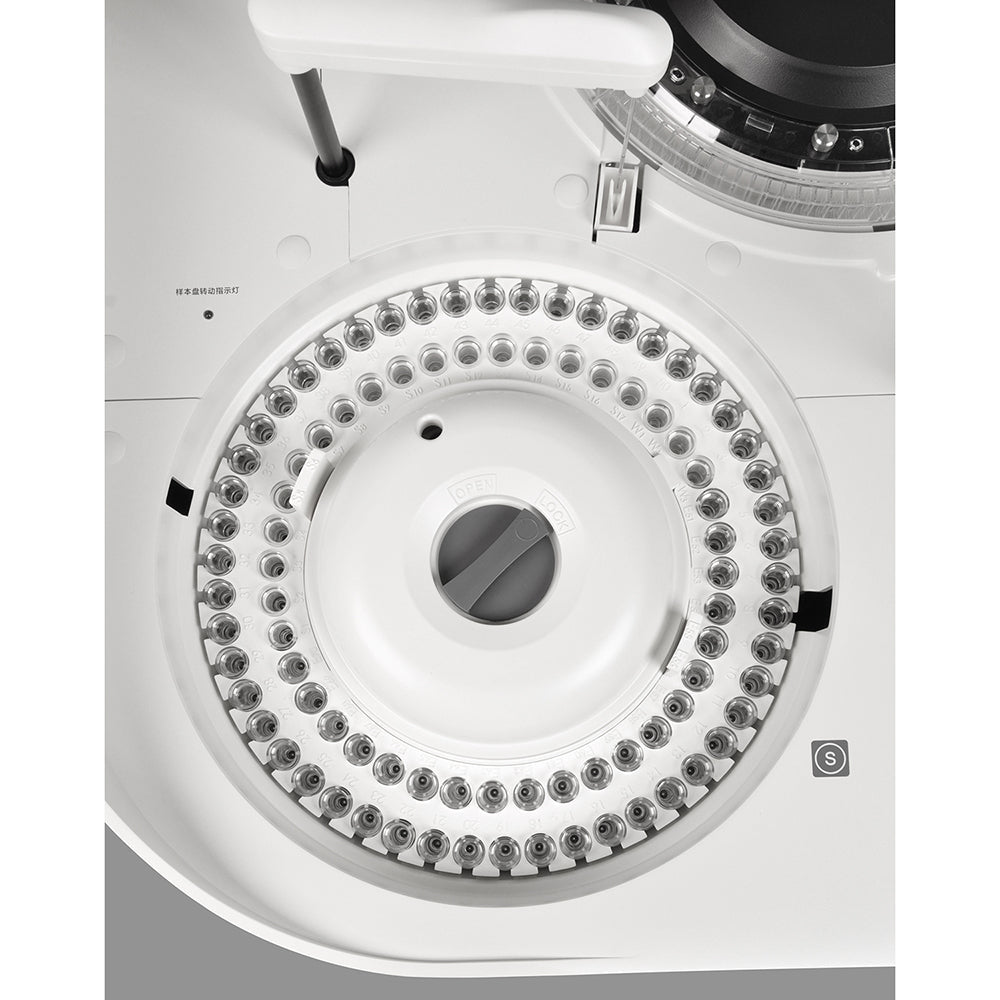

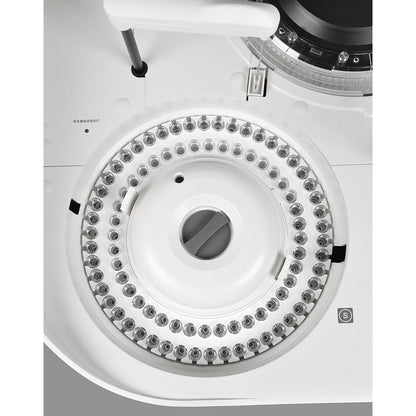

●Up to 115 elastic design sample positions, suitable for different size of tubes

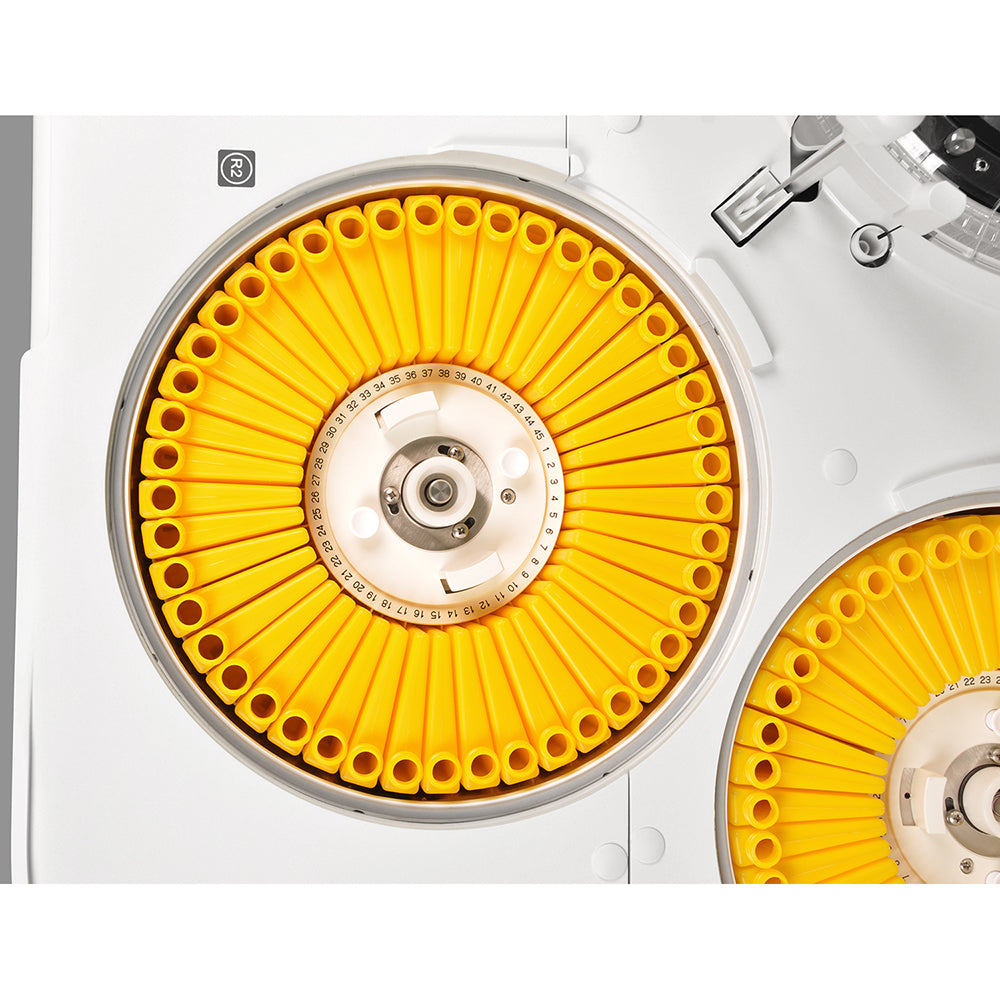

●112 oblique design reagent positions for full use reagent to save reagent and cost
ACCURATE RESULT
●340-800nm 12 wavelengths
●Digital liquid level detection high sensitivity avoids bubbles' interference
●Reagent inventory management, automatically calculate remaining volume and remaining number
ROBUST FUNCTION
●Conditioned reflex function
●The linear extension function of enzyme greatly extends the report range,and effectively reduce the risk of reporting false negative results for high-concentration enzyme samples, as well as the retest frequency.
EXCELLENT PERFORMANCE
●Automatically cuvette checkup ensure the cuvette clean
●Collision Protection
SAVE TIME AND COST
●Optical diameter 5mm
●Minimum reaction volume 120μL
Specifications:
|
Equipment type |
Fully automatic, discrete, STAT priority |
|
Throughput |
400T/H for photometry tests, 800 T/H with ISE |
|
Test principle |
Colorimetry, turbidimetry, ISE |
|
Analysis method |
End-point, kinetics,s fixed- time, etc. support single double wavelength |
|
Simultaneous analysis item |
110 colorimetric items and 3 ISE items (K, Na,CI optional) |
|
Sample position |
115 sample positions |
|
Sample volume |
1.5μL~35μL,0.1μL stepping |
|
Reagent volume |
20μL~350μL,1μL stepping |
|
Reagent position |
Double reagent disk up to 112 positions |
|
Reaction cuvette |
120 positions optical plastic cuvettes |
|
Volume |
1060mm x 790mm x 1150mm(L x W x H) |
|
Weight |
300Kg |
|
Power supply |
Voltage AC 220±22V,50Hz±1Hz,power 2000VA |
