Biossays 240 Plus Fully Automatic Biochemistry Analyzer

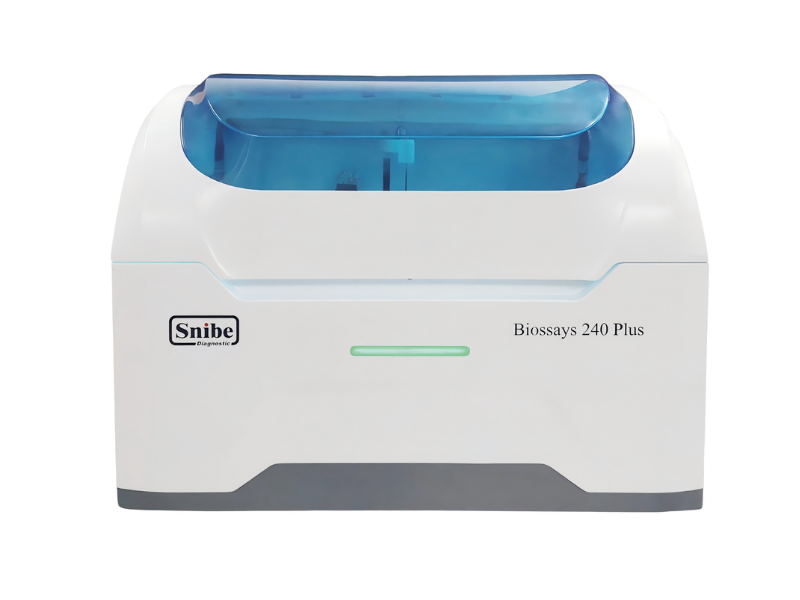

Biossays 240 Plus Fully Automatic Biochemistry Analyzer

Product Overview

The Biossays 240 Plus is a compact, high-performance automatic discrete biochemistry analyzer designed for small to mid-sized laboratories, clinics, and hospitals. Combining constant throughput of 240 tests per hour with a small footprint, low water consumption, and flexible closed/open system options, it delivers reliable results with exceptional efficiency. The system supports random access, continuous loading, and incorporates advanced features such as liquid level detection, collision detection, and 24-hour refrigeration for both samples and reagents.

Key Features

  • Constant Throughput: 240 tests per hour—one of the fastest small-size biochemistry systems available.

  • ISE Option: Optional ISE module adds 200 tests per hour for electrolyte analysis.

  • Low Reaction Volume: Minimum reaction volume of 100 μL reduces reagent costs.

  • Low Water Consumption: Only 2.0–3.0 L per hour, ideal for laboratories with limited utilities.

  • Flexible System Options: Available in both closed system and open system configurations to suit your workflow.

  • Random Access & Continuous Loading: Supports random, batch, and STAT operations with continuous loading of samples and reagents without interrupting testing.

  • High-Efficiency Washing Station: 4-step cuvette washing procedure with pre-heated pure water and auto-diluted detergent. Automated cuvette wash and cell blank check ensure consistent performance.

  • Reusable Cuvettes: 80 optical plastic cuvettes (reusable, 5 mm optical diameter) reduce consumable costs.

  • Refrigerated Storage: Both sample and reagent areas feature 24-hour refrigeration with separate switches for temperature control.

  • Unlimited STAT Positions: Prioritize urgent samples without restriction.

  • Wide Wavelength Range: 16 wavelengths from 340 nm to 800 nm, covering a broad spectrum of assays.

  • Precision Dispensing System: Sample and reagent probes with liquid level detection and clot detection ensure accurate pipetting.

  • Independent Stirring Needle: TEFLON-coated stirring needle for thorough mixing without carryover.

  • Real-Time Monitoring: Reagent levels are monitored, displayed, and alerted in real time.

  • Auto-Dilution: Automatic dilution function for high-concentration samples.

  • Comprehensive Calibration: Supports 1-point linear, 2-point linear, multi-point linear, non-linear, and K factor calibration modes.

  • User-Friendly Software: Intuitive interface with real-time status monitoring and report management.

Technical Specifications



Feature Specification
Equipment Type Automatic discrete, unlimited STAT priority
Throughput 240 tests/hour
ISE Option Optional, 200 tests/hour
Measuring Principles 1-Point Endpoint, 2-Point Endpoint, 2-Point Rate, Rate A, ISE technology
Calibration Options 1-Point Linear, 2-Point Linear, Multi-Point Linear, Non-Linear, K Factor
Sample Types Serum, Plasma, Urine, CSF
Sample Volume Biochemistry: 2.0–35.0 μL; ISE: 90.0 μL
Sample Handling Up to 90 positions, continuous loading, 24-hour refrigeration with separate switch
Reagent Handling Up to 90 positions, continuous loading, 24-hour refrigeration with separate switch
Reagent Volume 20–350 μL
Reagent Bottle Volume 10 mL, 30 mL, 50 mL
Reaction Temperature 37.0°C ± 0.2°C
Reaction Time 12 min / 32 min
Dispensing System Sample & reagent probe with liquid level detection and clot detection
Wavelengths 16 wavelengths: 340, 380, 405, 450, 480, 505, 546, 570, 600, 630, 660, 700, 720, 750, 780, 800 nm
Mixing System 1 independent TEFLON-coated stirring needle
Dilution Auto-dilution
Reaction Volume 100–380 μL
Cuvettes 80 reusable optical plastic cuvettes, 5 mm optical diameter
Light Source 20 W / 12 V halogen lamp, 2,000 hours
Absorbance Range 0–3.5 ABS
Water Consumption Maximum 3.0 L/H (2.0 L/H single reagent)
Barcode Types Code 128, Code 39, Code 93, Codabar, 2/5 Interleaved
Power Supply AC 100–240 V, 50/60 Hz
Dimensions 730 × 500 × 620 mm (28.74 × 19.69 × 24.41 in)
Weight 68 kg

Test Menu

The Biossays 240 Plus offers a comprehensive test menu covering routine biochemistry, liver function, kidney function, lipid metabolism, cardiac markers, electrolytes, and more. Typical test categories include:

Liver Function

ALT (GPT), AST (GOT), ALP, GGT, T-Bil, D-Bil, TP, ALB, TBA, CHE

Kidney Function

UREA, CREA, UA, Cys-C, β2-MG, CO₂

Lipid Metabolism

TC, TG, HDL-C, LDL-C, Apo A1, Apo B, Lp(a)

Cardiac Markers

CK, CK-MB, LDH, α-HBDH

Electrolytes (with ISE module)

K⁺, Na⁺, Cl⁻, Ca²⁺

Blood Glucose

GLU

Pancreatic Function

AMY, LPS

Specific Proteins

CRP, ASO, RF, IgG, IgA, IgM, C3, C4, HbA1c

Therapeutic Drug Monitoring

Available based on reagent availability

Why Choose Biossays 240 Plus?

  • High Efficiency: Constant 240 tests/hour with optional ISE module—one of the fastest in its class

  • Cost-Effective Operation: Low reaction volume (100 μL), reusable cuvettes, and low water consumption reduce operating costs

  • Flexible Configuration: Choose closed system or open system to suit your laboratory's reagent preferences

  • Reliable Results: Advanced dispensing system with liquid level and clot detection, 4-step cuvette washing, and cell blank check ensure accuracy

  • Uninterrupted Workflow: Continuous loading of samples and reagents with random access and unlimited STAT priority

  • Stable Storage: 24-hour refrigeration for both samples and reagents with independent switches

  • Broad Wavelength Coverage: 16 wavelengths from 340–800 nm accommodate a wide range of assays

  • User-Friendly: Real-time monitoring, auto-dilution, and intuitive software simplify daily operation
