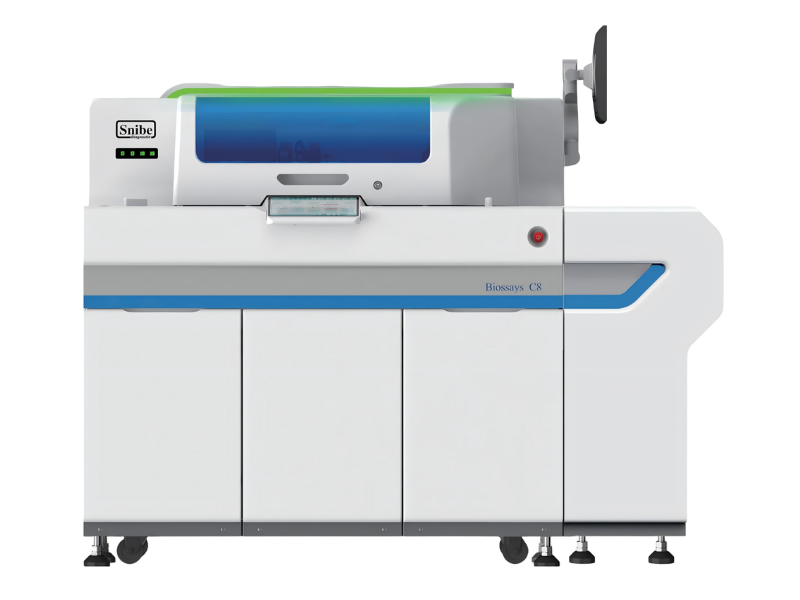

Biossays C8 Fully Automatic Biochemistry Analyzer #

Product Overview

The Biossays C8 is a high-throughput, modular automatic biochemistry analyzer designed for mid to large-sized laboratories and hospitals. Built with SNIBE's passion for innovation, it combines powerful performance, modular scalability, and advanced automation features to help your laboratory realize full automation and maximize operational efficiency. With the ability to link with Laboratory Automation Systems (TLA/LAS) and integrate with MAGLUMI X8 immunoassay analyzers, the Biossays C8 offers a truly integrated solution for high-volume clinical testing environments.

Key Features

• Super High Throughput: Up to 1,600 tests per hour (single module). Combine up to four modules to achieve 6,400 tests per hour.

• ISE Module: Optional ISE module adds 300 tests per hour for electrolyte analysis.

• Flexible Modular Configuration: Random combination of up to 4 units according to testing demands. Capable of integrating with MAGLUMI X8 (Biolumi CX8) for combined immunoassay and biochemistry workflows.

• Decapper Module: Configurable decapper module (500 tubes/hour) eliminates manual operation, significantly improving laboratory efficiency. Capping speed of 400 tubes/hour; combined speed of 400 tubes/hour.

• Total Laboratory Automation: Capable of linking with Laboratory Automation Systems (TLA/LAS) for seamless end-to-end automation.

• Advanced Pipetting Technology: Micro-sampling technology ensures accuracy for low-volume samples (as low as 1.5 μL). Features liquid level, clot, and collision detection to reduce sampling error rates.

• High-Capacity Sample & Reagent Handling: 300 sample positions. 72 reagent positions each for R1 and R2 with dual-temperature refrigeration (working: 8–12°C; storage: 2–8°C).

• Permanent Quartz Cuvettes: Maintenance-free with no replacement required, reducing consumable costs.

• Precise Mixing and Incubation: Full mixing with adjustable speeds—mixing speed for different reagents can be set independently. Solid heating with stable temperature control at 37.0°C ± 0.2°C.

• 10-Step Washing Technology: Ensures thorough washing. Automatic distribution of warm water, acid, and alkali liquid reduces liquid consumption (assay dependent). Independent agitation mechanism reduces carryover and ensures more thorough cleaning.

• High-Performance Measuring System: Concave holographic grating post-splitting technology delivers high resolution and low stray light. High-performance measurement channels with high signal-to-noise ratio, minimal ripple, and stable temperature control.

• Precise Light Source Control: Precise control of temperature and voltage ensures minimal light source fluctuation and extended lamp life.

• Wide Wavelength Range: 13 fixed wavelengths from 340 nm to 800 nm, covering a broad spectrum of assays.

• Comprehensive Quality Control: Supports batch QC and month QC for consistent quality management.

Technical Specifications

ISE Module Specifications (Optional)

Decapper Module Specifications (Optional)

Test Menu

The Biossays C8 offers a comprehensive test menu covering routine biochemistry, liver function, kidney function, lipid metabolism, cardiac markers, diabetes, anemia, immune markers, and more. Typical test categories include:

Liver Function

ALT (SGPT), AST (SGOT), ALP, GGT, T-BIL (Vanadate), D-BIL (Vanadate), TBIL (DPD), DBIL (DCA), TP, ALB, TBA, CHE, AFU, 5′-NT, ADA, GLDH, *Monoamine Oxidase

Kidney Function

Cr (CREA), Urea, Uric Acid (UA), Cys-C, β2-Microglobulin, α1-Microglobulin, NAG, mALB, RBP, Urine/CSF Protein

Lipid Metabolism

TC, TG, HDL-C, LDL-C, ApoA1, ApoB, Lp(a), ApoE

Cardiac Markers

CK, CK-MB, LDH, α-HBDH, LDH1, Hcy, *ACL, *MYO, *D-Dimer

Diabetes & Glyco Metabolism

GLU, HbA1c, GSP, LAC, β-Hydroxybutyrate, *Adiponectin (ADPN)

Electrolytes & Inorganic Ions (with ISE module)

Na⁺, K⁺, Cl⁻, Ca²⁺ (OCPC), Ca²⁺ (Arsenazo III), P (PHOS), Mg, CO₂, *Li

Anemia & Iron Metabolism

Transferrin (TRF), Ferritin, *G6PD, *C1q, *Kappa Light Chain, *Lambda Light Chain, *IMA, Haptoglobin (HPT)

Immune & Inflammation

IgG, IgA, IgM, C3, C4, CRP (Full Range), ASO, RF, hs-CRP, *IMAN, *CER, *α2-Macroglobulin, *Urine-IgG

Pancreatic Function

α-AMY, P-AMY, LPS

Rheumatism

ASO, RF

Hepatitis & Fibrosis

*CG (Latex), *CG (CEDIA)

Why Choose Biossays C8?

• Ultra-High Throughput: 1,600 tests per hour (single module), scalable to 6,400 tests per hour—ideal for high-volume laboratories

• Modular Flexibility: Random combination of up to 4 modules; integrate with MAGLUMI X8 for combined immunoassay and biochemistry workflows

• Total Laboratory Automation: Seamlessly links with TLA/LAS systems and configurable decapper module for complete workflow automation

• Permanent Quartz Cuvettes: Maintenance-free with no replacement required, significantly reducing consumable costs

• Advanced Pipetting Accuracy: Micro-sampling technology with 1.5 μL minimum volume ensures accuracy for precious samples

• Comprehensive Washing: 10-step washing technology with independent agitation minimizes carryover and ensures thorough cleaning

• Precise Temperature Control: Solid heating with 37.0°C ± 0.2°C stability for consistent reaction conditions

• High-Performance Optics: Concave holographic grating post-splitting technology with 13 wavelengths delivers high resolution and low stray light

• Scalable Configuration: Expand throughput and functionality as your laboratory grows

• Streamlined Workflow: Optional decapper module eliminates manual uncapping, saving time and reducing ergonomic strain
