Chemray 240 Chemistry Analyzer | 240 T/H Fully‑Automatic Biochemistry System

Fully‑automatic random‑access chemistry analyzer with 240 tests/hour throughput, 24‑hour refrigerated reagent storage, 8‑step wash, and low carryover. Ideal for clinical laboratories and hospitals.

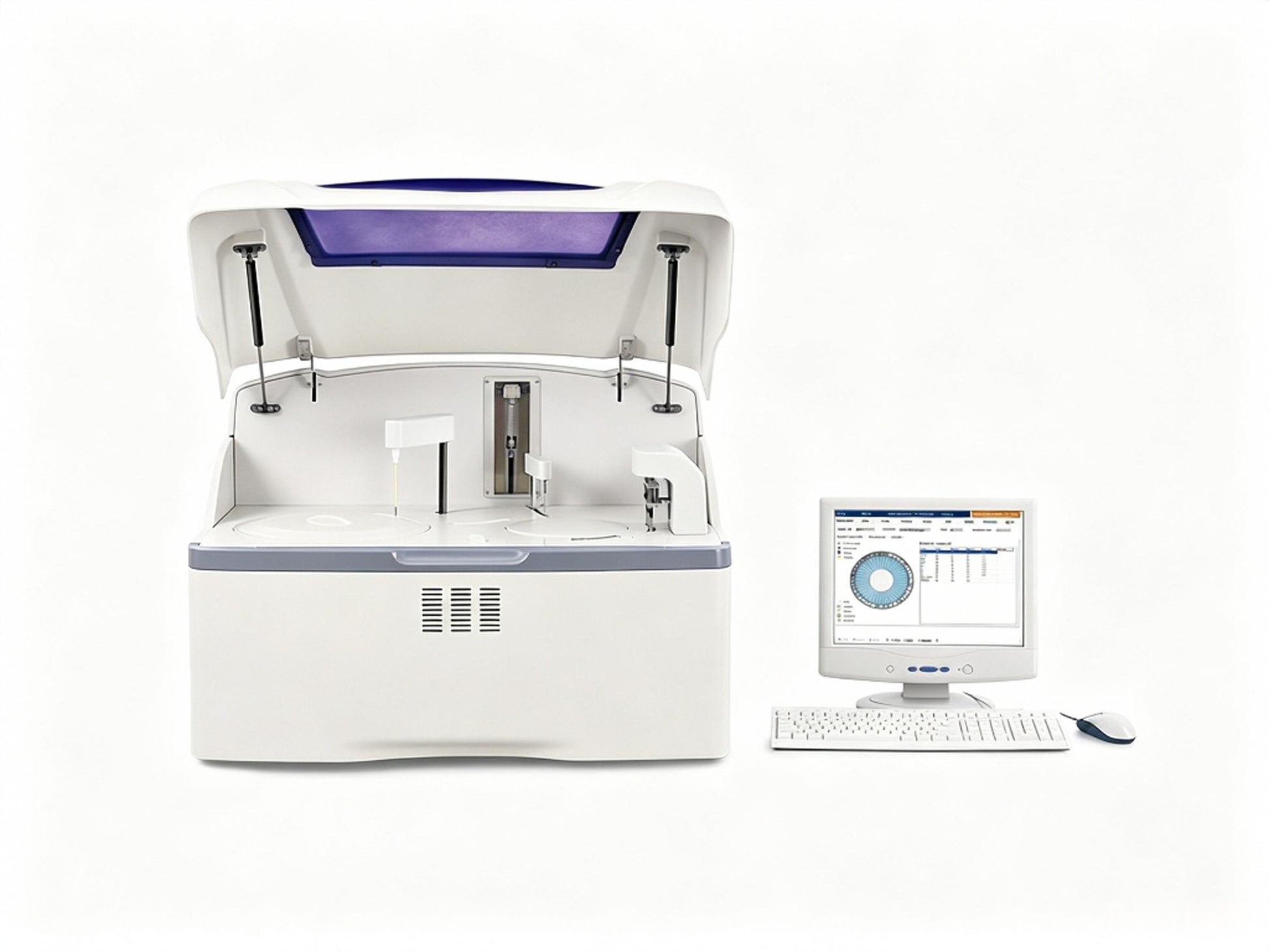

The Global Healthcare Medical Chemray 240 Automatic Chemistry Analyzer is a fully‑automated, random‑access clinical chemistry system engineered for reliable, efficient biochemistry testing in clinical laboratories, hospitals, and clinics. Featuring a constant throughput of 240 tests per hour, this bench‑top analyzer delivers the speed and efficiency required in modern laboratory environments.

Designed with advanced optical technology and a user‑friendly interface, the Chemray 240 offers random access capability with STAT sample priority, enabling flexible workflow management and rapid processing of urgent samples. Its open reagent system supports user‑defined profiles, while the 24‑hour non‑stop refrigerated reagent cooling compartment ensures reagent stability and integrity for continuous operation. Whether you are performing routine biochemistry panels or specialized assays, the Chemray 240 delivers the reliability, accuracy, and throughput that clinical laboratories demand.

This device is intended for professional use in clinical laboratory settings by trained professionals. Not a substitute for professional medical diagnosis.

Key Features

⚡ High‑Throughput Performance – 240 Tests/Hour

The Chemray 240 delivers a constant throughput of 240 tests per hour, ensuring efficient processing of routine workloads in busy laboratory environments. With 81 reaction positions, the system can simultaneously run up to 81 different tests, providing extended walk‑away capability.

🔄 Random Access with STAT Priority

The Chemray 240 supports random access with STAT sample priority, enabling flexible workflow management and rapid processing of urgent samples. The system also features auto‑repeated test function for samples requiring verification.

🧊 24‑Hour Non‑Stop Refrigerated Reagent Storage

The analyzer includes a 24‑hour non‑stop refrigerated reagent cooling compartment, ensuring reagent stability and integrity for continuous operation. This feature minimizes waste, maintains consistent assay performance, and supports extended walk‑away capability.

🧼 Automatic 8‑Step Washing System with Low Carryover

The Chemray 240 features an automatic 8‑step washing system with low carryover, ensuring minimal cross‑contamination between samples and consistent result integrity. The high‑performance mixing device ensures thorough homogenization of reaction solutions.

🔬 Advanced Optical System

• Wavelength range: 340 – 800 nm, providing up to 12 wavelengths for a wide range of assays

• Holographic concave grating post‑dispersion technology combined with photodiode array detection

• Halogen tungsten lamp light source with water‑circulation cooling for extended lamp life

• Detection sensitivity: 0.0001 Abs

🧪 Versatile Sample & Reagent Handling

• Sample positions: 40 positions

• Reagent positions: 40 positions (refrigerated)

• Reaction positions: 81 positions

• Sample volume: 3 – 100 µL (0.5 µL adjustable)

• Reagent volume: 20 – 350 µL (0.5 µL adjustable)

• Pre‑dilution function for samples requiring dilution

• Low reagent consumption

🛡️ Advanced Safety & Automation Features

• Liquid level tracking technology for accurate aspiration

• Intelligent anti‑collision function to protect probes

• Needle wall coated with Teflon – corrosion‑resistant, wear‑resistant, low carryover

• Inclusive constant temperature technology – accurate, stable reaction temperature

• Multi‑step cuvette washing – ensures cleanliness and optical clarity

• Liquid level sensing and monitoring alarms

📋 Comprehensive Data Management & QC

• Quality control management – supports Westgard multi‑rules, cumulative sum, and other QC methods

• Storage, display, and printing of QC charts

• Multiple calibration methods – one‑point, two‑point, multi‑point linear, and non‑linear calibration

• Bi‑directional LIS communication – supports full hospital information system integration

• User‑friendly software

• Multi‑language support

🔌 Optional Features

• Fixed sample and reagent barcode scanner – for fast, accurate information acquisition

• ISE (Ion‑Selective Electrode) module – for electrolyte analysis (K⁺, Na⁺, Cl⁻)

Specifications

What's Included

• Chemray 240 Automatic Chemistry Analyzer Main Unit

• 40‑Position Sample Tray

• 40‑Position Refrigerated Reagent Tray

• 81‑Position Reaction Cuvette Rotor

• 8‑Step Automatic Washing System

• High‑Performance Mixing Device

• User‑Friendly Operation Software

• Power Cable

• User Manual

• Installation and Training Support

Applications

The Chemray 240 Automatic Chemistry Analyzer is suitable for:

• Clinical Laboratories – Routine biochemistry testing for liver function, kidney function, blood glucose, lipids, and myocardial enzymes

• Hospitals – Comprehensive patient diagnostics across all departments

• Clinics – Point‑of‑care biochemistry analysis

• Research Institutions – Biochemical research and assay development

• Public Health Laboratories – Screening and surveillance programs

• Sample Types – Serum, plasma, urine, cerebrospinal fluid, and other body fluids

Why Choose the Chemray 240?



FAQ

Q: What is the Chemray 240 Automatic Chemistry Analyzer?

A: The Chemray 240 is a fully‑automated, random‑access clinical chemistry analyzer designed for clinical laboratory testing, featuring 240 tests/hour throughput, 40 sample positions, 40 refrigerated reagent positions, and 81 reaction positions.

Q: What is the throughput of the Chemray 240?

A: The Chemray 240 delivers a throughput of 240 tests per hour.

Q: Does the Chemray 240 have refrigerated reagent storage?

A: Yes. The analyzer features a 24‑hour non‑stop refrigerated reagent cooling compartment.

Q: Does the Chemray 240 support STAT testing?

A: Yes. The analyzer features random access with STAT sample priority and an auto‑repeated test function.

Q: What washing system does the Chemray 240 use?

A: The analyzer features an automatic 8‑step washing system with low carryover.

Q: What wavelength range does the Chemray 240 cover?

A: The analyzer covers 340 – 800 nm with up to 12 wavelengths.

Q: What calibration methods are supported?

A: The Chemray 240 supports one‑point, two‑point, multi‑point linear, and non‑linear calibration.

Q: Does the Chemray 240 support LIS connectivity?

A: Yes. The analyzer features bi‑directional LIS communication for seamless data exchange.

Q: What quality control features are available?

A: The Chemray 240 supports Westgard multi‑rules, cumulative sum, and other QC methods, with storage, display, and printing of QC charts.

Q: What optional features are available?

A: Optional features include a fixed sample and reagent barcode scanner and an ISE (Ion‑Selective Electrode) module.

Q: Is the Chemray 240 an open reagent system?

A: Yes. The Chemray 240 uses an open reagent system, allowing the use of domestic and third‑party reagents.

Q: What sample types does the Chemray 240 support?

A: The analyzer supports serum, plasma, urine, cerebrospinal fluid, and other body fluid samples.
