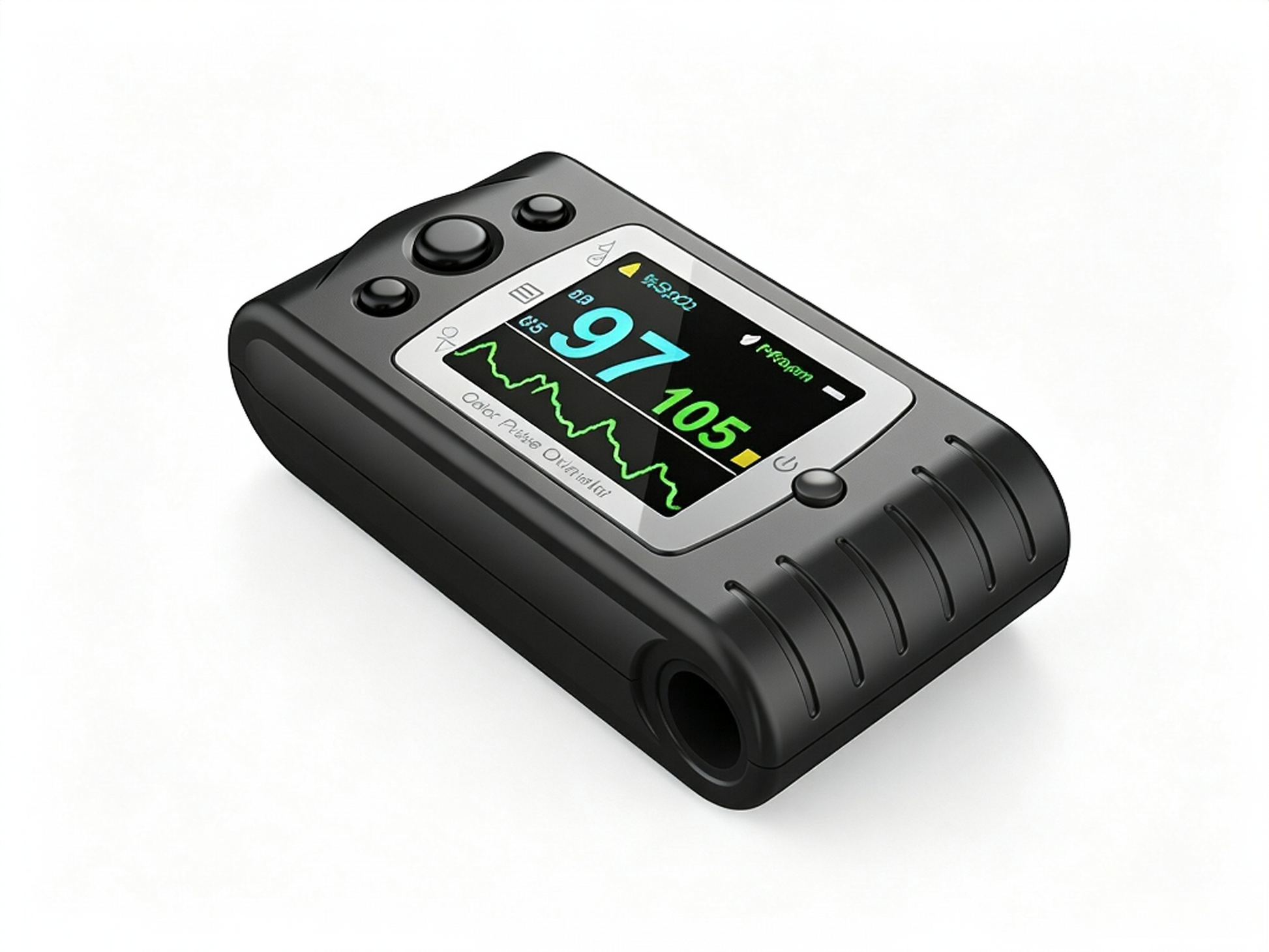

CMS60C Handheld Pulse Oximeter | Portable SpO2 Monitor with 24H Data Storage #

Handheld pulse oximeter with 1.77" TFT color display, SpO2 and PR monitoring, 24-hour data storage, PC software, and adjustable alarms. Portable oxygen monitor for home, hospital, and sports use.

The CONTEC CMS60C Handheld Pulse Oximeter is a portable, non‑invasive device designed for fast and accurate measurement of blood oxygen saturation (SpO₂) and pulse rate (PR). Adopting Photoelectric Oxyhemoglobin Inspection Technology integrated with Capacity Pulse Scanning & Recording Technology, this compact oximeter delivers reliable results through the fingertip.

Featuring a 1.77" 65K color TFT display with SpO₂ value, pulse rate value, bar graph, and real‑time pulse waveform, the CMS60C provides comprehensive, easy‑to‑read measurements at a glance. With 24‑hour data storage and PC software, adjustable upper/lower alarms, rechargeable battery, and external probe compatibility, this device is designed for both spot‑checking and extended monitoring applications.

Ideal for home healthcare, hospitals, oxygen bars, community health services, and sports physical care. Can be used before or after physical activity—not recommended for use during exercise.

Key Features

🩸 Accurate SpO₂, Pulse Rate & Waveform Monitoring

The CMS60C provides precise measurement of blood oxygen saturation (SpO₂) and pulse rate (PR) through the fingertip.

• SpO₂ Measuring Range: 0%–100% (resolution 1%)

• SpO₂ Accuracy: ±2% (70%–100%); below 70% unspecified

• Pulse Rate Range: 30–250 bpm (resolution 1 bpm)

• Pulse Rate Accuracy: ±2 bpm or ±2% (whichever is greater)

• Real‑time pulse waveform and bar graph display for visual assessment

🖥️ 1.77" 65K Color TFT Display

The high‑quality 1.77" 65K color TFT display with 128×160 resolution delivers crisp, vibrant visuals with excellent clarity. The display direction can be changed and screen brightness is adjustable across three levels, ensuring clear visibility in both bright and dim environments.

📊 Comprehensive Display Information

The CMS60C screen shows all essential data at a glance:

• SpO₂ value – Blood oxygen saturation percentage

• Pulse rate value & bar graph – Heart rate with visual pulse strength indicator

• Pulse waveform – Real‑time plethysmographic waveform

🔊 Adjustable Audible & Visual Alarms

Stay informed with customizable alarms:

• Adjustable upper and lower alarm limits – Set your own SpO₂ and PR thresholds

• Audible and visual alarms – Alerts when measured values exceed preset levels

• Pulse rate sound indication – Audible feedback for each heartbeat (can be turned on/off)

💾 24‑Hour Data Storage & PC Software

The CMS60C features robust data management capabilities:

• 24‑hour data storage – Accurately stores pulse rate and SpO₂ data

• PC analysis software – Upload data to a computer for review and analysis

• Real‑time data transmission – Stream live data to computers

🔋 Rechargeable Battery with Long Life

Powered by a 3.7V rechargeable lithium battery:

• Battery life: Up to 26 hours of continuous operation (theoretical)

• Charge cycles: No less than 500 charge/discharge cycles

• Battery capacity indication – Shows remaining battery level

• Low‑voltage indication – Alerts before voltage becomes too low for normal operation

🔌 External SpO₂ Probe Compatibility

The CMS60C supports connection to an external SpO₂ probe，providing flexibility for different patient populations and clinical scenarios.

💪 Performance in Challenging Conditions

• Weak filling performance – SpO₂ and pulse rate can be shown correctly when pulse‑filling ratio is 0.4%

• Light resistance – Deviation between measurements in artificial/indoor natural light and darkroom conditions is less than ±1%

📱 Compact, Lightweight & Portable Design

• Dimensions: 87(L) × 45(W) × 22(H) mm

• Weight: Approximately 75g (with lithium battery)

• Small in volume, light in weight – convenient for carrying

• Easy to operate – operation menu for function settings

Specifications

Why Choose the CMS60C?

Whether you're monitoring your health at home, working in a clinical setting, or tracking fitness performance, the CONTEC CMS60C Handheld Pulse Oximeter delivers the accuracy, versatility, and advanced features you need.

What's Included

• CMS60C Handheld Pulse Oximeter

• 3.7V Rechargeable Lithium Battery

• Power Adapter

• Data Cable (USB)

• CD with PC Software

• SpO₂ Probe

• User Manual

Applications

The CMS60C Pulse Oximeter is suitable for:

• Home Healthcare – Daily oxygen level monitoring with data tracking

• Hospitals & Clinics – Patient monitoring in wards, ICUs, and outpatient departments

• Oxygen Bars – Pre/post‑oxygen therapy assessment

• Community Healthcare – Public health screenings

• Sports & Fitness – Performance monitoring (before or after exercise, not during)

• Continuous Monitoring – Suitable for both continuous monitoring and spot‑check

FAQ

Q: What does the CMS60C measure?
A: The CMS60C measures blood oxygen saturation (SpO₂) and pulse rate (PR) through the fingertip, with real‑time pulse waveform and bar graph display.

Q: What type of display does it have?
A: The CMS60C features a 1.77" 65K color TFT display with 128×160 resolution, adjustable brightness, and changeable display direction.

Q: Does it have data storage?
A: Yes. The CMS60C features 24‑hour data storage that can be uploaded to a computer via the included data cable and PC software for analysis.

Q: Can I transmit data in real time?
A: Yes. The CMS60C supports real‑time data transmission to computers.

Q: Does it have alarm functions?
A: Yes. The CMS60C features adjustable upper and lower alarm limits with both audible and visual alarms.

Q: What type of battery does it use?
A: The CMS60C uses a 3.7V rechargeable lithium battery with up to 26 hours of continuous operation and no less than 500 charge/discharge cycles.

Q: Can I use an external probe?
A: Yes. The CMS60C supports connection to an external SpO₂ probe for flexible patient monitoring.

Q: Does it work well in challenging conditions?
A: Yes. The CMS60C performs reliably in weak filling conditions (0.4% filling ratio) and shows minimal deviation (<±1%) in different lighting conditions.

Q: Can I use it during exercise?
A: The CMS60C can be used before or after exercise, but it is not recommended for use during exercise.

Q: Who is this device suitable for?
A: The CMS60C is suitable for adult, pediatric, and neonatal patients and is ideal for home healthcare, hospitals, oxygen bars, community healthcare, and sports physical care.
