CMS800C-PLUS Fetal/Maternal Monitor | 12.1" Touch Screen Fetal & Maternal Vital Signs Monitor #

12.1" fetal/maternal monitor with dual-channel FHR, TOCO, FMOV, and maternal ECG, NIBP, SpO2, TEMP, RESP. Twins verification, 24h storage, built-in 152mm printer, and central monitoring connectivity. Ideal for hospitals and obstetric clinics.

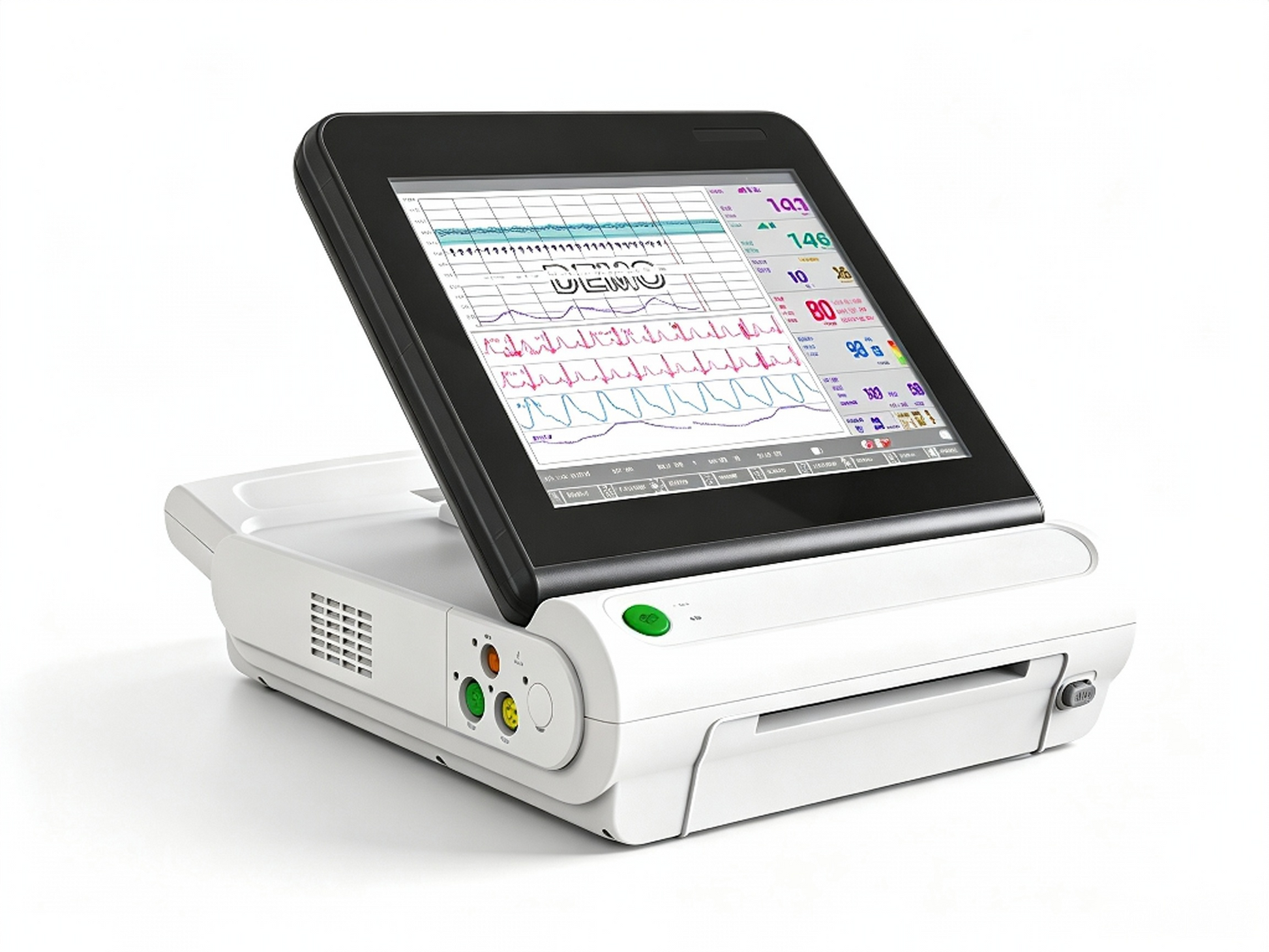

The CONTEC CMS800C-PLUS Fetal/Maternal Monitor is a comprehensive, all‑in‑one monitoring solution designed for simultaneous surveillance of both fetal and maternal vital signs during pregnancy, labor, and delivery. Engineered for hospital obstetric departments, delivery rooms, and high‑risk pregnancy units, the CMS800C‑PLUS provides real‑time, accurate monitoring data to support clinical decision‑making for both mother and baby.

The device monitors fetal heart rate (FHR), fetal movement (FMOV) , and uterine contraction pressure (TOCO) , alongside maternal ECG, SpO₂, TEMP, RESP, and NIBP—all in a single integrated system.With its 12.1‑inch foldable color touch screen, independent physiological and technical alarms, twins monitoring capability, and central monitoring system connectivity, the CMS800C‑PLUS is the ultimate fetal‑maternal surveillance solution for modern obstetric care.

Not all optional functions are available in all regions—please contact us for details.

Key Features

👩👧 Comprehensive Fetal & Maternal Monitoring

The CMS800C‑PLUS integrates fetal and maternal monitoring in a single device, tracking:

Fetal Parameters:

• FHR (Fetal Heart Rate) – Dual‑channel FHR monitoring with signals overlap verification to differentiate twins FHR

• FMOV (Fetal Movement) – Fetal movement recording

• TOCO (Uterine Contraction Pressure) – Real‑time uterine contraction monitoring

Maternal Parameters:

• ECG – Maternal electrocardiogram

• SpO₂ – Blood oxygen saturation

• NIBP – Non‑invasive blood pressure

• TEMP – Body temperature

• RESP – Respiration rate

🖥️ 12.1" Foldable Color LCD Touch Screen

The 12.1‑inch high‑definition color LCD touch screen delivers clear, crisp display of fetal and maternal waveforms and numeric data. The foldable screen design (0° – 90°) allows healthcare providers to position the monitor for optimal viewing in any clinical setting.

🫀 Normal FHR Area Mark (110–160 BPM)

The display features a visual area mark for the normal FHR range (110 BPM – 160 BPM) , enabling quick visual confirmation of normal fetal heart rate patterns and immediate recognition of abnormalities.

🔔 Independent Physiological & Technical Alarms

Enhance patient safety with independent physiological and technical alarm indicators. The device features multiple alarm functions, with the ability to turn off single‑parameter alarms when needed—reducing alarm fatigue while maintaining critical alerts.

👯 Dual‑Channel FHR Monitoring with Twins Verification

The CMS800C‑PLUS supports dual‑channel FHR monitoring for twins, with signals overlap verification technology to accurately differentiate between the two fetal heart rates—ensuring reliable monitoring for multiple pregnancies.

📊 FHR Curve Separation Technology

FHR curve separation technology provides clear, distinct visualization of fetal heart rate patterns, enabling clinicians to assess each fetus individually in multiple‑pregnancy scenarios.

🖨️ Built‑in 152 mm High‑Definition Thermal Printer

The CMS800C‑PLUS features an extra long‑life and high‑definition built‑in 152 mm thermal printer for immediate, high‑quality printing of monitoring curves and data—providing hard‑copy documentation for patient records.

💾 24‑Hour Real‑Time Monitoring with Storage & Playback

The monitor supports continuous 24‑hour real‑time monitoring, with curve storing, reviewing, and printing capabilities. Case reports can be conveniently stored in a U disk for easy data export and backup.

📊 Multiple Monitoring Interfaces

Multiple monitoring interfaces allow display of fetal and maternal parameters on one unified interface—providing a comprehensive view of both maternal and fetal status at a glance.

📋 Automatic Scoring Function

The device features an automatic scoring function to assist clinicians in rapid fetal well‑being assessment, streamlining clinical workflow and supporting consistent evaluation.

📡 Central Monitoring System Connectivity

The CMS800C‑PLUS can be connected to a central monitoring system via wired or wireless modes through a network interface, enabling centralized fetal‑maternal surveillance across multiple beds in obstetric departments.

🔋 Built‑in Rechargeable Battery

The device features a built‑in rechargeable battery that ensures continuous operation for 3 hours after sudden interruption of power supply—critical for uninterrupted monitoring during patient transport or power outages.

🛡️ 12‑Crystal Broad Beam Transducer

The 12‑crystal broad beam transducer ensures reliable fetal heart rate detection even in challenging conditions, providing consistent, accurate signal acquisition.

🌍 Multi‑Language Interface

Supports optional interface languages: Chinese and English

Specifications

Why Choose the CMS800C‑PLUS?

What's Included

• CMS800C‑PLUS Fetal/Maternal Monitor Main Unit

• 12.1" Color LCD Touch Screen (foldable 0°–90°)

• Ultrasound Transducer (12‑crystal broad beam)

• TOCO Transducer (Uterine Contraction Pressure)

• Fetal Movement Marker

• Maternal ECG Cable

• SpO₂ Probe

• NIBP Cuff

• TEMP Probe

• Thermal Recording Paper (152 mm)

• Power Adapter

• Built‑in Rechargeable Battery

• User Manual

Applications

The CMS800C‑PLUS Fetal/Maternal Monitor is suitable for:

• Obstetric Departments – Comprehensive fetal and maternal monitoring during pregnancy and labor

• Delivery Rooms – Real‑time surveillance of both mother and baby

• High‑Risk Pregnancy Units – Continuous monitoring for complicated pregnancies

• Antenatal Wards – Routine fetal‑maternal well‑being assessment

• Multiple Pregnancy Management – Twins monitoring with signal overlap verification

FAQ

Q: What parameters does the CMS800C‑PLUS monitor?
A: The CMS800C‑PLUS monitors fetal parameters (FHR, FMOV, TOCO) and maternal parameters (ECG, SpO₂, NIBP, TEMP, RESP) in a single integrated system.

Q: Does the CMS800C‑PLUS support twins monitoring?
A: Yes. The device features dual‑channel FHR monitoring with signals overlap verification technology to accurately differentiate between twins.

Q: What type of display does the CMS800C‑PLUS have?
A: The CMS800C‑PLUS features a 12.1‑inch color LCD touch screen that is foldable from 0° to 90° for optimal positioning.

Q: Does the CMS800C‑PLUS have a built‑in printer?
A: Yes. The device features an extra long‑life and high‑definition built‑in 152 mm thermal printer for immediate printing of monitoring curves and data.

Q: How long does the battery last?
A: The built‑in rechargeable battery ensures continuous operation for 3 hours after sudden interruption of power supply.

Q: Can the CMS800C‑PLUS connect to a central monitoring system?
A: Yes. The device can be connected to a central monitoring system via wired or wireless modes through a network interface.

Q: Can I export case reports?
A: Yes. Case reports can be stored in a U disk for easy data export and backup.

Q: What is the normal FHR range displayed on the monitor?
A: The display features a visual area mark for the normal FHR range of 110–160 BPM for quick visual confirmation.

Q: What alarm functions does the CMS800C‑PLUS have?
A: The device features independent physiological and technical alarm indicators with multiple alarm functions, and single‑parameter alarms can be turned off when needed.

Q: Is the CMS800C‑PLUS suitable for home use?
A: No. The CMS800C‑PLUS is a hospital‑grade device intended for clinical use in obstetric departments, delivery rooms, and high‑risk pregnancy units.
