ECG1200G 12-Lead ECG Machine | 8" Touch Screen Electrocardiograph with Auto-Analysis

12-lead ECG machine with 8" color touch screen, 24-bit sampling, auto-analysis, 4000-case storage, and multiple print formats. Portable electrocardiograph for clinics and hospitals. CE/FDA-registered.

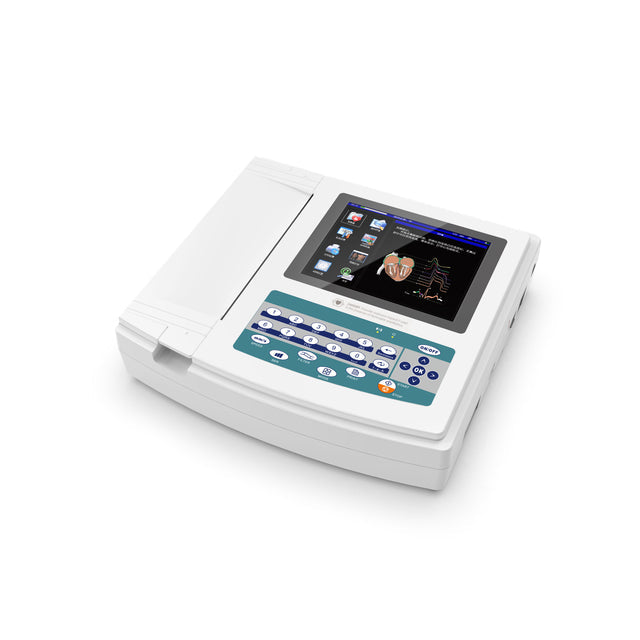

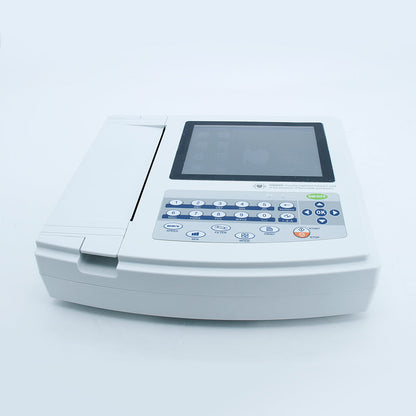

The Contec ECG1200G Electrocardiograph is a professional 12-lead ECG machine engineered for medical professionals who demand precision, efficiency, and advanced diagnostic capabilities. Featuring an 8" high-resolution color touch screen, 24-bit sampling accuracy, and simultaneous 12-lead ECG acquisition, the ECG1200G delivers hospital-grade performance in a portable, user-friendly package.

With auto-analysis and auto-diagnosis capabilities, multiple printing formats, and a large-capacity case database storing up to 4,000 records, this electrocardiograph streamlines cardiac assessment for clinics, hospitals, and mobile healthcare providers.

Key Features

📊 Simultaneous 12-Lead ECG Acquisition with 24-Bit Sampling

The ECG1200G collects all 12 leads simultaneously with a 24-bit sampling accuracy, ensuring high-fidelity ECG signal capture. Advanced digital filters—including power frequency filter, baseline filter, and EMG filter—effectively eliminate interference and baseline drift, delivering crisp, artifact-free waveforms.

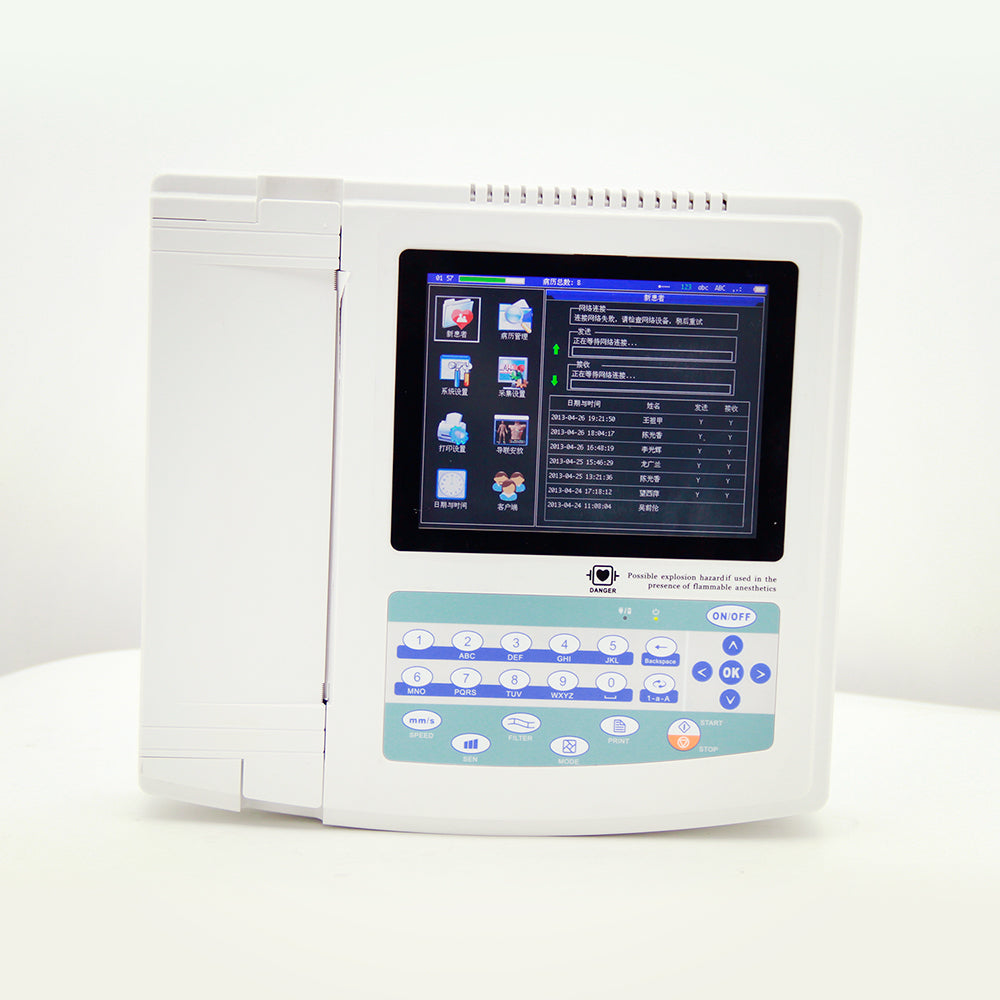

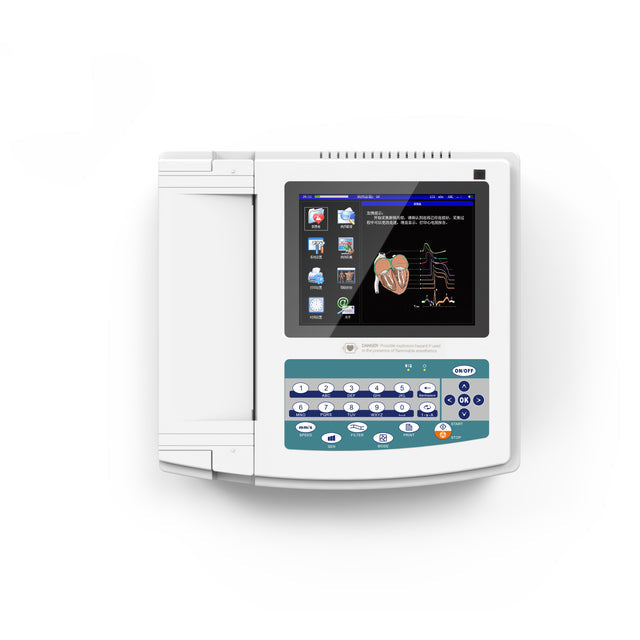

🖥️ 8" High-Resolution Color Touch Screen

The large 8" color touch screen displays 3/6/12-lead ECG waveforms alongside critical information—print mode, sensitivity, paper speed, and filter status—all on one screen for convenient contrastive diagnosis. Intuitive touch and button operation ensures ease of use for medical staff of all experience levels.

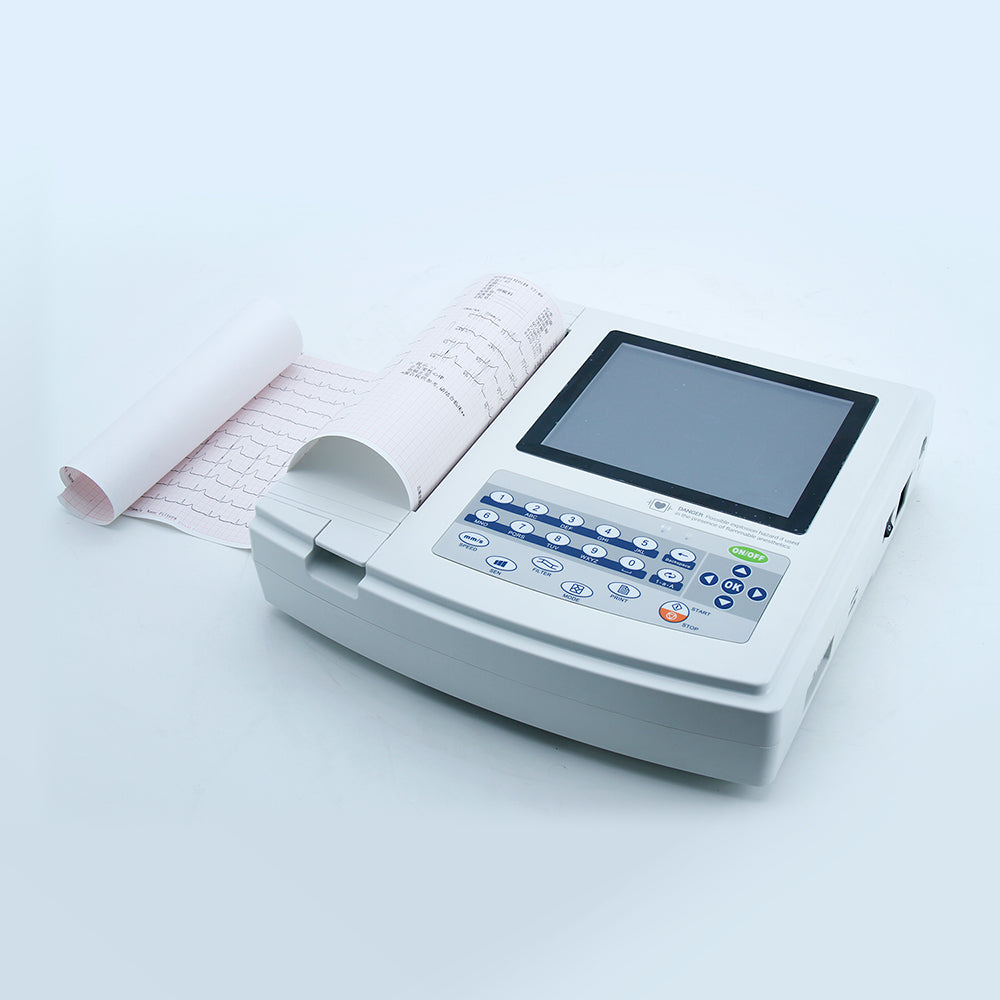

🖨️ Versatile Printing with Multiple Formats

Supports a wide array of printing modes and formats to meet diverse clinical needs:

• Auto 12×1 – Full 12-lead in a single row

• Auto 6×2+1 – 6 leads × 2 rows with rhythm lead

• Auto 3×4+1 – 3 leads × 4 rows with rhythm lead

• Rhythm 12, 10, 8, 6 – Rhythm lead printing options

• Manual mode – Customizable printing

• Trend chart and histogram of P-R interval for convenient abnormal heart rhythm observation

• Adjustable waveform length and timed print function

🔬 Auto-Analysis & Auto-Diagnosis

The ECG1200G automatically measures and diagnoses routine ECG parameters, providing instant measurement results and diagnostic conclusions for:

• Heart Rate (HR)

• P-R Interval, P Duration, QRS Duration, T Duration

• Q-T Interval & Q-Tc

• P Axis, QRS Axis, T Axis

• R(V5), S(V1), R(V5)+S(V1) amplitude

This powerful feature significantly reduces the doctor's diagnostic burden and accelerates clinical workflow.

Note: Devices sold to FDA-regulated regions may not support auto-analysis and auto-diagnosis functions.

📂 Large-Capacity Case Database

Built-in large-capacity memory stores up to 4,000 medical records, making it easy for doctors to review cases, perform statistical analysis, and manage patient data efficiently.

🎯 Flexible Paper Speed Options

Supports six paper speed settings—5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, and 50mm/s—accommodating various diagnostic and documentation requirements.

🔋 Long Battery Life for Mobile Use

In optimal DC state, enjoy up to 10-hour standby time and more than 3 hours of continuous printing. This extended battery life makes the ECG1200G ideal for home visits, community health screenings, and mobile medical examinations.

⚠️ Smart Alerts & Prompts

Automatic prompts for "Lead off" and "Lack of paper" ensure uninterrupted operation and reliable results.

🌍 Multi-Language Interface

Supports multiple languages for international medical practices.

Specifications

Why Choose the ECG1200G?

Whether you're a cardiologist, general practitioner, or community health provider, the Contec ECG1200G Portable 12-Lead Electrocardiograph delivers the advanced features, accuracy, and reliability you need—in the clinic or on the go.

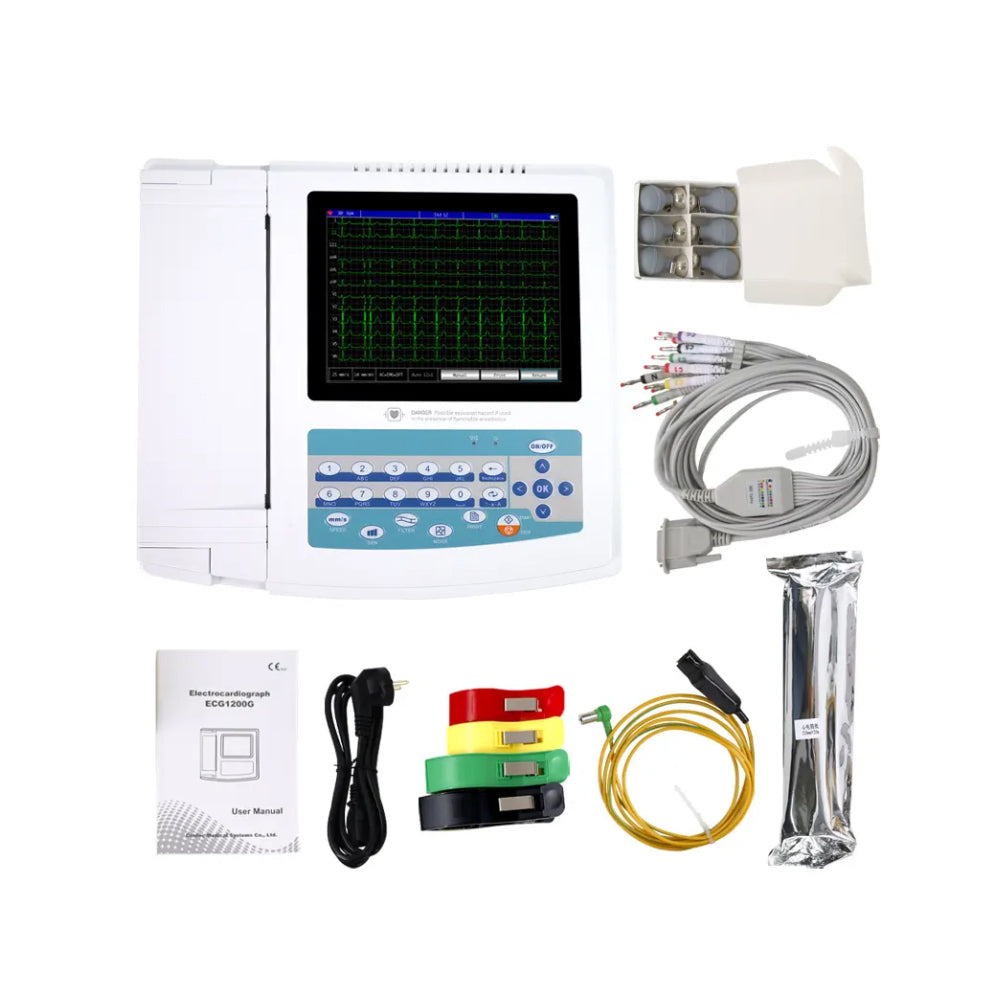

What's Included

• ECG1200G Main Unit with 8" Touch Screen

• 12-Lead ECG Cable

• Patient Lead Wires

• Thermal Recording Paper

• Power Adapter

• User Manual

FAQ

Q: Is the ECG1200G suitable for hospital use?
A: Yes. With 12-lead simultaneous acquisition, 24-bit sampling accuracy, 4,000-case storage, and multiple printing formats, it's ideal for hospital cardiology departments, clinics, and emergency settings.

Q: What printing formats are available?
A: The ECG1200G supports multiple formats including Auto 12×1, Auto 6×2+1, Auto 3×4+1, Rhythm 12/10/8/6, Manual, as well as trend charts and P-R interval histograms.

Q: Does the device provide automatic diagnosis?
A: Yes. The ECG1200G features auto-analysis and auto-diagnosis for routine ECG parameters. Please note that this function may be limited in FDA-regulated regions.

Q: How long does the battery last?
A: In optimal DC state, the ECG1200G provides up to 10 hours of standby time and more than 3 hours of continuous printing—ideal for home visits and mobile examinations.

Q: Can I adjust the paper speed?
A: Yes. The ECG1200G supports six paper speed settings: 5, 6.25, 10, 12.5, 25, and 50 mm/s.

Q: How many cases can the device store?
A: The built-in large-capacity memory can store up to 4,000 medical records for convenient case review and statistical analysis.
