CONTEC8000G ECG Workstation | 12-Lead PC-Based EKG System with Advanced Analysis #

PC-based 12-lead ECG workstation with 1000Hz sampling, advanced cardiac analysis (HRV, QT dispersion, VCG), and HL7/HIS integration. Portable EKG system for clinics and hospitals.

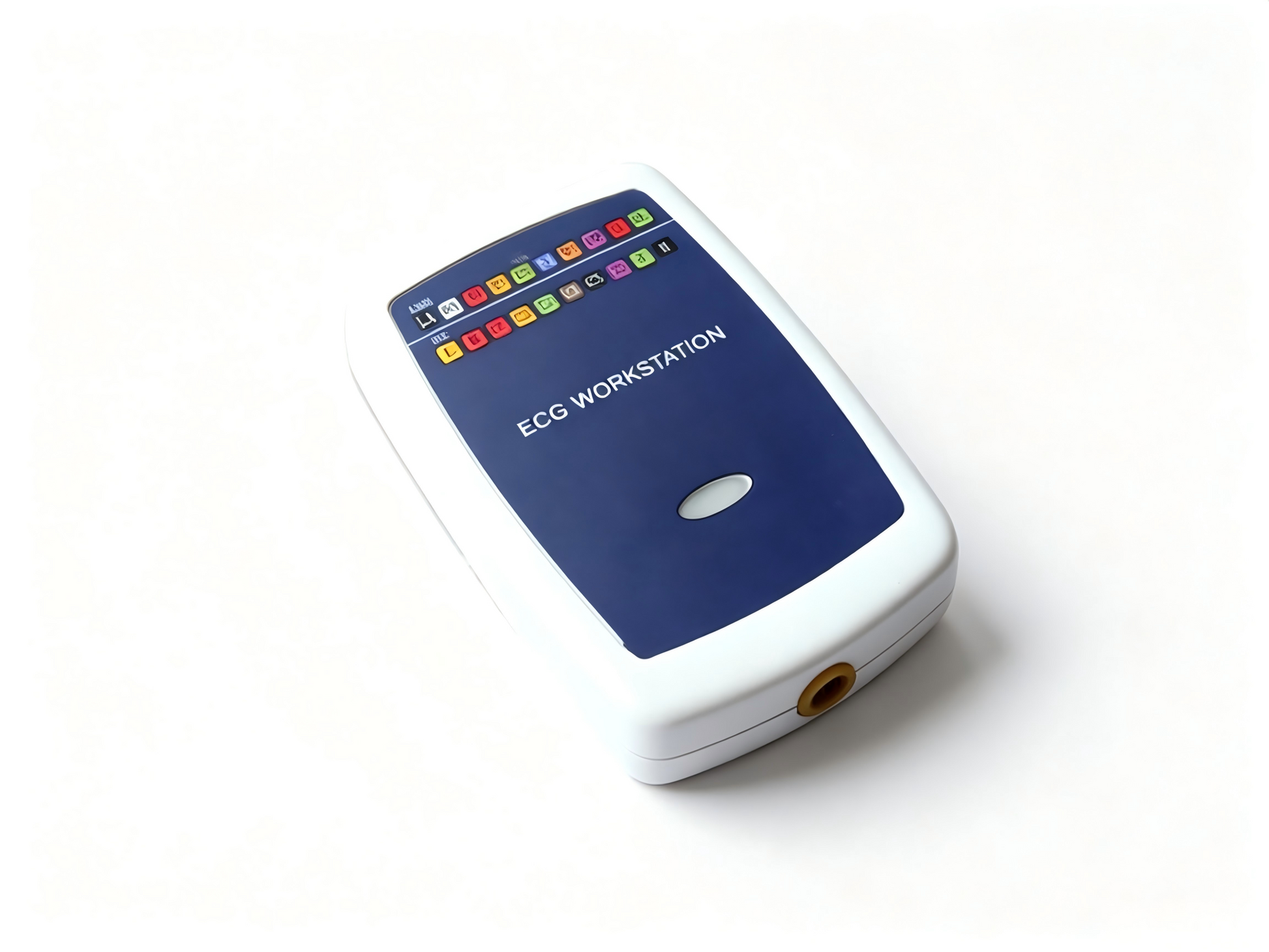

The CONTEC8000G ECG Workstation is a comprehensive PC-based electrocardiograph system designed for medical professionals who require advanced cardiac analysis capabilities in a portable, integrated solution. This powerful ECG workstation acquires simultaneous 12-lead ECG data and 3-lead vector ECG data, offering a complete suite of analysis, diagnosis, and reporting functions.

With a compact and portable recorder, 1000Hz high sampling frequency, and support for both Wilson and Frank lead systems, the CONTEC8000G delivers accurate, reliable ECG examination results for medical and healthcare institutions at all levels. The system seamlessly integrates with hospital information systems through HL7 aECG standard format export and HIS/PACS compatibility.

Not all optional functions are available in all regions—please contact us for details.

Key Features

📊 Simultaneous 12-Lead & 3-Lead Vector ECG Acquisition

The CONTEC8000G supports both Wilson lead system (conventional 12-lead ECG) and Frank lead system (3-lead vector ECG), providing comprehensive cardiac data acquisition. The recorder features a lead-off indicator light for quick visual confirmation of proper electrode connection.

⚡ 1000Hz High Sampling Frequency

With a sampling frequency of 1000Hz, the CONTEC8000G ensures no distortion of ECG waveforms. High-resolution display and printout guarantee that every detail of the ECG waveform is preserved for accurate diagnosis.

🔬 Advanced ECG Analysis Algorithms

The system employs advanced ECG analysis algorithms that provide:

• Reliable automatic arrhythmia detection and classification

• Accurate automatic analysis point identification

• Valuable analysis reports and diagnostic conclusions

🧠 Comprehensive Analysis Functions

The CONTEC8000G offers a wide range of advanced analysis modules:

• Conventional 12-Lead ECG

• Frequency Cardiogram (FCG)

• High Frequency ECG

• QT Interval Dispersion Analysis

• Heart Rate Variability (HRV) Analysis

• Myocardial Ischemia (STLE) Analysis

• Heart Rate Turbulence (HRT) Analysis

• Pacing ECG Analysis

• Vector Cardiogram (VCG)

• Time Vector Cardiogram (TVCG)

• Signal-Averaged ECG (SAECG)

🖥️ Real-Time Sampling, Display & Storage

The system adopts real-time sampling, display, and storage modes, enabling:

• Real-time QRS waveform analysis

• Real-time heart rate calculation

• Real-time printing capabilities

• Multiple filter methods to eliminate baseline drift and interference

🖨️ Dozens of Display & Print Modes

The CONTEC8000G provides dozens of synchronous and continuous display and print modes, including 6×2, 3×4, 3×4+2, and more. Additional diagnostic tools include:

• Superposed waveform analysis

• Electronic scale for precise measurements

• Editable terminology database for customized reporting

🎯 Anti-Aliasing Technology & Smart Lead Adjustment

ECG waveforms are displayed clearly and intelligently using anti-aliasing technology. The lead position can be adjusted to solve the problem of overlapping waveforms caused by baseline drift or high-amplitude signals.

📄 Flexible Report Output

The "shortcut print" function allows you to preview or print complete analysis reports and save them in multiple multimedia formats: BMP, PNG, PDF, or JPG.

🔗 Seamless Hospital System Integration

The CONTEC8000G supports:

• Calling external procedures to obtain patient information

• Exporting HL7 aECG standard format ECG data

• Printing electronic reports and sending notifications to external procedures

• System docking with hospital HIS, PACS, and other systems

💻 PC-Based Workstation Design

As a PC-based system, the CONTEC8000G leverages the full power of a computer workstation for data processing, storage, and analysis, providing a comprehensive ECG examination solution.

Specifications

Why Choose the CONTEC8000G?

Whether you're a cardiologist, hospital department, or diagnostic center, the CONTEC8000G PC-Based ECG Workstation delivers the advanced analysis, integration capabilities, and diagnostic accuracy you need.

What's Included

• CONTEC8000G Recorder (compact portable unit)

• 12-Lead ECG Cable

• Patient Lead Wires

• ECG Workstation Software (PC-based)

• USB Cable

• User Manual

• Software Installation Guide

Applications

The CONTEC8000G ECG Workstation is applicable for ECG examination in:

• Hospitals (cardiology departments, emergency rooms, ICUs)

• Clinics and outpatient facilities

• Community health centers

• Physical examination centers

• Telemedicine and remote diagnostic services

FAQ

Q: What is the difference between CONTEC8000G and a traditional ECG machine?
A: The CONTEC8000G is a PC-based ECG workstation that leverages computer processing power for advanced analysis functions. It offers 11+ analysis modules (HRV, QT dispersion, VCG, etc.) that standalone ECG machines typically cannot provide, along with flexible report generation and hospital system integration.

Q: What lead systems does the CONTEC8000G support?
A: The system supports both the Wilson lead system (conventional 12-lead ECG) and the Frank lead system (3-lead vector ECG).

Q: What analysis functions are available?
A: The CONTEC8000G includes conventional 12-lead ECG, Frequency Cardiogram (FCG), High Frequency ECG, QT interval dispersion analysis, Heart Rate Variability (HRV), myocardial ischemia (STLE) analysis, heart rate turbulence (HRT) analysis, pacing ECG analysis, Vector Cardiogram (VCG), Time Vector Cardiogram (TVCG), and Signal-Averaged ECG (SAECG).

Q: Can the system integrate with hospital information systems?
A: Yes. The CONTEC8000G supports HL7 aECG standard format ECG data export, can call external procedures for patient information, and is compatible with HIS and PACS systems.

Q: What is the sampling frequency?
A: The CONTEC8000G features a 1000Hz sampling frequency, which ensures no distortion of ECG waveforms and preserves all diagnostic details.

Q: What report formats are supported?
A: Reports can be saved in BMP, PNG, PDF, or JPG formats using the "shortcut print" function.

Q: Is the recorder portable?
A: Yes. The recorder features a compact and portable design with a lead-off indicator light, making it convenient for use in various clinical settings.
