CONTEC8000S Stress ECG System | Wireless Exercise Stress Test with ST Analysis #

Wireless stress ECG system with 12-lead acquisition, real-time ST segment analysis, treadmill compatibility, and comprehensive trend charts. Ideal for cardiac stress testing in clinics and hospitals.

The CONTEC8000S Stress ECG Analysis System is a comprehensive, PC‑based solution for cardiac stress testing, designed to evaluate heart function under controlled exercise conditions. Comprising a wireless sampling hardware device, specialized software system, and compatible exercise equipment (treadmill or ergometer), this system enables clinicians to accurately assess cardiovascular performance, detect ischemia, and diagnose coronary artery disease.

With simultaneous 12‑lead ECG acquisition, real‑time ST segment analysis, wireless data transmission, and a suite of advanced review and reporting tools, the CONTEC8000S delivers reliable, high‑quality data that supports confident clinical decision‑making—even under high‑motion exercise conditions.

Not all optional functions are available in all regions—please contact us for details.

Key Features

📊 Simultaneous 12‑Lead ECG Acquisition

The system collects all 12 leads simultaneously during the entire exercise process, providing a comprehensive view of cardiac electrical activity under stress. High‑precision QRS waveform detection ensures accurate R‑wave recognition for reliable analysis.

📶 Wireless ECG Data Sampling

Wireless mode of ECG data sampling improves anti‑interference capability and provides greater freedom of movement for patients during exercise testing. This reduces motion artifacts and enhances signal quality under challenging conditions.

📈 Real‑Time ST Segment Analysis

Observe ST segment changes in real‑time throughout the entire exercise protocol. The system features:

• Enlarged display of user‑selected leads

• Automatic calculation of ST‑related data

• ST segment level, slope, 3D, and J‑level analysis

🖥️ Advanced Anti‑Interference Technology

Adopts proven anti‑interference technology to ensure baseline stability and reduce the effect on ECG waveforms from EMG interference, baseline drift, and AC interference. This delivers clean, diagnostically reliable signals even during patient movement.

📋 Flexible Exercise Protocols

Supports both standard and user‑defined exercise schemes. Automatic instantaneous print and BP measurement prompts can be set according to exercise phase, streamlining the testing workflow.

🏷️ Event Marking & Comparison

Operators can mark events during exercise. The marked ECG waveform can be compared with current waveform, and events can be reviewed, edited, and printed after exercise.

📊 Comprehensive Trend Chart Analysis

Display and print all kinds of trend charts, including:

• Heart Rate (HR)

• Blood Pressure (BP)

• METS (Metabolic Equivalents)

• HR × BP (Rate‑Pressure Product)

• Exercise trend

• ST segment level / influence / slope / 3D / J‑level

• ST/HR loop

🔄 Dynamic, Static & Superimposed ECG Review

After exercise, the system provides dynamic, static, and superimposed ECG review functions, allowing you to replay and analyze the entire exercise testing process in detail.

💾 Case Import/Export & Compression

Import and export case files with compression for efficient storage. Compressed cases are associated with the operating system file type, making import operations simple and quick.

⚙️ Fully Customizable System Settings

Includes multiple configurable settings:

• Language switching (Chinese/English)

• Waveform display formats – 12 leads × 1 column, 6 leads × 1/2 columns, 3 leads × 1/2 columns, and more

• Background color

• Print‑related settings

• Filter settings

• Optional parameter display

🛠️ Comprehensive Management Tools

Provides multiple functional tools for device management, case statistics, and other operations.

🏃 Treadmill Compatibility

Supportive for a variety of types of exercise equipment, including treadmills and ergometers.

Specifications

Why Choose the CONTEC8000S?

What's Included

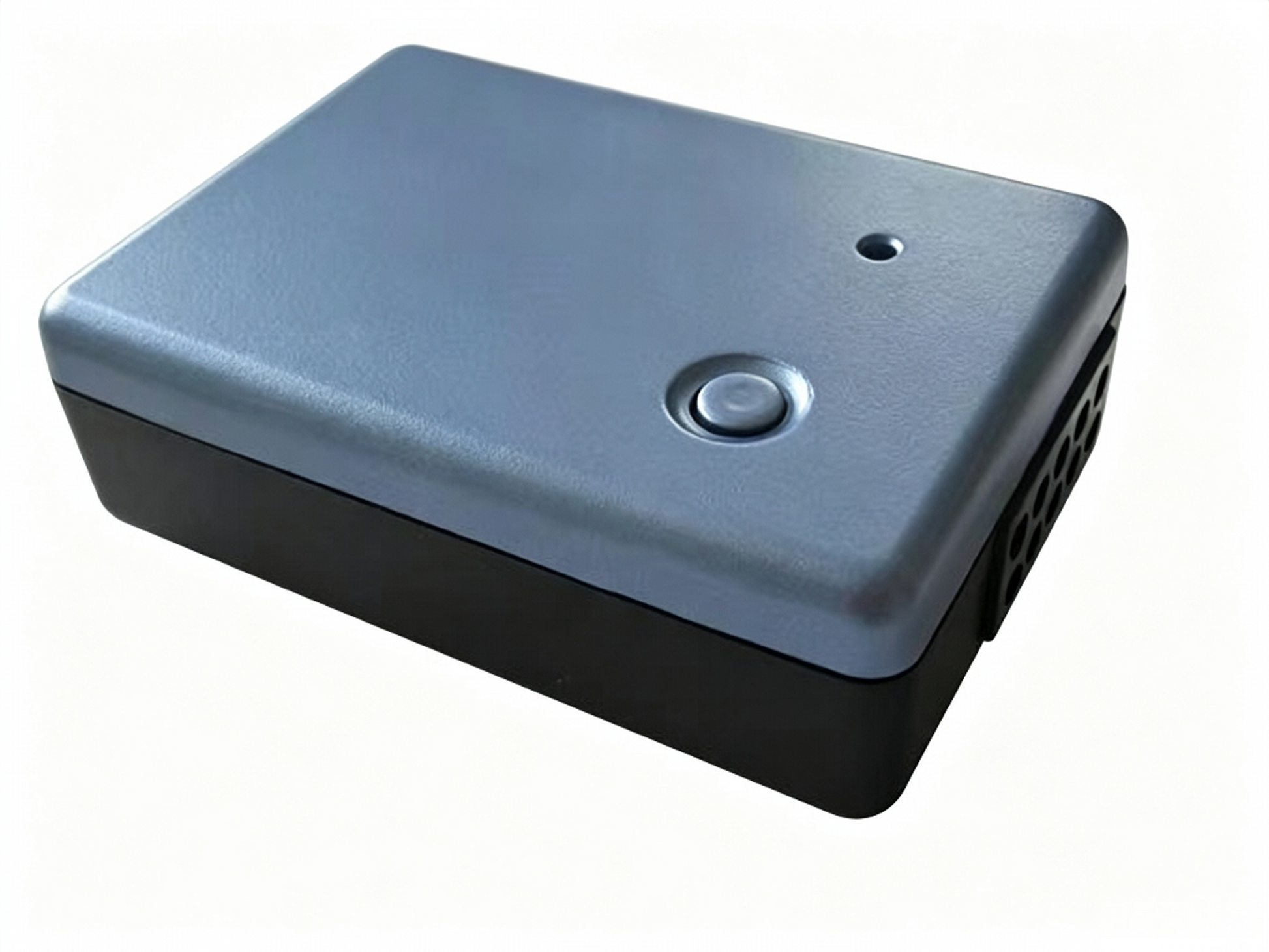

• CONTEC8000S ECG Sampling Hardware Device (Wireless)

• 12‑Lead ECG Patient Cable

• PC Stress ECG Analysis Software

• Wireless Receiver / Dongle

• USB Cable

• Power Adapter

• User Manual

• Software Installation Guide

Treadmill / ergometer sold separately.

Applications

The CONTEC8000S Stress ECG Analysis System is applicable for:

• Hospitals – Cardiology departments, cardiac rehabilitation centers

• Cardiology Clinics – Exercise stress testing for ischemia detection

• Sports Medicine – Athletic performance and fitness assessment

• Preventive Cardiology – Early detection of coronary artery disease

• Physical Examination Centers – Comprehensive cardiac fitness evaluations

• Occupational Health – Fitness‑for‑duty assessments

FAQ

Q: What is a stress ECG system?
A: A stress ECG system (also called an exercise ECG or stress test system) records the heart's electrical activity while the patient exercises on a treadmill or ergometer. It helps evaluate cardiac function under physical stress, detect ischemia, and diagnose coronary artery disease.

Q: What does the CONTEC8000S system include?
A: The system includes a wireless ECG sampling hardware device, PC‑based stress ECG analysis software, and is compatible with exercise equipment such as treadmills or ergometers.

Q: Does the CONTEC8000S support wireless data transmission?
A: Yes. The system features wireless ECG data sampling, which improves anti‑interference capability and allows greater freedom of movement during exercise.

Q: Can I see ST segment changes in real time?
A: Yes. The system provides real‑time observation of ST segment changes with enlarged display of user‑selected leads and automatic calculation of ST‑related data.

Q: What trend charts can the system generate?
A: The system displays and prints trend charts including HR, BP, METS, HR×BP, exercise trend, ST segment level / influence / slope / 3D / J‑level, and ST/HR.

Q: Can I review ECG data after the test?
A: Yes. The system provides dynamic, static, and superimposed ECG review functions after exercise.

Q: Can I mark events during the test?
A: Yes. Operators can mark events during exercise, and the marked ECG waveform can be compared with the current waveform.

Q: What exercise equipment is compatible?
A: The system is supportive for a variety of types of exercise equipment, including treadmills and ergometers.

Q: Is the system suitable for hospital use?
A: Yes. With 12‑lead simultaneous acquisition, wireless transmission, real‑time ST analysis, and comprehensive reporting, it is ideal for hospital cardiology departments, clinics, and cardiac rehabilitation centers.

Q: What languages does the software support?
A: The system supports Chinese and English language switching.
