Global Healthcare Medical 3-in-1 Wireless Handheld Ultrasound System
Global Healthcare Medical 3-in-1 Wireless Handheld Ultrasound System
Model: GHM CProbe-CT5 HK

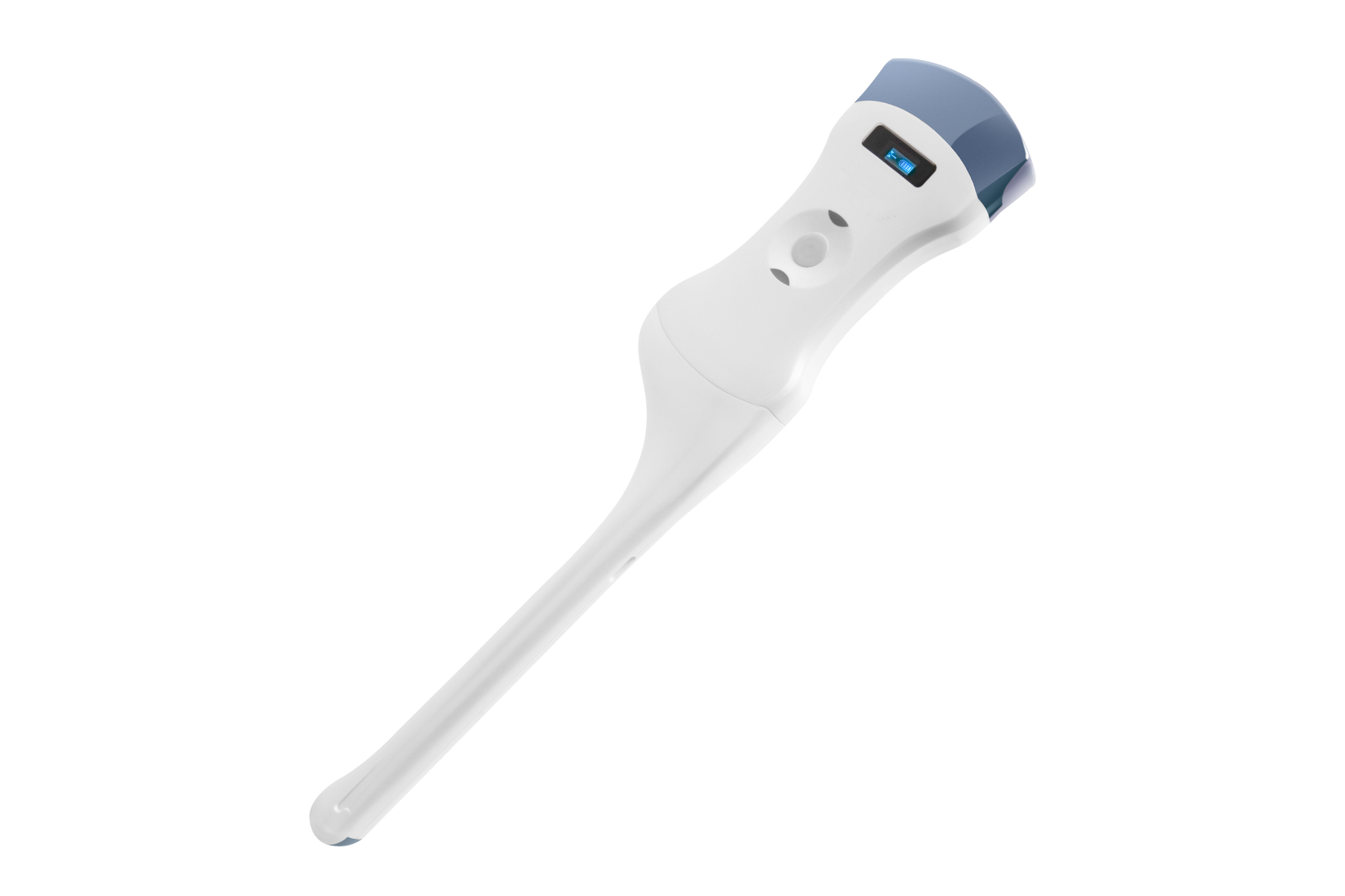

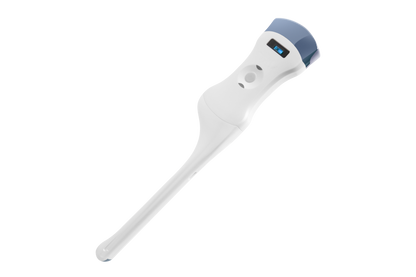

The Global Healthcare Medical 3-in-1 Wireless Handheld Ultrasound System is a compact, pocket‑sized diagnostic imaging solution engineered to bring comprehensive ultrasound capabilities directly to the point of care. Designed for healthcare professionals who need reliable imaging wherever patients are—from emergency departments and critical care units to remote clinics, ambulatory services, and bedside rounds—this wireless probe‑type system delivers exceptional versatility in a lightweight, portable form factor.
Weighing just 230g (0.5 lbs) and measuring 156mm × 60mm × 20mm (6.1″ × 2.4″ × 0.8″), this device fits comfortably in your hand or pocket, making it the ideal companion for daily POCUS (Point‑of‑Care Ultrasound) and ultrasound‑guided procedures. The system operates wirelessly via WiFi, transmitting real‑time images directly to a smartphone or tablet—eliminating the need for bulky consoles or tangled cables.
FDA 510(k) cleared (K211321) for clinical use, this system is indicated for a wide range of diagnostic applications including abdominal, cardiac, obstetric/gynecological, urological, and peripheral vascular imaging.
Key Features & Benefits
True 3-in-1 Design for Maximum Versatility
Unlike single‑probe systems that require you to switch transducers for different applications, this device features an integrated 3‑in‑1 design combining convex (curvilinear), linear, and phased array probes in a single unit. This means you can seamlessly transition between deep abdominal scanning, superficial musculoskeletal imaging, and cardiac assessments without changing probes—saving valuable time during examinations. The convex probe can be switched to phased array mode via software, enabling basic cardiac assessments.
Exceptional Imaging Performance
The system delivers high‑quality imaging across a broad range of clinical applications:
| Probe Mode | Frequencies | Scan Depth | Applications |
|---|---|---|---|
| Convex (Curvilinear) | 3.2 MHz / 5.0 MHz | 90/160/220/305mm | Abdominal, obstetric, gynecological, urological, and deep tissue imaging |
| Phased Array | 2.5 MHz / 5.0 MHz | 90/120/140/160mm | Cardiac and deep abdominal imaging |
| Linear | 7.5 MHz / 10.0 MHz | 20/40/60/80mm | Musculoskeletal, vascular, small parts, and superficial structure imaging |
The system features 128 piezoelectric elements and 32 transmit channels for exceptional image clarity, delivering a smooth 18 frames/second image frame rate for real‑time visualization.
-
B‑Mode – fundamental 2D imaging
-
B/M Mode – combined anatomical and motion imaging
-
Color Doppler – real‑time blood flow visualization
-
PW Doppler – quantitative blood flow assessment
-
PDI – sensitive low‑flow detection
Image adjustments include gain, focus, phase inversion harmonic imaging, and noise reduction.
Smartphone‑Powered Convenience
The system connects wirelessly to a mobile device running the companion software application. This smartphone‑powered approach offers:
-
Intuitive touchscreen interface – familiar and easy to learn
-
No separate display or console – reduces equipment costs and footprint
-
Wireless operation – eliminates cable tangles and improves workflow
-
Image storage and sharing – easily save, review, and share images in jpg, mp4, png, and DCM formats
-
Cineplay – manual and automatic playback with adjustable frame settings (100/200/500/1000 frames)
-
Measurements – distance, area, circumference, heart rate, and obstetric calculations
Puncture Assistance for Guided Procedures
The system includes in‑plane and out‑of‑plane puncture guide lines and automatic blood vessel measurement, making it an ideal tool for ultrasound‑guided interventions such as nerve blocks, vascular access, and biopsy guidance.
Broad Device Compatibility
The system is compatible with multiple platforms:
-
Apple iOS – iPhone and iPad
-
Android – smartphones and tablets
-
Windows – PC's
WiFi 802.11n/2.4G/5G dual‑band provides fast, stable wireless connectivity.
Long Battery Life and Convenient Wireless Charging
The built‑in rechargeable battery provides 3 hours of continuous scanning on a single charge, and wireless charging allows you to extend working time indefinitely.
Regulatory Compliance and Quality Assurance
-
FDA 510(k) cleared (K211321) – meets U.S. regulatory standards for medical devices
-
CE marked – compliant with EU Medical Device Regulation
-
ISO 13485 certified – meets international quality management standards
Comprehensive Clinical Applications
| Specialty | Applications |
|---|---|
| Emergency Medicine | FAST exams, bedside diagnostics, trauma assessment |
| Critical Care | ICU patient evaluation, fluid status assessment |
| Cardiology | Basic cardiac assessment (via phased array mode) |
| Obstetrics | Fetal biometry, gestational age assessment, pregnancy confirmation |
| Gynecology | Uterine and ovarian evaluation |
| Urology | Renal, bladder, and prostate examinations |
| Musculoskeletal | Tendon, ligament, and joint assessment |
| Vascular | Peripheral vascular assessment and blood flow detection |
| Small Parts | Thyroid, breast, and superficial structure imaging |
| Anesthesiology | Nerve block guidance, vascular access |
| Pain Management | Injection guidance |
| Surgery | Intraoperative guidance, needle visualization |
Why Choose Global Healthcare Medical?
| Consideration | Our Wireless Handheld Ultrasound |
|---|---|
| Need for portable, point‑of‑care imaging | Pocket‑sized, 230g design goes wherever you go |
| Versatility across applications | True 3‑in‑1 design combines convex, linear, and phased array probes |
| No bulky equipment | Smartphone‑powered—no console, no cables |
| Quick, confident diagnosis | B‑Mode, Color Doppler, and PW Doppler with adjustable settings |
| Procedure guidance | In‑plane/out‑of‑plane puncture guide lines and automatic vessel measurement |
| Cost‑effective solution | Professional imaging at a fraction of traditional system costs |
| Regulatory compliance | FDA 510(k) cleared and CE marked for clinical use |
| Broad compatibility | Works with iOS, Android, and Windows devices |
