E18M 18-Lead ECG Machine | 10.1" Touch Screen Electrocardiograph with Auto-Analysis #

18-lead ECG machine with 10.1" high-resolution touch screen, auto-measurement & interpretation, thermal printing, and 4000-case storage. Advanced electrocardiograph for clinics and hospitals.

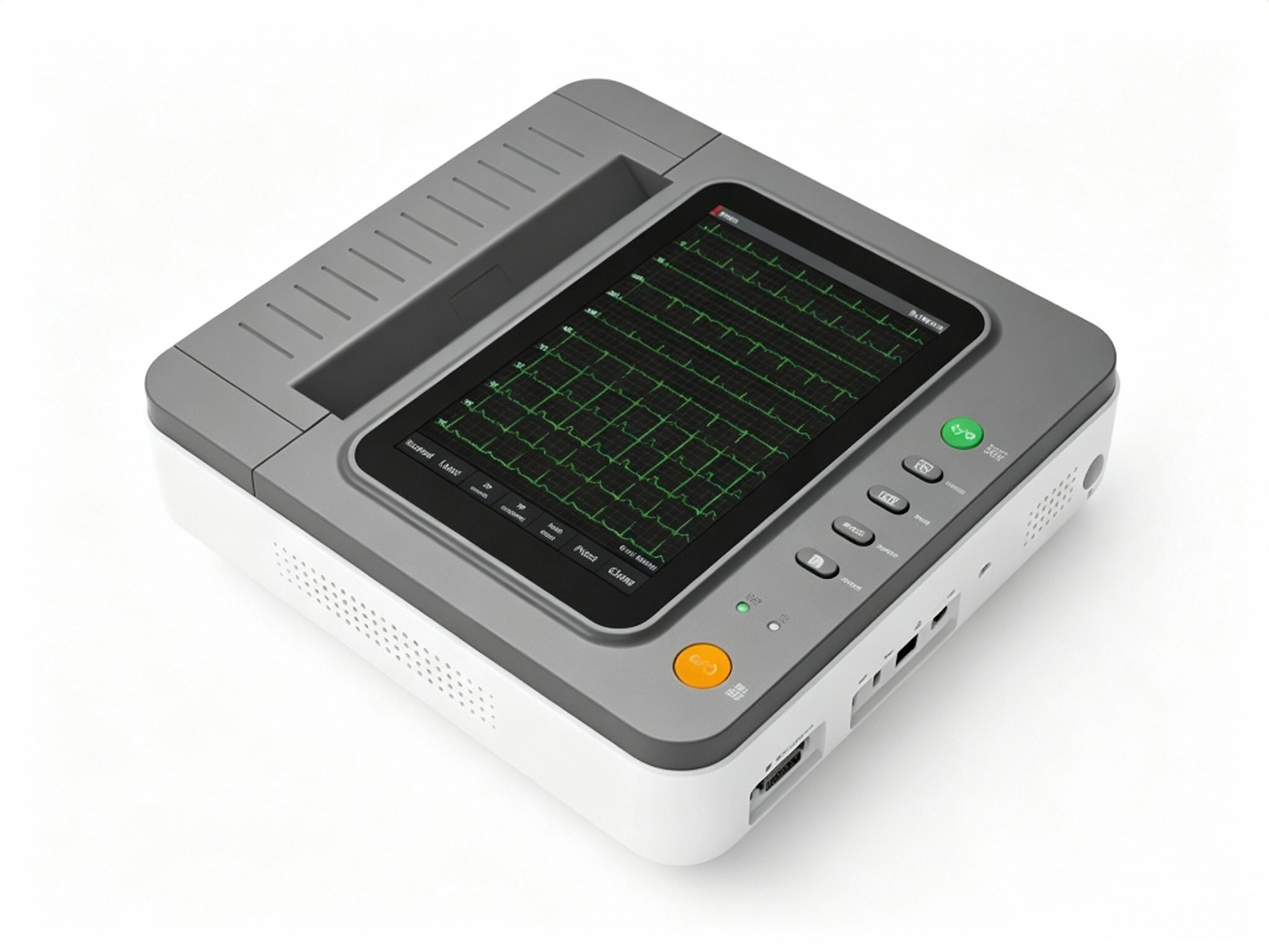

The CONTEC E18M Electrocardiograph is a premium 18‑lead ECG machine engineered for medical professionals who demand the highest level of diagnostic precision, efficiency, and advanced functionality. Featuring simultaneous 18‑lead ECG acquisition, a 10.1" high‑resolution full‑touch color LCD, and a powerful thermal printing system, the E18M delivers comprehensive cardiac assessment capabilities in a sleek, user‑friendly package.

With auto‑measurement and auto‑interpretation capabilities, flexible lead configuration options (18‑lead, 15‑lead, 12‑lead, 9‑lead, or user‑defined), and a large‑capacity case database storing up to 4,000 records, this electrocardiograph streamlines cardiac diagnostics for hospitals, cardiology clinics, and specialized medical practices. The E18M also features enhanced input dynamic range, higher CMRR, and superior polarizing voltage compared to standard models, ensuring reliable performance even in demanding clinical environments.

Not all optional functions are available in all regions—please contact us for details.

Key Features

📊 Simultaneous 18‑Lead ECG Acquisition

The E18M collects all 18 leads simultaneously, providing the most comprehensive view of cardiac electrical activity available. Support for 18‑lead, 15‑lead, 12‑lead, 9‑lead, and user‑defined lead configurations—as well as Cabrera‑lead waveform display—offers exceptional diagnostic flexibility for complex cardiac cases.

🖥️ 10.1" High‑Resolution Full‑Touch Screen

The 10.1‑inch high‑resolution color LCD with 1280×800 resolution delivers stunning visual clarity. Dual operation via full touch screen and function buttons provides maximum flexibility and convenience. Built‑in virtual keyboard supports Chinese and English input methods.

📊 Comprehensive Waveform Display

Display 3/6/12/18‑lead ECG waveforms on one screen alongside HR value, print mode, sensitivity, paper speed, filter state, clock, battery level, background gridlines, measured data, and interpretation information. Prompting functions for lead‑off, overload, and system working state ensure uninterrupted operation.

🖨️ Versatile Thermal Printing System

Built‑in thermal printer supports multiple printing modes and formats:

• Auto M×N, M×N+1, M×N+2, M×N+3 – Multiple auto‑format options

• Rhythm M line – Flexible rhythm lead printing

• Manual mode – Customizable printing

• Time print function & auto arrhythmia print function – Meets diverse clinical requirements

Printed content includes time, paper speed, sensitivity, calibration signal, lead name, filter state, and patient information. Additional settings include printed waveform length, output measurement parameter, diagnostic conclusion, superposition QRS waveform, histogram, trend chart, and interval list.

🤖 Auto‑Measurement & Auto‑Interpretation

The E18M automatically measures and interprets routine ECG parameters, providing instant measurement results and auto‑diagnosis conclusions for:

• Heart Rate (HR)

• P‑R Interval, P Duration, QRS Duration, T Duration

• Q‑T Interval & Q‑Tc

• P Axis, QRS Axis, T Axis

• R(V5), S(V1), R(V5) + S(V1) amplitude

• Cornell Index and more

This powerful feature significantly reduces the doctor's diagnostic burden and accelerates clinical workflow.

📂 Large‑Capacity Case Database

Built‑in large‑capacity memory stores at least 4,000 medical records. Historical cases can be reviewed, inquired, modified, transmitted, printed, and lead‑corrected. Cases can be exported to multiple electronic file formats: dat, pdf, xml, bmp, jpeg, png.

🔋 Dual Power Supply with Long Battery Life

Operates on AC/DC power (adapts to 50/60Hz AC frequency) with a built‑in rechargeable lithium battery and perfect over‑current and over‑voltage protection circuit. In optimal DC state:

• Up to 10 hours standby time

• More than 3 hours of continuous printing

• Up to 1000 ECG waveforms recorded (commonly 3‑second cases)

This extended battery life makes the E18M ideal for home visits, community health screenings, and mobile medical examinations.

🌐 Advanced Connectivity & Integration

• Wi‑Fi wireless communication – Seamless case uploads and report downloads

• LAN and USB cable transmission

• Automatically upload cases, download reports and print them

• External USB support – Standard keyboard, mouse, scanner, printer

• PC software for comprehensive data management

🫀 Enhanced Performance Specifications

The E18M features enhanced input dynamic range, higher CMRR, and superior polarizing voltage compared to standard models, ensuring reliable performance in challenging clinical conditions.

🌍 Multi‑Language Interface

Supports Chinese and English interfaces and reports, with built‑in virtual keyboard supporting both Chinese and English input methods.

Specifications

Why Choose the E18M?

Whether you're a cardiologist, hospital department, or specialized cardiac clinic, the CONTEC E18M 18‑Lead Electrocardiograph delivers the advanced 18‑lead capabilities, accuracy, and connectivity you need for comprehensive cardiac diagnostics.

What's Included

• E18M Main Unit with 10.1" Touch Screen

• 18‑Lead ECG Cable

• Patient Lead Wires

• Chest Electrode Suction Bulbs

• Limb Electrode Clips

• Thermal Recording Paper

• Power Adapter

• USB Cable

• User Manual

Applications

The E18M Electrocardiograph is applicable for:

• Hospitals – Cardiology departments, ICUs, emergency rooms

• Cardiology Clinics – Comprehensive 18‑lead ECG diagnostics

• Specialized Cardiac Centers – Complex arrhythmia and ischemia detection

• Physical Examination Centers – Detailed cardiac assessments

• Community Health Centers – Advanced cardiac screening

• Home Healthcare – Mobile examinations and home visits

FAQ

Q: What is the difference between E18M and standard 12‑lead ECG machines?
A: The E18M features simultaneous 18‑lead acquisition, providing a more comprehensive view of cardiac electrical activity than standard 12‑lead machines. It also supports 15‑lead, 12‑lead, 9‑lead, and user‑defined configurations for maximum diagnostic flexibility.

Q: What type of display does the E18M have?
A: The E18M features a 10.1‑inch high‑resolution color LCD with 1280×800 resolution, operated via full touch screen and function buttons.

Q: Does the device provide automatic diagnosis?
A: Yes. The E18M features auto‑measurement and auto‑interpretation for routine ECG parameters including HR, PR interval, QRS duration, QT/QTc interval, axis measurements, and Cornell Index.

Q: How many cases can the device store?
A: The built‑in large‑capacity memory can store at least 4,000 medical records.

Q: Can I export case files to other formats?
A: Yes. Historical cases can be exported to multiple electronic file formats including dat, pdf, xml, bmp, jpeg, and png.

Q: What connectivity options are available?
A: The E18M supports Wi‑Fi wireless communication, LAN, and USB cable transmission. It also supports external USB devices including keyboard, mouse, scanner, and printer.

Q: How long does the battery last?
A: In optimal DC state, the E18M provides up to 10 hours of standby time and more than 3 hours of continuous printing.

Q: What languages does the interface support?
A: The E18M supports Chinese and English interfaces and reports, with a built‑in virtual keyboard supporting both input methods.

Q: Is the E18M suitable for hospital use?
A: Yes. With 18‑lead simultaneous acquisition, 10.1" touch screen, 4,000+ case storage, and advanced connectivity, it's ideal for hospital cardiology departments and specialized cardiac centers.
