E3 12-Lead ECG Machine | 3-Channel Electrocardiograph with Auto-Analysis #

12-lead 3-channel ECG machine with thermal printing, auto-measurement & interpretation, pacing detection, and multi-language support. Portable electrocardiograph for clinics and hospitals.

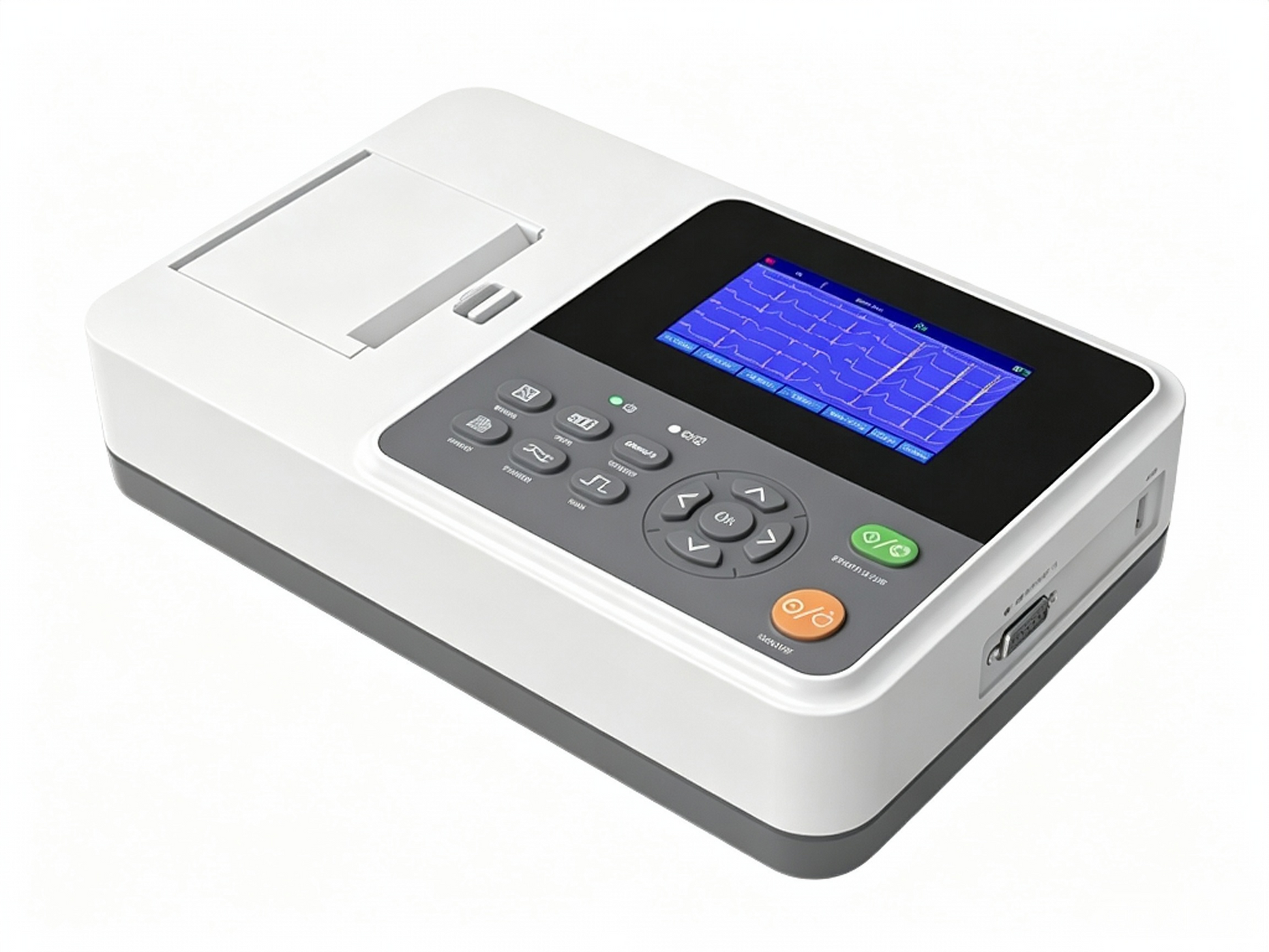

The CONTEC E3 Electrocardiograph is a professional 12-lead, 3-channel ECG machine engineered for medical professionals who demand accuracy, reliability, and ease of use. Featuring simultaneous 12-lead ECG acquisition, a high-resolution thermal printing system, and auto-measurement with auto-interpretation capabilities, the E3 delivers hospital-grade performance in a compact, cost-effective package.

With pacing ECG detection, multiple printing formats, built-in case database management, and support for 7 interface languages, this electrocardiograph streamlines cardiac assessment for clinics, hospitals, and mobile healthcare providers.

Not all optional functions are available in all regions—please contact us for details.

Key Features

📊 Simultaneous 12-Lead ECG Acquisition

The E3 collects all 12 leads simultaneously, providing a complete view of cardiac electrical activity in a single capture. Supports both routine 12-lead and Cabrera-lead waveform display. Advanced digital signal processing—including AC filter, DFT filter, EMG filter, and Low-pass Filter—effectively eliminates interference and baseline drift, delivering high-quality, artifact-free ECG waveforms.

🖨️ High-Resolution Thermal Printing System

Built-in thermal-array printing system with 8 dots/mm resolution delivers clear, accurate ECG waveforms with no adjustment required. Frequency response up to 150Hz ensures high-fidelity waveform capture.

📊 Comprehensive Waveform Display

Display 3/6/12-lead ECG waveforms on one screen alongside print mode, sensitivity, paper speed, and filter status—all on one screen for convenient contrastive diagnosis.

🖨️ Versatile Printing with Multiple Formats

Supports a comprehensive range of printing modes and formats to meet diverse clinical needs:

• Auto 1×12, Auto 1×12+1 – Full 12-lead options

• Auto 2×6, Auto 2×6+1 – 6-lead × 2 rows with rhythm lead

• Auto 3×4, Auto 3×4+1 – 3-lead × 4 rows with rhythm lead

• Auto 4×3 – 4-lead × 3 rows

• Auto 3-2+1, Auto 3-2 – Additional auto-format options

• Rhythm 4, Rhythm 3, Rhythm 2 – Rhythm lead printing

• Manual mode – Customizable printing

Printed content includes time, paper speed, sensitivity, calibration signal, lead name, filter state, and patient information. Additional settings include printed waveform length, output measurement parameters, diagnostic conclusion, superposition QRS waveform, histogram, trend chart, and interval list—with time print function to meet different clinical requirements.

🤖 Auto-Measurement & Auto-Interpretation

The E3 automatically measures and interprets routine ECG parameters, providing instant measurement results and auto-diagnosis conclusions for:

• Heart Rate (HR)

• P-R Interval, P Duration, QRS Duration, T Duration

• Q-T Interval & Q-Tc

• P Axis, QRS Axis, T Axis

• R(V5), S(V1), R(V5) + S(V1) amplitude

This powerful feature significantly reduces the doctor's diagnostic burden and accelerates clinical workflow.

🫀 Pacing ECG Detection

The E3 features pacing ECG detection, ensuring accurate interpretation even in patients with pacemakers.

📂 Case Database Management

Built-in memory allows convenient storage, review, and statistical analysis of patient cases.

🎯 Flexible Rhythm Lead Selection

Freely select the rhythm lead to conveniently observe and monitor abnormal heart rhythms.

🔋 Dual Power Supply with Long Battery Life

Operates on AC/DC power (adapts to AC 50/60Hz) with a built-in rechargeable lithium battery, charging circuit, and perfect over-current and over-voltage protection circuit. This extended battery life makes the E3 ideal for home visits, community health screenings, and mobile medical examinations.

⚠️ Smart Alerts & Prompts

Automatic prompts for "electrode-off" and "out of paper" ensure uninterrupted operation and reliable results.

⌨️ External Device Support

Support for external USB keyboard, code scanner, printer, and USB storage device connectivity expands workflow flexibility.

🌍 Multi-Language Interface

Supports 7 languages—Chinese, English, Turkish, Portuguese, German, Russian, and Kazakh—making it suitable for international medical practices.

📝 Patient Information Management

The subject's clinical information (ID, Name, Age, Sex, Height, Weight, etc.) can be entered for comprehensive patient records.

Specifications

Why Choose the E3?

What's Included

• E3 Main Unit with 3.5" TFT Display

• 12-Lead ECG Cable

• Patient Lead Wires

• Chest Electrode Suction Bulbs

• Limb Electrode Clips

• Thermal Recording Paper

• Power Adapter

• USB Cable

• User Manual

Applications

The E3 Electrocardiograph is applicable for:

• Hospitals – Cardiology departments, emergency rooms, ICUs

• Clinics – Outpatient ECG screening

• Community Health Centers – Public health screenings

• Physical Examination Centers – Routine cardiac assessments

• Home Healthcare – Mobile examinations and home visits

FAQ

Q: Is the E3 suitable for hospital use?
A: Yes. With 12-lead simultaneous acquisition, 3-channel recording, auto-analysis, pacing detection, and multiple printing formats, it's ideal for hospital cardiology departments, clinics, and emergency settings.

Q: What printing formats are available?
A: The E3 supports multiple formats including auto 1×12, 1×12+1, 2×6, 2×6+1, 3×4, 3×4+1, 4×3, 3-2+1, 3-2, Rhythm 4/3/2, and Manual.

Q: Does the device provide automatic diagnosis?
A: Yes. The E3 features auto-measurement and auto-interpretation for routine ECG parameters including HR, PR interval, QRS duration, QT/QTc interval, axis measurements, and R(V5)+S(V1) amplitude.

Q: Can the E3 detect pacemaker patients?
A: Yes. The E3 features pacing ECG detection for accurate interpretation in patients with pacemakers.

Q: What type of display does the E3 have?
A: The E3 features a 3.5" TFT color LCD display.

Q: What languages does the interface support?
A: The E3 supports 7 languages—Chinese, English, Turkish, Portuguese, German, Russian, and Kazakh.

Q: Can I connect external devices?
A: Yes. The E3 supports external USB keyboard, code scanner, printer, and USB storage device connectivity.

Q: How is the device powered?
A: The E3 operates on AC/DC power (adapts to AC 50/60Hz) with a built-in rechargeable lithium battery and perfect over-current and over-voltage protection circuit.

Q: What is the weight of the device?
A: The E3 weighs approximately 1.6 kg, making it portable for mobile examinations.

Q: What is the difference between E3 and E3M?
A: The E3 features wider input dynamic range, higher CMRR, and superior polarizing voltage compared to standard models, ensuring reliable performance in demanding clinical conditions. It also offers a 3.5" TFT color display.
