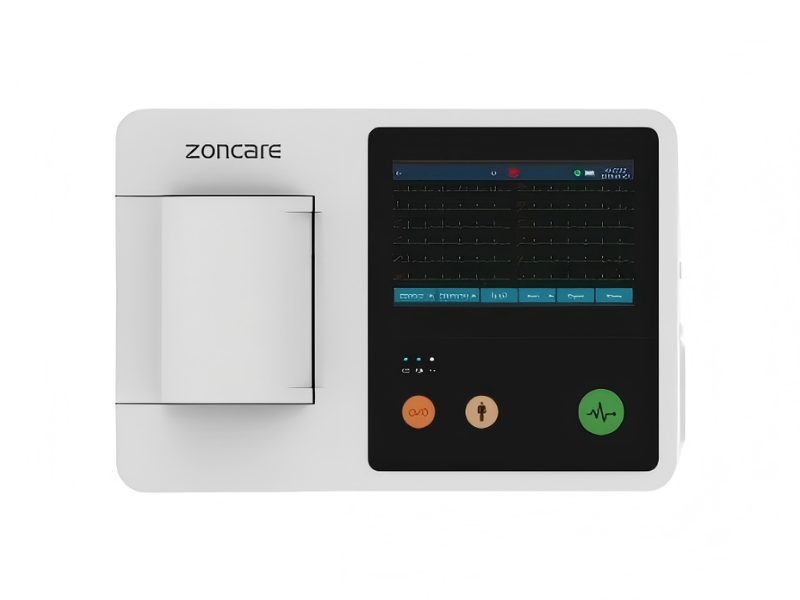

Zoncare E30 3-Channel Digital ECG Machine

The Zoncare E30 is a compact, ultra-lightweight 3-channel digital electrocardiograph engineered for bedside ECG acquisition, ward rounds, and point-of-care cardiac assessment in clinics, hospitals, and emergency settings. Its chassis footprint is smaller than an A4 sheet, and the body weighs approximately 1 kg—making it one of the most portable 3-channel ECG platforms in its class, suitable for single-hand transport between examination rooms, bedsides, and mobile care locations.

The E30 pairs a 5.0-inch high-resolution color touchscreen (800 × 480 pixels) with multi-point capacitive touch operation and a one-button workflow design—power, patient information, and sampling are each assigned a dedicated key, simplifying the clinical operation process for caregivers who perform ECGs intermittently. The system supports 12-lead synchronous acquisition and display, with 3-channel thermal printing in Standard and Cabrera lead modes.

The platform incorporates Zoncare's AlphaECG self-developed analysis algorithm, which supports specificity analysis based on age, sex, race, medication, and patient type, and highlights critical values such as acute myocardial infarction, acute myocardial ischemia, ventricular fibrillation/ventricular tachycardia, extreme bradycardia, and malignant arrhythmias for prompt clinician attention. The system also includes imported professional case templates (280 referenced) to support rapid diagnostic import, and pacemaker detection covering single-chamber and dual-chamber pacing signals.

A color-coded lead signal quality indicator displays green (good quality), red (lead off or excessive signal), and yellow (EMG/baseline/industrial frequency interference) to support quick waveform quality assessment before printing. The system stores up to 5,000 ECGs internally, exports reports in PDF, PNG, JPG, XML, and ZQECG formats, and supports USB flash disk export and real-time workstation sampling and analysis. A built-in rechargeable lithium-ion battery provides ≥5 hours of continuous operation on AC/DC power supply.

Regulatory status: The E30 holds China NMPA registration and is covered by ANVISA registration (82205419027) in Brazil. The device family (E10, E20, E30, E30s, E30pro) is documented in IMDA Vietnam files as a Digital Multi-Channel Electrocardiograph Machine. No FDA 510(k) clearance specific to the E30 model name was identified in the public FDA database during preparation of this page; confirm local registration and intended use before purchase. No independent peer-reviewed clinical validation study specific to the E30 was identified in the public literature during preparation of this page. Availability, labeling, and cleared claims vary by market.

Key Features & Benefits

Sub-A4, 1 kg Design with 5-Inch Multi-Touch Screen

The E30's chassis is smaller than an A4 sheet and weighs approximately 1 kg, with dimensions referenced as 264 × 180 × 64.5 mm—supporting single-hand transport between examination rooms, bedsides, and mobile care settings. The 5.0-inch high-resolution color touchscreen (800 × 480 pixels) supports multi-point capacitive touch operation, and the one-button workflow assigns power, patient information, and sampling to dedicated keys for fast, intuitive operation.

12-Lead Synchronous Acquisition with 3-Channel Printing

The system supports 12-lead synchronous acquisition and display, with simultaneous visualization of all 12 leads on screen and 3-channel thermal printing on 80 mm × 20 m roll paper. Standard and Cabrera lead modes are both supported, along with real-time, auto-simultaneous, and sequential manual sampling modes. Sensitivity settings include 5, 10, 20 mm/mV, and automatic, and paper speeds range from 5 to 50 mm/s.

AlphaECG Analysis with Critical Value Highlighting and 280 Case Templates

The AlphaECG algorithm supports specificity analysis based on age, sex, race, medication, and patient type, and highlights critical values—including acute MI, acute myocardial ischemia, VF/VT, extreme bradycardia, and malignant arrhythmias—for prompt clinician review. Imported professional case templates (280 referenced) support rapid diagnostic import, and auto-diagnosis and auto-measurement functions are included. These are clinical decision support tools—they support the clinician's review and do not constitute a diagnosis on their own.

Color-Coded Lead Signal Quality Indicator

The E30 displays lead signal quality in different colors to support quick waveform quality assessment before printing: green indicates good quality, red indicates lead off or excessive signal, and yellow indicates EMG interference, baseline interference, or industrial frequency interference. Lead-off detection and alarm are also included, alongside interface prompts for tachycardia and bradycardia.

Pacemaker Detection and Wireless Connectivity

Pacemaker detection supports single-chamber and dual-chamber pacing signal detection. The system supports built-in dual-band Wi-Fi (2.4 GHz and 5 GHz) with seamless switching for stable signal quality and reliable data transmission, alongside USB connectivity for data export. A medical-grade high-shield TPU lead cable with CH-Line anti-tangle reversing design is referenced to reduce cable tangling.

5,000-ECG Storage, 5-Hour Battery, and Multi-Format Export

The E30 stores up to 5,000 ECGs internally, with USB flash disk export support. Reports can be exported in PDF, PNG, JPG, XML, and ZQECG formats, and the workstation supports real-time sampling and analysis with report import and export. The built-in rechargeable lithium-ion battery provides ≥5 hours of continuous operation on AC/DC power supply (100–240 V, 50/60 Hz).

Optional Trolley and Waterproof Suitcase

An optional trolley with adjustable height and a large-capacity basket supports cart-based deployment. An optional waterproof and pressure-proof suitcase is based on a compact and lightweight design for field and mobile use.
