E6 12-Lead ECG Machine | 7" Touch Screen Electrocardiograph with Auto-Analysis #

12-lead ECG machine with 7" high-resolution touch screen, auto-measurement & interpretation, thermal printing, and 1000-case storage. Portable electrocardiograph for clinics, hospitals, and home visits.

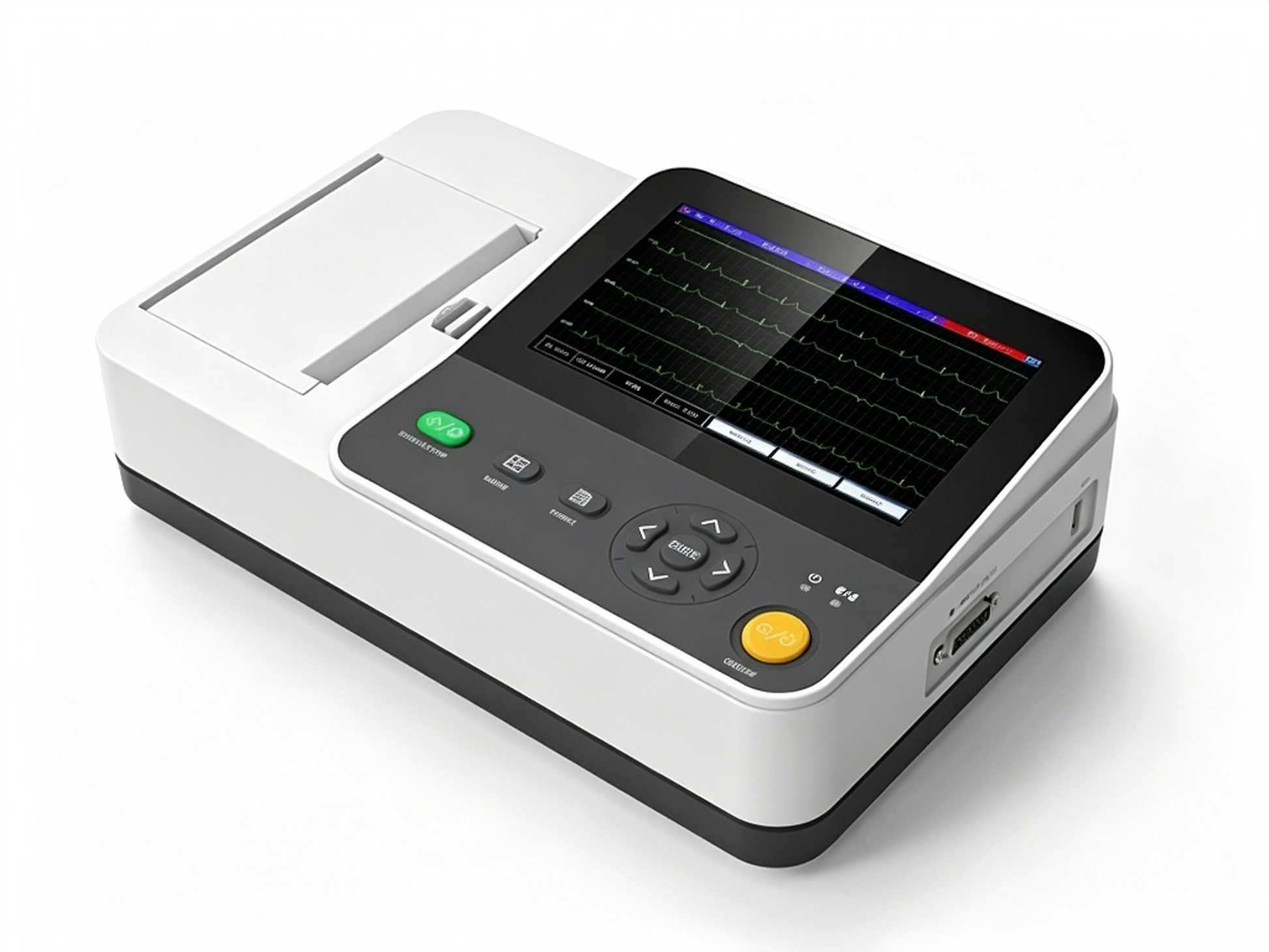

The CONTEC E6 Electrocardiograph is a professional 12-lead ECG machine engineered for medical professionals who demand accuracy, efficiency, and user-friendly operation. Featuring simultaneous 12-lead ECG acquisition, a 7" high-resolution color touch screen, and a powerful thermal printing system, the E6 delivers comprehensive cardiac assessment capabilities in a compact, portable package.

With auto-measurement and auto-interpretation capabilities, multiple printing modes, and a built-in case database storing up to 1,000 records, this electrocardiograph streamlines cardiac diagnostics for clinics, hospitals, and mobile healthcare providers. The E6 also features enhanced input dynamic range, higher CMRR, and superior polarizing voltage compared to standard models, ensuring reliable performance even in demanding clinical environments.

Not all optional functions are available in all regions—please contact us for details.

Key Features

📊 Simultaneous 12-Lead ECG Acquisition

The E6 collects all 12 leads simultaneously, providing a complete view of cardiac electrical activity in a single capture. Supports both standard 12-lead and Cabrera-lead waveform display. Advanced digital signal processing—including AC filter, DFT filter, EMG filter, and Low-pass Filter—effectively eliminates interference and baseline drift, delivering high-quality, artifact-free ECG waveforms.

🖥️ 7" High-Resolution Touch Screen

The 7-inch high-resolution color LCD delivers clear, vibrant visuals. Dual operation via touch screen and function buttons provides maximum flexibility and convenience for medical staff of all experience levels.

📊 Comprehensive Waveform Display

Display 3/6/12-lead ECG waveforms on one screen alongside print mode, sensitivity, paper speed, and filter status—all on one screen for convenient contrastive diagnosis.

🖨️ Versatile Thermal Printing System

Built-in thermal printing system supports multiple printing modes and formats:

• Auto 1×12, Auto 2×6, Auto 2×6+1 – Multiple auto-format options

• Auto 3×4, Auto 3×4+1, Auto 4×3, Auto 4×3+1 – Flexible format choices

• Auto 6×2, Auto 6×2+1 – Additional auto-format configurations

• Rhythm 7, Rhythm 6, Rhythm 5, Rhythm 4, Rhythm 3, Rhythm 2 – Rhythm lead printing options

• Manual mode – Customizable printing

Printed content includes time, calibration signal, filter status, and patient information. Additional settings include printed waveform length, output measurement parameters, diagnostic conclusion, superposition QRS wave, histogram, trend chart, and interval list—with time print function to meet different clinical requirements.

🤖 Auto-Measurement & Auto-Interpretation

The E6 automatically measures and interprets routine ECG parameters, providing instant measurement results and auto-diagnosis conclusions for:

• Heart Rate (HR)

• P-R Interval, P Duration, QRS Duration, T Duration

• Q-T Interval & Q-Tc

• P Axis, QRS Axis, T Axis

• R(V5), S(V1), R(V5) + S(V1) amplitude

This powerful feature significantly reduces the doctor's diagnostic burden and accelerates clinical workflow.

🫀 Pacing ECG Detection

The E6 features pacing ECG detection, ensuring accurate interpretation even in patients with pacemakers.

📂 Case Database Management

Built-in memory stores up to 1,000 cases (3-second case is frequently used), making it easy for doctors to review medical records and perform statistical analysis. The subject's clinical information (ID, Name, Age, Sex, Height, Weight, etc.) can be entered for comprehensive patient records.

🎯 Flexible Rhythm Lead Selection

Freely select the rhythm lead to conveniently observe and monitor abnormal heart rhythms.

🔋 Dual Power Supply with Long Battery Life

Operates on AC/DC power (adapts to AC 50/60Hz) with a built-in rechargeable lithium battery, charging circuit, and perfect over-current and over-voltage protection circuit. In optimal DC state:

• Up to 10 hours standby time

• More than 3 hours of continuous printing

• Up to 1000 ECG waveforms recorded (commonly 3-second cases)

This extended battery life makes the E6 ideal for home visits, community health screenings, and mobile medical examinations.

⚠️ Smart Alerts & Prompts

Automatic prompts for "electrode-off" and "out of paper" ensure uninterrupted operation and reliable results.

🔌 External Device Support

Support for external printer and USB storage device connectivity expands workflow flexibility.

🌍 Multi-Language Interface

Supports multiple languages—Chinese, English, Turkish, Portuguese, German, Russian, and Kazakh—making it suitable for international medical practices.

🔧 Enhanced Performance Specifications

The E6 features wider input dynamic range, higher CMRR, and superior polarizing voltage compared to standard models, ensuring reliable performance in demanding clinical environments.

Specifications

Why Choose the E6?

Whether you're a cardiologist, general practitioner, or community health provider, the CONTEC E6 12-Lead Electrocardiograph delivers the advanced features, accuracy, and reliability you need—in the clinic or on the go.

What's Included

• E6 Main Unit with 7" Touch Screen

• 12-Lead ECG Cable

• Patient Lead Wires

• Chest Electrode Suction Bulbs

• Limb Electrode Clips

• Thermal Recording Paper

• Power Adapter

• USB Cable

• User Manual

Applications

The E6 Electrocardiograph is applicable for:

• Hospitals – Cardiology departments, emergency rooms, ICUs

• Clinics – Outpatient ECG screening

• Community Health Centers – Public health screenings

• Physical Examination Centers – Routine cardiac assessments

• Home Healthcare – Mobile examinations and home visits

FAQ

Q: What type of display does the E6 have?
A: The E6 features a 7-inch high-resolution color LCD with touch screen and function button operation for maximum flexibility.

Q: Does the device provide automatic diagnosis?
A: Yes. The E6 features auto-measurement and auto-interpretation for routine ECG parameters including HR, PR interval, QRS duration, QT/QTc interval, axis measurements, and R(V5)+S(V1) amplitude.

Q: Can the E6 detect pacemaker patients?
A: Yes. The E6 features pacing ECG detection for accurate interpretation in patients with pacemakers.

Q: How many cases can the device store?
A: The built-in memory can store up to 1,000 medical records (commonly 3-second cases).

Q: How long does the battery last?
A: In optimal DC state, the E6 provides up to 10 hours of standby time and more than 3 hours of continuous printing.

Q: What printing formats are available?
A: The E6 supports multiple formats including auto 1×12, 2×6, 2×6+1, 3×4, 3×4+1, 4×3, 4×3+1, 6×2, 6×2+1, Rhythm 7/6/5/4/3/2, and Manual.

Q: What languages does the interface support?
A: The E6 supports 7 languages—Chinese, English, Turkish, Portuguese, German, Russian, and Kazakh.

Q: Can I connect external devices?
A: Yes. The E6 supports external printer and USB storage device connectivity.

Q: Is the E6 suitable for hospital use?
A: Yes. With 12-lead simultaneous acquisition, auto-analysis, pacing detection, and 1,000-case storage, it's ideal for hospital cardiology departments, clinics, and emergency settings.
