ECG1201G 12-Lead ECG Machine | 7" LCD Electrocardiograph with Keyboard & Auto-Analysis #

12-lead ECG machine with 7" high-resolution LCD, button operation, auto-analysis, thermal printing, and 4000-case storage. Portable electrocardiograph for clinics and hospitals. CE/FDA-registered.

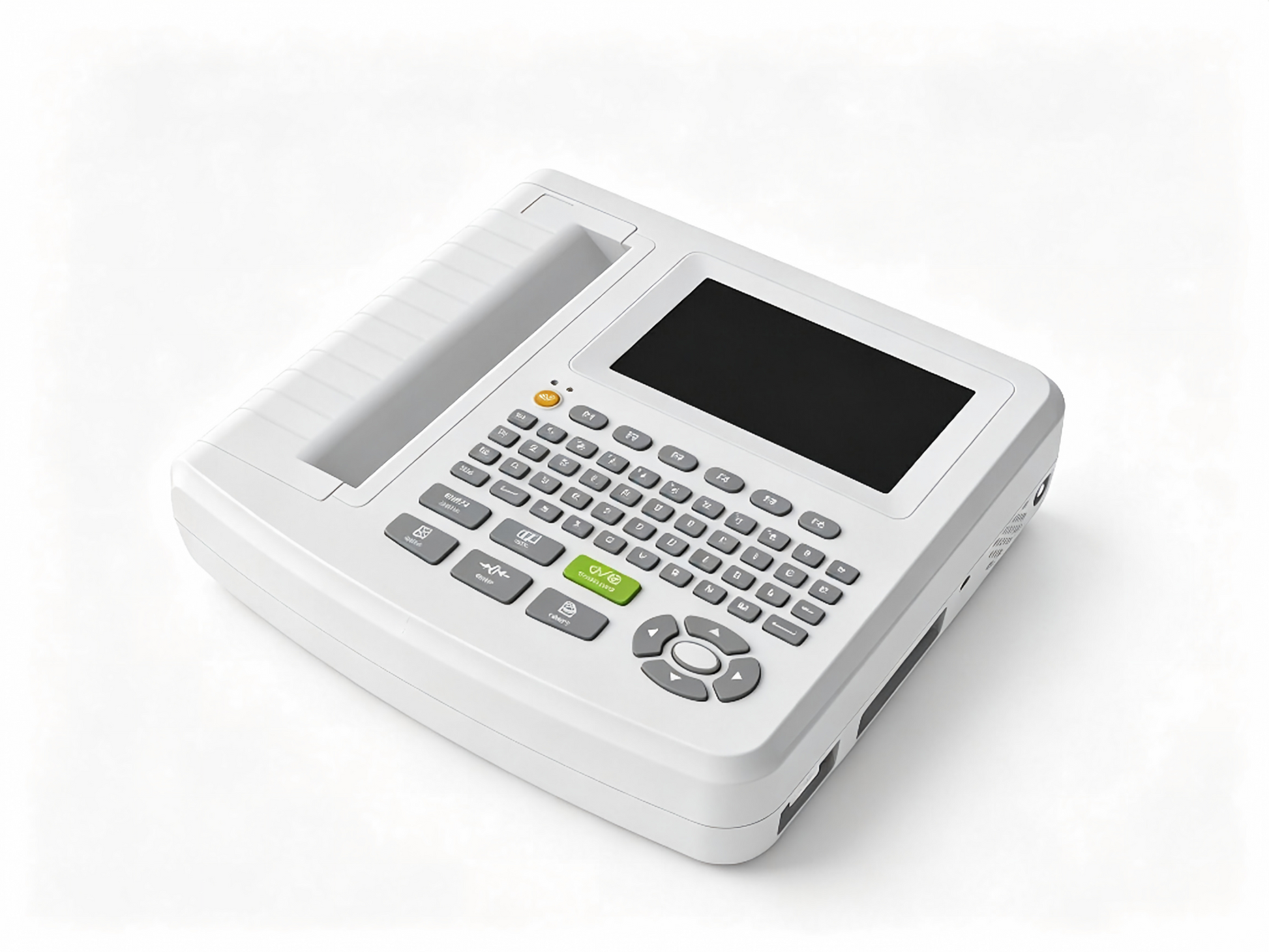

The CONTEC ECG1201G Electrocardiograph is a professional 12-lead ECG machine engineered for medical professionals who demand precision, reliability, and efficiency in cardiac diagnostics. Featuring a 7" high-resolution color LCD, button-based operation, and simultaneous 12-lead ECG acquisition, the ECG1201G delivers hospital-grade performance in a compact, portable design.

With auto-measurement and auto-interpretation capabilities, multiple printing modes, and a large-capacity case database storing up to 4,000 medical records, this electrocardiograph streamlines cardiac assessment for clinics, hospitals, and mobile healthcare providers.

Not all optional functions are available in all regions—please contact us for details.

Key Features

📊 Simultaneous 12-Lead ECG Acquisition

The ECG1201G collects all 12 leads simultaneously, providing a complete view of cardiac electrical activity in a single capture. Supports both standard 12-lead and Cabrera-lead waveform display.

🖥️ 7" High-Resolution Color LCD

The large 7" color LCD displays 1/3/6/12-lead ECG waveforms alongside critical information—HR value, print mode, sensitivity, paper speed, filter state, battery power, and background grid—all on one screen for convenient contrastive diagnosis. Button-based operation ensures intuitive, reliable control in any clinical environment.

🔬 Advanced Digital Signal Processing

Multi-stage digital filters deliver high-quality, artifact-free ECG waveforms:

• Power frequency filter (50/60 Hz)

• Baseline filter

• EMG filter (25/35 Hz)

🖨️ Versatile Thermal Printing System

Built-in high-resolution thermal printer supports multiple printing modes, including:

• Auto M × N, M × N + 1, M × N + 2

• Rhythm M line

• Manual mode

Printed content includes time, paper speed, sensitivity, calibration signal, lead name, filter state, and patient information. Additional print settings include waveform length, measurement parameter output, diagnosis conclusion, superimposed QRS waveform, histogram, trend chart, and interval list.

⏰ Timed Print Function

Timed printing can be set to meet different clinical requirements, accommodating various monitoring and documentation needs.

🤖 Auto-Measurement & Auto-Interpretation

The ECG1201G automatically measures and interprets routine ECG parameters, providing instant measured results and auto-diagnosis conclusions for:

• Heart Rate (HR)

• P-R Interval, P Duration, QRS Duration

• Q-T Interval & Q-Tc

• P Axis, QRS Axis, T Axis

• R(V5), S(V1), R(V5) + S(V1) amplitude

This powerful feature significantly reduces the doctor's diagnostic burden and accelerates clinical workflow.

📂 Large-Capacity Case Database

Built-in large-capacity memory stores up to 4,000 medical records. Historical cases can be reviewed, inquired, modified, transmitted, printed, and lead-corrected. Cases can also be exported to multiple electronic file formats: dat, xml, bmp, png.

🎯 Flexible Rhythm Lead Selection

Rhythm lead can be selected freely to conveniently observe and monitor abnormal heart rhythms.

🔋 Dual Power Supply with Long Battery Life

Operates on AC/DC power (adapts to 50/60Hz) with a built-in rechargeable lithium battery, charging circuit, and perfect over-current and over-voltage protection circuit. In optimal DC state, enjoy:

• Up to 10 hours standby time

• More than 3 hours of continuous printing

This extended battery life makes the ECG1201G ideal for home visits, community health screenings, and mobile medical examinations.

⚠️ Smart Alerts & Prompts

Automatic prompts for "Lead off", "Overload", and system working state ensure uninterrupted operation and reliable results. Built-in prompt functions for lead-off, overload, and system working state.

🌍 Multi-Language Interface

Supports multiple languages—Chinese, English, Turkish, Portuguese, German, Russian, Kazakh, and more—making it suitable for international medical practices.

⌨️ External Device Support

Support for external USB standard keyboard, scanner, and printer enhances workflow flexibility.

Specifications

Why Choose the ECG1201G?

Whether you're a cardiologist, general practitioner, or community health provider, the CONTEC ECG1201G 12-Lead Electrocardiograph delivers the advanced features, accuracy, and reliability you need—in the clinic or on the go.

What's Included

• ECG1201G Main Unit with 7" LCD

• 12-Lead ECG Cable

• Patient Lead Wires

• Thermal Recording Paper

• Power Adapter

• User Manual

FAQ

Q: Is the ECG1201G suitable for hospital use?
A: Yes. With 12-lead simultaneous acquisition, 24-bit sampling accuracy, 4,000-case storage, and multiple printing formats, it's ideal for hospital cardiology departments, clinics, and emergency settings.

Q: What is the difference between ECG1201G and ECG1200G?
A: The ECG1201G features a 7" high-resolution color LCD with button-based operation, while the ECG1200G offers an 8" touch screen interface. Both provide 12-lead simultaneous acquisition and similar core functionality.

Q: What printing formats are available?
A: The ECG1201G supports multiple formats including Auto M×N, M×N+1, M×N+2, Rhythm M line, and Manual modes.

Q: Does the device provide automatic diagnosis?
A: Yes. The ECG1201G features auto-measurement and auto-interpretation for routine ECG parameters including HR, PR interval, QRS duration, QT/QTc interval, and axis measurements.

Q: How long does the battery last?
A: In optimal DC state, the ECG1201G provides up to 10 hours of standby time and more than 3 hours of continuous printing.

Q: How many cases can the device store?
A: The built-in large-capacity memory can store up to 4,000 medical records for convenient case review and statistical analysis.

Q: Can I connect external devices?
A: Yes. The ECG1201G supports external USB standard keyboard, scanner, and printer for enhanced workflow flexibility.

Q: What languages does the interface support?
A: The ECG1201G supports multiple languages including Chinese, English, Turkish, Portuguese, German, Russian, and Kazakh.
