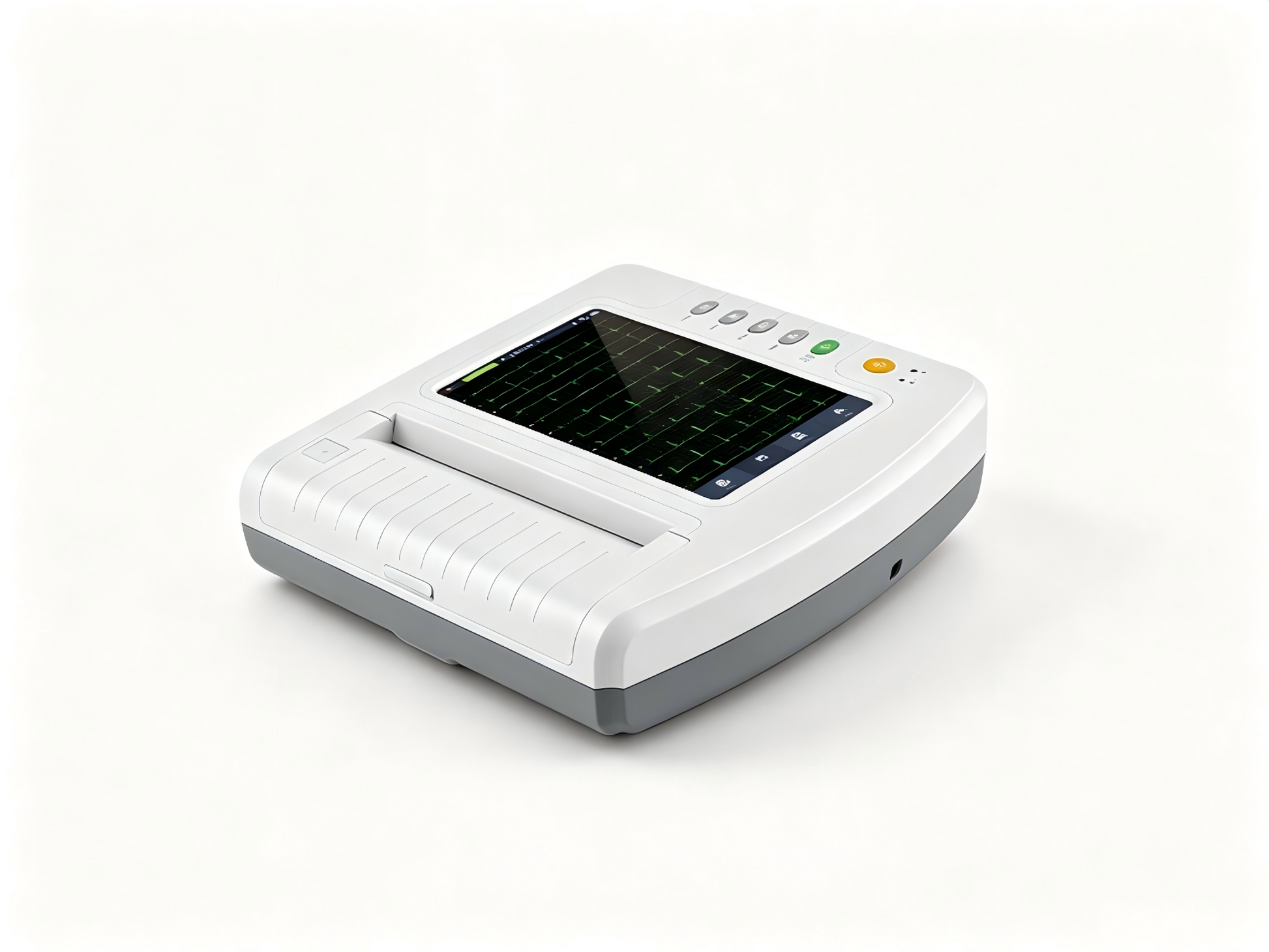

ECG1212G 12-Lead ECG Machine | 10.1" Touch Screen Electrocardiograph with Auto-Analysis #

12-lead ECG machine with 10.1" full-touch screen, auto-measurement & interpretation, thermal printing, and 4000-case storage. Portable electrocardiograph for clinics and hospitals. CE/FDA-registered.

The CONTEC ECG1212G Electrocardiograph is a premium 12-lead ECG machine designed for medical professionals who demand the highest standards of accuracy, efficiency, and user experience. Featuring a 10.1" high-resolution full-touch color LCD, simultaneous 12-lead ECG acquisition, and advanced auto-measurement and auto-interpretation capabilities, the ECG1212G delivers hospital-grade performance with an intuitive, modern interface.

With a large-capacity case database storing up to 4,000 medical records, multiple printing modes, and support for external USB devices, this electrocardiograph streamlines cardiac assessment for clinics, hospitals, and mobile healthcare providers.

Not all optional functions are available in all regions—please contact us for details.

Key Features

📊 Simultaneous 12-Lead ECG Acquisition

The ECG1212G collects all 12 leads simultaneously, providing a complete view of cardiac electrical activity in a single capture. Supports both standard 12-lead and Cabrera-lead waveform display. Advanced digital filters—including power frequency filter (50/60 Hz), baseline filter, and EMG filter (25/35 Hz)—effectively eliminate interference and baseline drift, delivering crisp, artifact-free waveforms.

🖥️ 10.1" High-Resolution Full-Touch Screen

The large 10.1" high-resolution color LCD features full-touch screen operation combined with function buttons for maximum flexibility. Display 3/6/12-lead ECG waveforms alongside HR value, print mode, sensitivity, paper speed, filter state, clock, battery power, background grid, measured parameters, and interpretation—all on one screen. Built-in prompt functions for lead-off, overload, and system working state ensure uninterrupted operation.

🖨️ Versatile Thermal Printing System

Built-in thermal printer supports multiple printing modes and formats, including:

• Auto M × N, M × N + 1, M × N + 2

• Rhythm M line and Manual mode

Printed content includes time, paper speed, sensitivity, calibration signal, lead name, filter state, and patient information. Additional settings include waveform length, measurement parameter output, diagnosis conclusion, superimposed QRS waveform, histogram, trend chart, and interval list. With timed print and auto-print for arrhythmia functions, the ECG1212G meets diverse clinical requirements.

🤖 Auto-Measurement & Auto-Interpretation

The ECG1212G automatically measures and interprets routine ECG parameters, providing instant measured results and auto-diagnosis conclusions for:

• Heart Rate (HR)

• P-R Interval, P Duration, QRS Duration

• Q-T Interval & Q-Tc

• P Axis, QRS Axis, T Axis

• R(V5), S(V1), R(V5) + S(V1) amplitude

This powerful feature significantly reduces the doctor's diagnostic burden and accelerates clinical workflow.

📂 Large-Capacity Case Database

Built-in memory stores at least 4,000 medical records (data saving time: 10 seconds), making it easy for doctors to review cases and perform statistical analysis. Historical cases can be:

• Reviewed, inquired, modified, transmitted, printed

• Lead-corrected after acquisition

• Exported to multiple electronic file formats: dat, pdf, xml, bmp, jpeg

🔋 Dual Power Supply with Long Battery Life

Operates on AC/DC power (adapts to 50/60Hz) with a built-in rechargeable lithium battery, charging circuit, and perfect over-current and over-voltage protection circuit. In optimal DC state, enjoy:

• Up to 10 hours standby time

• More than 3 hours of continuous printing

This extended battery life makes the ECG1212G ideal for home visits, community health screenings, and mobile medical examinations.

🎯 Flexible Rhythm Lead Selection

Rhythm lead can be selected freely to conveniently observe and monitor abnormal heart rhythms.

⌨️ External Device Support

Support for external USB standard keyboard, mouse, scanner, and printer enhances workflow flexibility.

🌍 Multi-Language Interface

Chinese and English operating interface with built-in virtual keyboard supporting Chinese and English input methods. Reports can be printed in the corresponding language.

Specifications

Why Choose the ECG1212G?

Whether you're a cardiologist, general practitioner, or community health provider, the CONTEC ECG1212G 12-Lead Electrocardiograph delivers the advanced features, accuracy, and reliability you need—in the clinic or on the go.

What's Included

• ECG1212G Main Unit with 10.1" Touch Screen

• 12-Lead ECG Cable

• Patient Lead Wires

• Thermal Recording Paper

• Power Adapter

• User Manual

FAQ

Q: Is the ECG1212G suitable for hospital use?
A: Yes. With 12-lead simultaneous acquisition, 10.1" full-touch screen, 4,000+ case storage, and multiple printing formats, it's ideal for hospital cardiology departments, clinics, and emergency settings.

Q: What is the difference between ECG1212G and ECG1200G/ECG1201G?
A: The ECG1212G features a 10.1" full-touch screen—the largest display in the series. It also supports Cabrera-lead waveform display, auto-print for arrhythmia, and export to pdf format, offering the most comprehensive feature set among the models.

Q: What printing formats are available?
A: The ECG1212G supports multiple formats including Auto M×N, M×N+1, M×N+2, Rhythm M line, and Manual modes, with timed print and auto-print for arrhythmia functions.

Q: Does the device provide automatic diagnosis?
A: Yes. The ECG1212G features auto-measurement and auto-interpretation for routine ECG parameters including HR, PR interval, QRS duration, QT/QTc interval, and axis measurements.

Q: How long does the battery last?
A: In optimal DC state, the ECG1212G provides up to 10 hours of standby time and more than 3 hours of continuous printing.

Q: How many cases can the device store?
A: The built-in memory stores at least 4,000 medical records for convenient case review and statistical analysis.

Q: Can I export case files to other formats?
A: Yes. Historical cases can be exported to multiple electronic file formats including dat, pdf, xml, bmp, and jpeg.

Q: Can I connect external devices?
A: Yes. The ECG1212G supports external USB standard keyboard, mouse, scanner, and printer.

Q: What languages does the interface support?
A: The ECG1212G supports Chinese and English operating interfaces, with a built-in virtual keyboard supporting both Chinese and English input methods.
