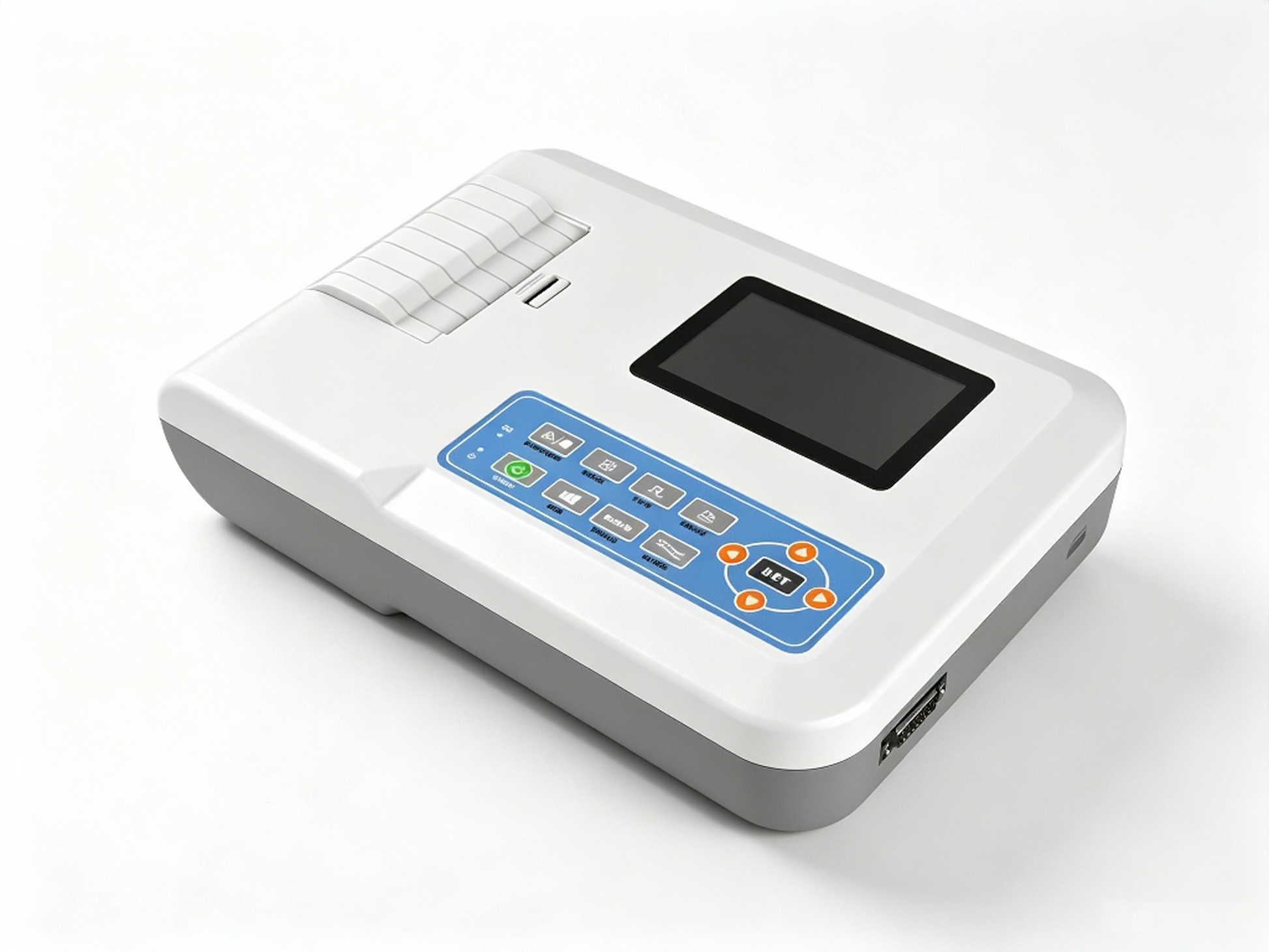

ECG300GT 12-Lead ECG Machine | 3-Channel Touch Screen Electrocardiograph with Auto-Analysis #

12-lead 3-channel ECG machine with 3.5" TFT touch screen, auto-analysis & diagnosis, 1000-case storage, and 18-language interface. Portable electrocardiograph for clinics and hospitals.

The CONTEC ECG300GT Electrocardiograph is a professional 12-lead, 3-channel ECG machine engineered for medical professionals who demand accuracy, efficiency, and intuitive operation. Featuring simultaneous 12-lead ECG acquisition, a 3.5" TFT color touch screen, and a high-resolution thermal printing system, the ECG300GT delivers hospital-grade performance in a compact, portable package.

With auto-analysis and auto-diagnosis capabilities, multiple printing formats, and a built-in case database storing up to 1,000 records, this electrocardiograph streamlines cardiac assessment for clinics, hospitals, and mobile healthcare providers. The dual touch screen and key operation provides maximum flexibility for medical staff of all experience levels.

Not all optional functions are available in all regions—please contact us for details.

Key Features

📊 Simultaneous 12-Lead ECG Acquisition

The ECG300GT collects all 12 leads simultaneously, providing a complete view of cardiac electrical activity in a single capture. Advanced digital signal processing—including power frequency filter, baseline filter, and EMG filter—effectively eliminates interference and baseline drift, delivering high-quality, artifact-free ECG waveforms.

🖥️ 3.5" TFT Color Touch Screen

The 3.5" TFT color display features touch screen and key operation for maximum flexibility and convenience. Display 3/6/12-lead ECG waveforms alongside print mode, sensitivity, paper speed, and filter state—all on one screen for convenient contrastive diagnosis.

🖨️ Versatile Thermal Printing with Multiple Formats

Built-in thermal printing system supports a comprehensive range of printing modes and formats to meet diverse clinical needs:

• Manual mode – Customizable printing

• Auto 4×3, Auto 3×4+1, Auto 3×4 – Multiple auto-format options

• Auto 2×6+1, Auto 2×6 – Flexible lead configurations

• Auto 3-2+1, Auto 3-2 – Additional format choices

• Auto 1×12+1, Auto 1×12 – Full 12-lead options

• Rhythm 4, Rhythm 3, Rhythm 2 – Rhythm lead printing

• Waveform length adjustable – Meets different clinical requirements

• Timed print function – Automated scheduled printing

🤖 Auto-Analysis & Auto-Diagnosis

The ECG300GT automatically measures and diagnoses routine ECG parameters, providing instant measurement results and auto-diagnosis conclusions for:

• Heart Rate (HR)

• P-R Interval, P Duration, QRS Duration, T Duration

• Q-T Interval & Q-Tc

• P Axis, QRS Axis, T Axis

• R(V5), S(V1), R(V5) + S(V1) amplitude

This powerful feature significantly reduces the doctor's diagnostic burden and accelerates clinical workflow.

📂 Large-Capacity Case Database

Built-in large-capacity memory stores at least 1,000 ECG cases, making it easy for doctors to review medical records and perform statistical analysis.

🎯 Flexible Rhythm Lead Selection

Freely select the rhythm lead to conveniently observe and monitor abnormal heart rhythms.

🌍 18-Language Interface

Supports an extensive range of 18 languages—Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Russian, Ukrainian, Serbian, Vietnamese, Slovenian, Slovak, Bulgarian, and Nigerian—making it suitable for international medical practices.

⚠️ Smart Alerts & Prompts

Automatic prompts for "Lead off" and "Lack of paper" ensure uninterrupted operation and reliable results.

⚡ Dual Power Supply

Operates on AC/DC power with a built-in rechargeable lithium battery, perfect for both stationary clinic use and mobile examinations.

Specifications

Why Choose the ECG300GT?

What's Included

• ECG300GT Main Unit with 3.5" Touch Screen

• 12-Lead ECG Cable

• Patient Lead Wires

• Chest Electrode Suction Bulbs

• Limb Electrode Clips

• Thermal Recording Paper

• Power Adapter

• User Manual

Applications

The ECG300GT Electrocardiograph is applicable for:

• Hospitals – Cardiology departments, emergency rooms, ICUs

• Clinics – Outpatient ECG screening

• Community Health Centers – Public health screenings

• Physical Examination Centers – Routine cardiac assessments

• Home Healthcare – Mobile examinations and home visits

FAQ

Q: What type of display does the ECG300GT have?
A: The ECG300GT features a 3.5" TFT color display with touch screen and key operation for maximum flexibility and convenience.

Q: Does the device provide automatic diagnosis?
A: Yes. The ECG300GT features auto-analysis and auto-diagnosis for routine ECG parameters including HR, PR interval, QRS duration, QT/QTc interval, axis measurements, and R(V5)+S(V1) amplitude.

Q: How many cases can the device store?
A: The built-in large-capacity memory can store at least 1,000 medical records.

Q: What printing formats are available?
A: The ECG300GT supports multiple formats including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1×12+1, auto 1×12, and rhythm 4/3/2.

Q: What languages does the interface support?
A: The ECG300GT supports 18 languages—Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Russian, Ukrainian, Serbian, Vietnamese, Slovenian, Slovak, Bulgarian, and Nigerian.

Q: How is the device powered?
A: The ECG300GT operates on AC/DC power with a built-in rechargeable lithium battery.

Q: Is the ECG300GT suitable for hospital use?
A: Yes. With 12-lead simultaneous acquisition, 3-channel recording, auto-analysis, and 1,000-case storage, it's ideal for hospital cardiology departments, clinics, and emergency settings.
