ECG600G 12-Lead ECG Machine | 7" Touch Screen Electrocardiograph with Auto-Analysis #

12-lead ECG machine with 7" color touch screen, thermal printing, auto-analysis, and 1000-case storage. Portable electrocardiograph for clinics, hospitals, and home visits. CE/FDA-registered.

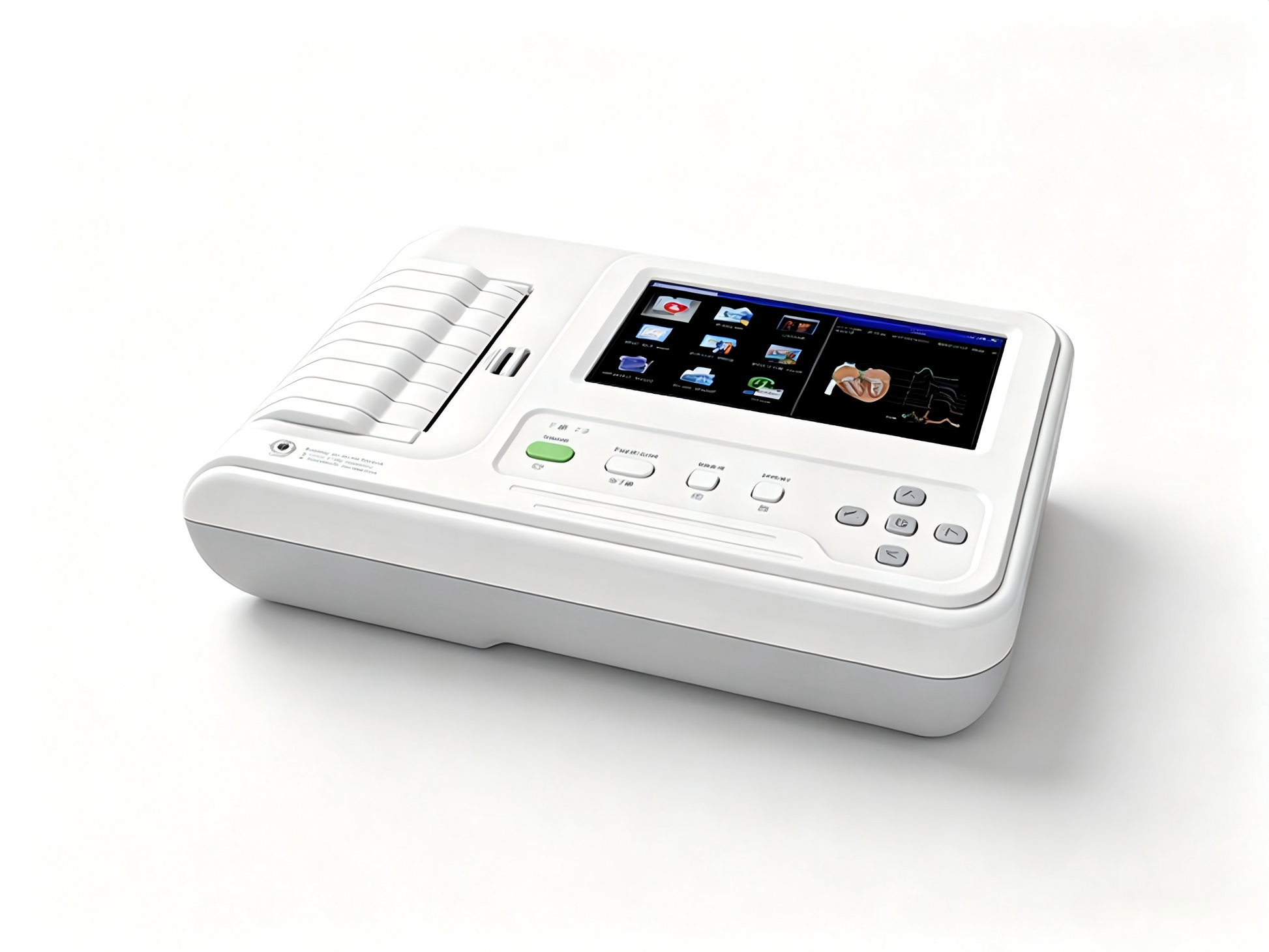

The Contec ECG600G Electrocardiograph is a professional 12-lead ECG machine that combines advanced diagnostic capabilities with an intuitive, user-friendly design. Featuring a 7" high-resolution color touch screen, simultaneous 12-lead ECG acquisition, and a high-resolution thermal printing system, the ECG600G delivers hospital-grade performance in a compact, portable package.

With auto-measurement, auto-analysis, and auto-diagnosis capabilities, multiple printing formats, and a large-capacity case database storing over 1,000 records, this electrocardiograph streamlines cardiac assessment for clinics, hospitals, and mobile healthcare providers.

Key Features

📊 Simultaneous 12-Lead ECG Acquisition

The ECG600G collects all 12 leads simultaneously, providing a complete view of cardiac electrical activity in a single capture. Advanced digital signal processing—including power frequency filter, baseline filter, and EMG filter—effectively eliminates interference and baseline drift, delivering crisp, artifact-free waveforms.

🖥️ 7" High-Resolution Color Touch Screen

The large 7" color touch screen displays real-time 3/6/12-lead ECG waveforms alongside critical information—print mode, sensitivity, paper speed, and filter status—all on one screen for convenient contrastive diagnosis. Intuitive touch and button operation ensures ease of use for medical staff of all experience levels.

🖨️ High-Resolution Thermal Printing System

Advanced thermal-array printing technology with 8 dots/mm resolution delivers clear, accurate ECG waveforms with no adjustment required. Recording frequency up to 150 Hz ensures high-fidelity waveform capture.

📝 Versatile Printing with Multiple Formats

Supports a comprehensive range of printing modes and formats to meet diverse clinical needs:

• 2×6+1 (rhythm lead), 2×6, 3×4, 3×4+1 (rhythm lead)

• 4×3, 4×3+1 (rhythm lead), 6×2, 6×2+1 (rhythm lead)

• Rhythm 2, 3, 4, 5, 6, 7

• Channel record and manual modes

🤖 Auto-Measurement, Auto-Analysis & Auto-Diagnosis

The ECG600G automatically measures and diagnoses routine ECG parameters, providing instant measurement results and diagnostic conclusions. This powerful feature significantly reduces the doctor's diagnostic burden and accelerates clinical workflow.

Note: Devices sold to FDA-regulated regions may not support auto-analysis and auto-diagnosis functions.

📂 Large-Capacity Case Database

Built-in large-capacity memory stores over 1,000 ECG cases, making it easy for doctors to review medical records, perform statistical analysis, and manage patient data efficiently.

🎯 Flexible Print Settings

Three print setting options provide maximum flexibility:

• Print and save – Print waveform and save case

• Print no save – Only print waveform without saving

• Save no print – Only save case without printing

⏰ Timed Print Function

Timed printing can be set to intervals of 1, 2, 3, 5, 10, 20, 30, or 60 minutes, accommodating various monitoring and documentation requirements.

🔋 Dual Power Supply with Auto-Protection

Operates on AC/DC power with a built-in rechargeable lithium battery and auto-protection circuit. Automatic power-off when there is no operation within the appointed time ensures energy efficiency and safety.

⚠️ Smart Alerts & Prompts

Automatic prompts for "Lead off" and "Lack of paper" ensure uninterrupted operation and reliable results.

🌍 17-Language Interface

Supports an extensive range of languages—Chinese, English, French, Spanish, Turkish, Polish, Italian, German, Portuguese, Kazakh, Russian, Ukrainian, Vietnamese, Serbian, Slovenian, and Slovak—making it suitable for international medical practices.

📱 ECG DEMO Mode

Built-in ECG DEMO mode allows for training and demonstration without connecting to a patient, ideal for medical education and staff training.

Specifications

Why Choose the ECG600G?

Whether you're a cardiologist, general practitioner, or community health provider, the Contec ECG600G Portable 12-Lead Electrocardiograph delivers the advanced features, accuracy, and reliability you need—in the clinic or on the go.

What's Included

• ECG600G Main Unit with 7" Touch Screen

• 12-Lead ECG Cable

• Patient Lead Wires

• Thermal Recording Paper

• Power Adapter

• User Manual

FAQ

Q: Is the ECG600G suitable for hospital use?
A: Yes. With 12-lead simultaneous acquisition, 8 dots/mm thermal printing, auto-analysis, and 1,000+ case storage, it's ideal for hospital cardiology departments, clinics, and emergency settings.

Q: What printing formats are available?
A: The ECG600G supports multiple formats including 2×6+1, 3×4+1, 4×3+1, 6×2+1, Rhythm 2-7, Channel record, and Manual modes.

Q: Does the device provide automatic diagnosis?
A: Yes. The ECG600G features auto-measurement, auto-analysis, and auto-diagnosis for routine ECG parameters. Please note that this function may be limited in FDA-regulated regions.

Q: How many cases can the device store?
A: The built-in large-capacity memory can store over 1,000 medical records for convenient case review and statistical analysis.

Q: What print settings are available?
A: Three options: "Print and save" (print + save case), "Print no save" (print only), and "Save no print" (save only).

Q: Can I use the device for training purposes?
A: Yes. The built-in ECG DEMO mode allows for training and demonstration without connecting to a patient.

Q: What languages does the interface support?
A: The ECG600G supports 17 languages: Chinese, English, French, Spanish, Turkish, Polish, Italian, German, Portuguese, Kazakh, Russian, Ukrainian, Vietnamese, Serbian, Slovenian, and Slovak.
