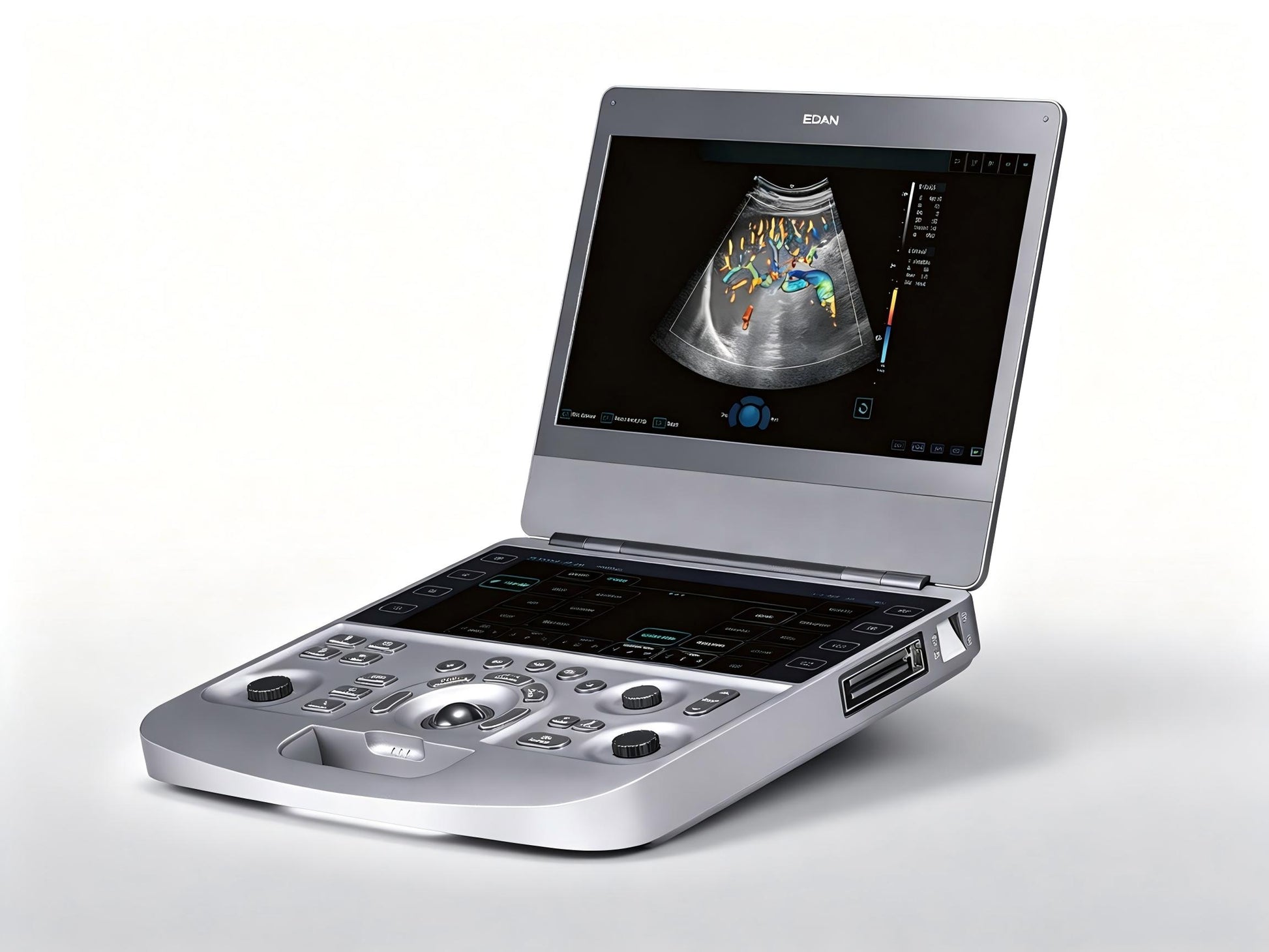

EDAN Acclarix AX9 Diagnostic Ultrasound System

The EDAN Acclarix AX9 is a premium portable diagnostic ultrasound system powered by the cutting‑edge SynSight zone sonography platform. Engineered for point‑of‑care and bedside imaging, the AX9 delivers extraordinary image quality and intelligent automation in a remarkably portable package—making it ideal for emergency medicine, critical care, cardiology, obstetrics, and musculoskeletal applications.

Housed in a durable magnesium alloy body weighing just 4.8 kg (approx. 10.6 lbs), the Acclarix AX9 features a 15.6‑inch high‑resolution LED monitor with a 0°–180° tilt design, a large responsive 12.3‑inch touchscreen, and an interactive back‑lighting control panel for darkroom operation. With dual‑battery ePower technology providing up to 8 hours of continuous scanning and support for up to 3 probes connected simultaneously, the AX9 delivers unexpected levels of innovation and performance at a price point that is equally surprising.

Key Features & Benefits

SynSight Zone Sonography Platform – Stunning Clarity

The Acclarix AX9 is built on EDAN's revolutionary SynSight zone sonography platform, which transforms traditional single‑point transmit focusing into full‑field zone focusing across the entire scanning field. This advanced platform features:

• Powerful image processing hardware and high‑performance beam‑forming algorithms that greatly improve contrast and lateral resolution

• Dynamic focusing on the full field—no physical focus adjustment required, delivering excellent image uniformity, consistency, and penetration

• Energy efficiency improved by over 28× compared to conventional platforms

• Automatic screening of effective zone signals for enhanced image uniformity, consistency, and penetration

The result is stunning clinical clarity with superior detail resolution across all imaging modes.

LinSync Smart Solutions – Intelligent Workflow

The Acclarix AX9 features EDAN's LinSync Smart Solutions—a comprehensive suite of intelligent automation tools designed to "link to your heart, sync with your mind":

Ultra‑Portable and Durable Design

• Magnesium alloy body – delivers high‑standard durability while remaining lightweight

• 4.8 kg lightweight – compact and easy‑to‑go, ideal for point‑of‑care mobility

• Dual‑battery ePower technology – supports up to 8 hours of continuous scanning for uninterrupted bedside imaging

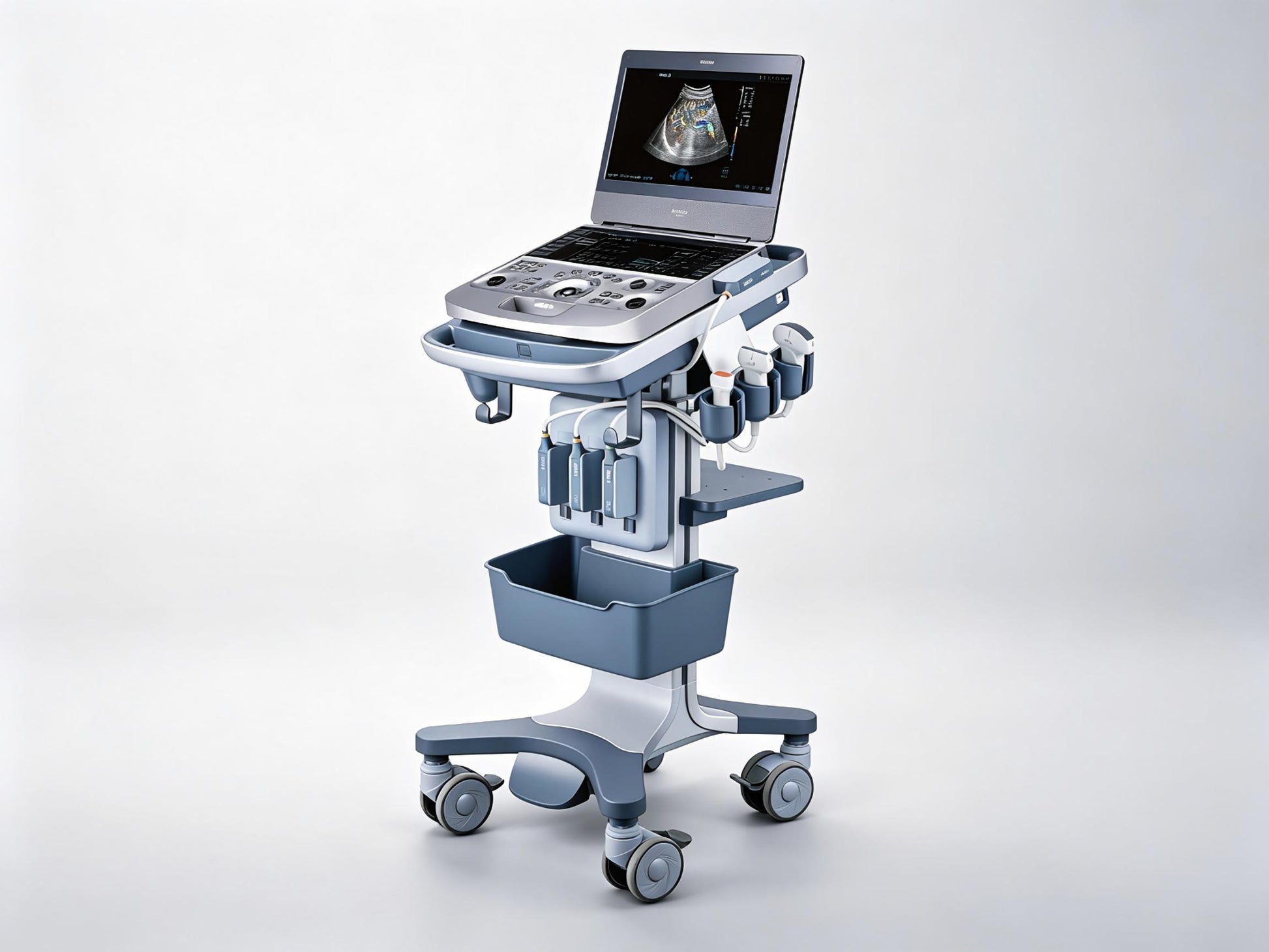

• Configurable cart – with semi‑auto height adjustment for ergonomic positioning

• Large storage capacity – for daily diagnostics and patient data management

• Fast boot‑up – approximately 35 seconds from cold start and 7 seconds from standby

Ergonomic and Intuitive Interface

• 15.6‑inch high‑resolution LED monitor – with 0°–180° tilt design for optimal viewing from any position

• 12.3‑inch large responsive touchscreen – customizable for efficient workflow

• Interactive back‑lighting control panel – ideal for darkroom operation

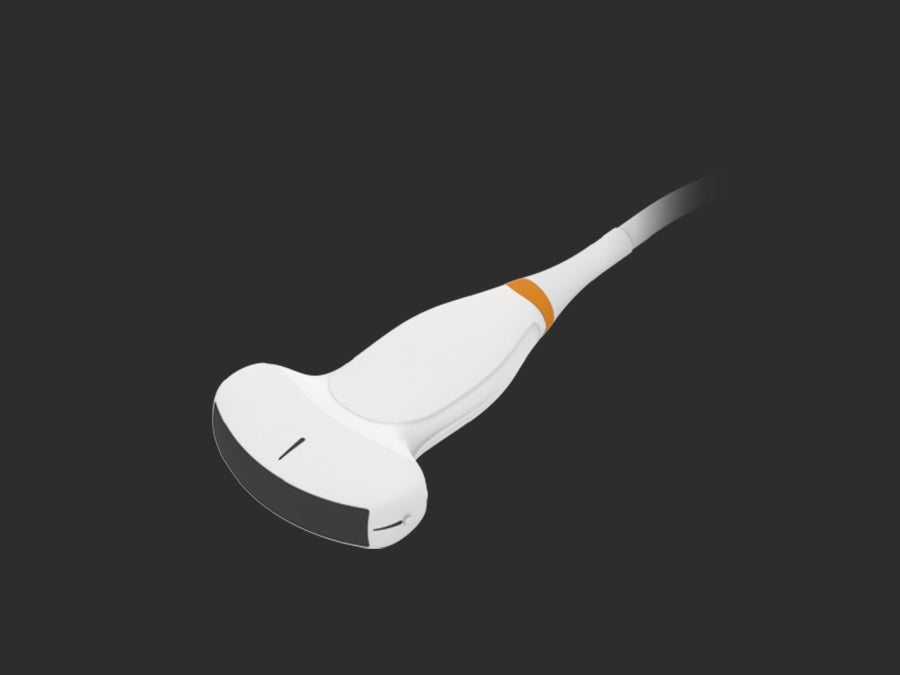

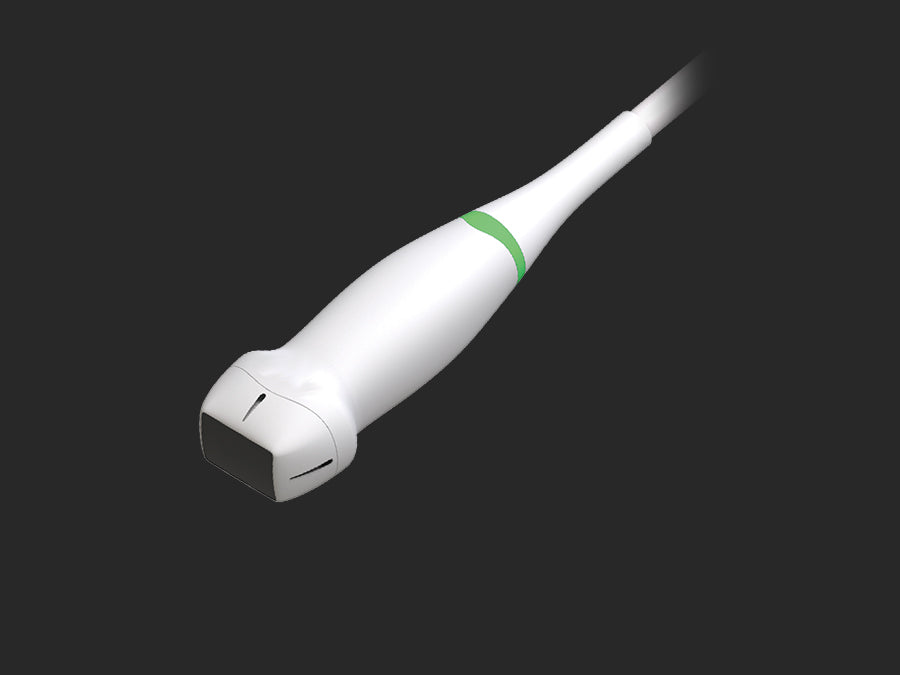

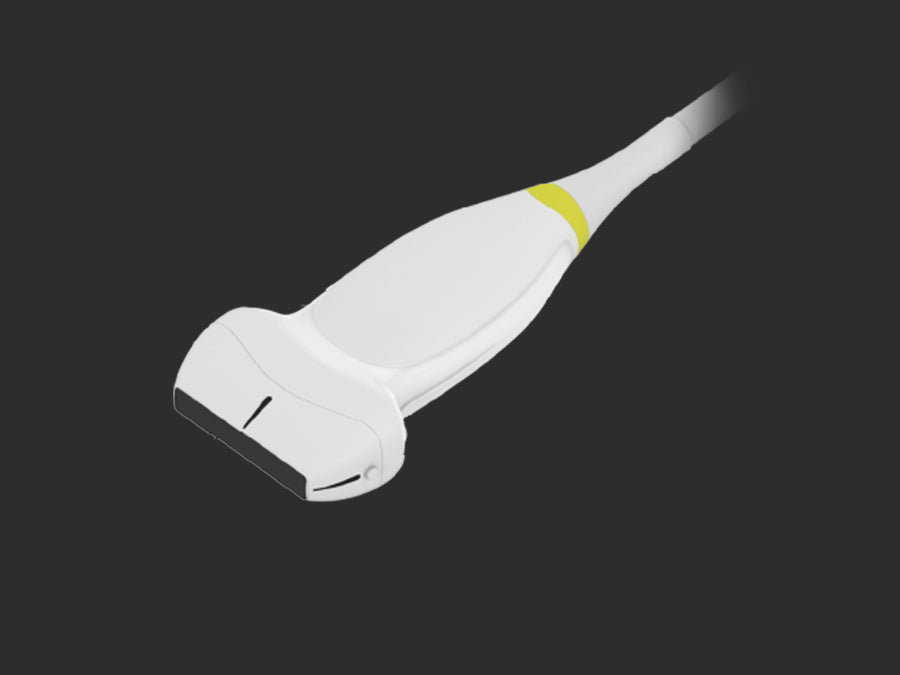

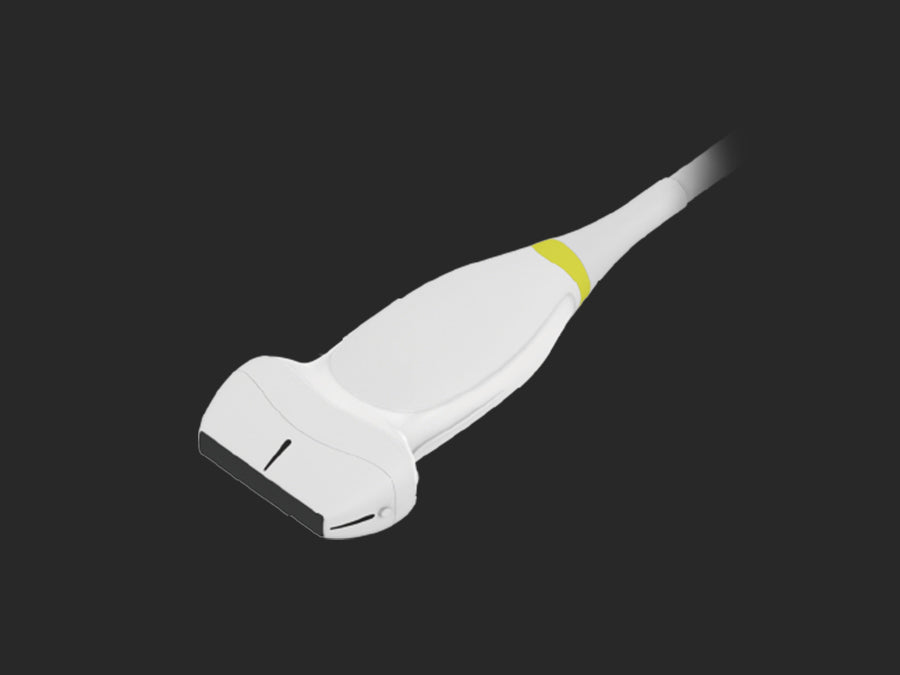

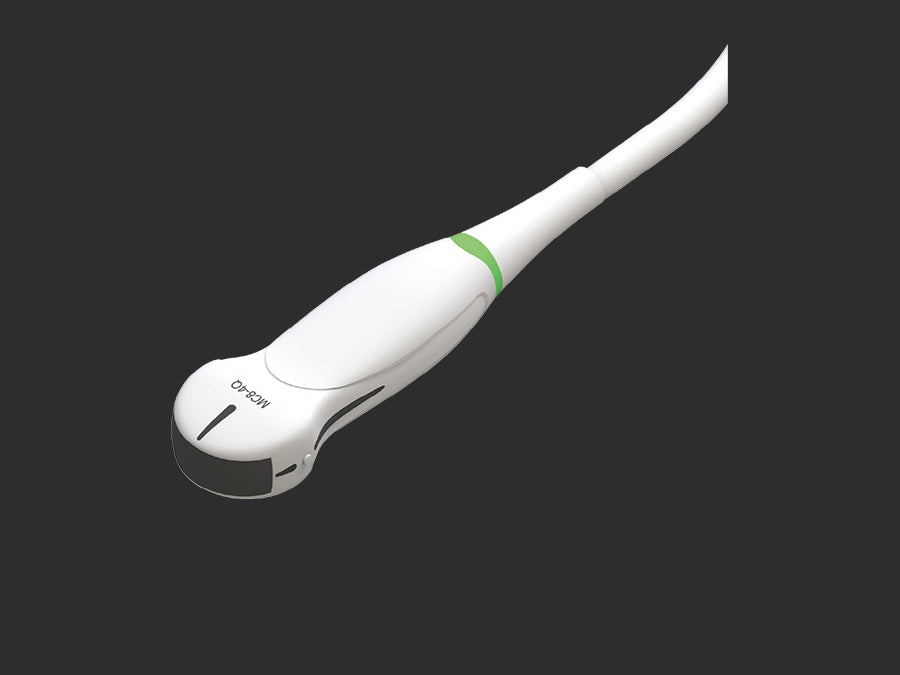

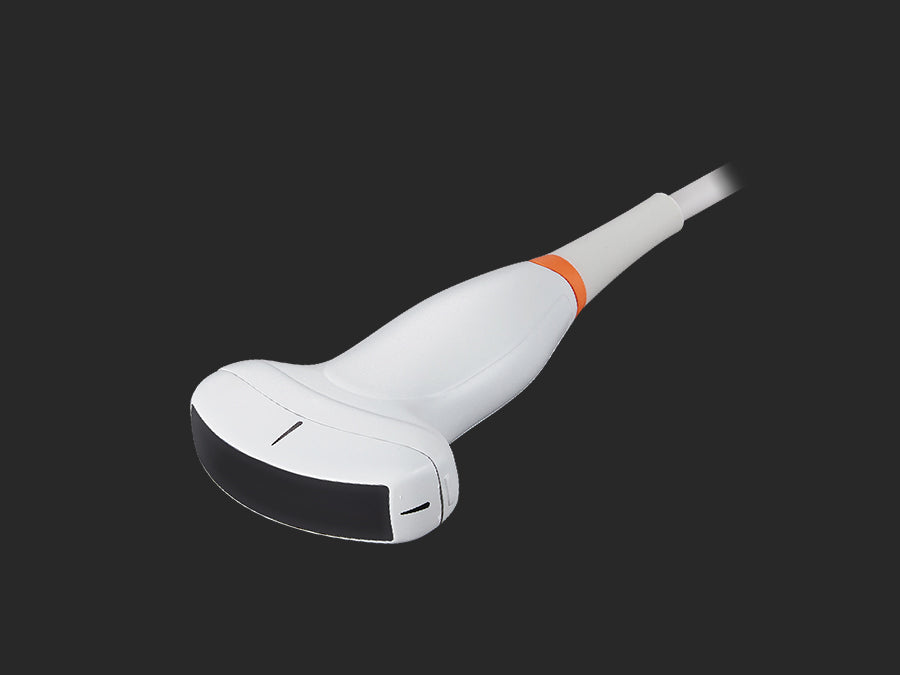

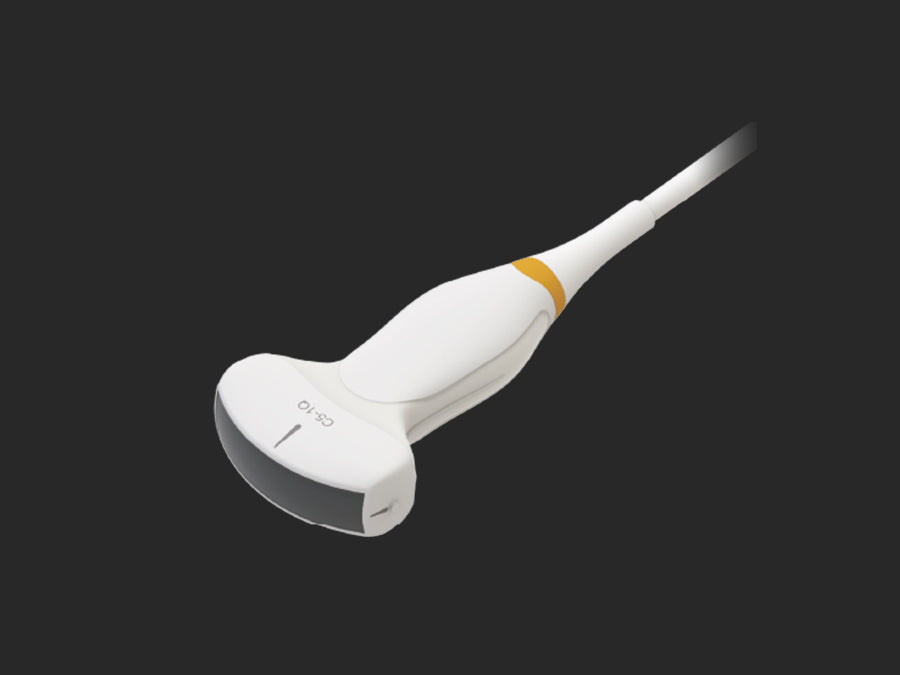

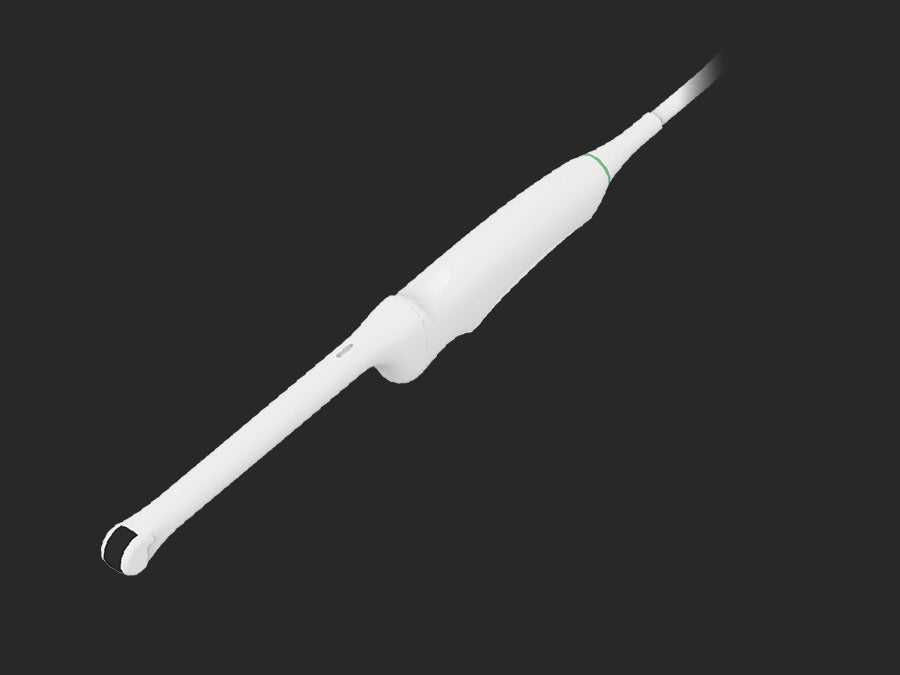

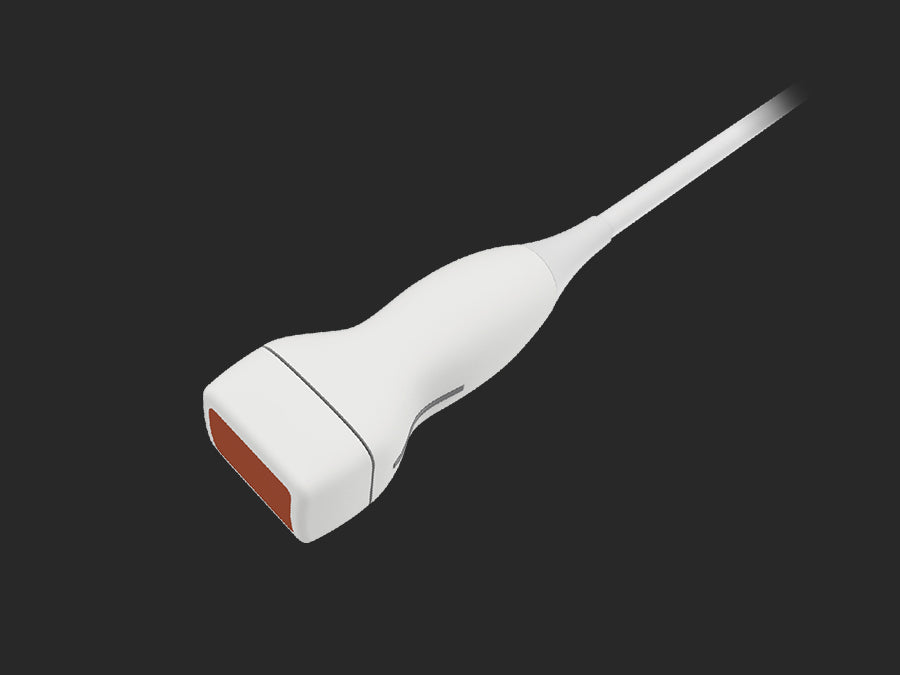

• Compact multiple transducer connection – supports up to 3 probes connected simultaneously

Comprehensive Imaging Modes

The Acclarix AX9 supports a full range of imaging modes for diverse clinical applications:

• B‑Mode – fundamental 2D imaging

• M‑Mode – motion analysis

• Doppler Modes – Color Doppler, PW Doppler, CW Doppler

• Harmonic Imaging – tissue harmonic imaging for improved resolution

• Elastography – tissue stiffness assessment

• Contrast Imaging – enhanced microvascular visualization

Superior Hardware Performance

• 128 physical channels – up to 2,949,120 digital channels

• Six‑core Intel i7 processor – for fast, responsive imaging performance

• 32 GB of memory – ensures smooth operation and rapid data processing

Versatile Clinical Applications

The Acclarix AX9 is FDA‑cleared for a comprehensive range of clinical applications:

• Abdominal – liver, gallbladder, pancreas, spleen, kidney evaluation

• Obstetrics – fetal biometry, gestational age assessment

• Gynecology – uterine and ovarian evaluation

• Cardiology – adult and pediatric cardiac evaluation with advanced auto tools

• Small Parts – breast, testes, thyroid, and superficial structure imaging

• Musculoskeletal – conventional and superficial MSK assessment

• Peripheral Vascular – vessel assessment and flow evaluation

• Urology – renal, bladder, and prostate examinations

• Pediatric & Neonatal – pediatric and neonatal imaging

• Emergency Medicine – eFAST and rapid assessment protocols

• Critical Care – bedside imaging in ICU settings

Advanced Imaging Technologies

The Acclarix AX9 incorporates EDAN's proprietary imaging technologies:

• TAI+ (Tissue Adaptive Imaging) – continuously and automatically optimizes imaging based on tissue characteristics

• Flowing Color™ (立体血流成像) – presents blood flow information in 3D effect for more realistic, fluid, and layered vascular visualization

Smart Workflow and Connectivity

• Fast boot‑up – approximately 35 seconds from cold start, 7 seconds from standby

• Large storage capacity – for daily diagnostics and patient data management

• DICOM 3.0 compatibility – seamless integration with PACS and hospital information systems

• Network connectivity – for data sharing and remote access

• USB ports – for data export and peripheral connectivity
