EDAN Acclarix AX9 Vet Ultrasound System

$44,000.00

Sale Sold out

Shipping calculated at checkout.

Probe Model Main Unit Only Phased Array Transducer: P12-4Q（high-performance） Phased Array Transducer: P7-3Q Micro Convex Array Transducer: MC8-4Q Linear Array Transducer: L12-4HQ Phased Array Transducer: P12-5Q Linear Array Transducer: L17-7HQ Phased Array Transducer: P5-1Q Micro Convex Array Transducer: SMC11-3XQ（high-performance）

Quantity

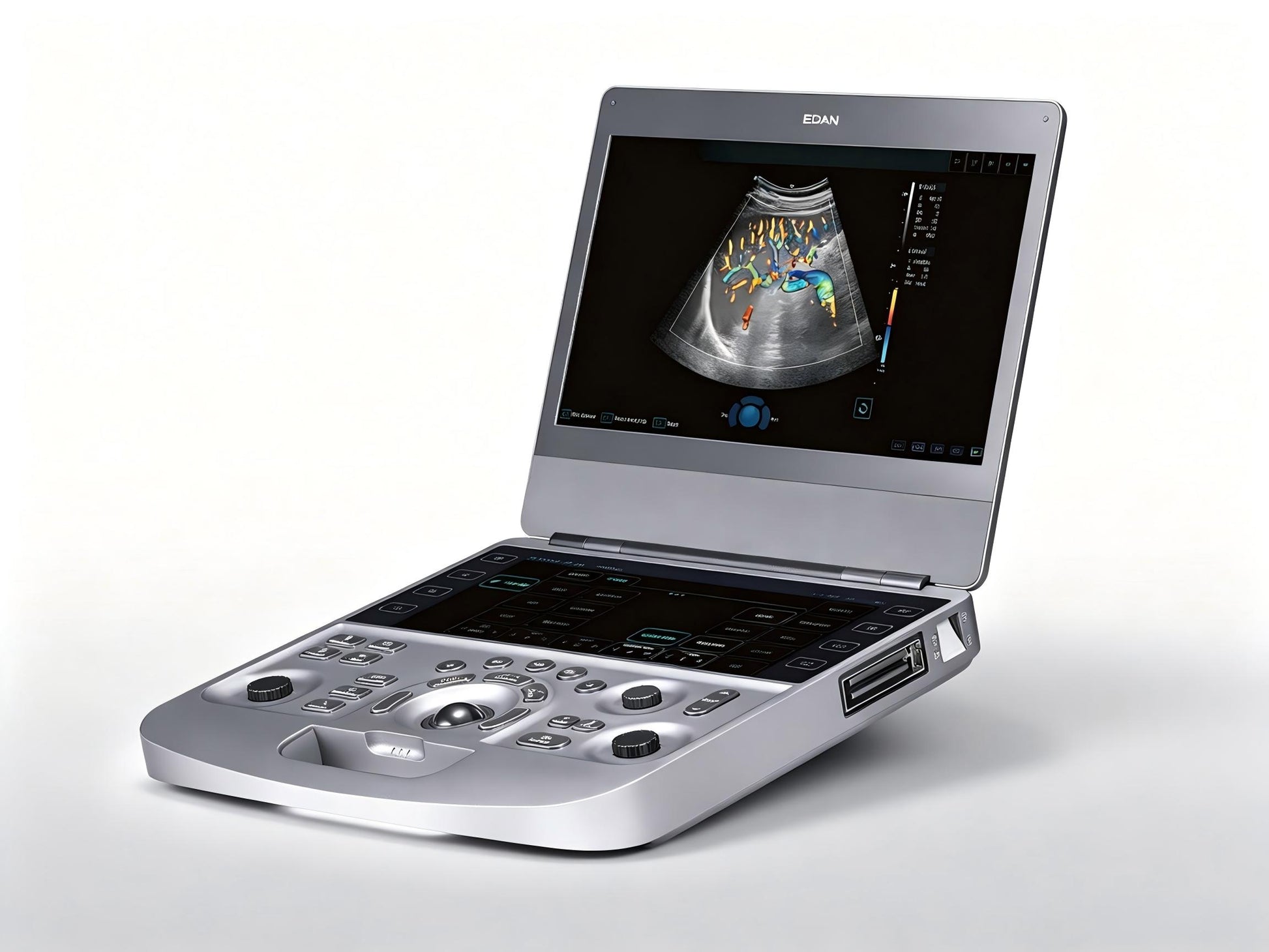

The EDAN Acclarix AX9 Vet is a premium portable veterinary ultrasound system that represents a groundbreaking fusion of specialized functionality and adaptability. Powered by the advanced SynSight zone sonography platform, the Acclarix AX9 Vet delivers exceptional imaging quality and intelligent automation in a remarkably portable package—making it the ideal choice for veterinary clinics, animal hospitals, equine practices, and mobile field applications .

Housed in a durable magnesium alloy body weighing just 4.8 kg (approx. 10.6 lbs), the Acclarix AX9 Vet features a 15.6‑inch high‑resolution LED monitor with a 0°–180° tilt design, a large responsive 12.3‑inch touchscreen, and an interactive back‑lighting control panel for darkroom operation. With dual‑battery ePower technology providing up to 8 hours of continuous scanning and support for up to 3 probes connected simultaneously, the AX9 Vet delivers unexpected levels of innovation and performance at a price point that is equally surprising.

Key Features & Benefits

SynSight Zone Sonography Platform – Stunning Clarity

The Acclarix AX9 Vet is built on EDAN's revolutionary SynSight zone sonography platform, which transforms traditional imaging with:

Powerful image processing hardware and high‑performance beam‑forming algorithms that greatly improve contrast and lateral resolution
Dynamic focusing on the full field—no physical focus adjustment required, delivering excellent image uniformity, remarkable consistency, and penetration
Superior imaging quality that enables confident diagnosis across all veterinary applications

The result is stunning clinical clarity with exceptional detail resolution across all imaging modes.

Ultra‑Portable and Durable Design

Magnesium alloy body – delivers high‑standard durability while remaining lightweight
4.8 kg lightweight – compact and easy‑to‑go, ideal for point‑of‑care mobility
Dual‑battery ePower technology – supports up to 8 hours of continuous scanning for uninterrupted bedside and field imaging

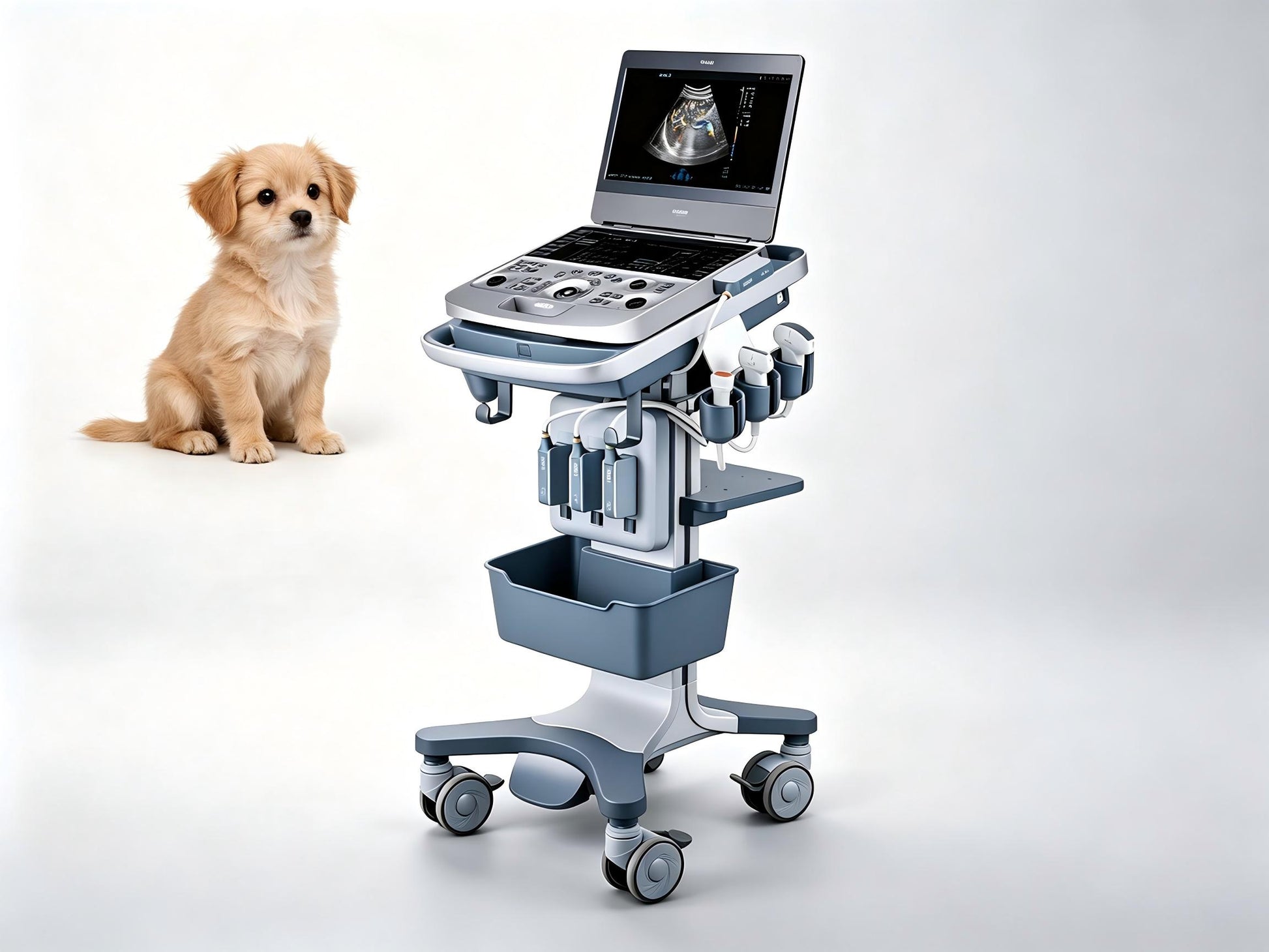

Configurable cart – with semi‑auto height adjustment for ergonomic positioning
Fast boot‑up – approximately 35 seconds from cold start and 7 seconds from standby
Large storage capacity – for daily diagnostics and patient data management

Ergonomic and Intuitive Interface

15.6‑inch high‑resolution LED monitor – with 0°–180° tilt design for optimal viewing from any position
12.3‑inch large responsive touchscreen – customizable for efficient workflow
Interactive back‑lighting control panel – ideal for darkroom operation
Compact multiple transducer connection – supports up to 3 probes connected simultaneously

Intelligent Workflow for Veterinary Practice

The Acclarix AX9 Vet is equipped with a suite of smart automation tools designed to streamline veterinary examinations:

eOptimized – One‑key optimization in B/Color/PW modes enables swift and effortless examinations
PW auto trace – Automatic measurement with a single keystroke, enhancing efficiency
eTouch – Intuitive operation through efficient 'Swipe' gesture control
eLearn – User‑friendly tutorial software accelerates learning for novice users
Innovative user interface layout – with precise function division optimizes workflow efficiency
High‑capacity storage – with convenient USB transfer facilitates seamless data management

Advanced Smart Tools for Comprehensive Assessment

Smart Tool	Function
Auto eLV Package	Auto EF/Strain/WMSI for left ventricular function assessment—automatically recognizes endocardial borders and expresses values
Auto EF(M)	Automatically recognizes diastole and systole spectrum in M‑mode—creative and productive
Auto IVC	Documents changes in collapsibility index (CI) and distensibility index (DI) to present fluid response in real time
Auto CO	Includes Auto LVOT‑D and Auto VTI for rapid cardiac function assessment
Auto B‑Line	Evaluates the number of B‑lines and distance for lung ultrasound—rapid and noninvasive
eWorks	Specially designed for emergency applications—protocols like eFAST help evaluate adequately and quickly
eDiam	Automatically provides vessel diameter and DTS—a key indicator of fistula maturity
eSten%	Automatically provides vessel diameter and %Dist for stroke risk assessment
Live VF	One‑click to get VF and spectrum parameters—ideal automatic tool for fistulization applications

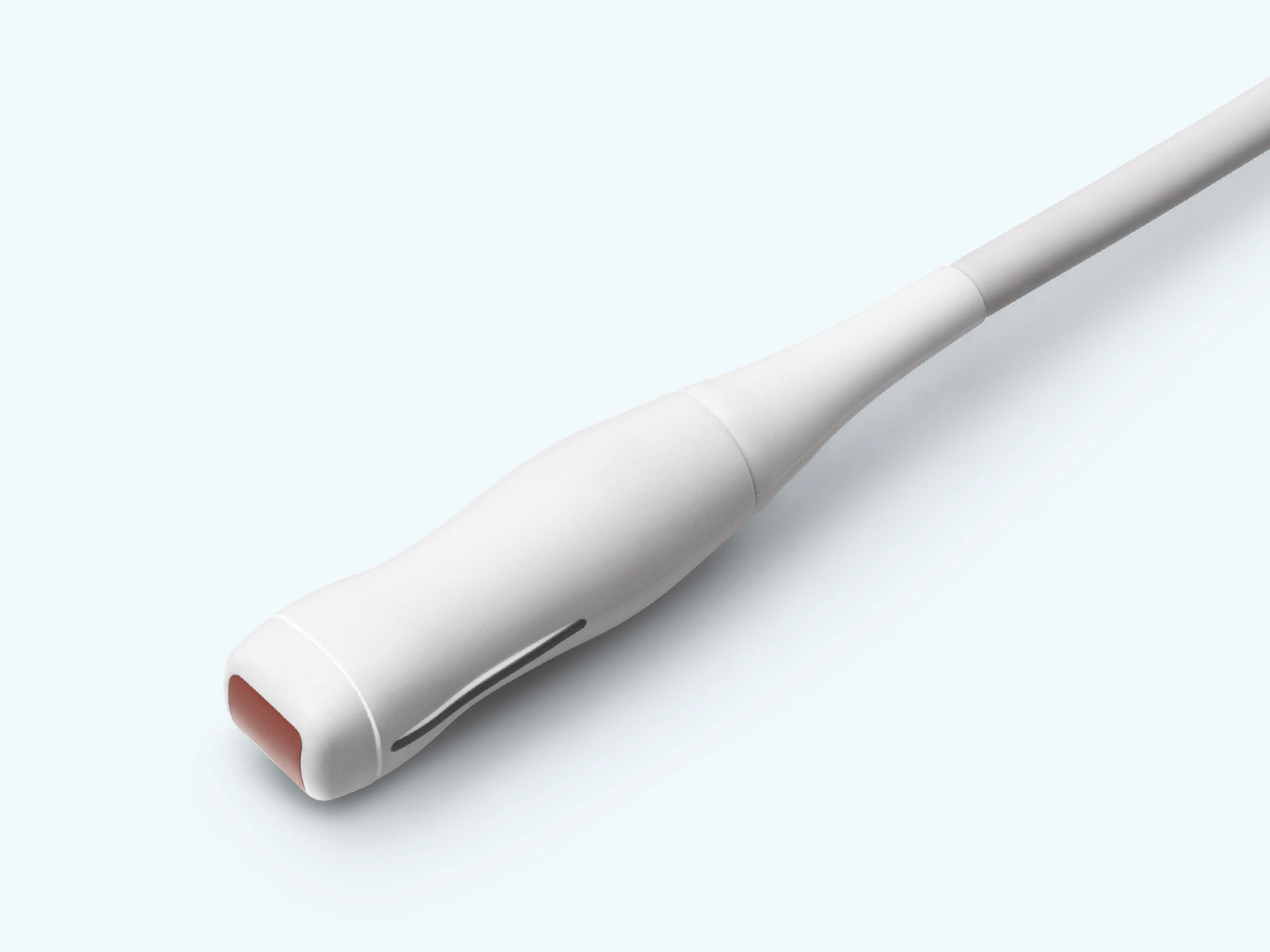

Comprehensive Transducer Compatibility

The Acclarix AX9 Vet supports a wide range of veterinary transducers for maximum clinical versatility, with up to 3 probes connected simultaneously:

Transducer Type	Veterinary Applications
Convex Array	Abdominal, obstetric, and general imaging
Linear Array	Musculoskeletal, small parts, and vascular imaging
Phased Array	Cardiac examination in both large and small animals
Micro‑convex Array	Small animal abdominal imaging
Endocavity	Reproductive and gynecological evaluations

Versatile Clinical Applications

The Acclarix AX9 Vet is suitable for a broad spectrum of veterinary applications:

Abdominal Imaging – liver, gallbladder, pancreas, spleen, kidney evaluation
Obstetrics – pregnancy diagnosis, fetal biometry, gestational age assessment
Cardiology – cardiac evaluation with advanced auto tools
Musculoskeletal – tendon, ligament, and joint assessment
Small Parts – thyroid, ocular, and superficial structure imaging
Urology – renal, bladder, and prostate examinations
Reproductive – uterine and ovarian evaluation, pregnancy monitoring
Emergency – eFAST and rapid assessment protocols

Superior Hardware Performance

128 physical channels – delivering fast, responsive imaging performance
Six‑core Intel i7 processor – for fast, responsive imaging performance
32 GB of memory – ensures smooth operation and rapid data processing

Flexible Data Management and Connectivity

Large storage capacity – for daily diagnostics and patient data management
USB transfer – for easy data export
DICOM 3.0 compatibility – seamless integration with PACS and practice management systems
Network connectivity – for data sharing and remote access

Why Choose the EDAN Acclarix AX9 Vet?

Veterinary Challenge	Acclarix AX9 Vet Solution
Need for portable ultrasound in practice	4.8 kg magnesium alloy design with 8‑hour battery—use anywhere
Image quality at depth	SynSight zone sonography platform with full‑field dynamic focusing
Cardiac assessment in animals	Auto EF, Auto Strain, Auto CO—rapid and automated
Emergency protocols	eWorks with eFAST and Auto B‑Line for lung ultrasound
Complex operation	12.3″ touchscreen + back‑lighting panel + one‑click auto tools
Multiple species and sizes	Comprehensive transducer range including cardiac and abdominal probes
Training requirements	eLearn tutorial software + eOptimized one‑key optimization—minimal training
Darkroom operation	Interactive back‑lighting control panel for low‑light environments
Data management	Large storage + USB transfer + DICOM connectivity
