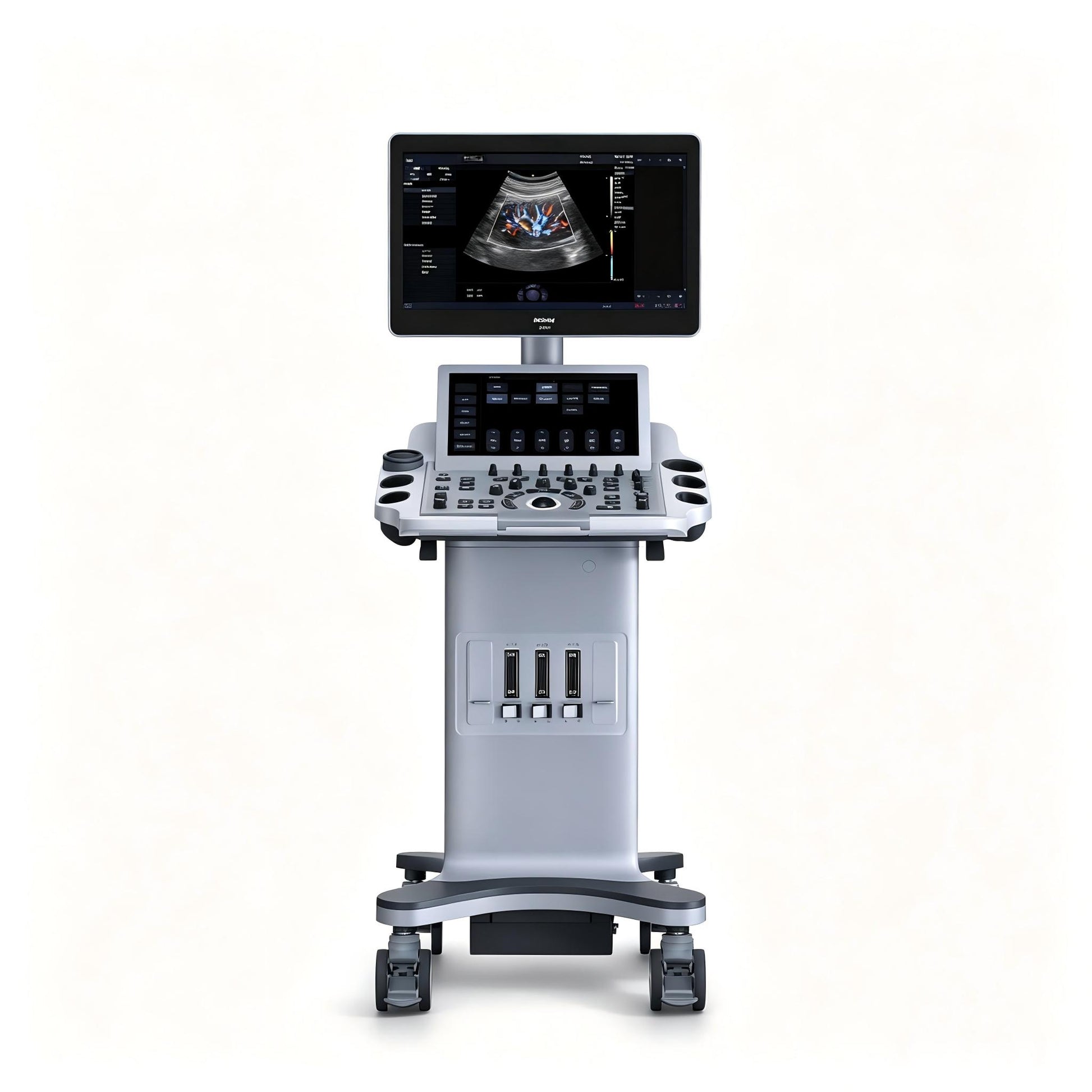

• EDAN Acclarix LX25 stationary diagnostic ultrasound system with 21.5-inch display and 14-inch touchscreen

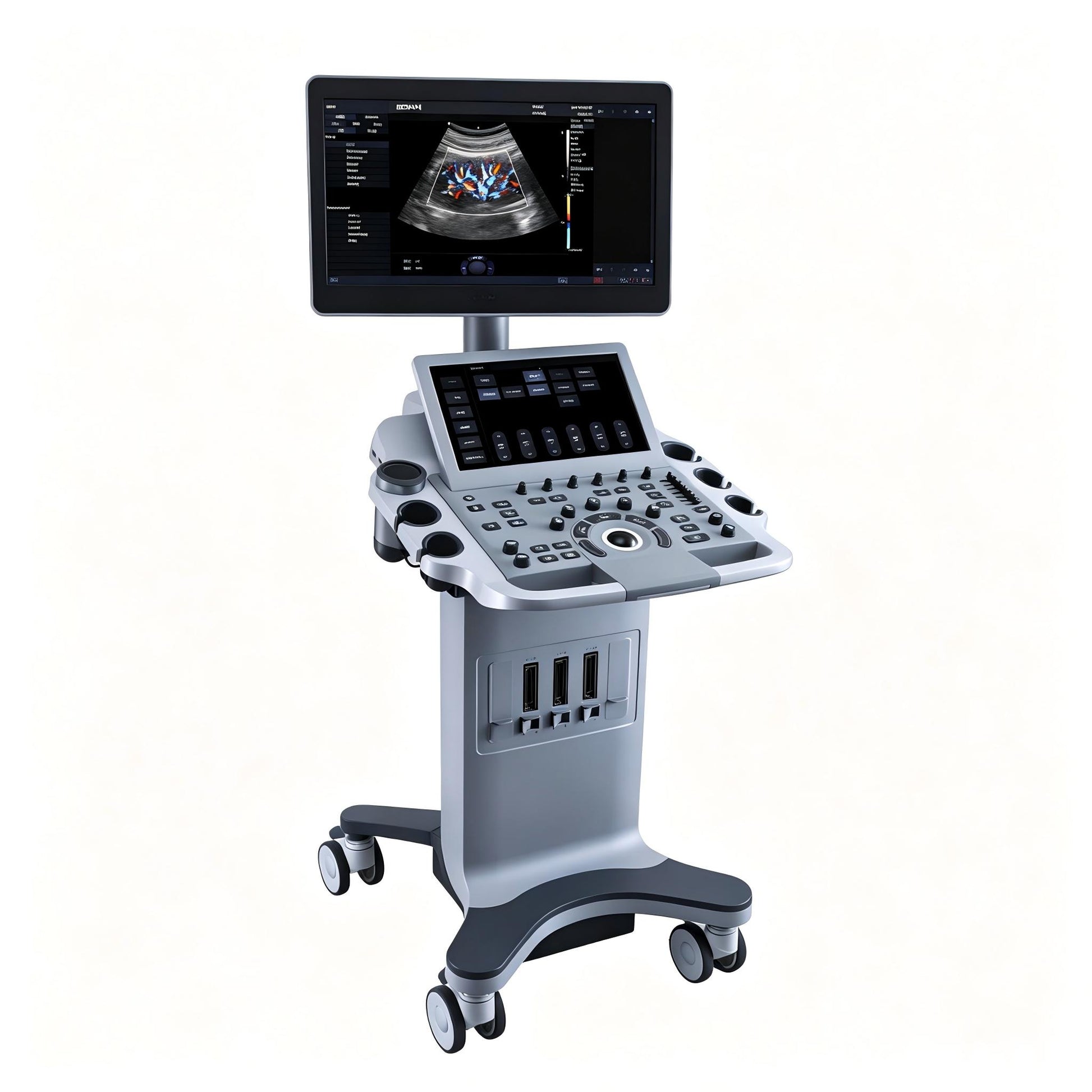

  • EDAN Acclarix LX25 stationary diagnostic ultrasound system with 21.5-inch display and 14-inch touchscreen

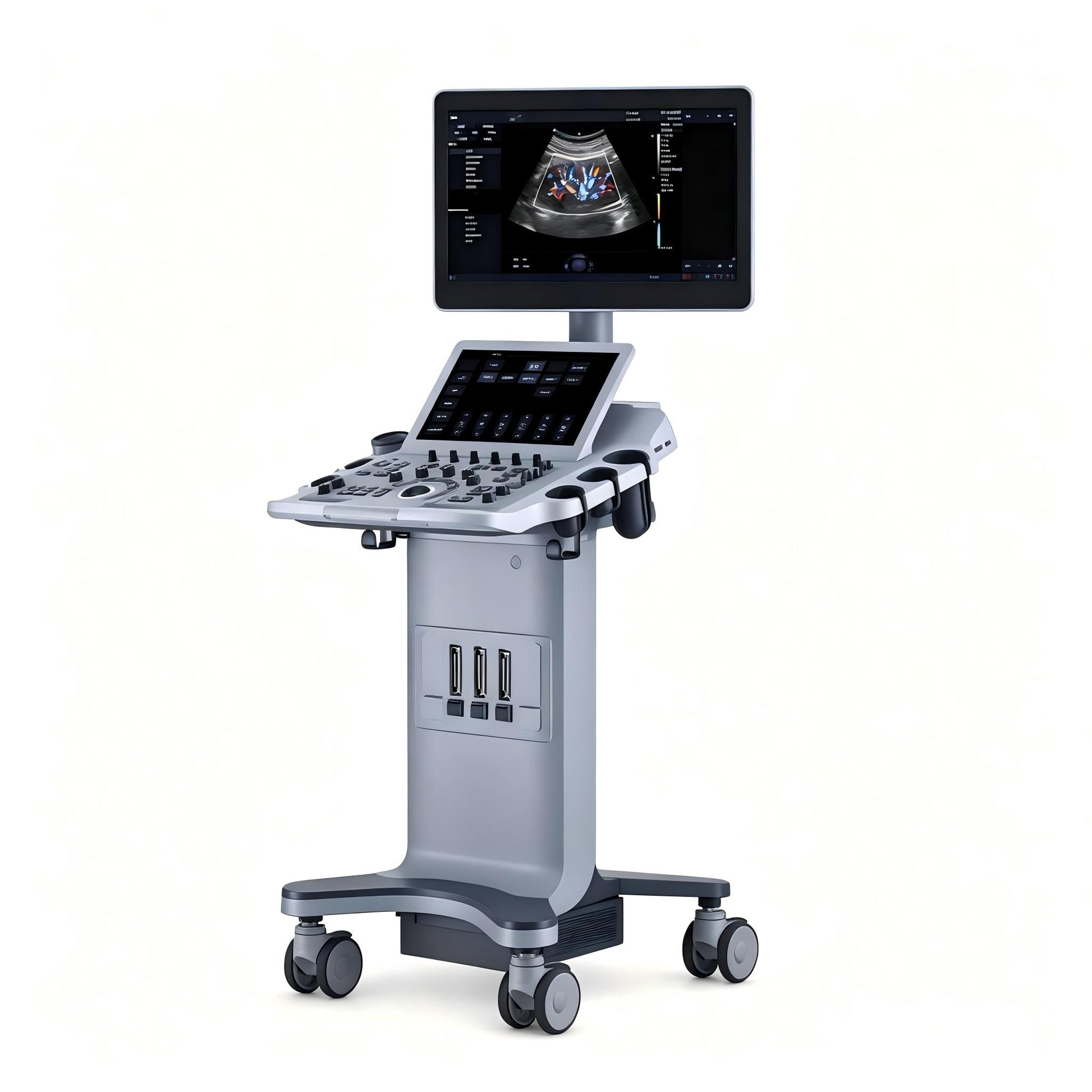

  • EDAN Acclarix LX25 stationary diagnostic ultrasound system with 21.5-inch display and 14-inch touchscreen
1 3

WhatsApp USA: +1 6032769350 | WhatsApp HK: +852 63697831

Global Healthcare Medical

EDAN Acclarix LX25 Diagnostic Ultrasound System

EDAN Acclarix LX25 Diagnostic Ultrasound System

$24,000.00
$24,000.00
Sale Sold out
Shipping calculated at checkout.
Probe Model

Contact details

Enter both an email address and phone number to add products or continue to checkout.

Include your country code.

The EDAN Acclarix LX25 is a stationary diagnostic ultrasound system engineered to deliver high‑quality imaging across a wide range of clinical applications. Featuring a sleek, space‑saving design, advanced imaging technologies, and an intuitive workflow, the LX25 is built to support confident diagnosis in hospitals, clinics, and diagnostic centers.

At the heart of the system is a 21.5‑inch high‑resolution LCD medical monitor with full HD resolution (1920 x 1080), complemented by a 14‑inch high‑sensitivity touchscreen for efficient, fingertip operation. With 3 active transducer ports, a 64‑physical‑channel architecture, and a comprehensive suite of imaging modes—including B‑mode, Color Doppler, PW Doppler, CW Doppler, Harmonic Imaging, and Tissue Doppler Imaging (TDI)—the Acclarix LX25 delivers the performance and versatility needed for abdominal, cardiac, OB/GYN, vascular, musculoskeletal, and small parts imaging.

Key Features & Benefits

Stunning Clarity – Definitive Image Quality

The Acclarix LX25 leverages EDAN‘s innovative Tissue Adaptive Imaging (TAI) technology and multiple imaging processing technologies to produce superb ultrasound images across different modes:

  • High‑fidelity, high‑channel‑count architecture (64 physical channels) results in superb detail resolution, particularly at depth

  • Tissue Adaptive Imaging (TAI) continuously and automatically optimizes imaging, allowing more focus on the patient

  • In B‑mode, TAI fine‑tunes multiple parameters to provide the best possible image quality

  • In Doppler modes, TAI automatically adjusts for flow state, providing improved continuity, border detection, and filling of color

Additional imaging technologies include:

  • Adaptive Spatial Compounding Imaging

  • Harmonic Imaging

  • Adaptive Speckle Reduction Imaging (eSRI)

  • Frequency Compounding Imaging

  • Spectrum Enhancement

  • Digital Multi‑Beam Beamforming

  • Trapezoid Imaging

  • Extended Field of View (Panorama)

  • Needle Enhancement Visualization

  • HPRF (High Pulse Repetition Frequency)

Ergonomic and Intuitive Design

  • 21.5‑inch high‑resolution TFT LCD monitor – Full HD resolution (1920 x 1080) with tilt (30° up, 90° down) and swivel (±90°) for optimal viewing from any position

  • 14‑inch high‑sensitivity touchscreen – with adjustable tilt up to 20° for efficient, customizable operation

  • Interactive back‑lighting control panel – with hard keys providing tactile feedback and 8‑segment TGC sliders

  • 3 active transducer ports – supporting a wide range of transducers for diverse clinical applications

  • Considerate gel warmer design – for improved patient and user comfort

  • Rechargeable Li‑ion battery (14.4V, 6800mAh) – for backup power and uninterrupted scanning

  • Retractable electro‑illuminated keyboard – for easy data entry and annotations

Versatile Clinical Applications

The Acclarix LX25 delivers outstanding value and performance across a broad range of applications:



Application Area Specific Uses
Abdomen Liver, gallbladder, pancreas, spleen, kidney evaluation
OB/GYN Obstetric and gynecological imaging
Cardiac Screening Adult and pediatric cardiac assessment
Vascular Peripheral vascular and carotid artery assessment
MSK (Musculoskeletal) Tendon, ligament, and joint assessment
Small Parts Breast, thyroid, testes, and superficial structure imaging
Nerve Nerve block guidance and assessment
Pediatrics Pediatric and neonatal imaging

Imaging modes supported: B‑mode, M‑mode, Color Doppler, Power Doppler (PDI), Directional Power Doppler (DPDI), Pulsed Wave Doppler (PW), Continuous Wave Doppler (CW), Tissue Doppler Imaging (TDI), Anatomic M‑Mode, Trapezoid Imaging, Panoramic Imaging

Comprehensive Transducer Compatibility

The Acclarix LX25 supports a wide range of transducers with frequency ranges from 1 to 17 MHz, including:



Transducer Type Models Frequency Range
Phased Array P5-1Q, P7-3Q 1–5 MHz, 3–7 MHz
Convex Array C5-2Q, C5-1Q 2–5 MHz
Linear Array L12-5Q, L12-5HQ, L12-5WQ, L17-7HQ, L17-7SQ 5–12 MHz, 7–17 MHz
Micro‑convex Array MC8-4Q, MC9-3TQ 4–8 MHz, 3–9 MHz
Endocavity E8-4Q, E10-3BQ, E10-3HQ 4–8 MHz, 3–10 MHz

Flexible Data Management and Connectivity

  • 120 GB SSD – for fast, reliable storage

  • 500 GB internal hard drive – patient management system

  • 6 USB ports (4 USB 2.0 + 2 USB 3.0)

  • HDMI & Ethernet – for flexible connectivity

  • Wi‑Fi module – optional wireless connectivity

  • DICOM 3.0 compatibility – including Modality Worklist, Structured Report (OB, GYN, Cardiac, Vascular), and store to multiple networks

  • Video out – VGA, DVI, S‑video (PAL/NTSC)

  • Built‑in DVD drive – optional

Smart Workflow Tools

  • Auto Optimization – one‑key optimization in B‑mode, Color, and PW modes

  • Auto Trace – one‑key automatic Doppler measurement

  • Digital Zoom – for detailed examination of regions of interest

  • Full Screen Zoom – for maximum image visibility

  • B Steer – adjustable beam steering

Technical Specifications



Specification Detail
System Type Stationary diagnostic ultrasound system
Physical Channels 64
Main Display 21.5‑inch high‑resolution TFT LCD monitor, Full HD 1920×1080
Monitor Adjustments Tilt: 30° up, 90° down; Swivel: ±90°
Touchscreen 14‑inch high‑sensitivity touchscreen, 1366×768
Transducer Ports 3 active ports
Transducer Frequency 1 – 17 MHz (depending on type)
Imaging Modes B, M, Color Doppler, Power Doppler, PW, CW, TDI, Anatomic M‑Mode, Trapezoid, Panorama
Storage 120 GB SSD + 500 GB HDD
Connectivity 6× USB, HDMI, Ethernet, Wi‑Fi (optional), DICOM 3.0
Battery Rechargeable Li‑ion (14.4V, 6800mAh)
Power Supply 100V – 240V, 50/60Hz
Dimensions (H×W×D) 1440–1640 mm × 544 mm × 665 mm
Weight Contact EDAN for detailed specifications

Why Choose the EDAN Acclarix LX25?



Clinical Challenge Acclarix LX25 Solution
Need for high‑quality stationary ultrasound 21.5″ full HD monitor + 14″ touchscreen + 64‑channel architecture
Image quality at depth TAI technology + advanced imaging for superb detail resolution
Efficient workflow Intuitive touchscreen + customizable UI + back‑lighting control panel
Multiple clinical applications Comprehensive imaging modes + application‑specific calculations
Probe flexibility 3 active transducer ports + wide transducer compatibility
Uninterrupted scanning Rechargeable battery backup for extended examinations
Data management 120GB SSD + 500GB HDD + DICOM 3.0 + Wi‑Fi connectivity
Training requirements Auto Optimization in B‑mode, Color, and PW—minimal training
Patient comfort Considerate gel warmer design
