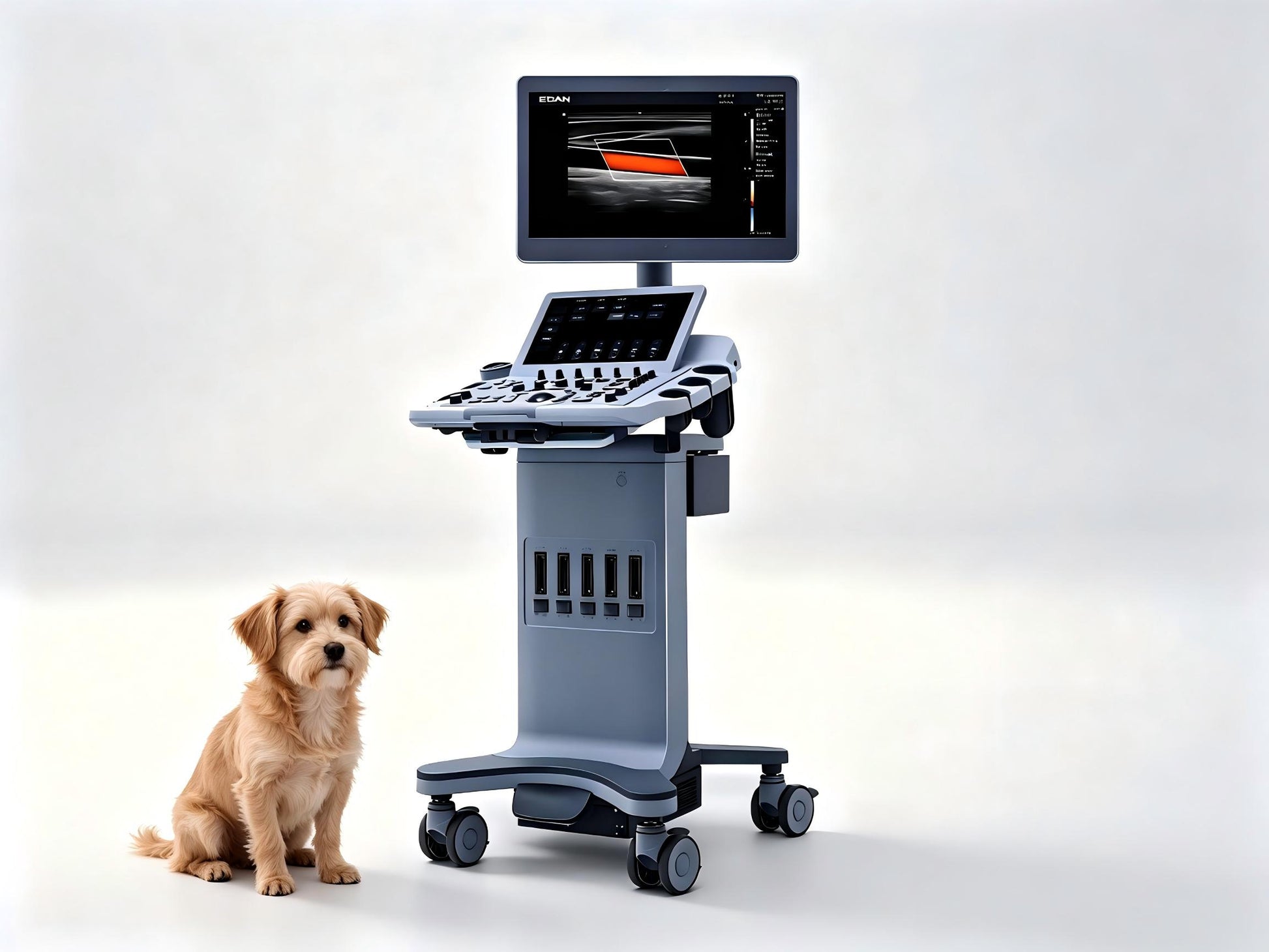

EDAN Acclarix LX3 Vet Ultrasound System

The EDAN Acclarix LX3 Vet is a cart‑based, next‑generation veterinary diagnostic ultrasound system that integrates compact appearance, cutting‑edge imaging technology, and intelligent workflow to deliver more valuable innovation for animal healthcare. The result of engineering excellence combined with design and manufacturing proficiency, the Acclarix LX3 Vet provides outstanding image performance that plays an important role in the prevention and early detection of diseases in primary veterinary care.

Featuring a 21.5‑inch high‑resolution LCD medical monitor with multidimensional viewing angle and a 14‑inch high‑sensitivity touchscreen with gesture control support, the Acclarix LX3 Vet delivers efficient operation at your fingertips. With five fully activated probe ports and a comprehensive range of transducers, the system offers exceptional versatility for veterinary practices of all sizes.

Key Features & Benefits

Stunning Clarity – Definitive Image Quality

The Acclarix LX3 Vet leverages innovative Tissue Adaptive Imaging (TAI) technology and multiple imaging processing technologies to deliver superior diagnostic images:

• High‑fidelity, high‑channel‑count architecture results in superb detail resolution, particularly at depth

• Tissue Adaptive Imaging (TAI) continuously and automatically optimizes imaging, allowing more focus on the patient

• In B‑mode, TAI fine‑tunes multiple parameters to provide the best possible image quality

• In Doppler modes, TAI automatically adjusts for flow state, providing improved continuity, border detection, and filling of color

Superior Ergonomic Design for Veterinary Practice

• 21.5‑inch high‑resolution LCD medical monitor – delivers crisp, clear images with multidimensional viewing angles for optimal visibility from any position

• 14‑inch high‑sensitivity touchscreen – supports gesture control, making examinations simple and smooth

• Foldable keyboard – provides flexible, convenient operation

• Integrated user interface with ergonomic height adjustment design – ensures comfortable operation during extended examinations

• Five fully activated transducer ports – hot‑swappable for seamless probe changes

• Detachable gel warmer – optional independent gel warmer cup with constant temperature protection for added comfort

Intelligent Workflow for Veterinary Practice

The Acclarix LX3 Vet is equipped with smart tools designed to streamline examinations:

• eOptimized – One‑key image optimization in B‑mode, Color Doppler, and PW Doppler modes enables swift and effortless examinations

• PW auto trace – One‑key automatic measurement for rapid, accurate Doppler analysis

• Gesture control – Efficient 'Swipe' gesture control for intuitive, smartphone‑like operation

• Customizable clinical application presets – Dedicated presets for different exam types and veterinary applications

• Dual‑battery, integrated motherboard design – ensures reliable power and performance

Uninterrupted Power for Extended Scanning

• Built‑in dual batteries – provide backup and ultra‑long continuous scanning time

• Two batteries work simultaneously, each with a capacity of 6800 mAh, total 13600mAh capacity

• Supports extended scanning sessions – ideal for busy veterinary practices and mobile applications

Versatile Transducer Compatibility

The Acclarix LX3 Vet features five active transducer ports that are fully activated and interchangeable, supporting a comprehensive range of transducers for diverse clinical applications:

Comprehensive Veterinary Clinical Applications

The Acclarix LX3 Vet delivers unmatched value and performance across a broad range of applications:

• Abdominal Imaging – liver, gallbladder, pancreas, spleen, kidney evaluation

• Obstetrics/Gynecology – pregnancy diagnosis, fetal biometry, gestational age assessment, uterine and ovarian evaluation

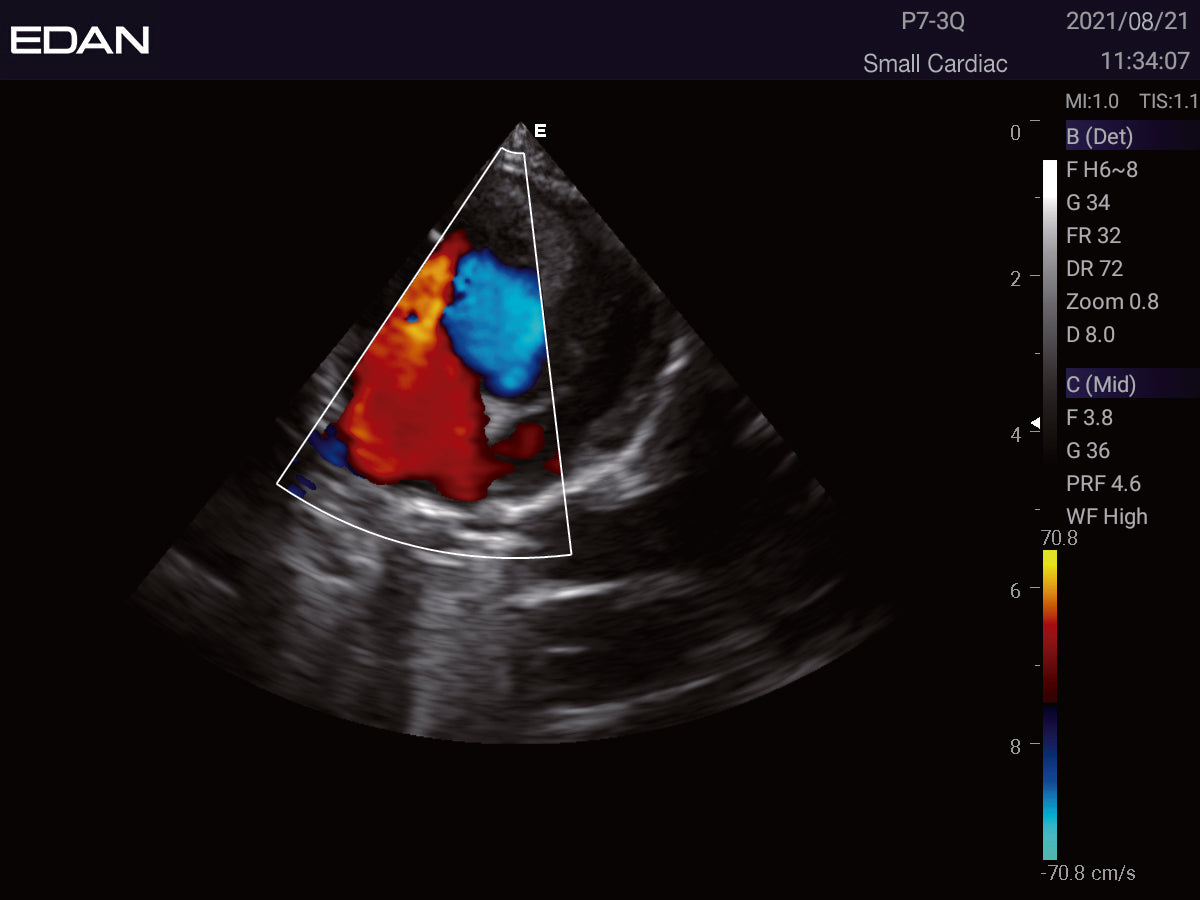

• Cardiac Screening – cardiac evaluation with Color and PW Doppler

• Musculoskeletal (MSK) – tendon, ligament, and joint assessment

• Small Parts – thyroid, ocular, and superficial structure imaging

• Vascular – peripheral vascular assessment

• Nerve – nerve block guidance and assessment

• Difficult‑to‑Image Patients – enhanced imaging for challenging cases

Advanced Imaging Modes and Capabilities

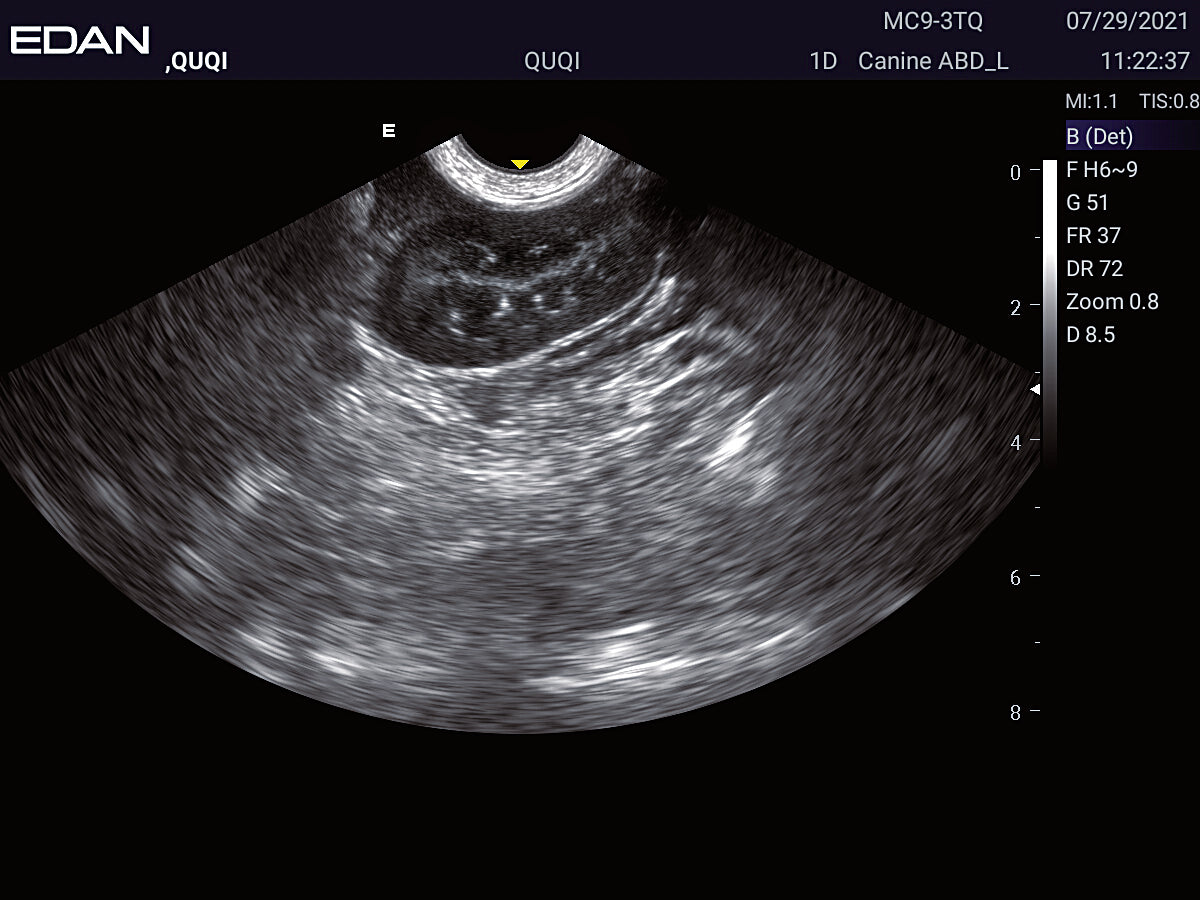

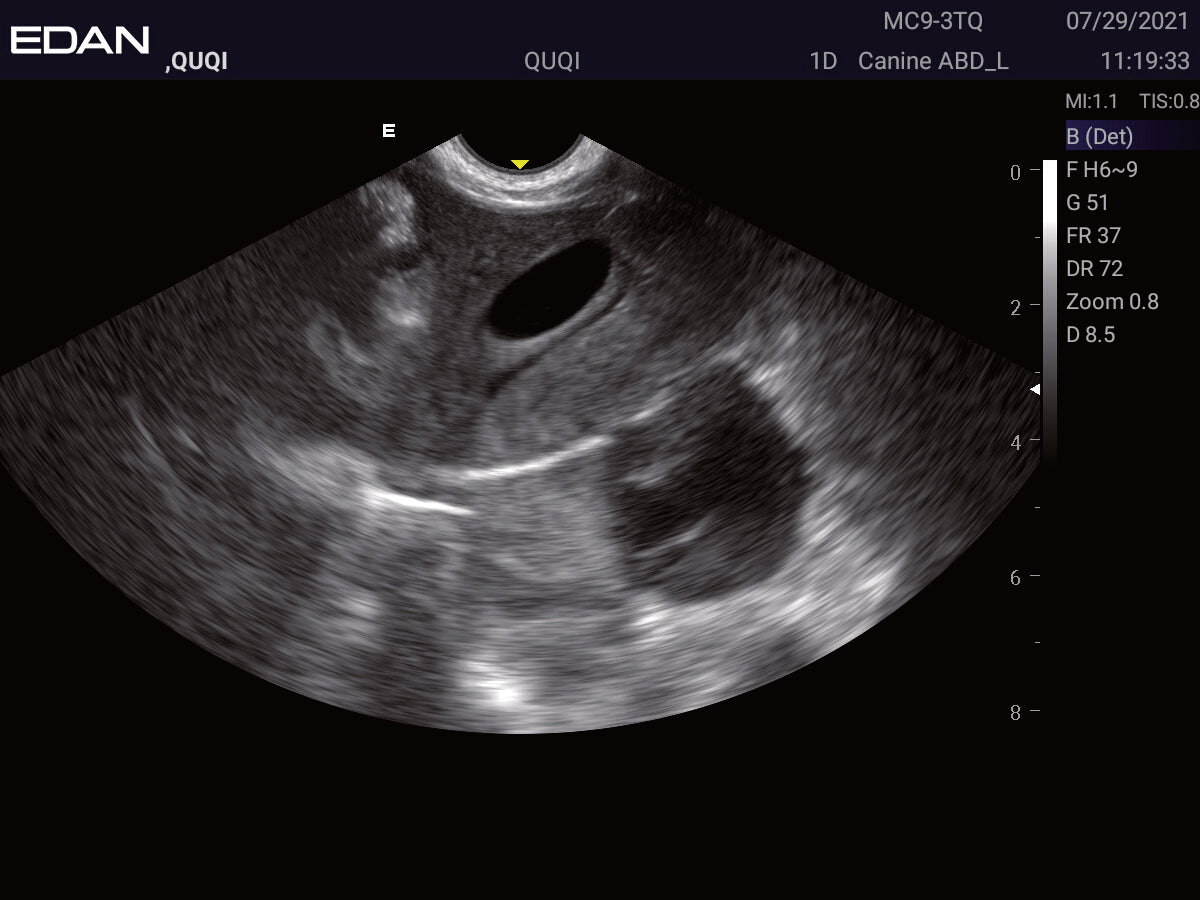

• B‑Mode – fundamental 2D imaging with adjustable presets

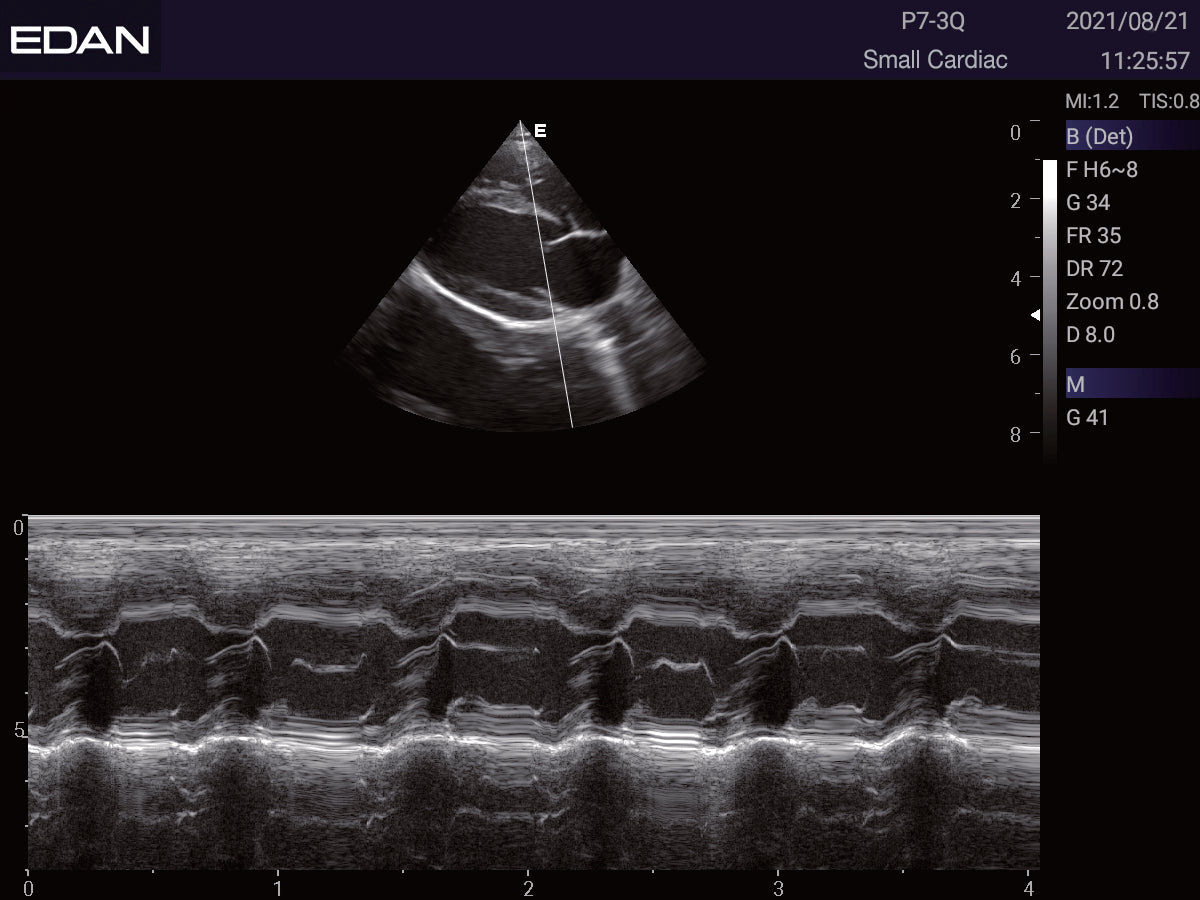

• M‑Mode – motion analysis

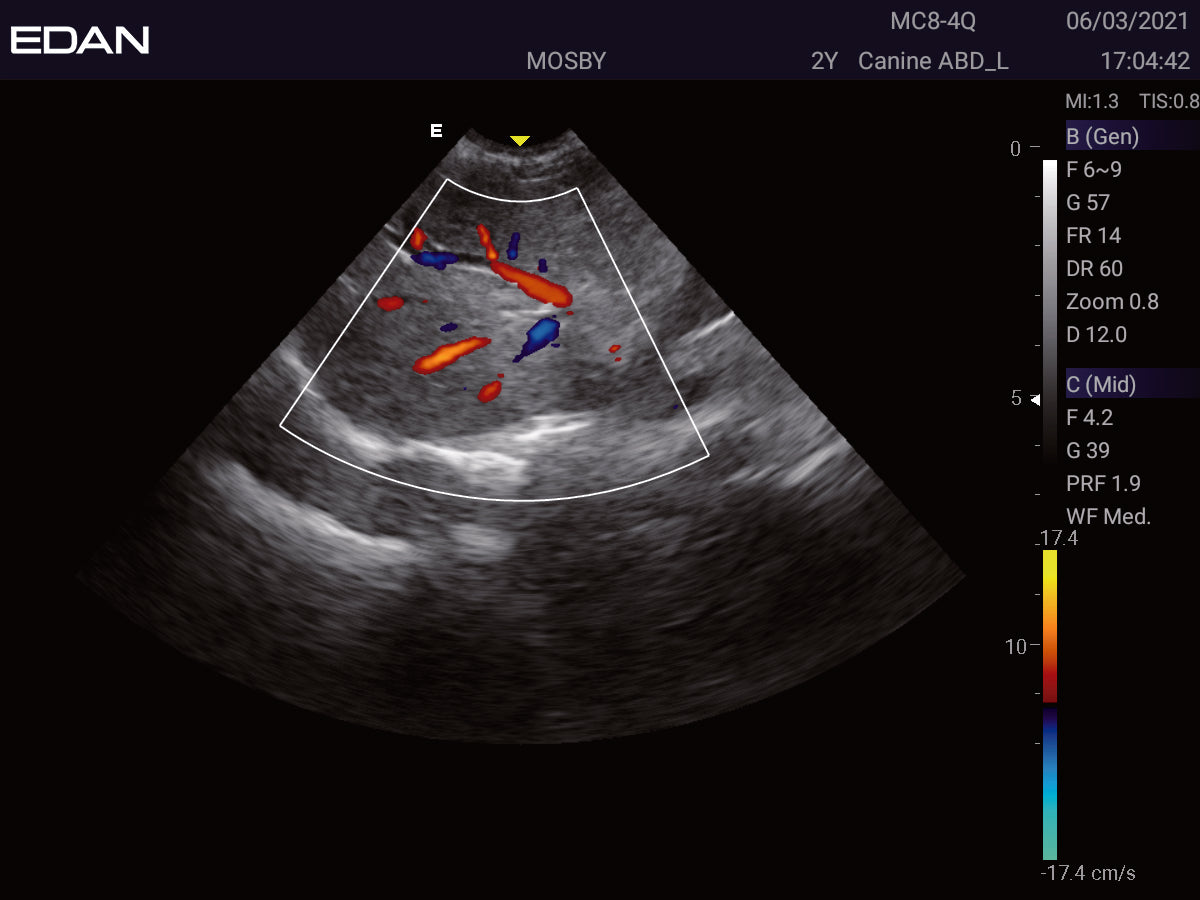

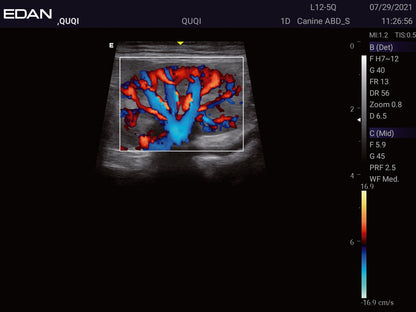

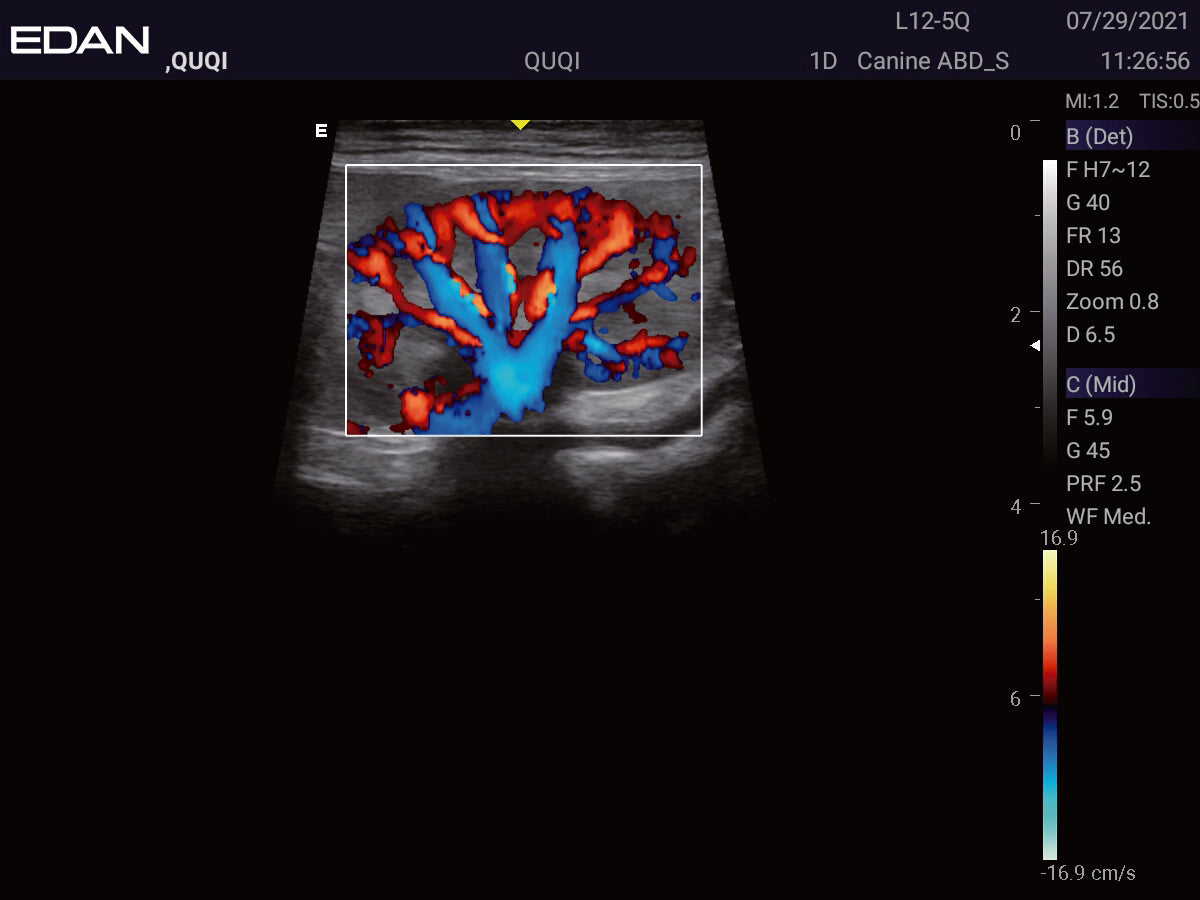

• Color Doppler – real‑time blood flow visualization

• PW (Pulsed Wave) Doppler – quantitative flow velocity assessment

• Harmonic Imaging – tissue harmonic imaging for improved resolution

• 3D/4D Imaging – volumetric visualization for enhanced diagnostic confidence

Flexible Data Management and Connectivity

• 512GB or 1TB hard drive storage – ample storage for patient data and images

• Cine loop – up to 300 frames for bidirectional review

• Internal archive – for storing images and patient data

• USB transfer – for easy data export and peripheral connectivity

• DICOM 3.0 compatibility – seamless integration with PACS and practice management systems

Why Choose the EDAN Acclarix LX3 Vet?
