EDAN C12 UHD Video Colposcope
EDAN C12 UHD Video Colposcope

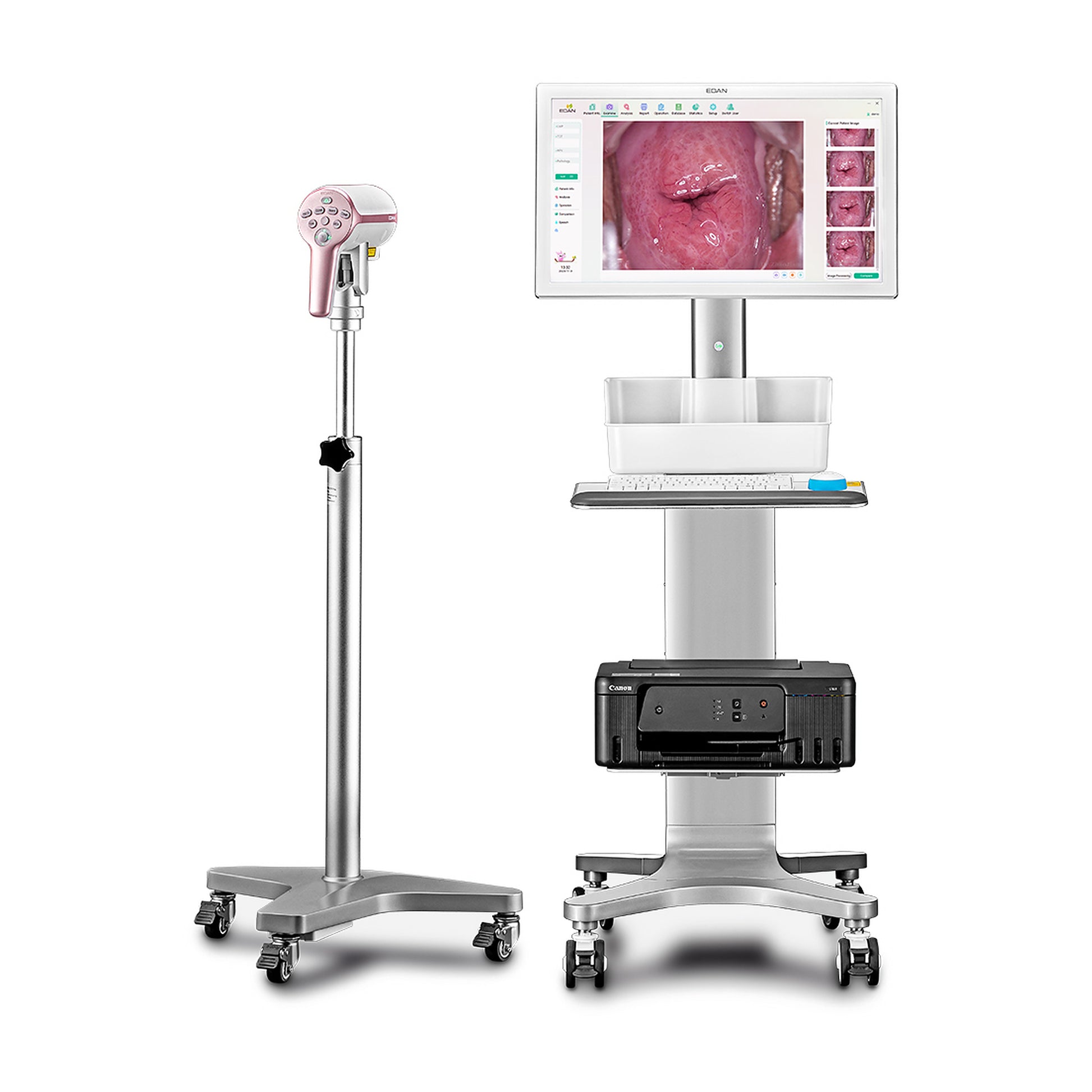

The EDAN C12 UHD is a premium 4K ultra‑high‑definition video colposcope engineered to deliver exceptional diagnostic clarity for gynecological examinations. Equipped with the latest SONY 4K CMOS technology featuring over 8 million pixels and a resolution of 3840×2160, the C12 UHD provides meticulous visualization of lesion morphology and vascular characteristics for precise gynecological diagnostics. The system combines advanced multispectral imaging, an intuitive user interface, and a 23.8‑inch medical‑grade 4K monitor to support early detection and accurate assessment of cervical conditions.
Key Features & Benefits
4K Ultra‑High‑Definition Imaging
The C12 UHD sets a new standard in colposcopic imaging with 4K UHD resolution (3840×2160) and over 8 million pixels. Horizontal resolution exceeds 1600 TVL, delivering four times the detail of full HD systems. This exceptional clarity enables gynecologists to identify subtle lesions, vascular patterns, and tissue abnormalities with greater confidence. The high‑precision SONY 4K CMOS camera ensures flawless display at the user‘s end, supporting accurate clinical decision‑making.
BT.2020 Wide Color Gamut – True‑to‑Life Tissue Visualization
The C12 UHD features BT.2020 wide color gamut technology, offering a broader range of color levels for richer and more accurate color observation. This ultra‑wide color gamut ensures faithful reproduction of human tissue colors, improving visibility of changes during acetic acid and iodine tests. The medical‑grade 4K monitor supports 7 high‑precision gamma correction modes, 5 color spaces, and 4 color gamut options for optimized image presentation.
Multispectral Light Source Imaging
The C12 UHD employs multispectral imaging technology that combines white, blue, and green narrow‑band light sources to enhance the visibility of cervical epithelial blood vessels and subtle lesions. This technology leverages the strong absorption properties of hemoglobin in the blue and green light spectrum to highlight microstructural changes in abnormally shaped blood vessels and clearly define lesion boundaries. The combination of white light with blue and green narrow‑band light further enhances vascular contrast at different tissue depths.
Intelligent Gesture Control and One‑Button Operation
The C12 UHD features intelligent gesture control that minimizes lens movement and reduces the risk of cross‑infection. Fast focusing and precise imaging are achieved without physical contact, enhancing both hygiene and efficiency. The user‑friendly control panel includes quick‑action buttons for seamless switching between patient information, observation, examination, and analysis interfaces with a single click. The “All‑in‑One” navigation button provides precise control over magnification, focus, and laser distance measurement.
Automatic Distance Guidance with Laser Measurement
The C12 UHD incorporates intelligent laser distance measurement that indicates the optimal working distance. This step‑by‑step operation eliminates the need for repeated objective adjustments, ensuring consistent image quality and streamlining the examination workflow.
Ergonomic and User‑Centric Design
The C12 UHD features a modern, lightweight design with an intuitive interface that enhances both physician and patient comfort. Key design elements include:
Professional Colposcopy Software
The C12 UHD comes with comprehensive patient management software specially designed for gynecologists. The software enables users to:
-
Capture, review, and analyze colposcopic images quickly and easily
-
Track and manage patient data with a built‑in marking system for analysis
-
Export reports in PDF format for seamless documentation
-
Print reports on A4 size paper via external printer
Flexible Stand Configurations
The C12 UHD is available in multiple configurations to suit various clinical settings:
| Configuration | Features |
|---|---|
| Rolling stand | Smooth vertical adjustment, easy maneuverability |
| Swing arm stand | More stable positioning, easier up/down movement |
| Swing arm with keyboard tray | Integrated workstation convenience |
| Full set with 4K medical monitor | Complete all‑in‑one solution |
DICOM Connectivity
The C12 UHD supports DICOM 3.0 connectivity for seamless integration with hospital information systems and PACS, enabling efficient data storage, retrieval, and sharing.
Technical Specifications
Why Choose the EDAN C12 UHD?
