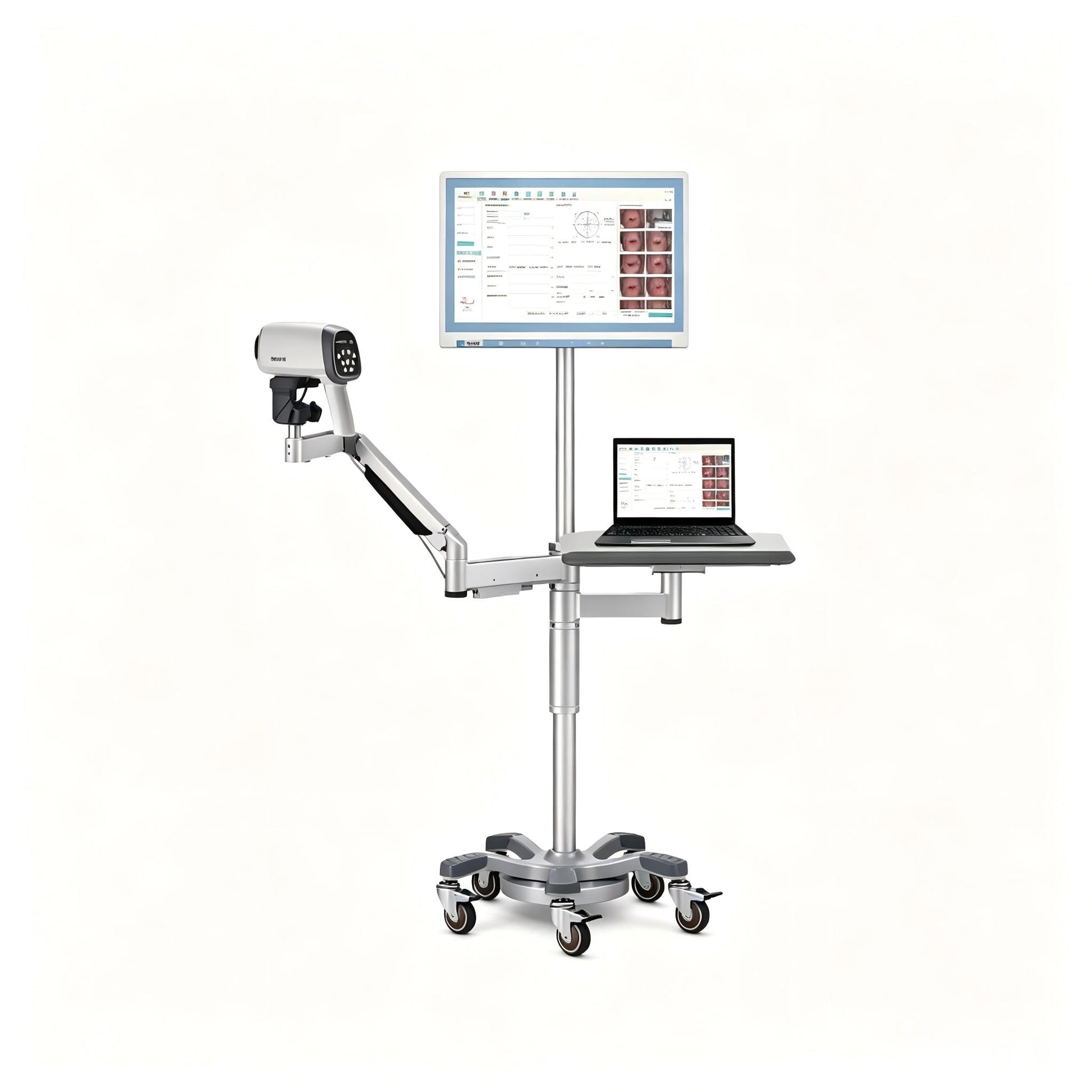

EDAN C6 HD Video Colposcope

The EDAN C6 HD is a high-definition video colposcope engineered to support gynecologists in the precise examination of the cervix, vagina, and external genitalia. This system combines an outstanding HD camera, powerful software, and a convenient workstation to accommodate the rigid requirements of gynecologists in colposcopic screening. With resolution exceeding 900 TVL and a unique LED ring light featuring 12 SMD LEDs with adjustable intensity, the C6 HD ensures superior image quality to reproduce the examination area to the greatest extent.

The system is available in two configurations: C6 HD with a rolling stand for smooth vertical adjustment, and C6A HD with a swing arm stand for more stable and convenient positioning. With professional software, analysis tools, and flexible magnification, everything becomes easy, standardized, and well-regulated for confident clinical decision‑making.

Key Features & Benefits

Outstanding HD Image Quality

The C6 HD delivers full HD image quality with resolution exceeding 900 TVL, ensuring flawless display and correct decision‑making. This high‑precision technology provides superior image quality, improved clearness, and an extended focal range to facilitate the physician‘s work. HDMI video output is also supported for teaching and case discussion.

Green Light Technology for Enhanced Visualization

The C6 HD features a green light mode that enhances contrast to highlight abnormal blood vessels. This improved visualization helps physicians define problem areas more accurately, supporting more confident diagnosis and biopsy site selection.

Ultra‑Bright LED Illumination

Equipped with 12 SMD LEDs arranged in a ring shape with adjustable intensity, the C6 HD provides ultra‑bright, cold LED illumination that reproduces an original view of tissue. The adjustable intensity allows clinicians to optimize lighting for different examination conditions and patient comfort.

Flexible Magnification and Field of View

The C6 HD offers a magnification range from 1× to 50× with real‑time display, allowing clinicians to examine tissues at the optimal level for identifying abnormalities. Field of view ranges from ≥φ100 mm (at 3× magnification) to ≥φ15 mm (at 18× magnification), with depth of field extending from ≥120 mm (at 6×) to ≥5 mm (at 18×). This wide range provides extra clear views from different angles to support thorough assessment.

Advanced Auto‑Focusing System

The C6 HD features an advanced and fast auto‑focusing system that quickly locks onto the target, ensuring consistently clear images and reducing operator workload.

Professional Software and Workflow Tools

The C6 HD comes with powerful patient management software that supports:

• Entering patient information – streamlined data entry

• Capturing images – with remote capture control

• Analyzing colposcopic findings – professional analysis tools

• Exporting reports in PDF format – seamless documentation

• Printing – convenient hard‑copy output

The powerful colposcopic findings gallery allows for comparison analysis, supporting longitudinal patient monitoring and clinical decision‑making.

Versatile Stand Configurations

The C6 HD series is available in two configurations to meet various clinical demands:

DICOM Connectivity

The C6 HD supports DICOM connectivity for seamless integration with hospital information systems and PACS, enabling efficient data storage, retrieval, and sharing.

Technical Specifications

Why Choose the EDAN C6 HD?
