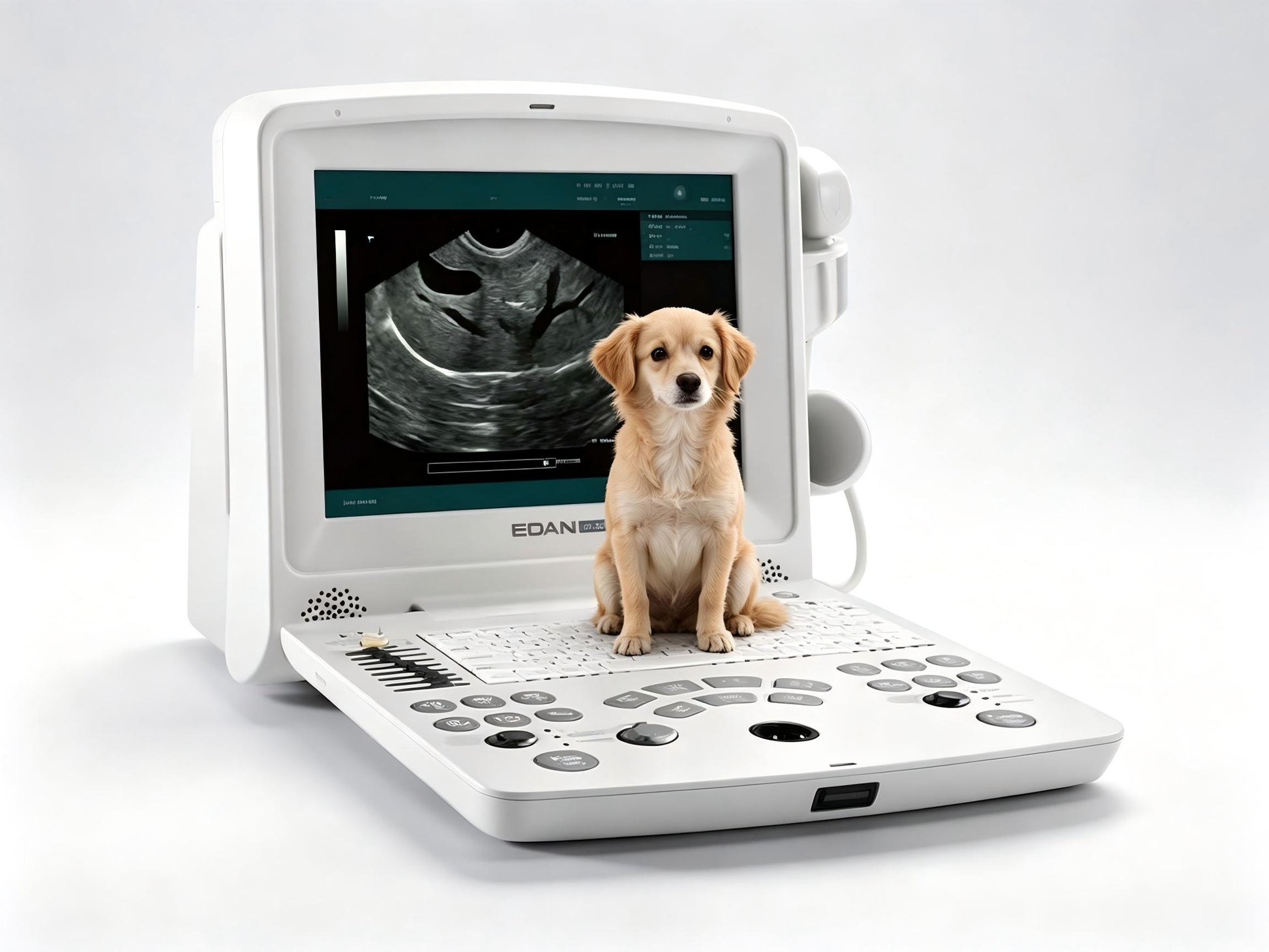

EDAN DUS 60 Vet Ultrasound System

The EDAN DUS 60 Vet is a mobile, full‑digital veterinary ultrasound system designed to deliver superior image quality and diagnostic confidence across a wide range of animal care applications. Weighing just 7.1 kg and featuring a 12.1‑inch TFT‑LCD display, the DUS 60 Vet combines exceptional portability with advanced imaging technologies—making it an ideal solution for veterinary clinics, animal hospitals, and mobile practice settings where mobility and reliability are essential.

With the added support of Pulsed Wave (PW) Doppler, the DUS 60 Vet meets higher animal care requirements by providing physiologic information for increased diagnostic value. Equipped with two active transducer connectors and supporting five‑frequency transducers from 2.0 to 10.0 MHz, the system accommodates a comprehensive selection of probes for versatile clinical applications.

Key Features & Benefits

Superior Image Quality for Veterinary Diagnostics

The DUS 60 Vet leverages a suite of advanced imaging technologies to deliver sharp, clear diagnostic images:

• Phase Inversion Harmonic Imaging – provides best‑in‑class image quality by enhancing tissue differentiation and reducing artifacts. This technology is particularly valuable in veterinary imaging, where patient anatomy and body condition can vary significantly across species.

• Multi‑Beam Technology – improves frame rate and image consistency

• Dynamic Receiving Focusing – maintains image sharpness at all depths

• Real‑time Dynamic Aperture – adapts aperture size for optimal image quality

• Dynamic Frequency Scanning – adjusts frequency to balance resolution and penetration

• 256 gray scales ensure detailed visualization of tissue structures

• Multiple‑pseudo‑color options enhance image presentation for improved tissue differentiation

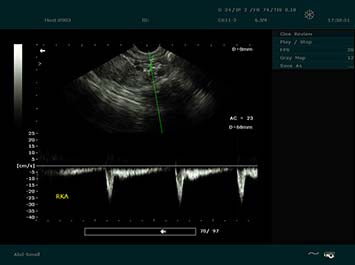

Pulsed Wave Doppler for Advanced Diagnostic Information

The addition of PW Doppler increases diagnostic information content, providing:

• Quantitative blood flow velocity assessment

• Physiologic information for increased diagnostic value

• Enhanced capability for cardiac and vascular evaluations in animals

• Support for higher animal care requirements

Portable and Durable Design for Veterinary Practice

The DUS 60 Vet is engineered for mobility without compromising performance:

• Weight: 7.1 kg (15.7 lb) – easily transportable between examination rooms or to remote locations

• Dimensions: 330mm (L) × 220mm (W) × 320mm (H)

• Built‑in lithium‑ion battery – supports continuous operation for up to 2 hours for uninterrupted bedside or remote examinations

• Compact and lightweight design for excellent mobility in any veterinary setting

• Durable construction – built to withstand the demands of daily clinical use

Intuitive User‑Friendly Design

Designed with the veterinary user in mind, the DUS 60 Vet streamlines every step of the examination:

• 12.1‑inch TFT‑LCD display – delivers crisp, high‑contrast images in any lighting condition

• One‑touch image optimization via smart IP key for immediate image enhancement

• Backlit, easy‑to‑use control panel – facilitates operation in low‑light environments

• User‑defined keys – customize your workflow for frequently used functions

• Intelligent 8‑segment TGC (Time Gain Compensation) – allows precise adjustment of gain at different depths for consistently optimized images

Practical Tools That Enhance Efficiency

The DUS 60 Vet comes equipped with practical tools to streamline veterinary workflow:

• Intelligent 8‑segment TGC – precise adjustment for optimal image quality at all depths

• Multi‑format data transfer via USB and DICOM for seamless integration with practice management systems

• Multiple‑pseudo‑color options – enhance image presentation for improved tissue differentiation

• Large capacity data storage – for on‑device archiving of patient images

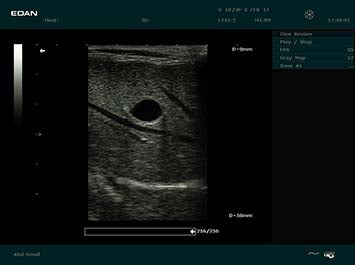

• Cine loop memory – stores up to 256 frames for bidirectional review and retrospective analysis

• Panoramic zoom – supports real‑time and freeze‑frame magnification from X1.0 to X4.0 for detailed examination of regions of interest

• Over 130 body marks – facilitates accurate documentation and reporting

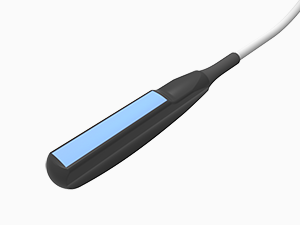

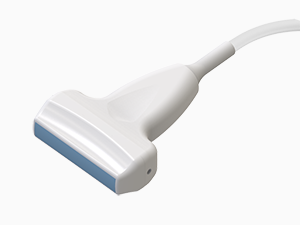

Comprehensive Transducer Compatibility

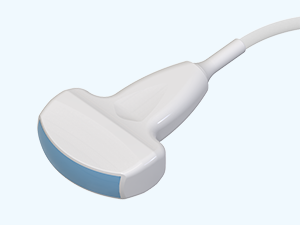

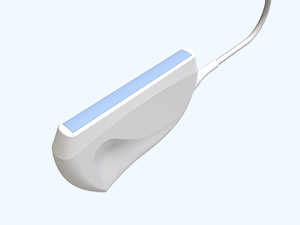

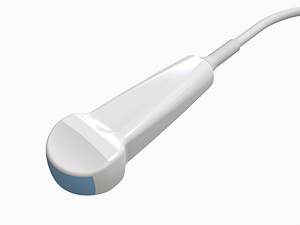

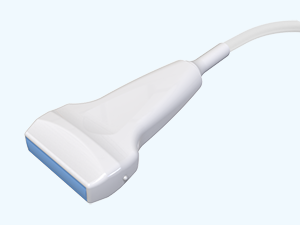

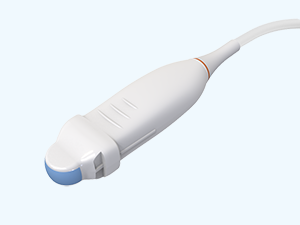

The DUS 60 Vet supports a wide range of transducers for maximum clinical versatility, with auto‑detection for plug‑and‑play convenience. Five‑frequency transducers increase versatility across different species and applications.

Scanning angle reaches up to 152 degrees (transducer‑dependent), and scanning depth ranges from 19 to 324 mm for comprehensive anatomical coverage.

Extensive Measurement & Calculation Packages

The DUS 60 Vet comes equipped with comprehensive measurement and calculation software for multiple veterinary specialties:

M‑mode measurements include distance, time, slope, and heart rate. Doppler measurements include time, heart rate, velocity, acceleration, trace, and resistive index (RI).

Flexible Connectivity and Data Management

The DUS 60 Vet offers comprehensive connectivity options for seamless integration into any veterinary practice workflow:

• 504MB built‑in image storage for on‑device archiving

• 2 USB ports – for data export, software updates, and peripheral connectivity

• Ethernet port – enables network integration and data sharing

• Video output, S‑video output, and VGA output – for connection to external displays and recording devices

• DICOM 3.0 compatibility (optional) – ensures seamless integration with PACS and practice information systems

• UMS100 workstation software (optional) – for advanced data management and reporting

Technical Specifications

Clinical Applications

The EDAN DUS 60 Vet is versatile enough to support a broad spectrum of veterinary specialties:

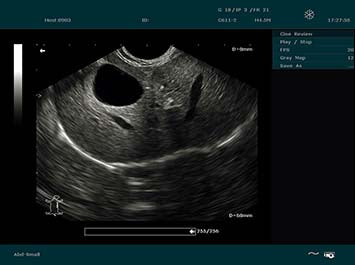

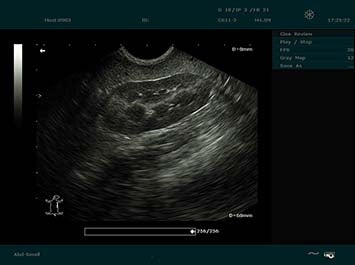

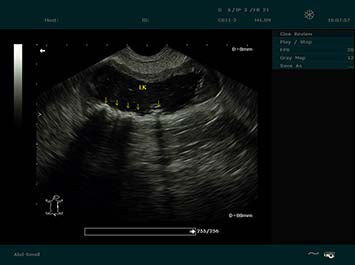

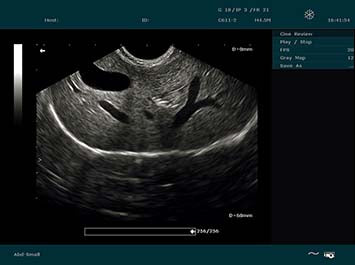

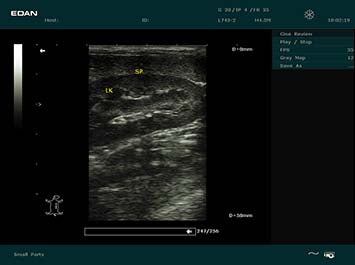

• Abdominal Imaging – liver, gallbladder, pancreas, spleen, kidney evaluation in dogs, cats, and other small animals

• Obstetrics – pregnancy diagnosis, fetal biometry, gestational age assessment

• Cardiology – basic cardiac evaluation with M‑mode and PW Doppler

• Musculoskeletal – tendon, ligament, and joint assessment

• Small Parts – thyroid, ocular, and superficial structure imaging

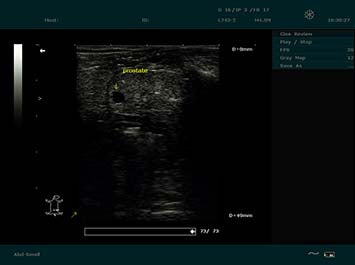

• Urology – renal, bladder, and prostate examinations

• Reproductive – uterine and ovarian evaluation, pregnancy monitoring

The system provides outstanding performance for general imaging and is applicable for a wide range of animal patients.
