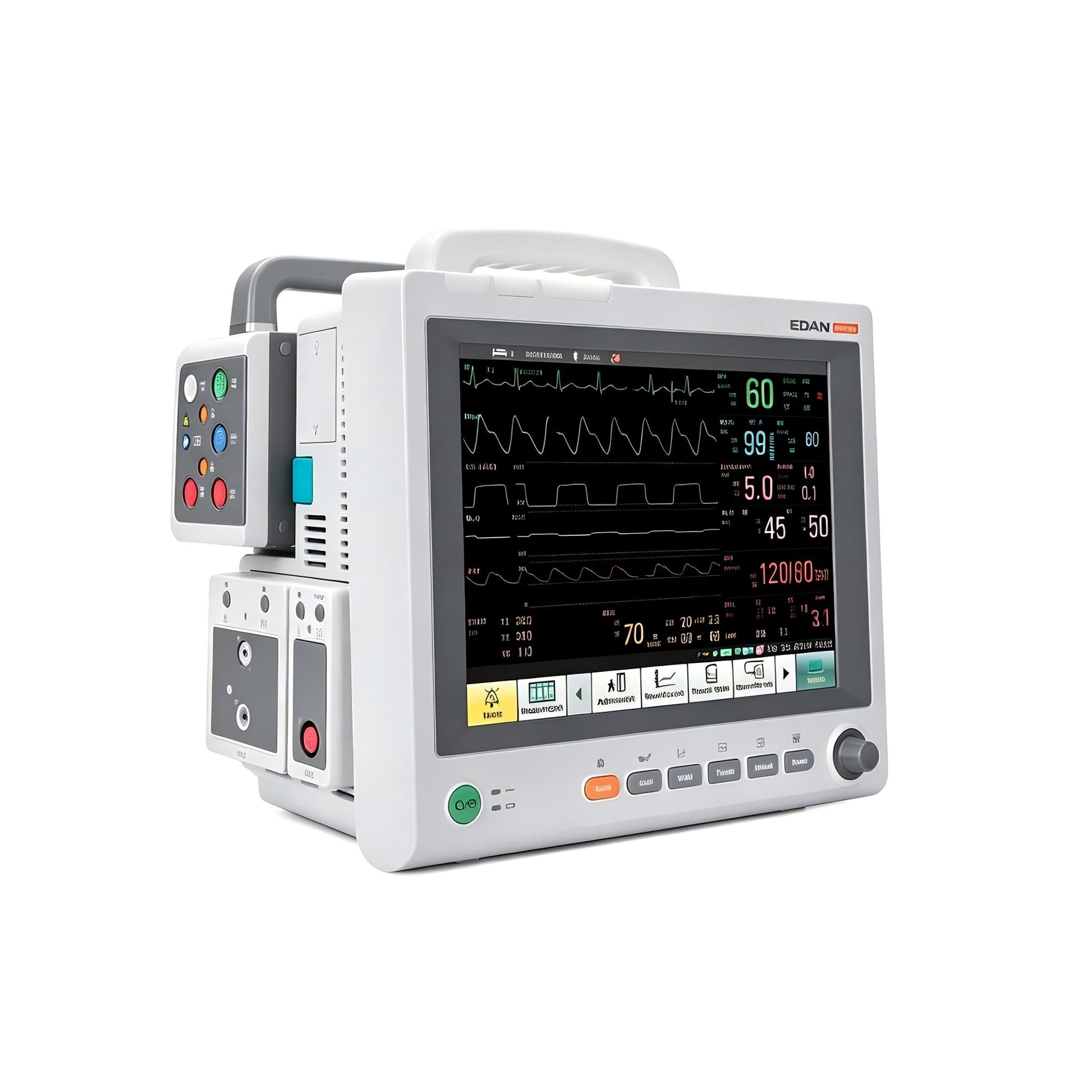

EDAN Elite V5 Modular Patient Monitor

EDAN Elite V5 Modular Patient Monitor

$4,200.00
$5,600.00 $4,200.00
Sale Sold out
Shipping calculated at checkout.

Contact details

Enter both an email address and phone number to add products or continue to checkout.

Include your country code.

The EDAN Elite V5 is a full-modular, multi-parameter patient monitor engineered for the demanding environments of critical care, operating rooms, and general wards. Featuring a 12.1-inch high-resolution color TFT-LCD touchscreen with a customizable interface, the Elite V5 provides clinicians with clear, real-time patient data at a glance. Its modular design supports a comprehensive range of plug-and-play modules, allowing the system to be precisely tailored to monitor everything from basic vital signs to advanced parameters like cardiac output, capnography, and bispectral index. Designed with a fanless cooling system, the Elite V5 ensures silent, energy-efficient operation and maintains a dust-free environment, making it ideal for critical care units.

Key Features & Benefits

Modular Design for Tailored Monitoring

The Elite V5’s full-modular architecture allows you to configure the monitor exactly to your clinical needs. It supports plug-and-play multi-parameter XM modules and a wide array of 15 separate modules for specialized monitoring in cardiology, hemodynamics, respiratory care, anesthesia, and neurology. Additional monitoring capabilities include ICG (Impedance Cardiography), RM (Respiratory Mechanics), and BIS (Bispectral Index).

High-Resolution Touchscreen with One-Touch Access

The 12.1-inch color TFT-LCD touchscreen delivers a top-class display of waveforms and measurements. The customizable shortcut menu brings easy one-touch access to frequently used functions, allowing clinicians to focus more attention on the patient and less on navigating menus.

Advanced Clinical Decision Support Tools

The Elite V5 assists medical treatments with a suite of advanced clinical tools, including 12-lead ECG diagnosis, hemodynamic calculations, drug dose calculations, and IBP overlapping. These features provide quick references to help guide adjustments to nursing and treatment plans.

Seamless Connectivity and Data Management

The Elite V5 seamlessly connects to hospital networks via HL7 output and internal Wi-Fi, integrating with the hospital information system. It supports bidirectional communication with central monitoring stations and can work with other hospital facilities, including nurse call systems and defibrillators. 1GB of non-volatile built-in memory, along with USB and SD card support, provides flexible and secure data storage.

User-Centric Design for Any Environment

The Elite V5 is built with the user in mind, featuring a fanless design for silent operation, low power consumption, and compliance with dust regulations in critical departments. A Night Mode with a dimmer screen, backlit buttons, lower alarm volume, and no HR beeps ensures patient comfort and reduces disturbance. The 3-segment alarm lights provide clear, at-a-glance indications of alarm status.

Comprehensive Parameter Monitoring

The Elite V5 monitors a wide range of parameters, making it suitable for various clinical settings, from critical care to anesthesia.



Category Parameters
Basic Parameters 3/5-lead ECG, RESP (Respiration), NIBP (Non-Invasive Blood Pressure), SpO₂, PR (Pulse Rate), 2-TEMP
Advanced Parameters (Optional) IBP (Invasive Blood Pressure), C.O. (Cardiac Output), CO₂ (Capnography - Sidestream/Mainstream), Anesthesia Gas, ICG, RM, BIS
ECG Analysis Arrhythmia detection, S-T analysis, OxyCRG
Data Review 150-hour graphic and tabular trends, 720 seconds full-disclosure waveform review

Technical Specifications



Specification Detail
Display 12.1-inch color TFT-LCD touchscreen, 1280 x 1024 resolution
Dimensions (W x H x D) 330 mm x 257 mm x 167 mm
Weight 4.5 kg (excluding modules and accessories)
Battery Built-in rechargeable Li-ion battery; 120 min (new battery) to 90 min
Power Supply 100-240 V, 50/60 Hz, 1.8-0.75 A
Data Storage 1GB non-volatile memory; USB and SD card support
Connectivity HL7, internal Wi-Fi, Ethernet, 4x USB, VGA, Nurse Call, Defibrillation Sync Output
Warranty 2 years on main unit; 1 year on accessories

Why Choose the EDAN Elite V5?



Clinical Challenge Elite V5 Solution
Need for a versatile monitor across different departments Full-modular design adapts from basic ward monitoring to advanced critical care and anesthesia
High patient volume requires efficient workflow Customizable touchscreen with one-touch access to frequently used functions
Requires advanced clinical calculations Built-in 12-lead ECG diagnosis, hemodynamic, and drug dose calculations
Need for quiet operation in critical care Fanless design for silent, low-power, dust-free operation
Seamless patient data transfer HL7 output, internal Wi-Fi, and bidirectional communication with central stations
