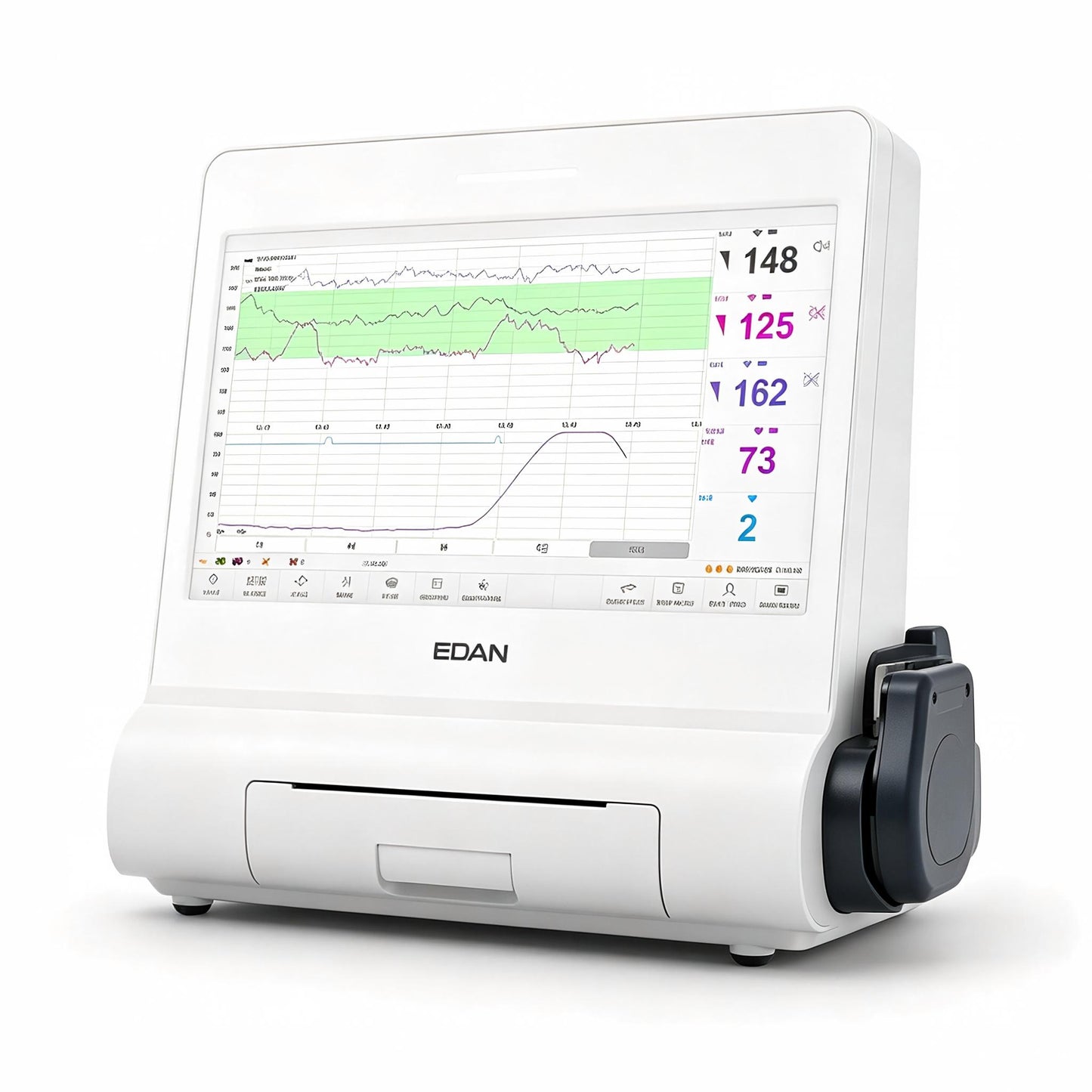

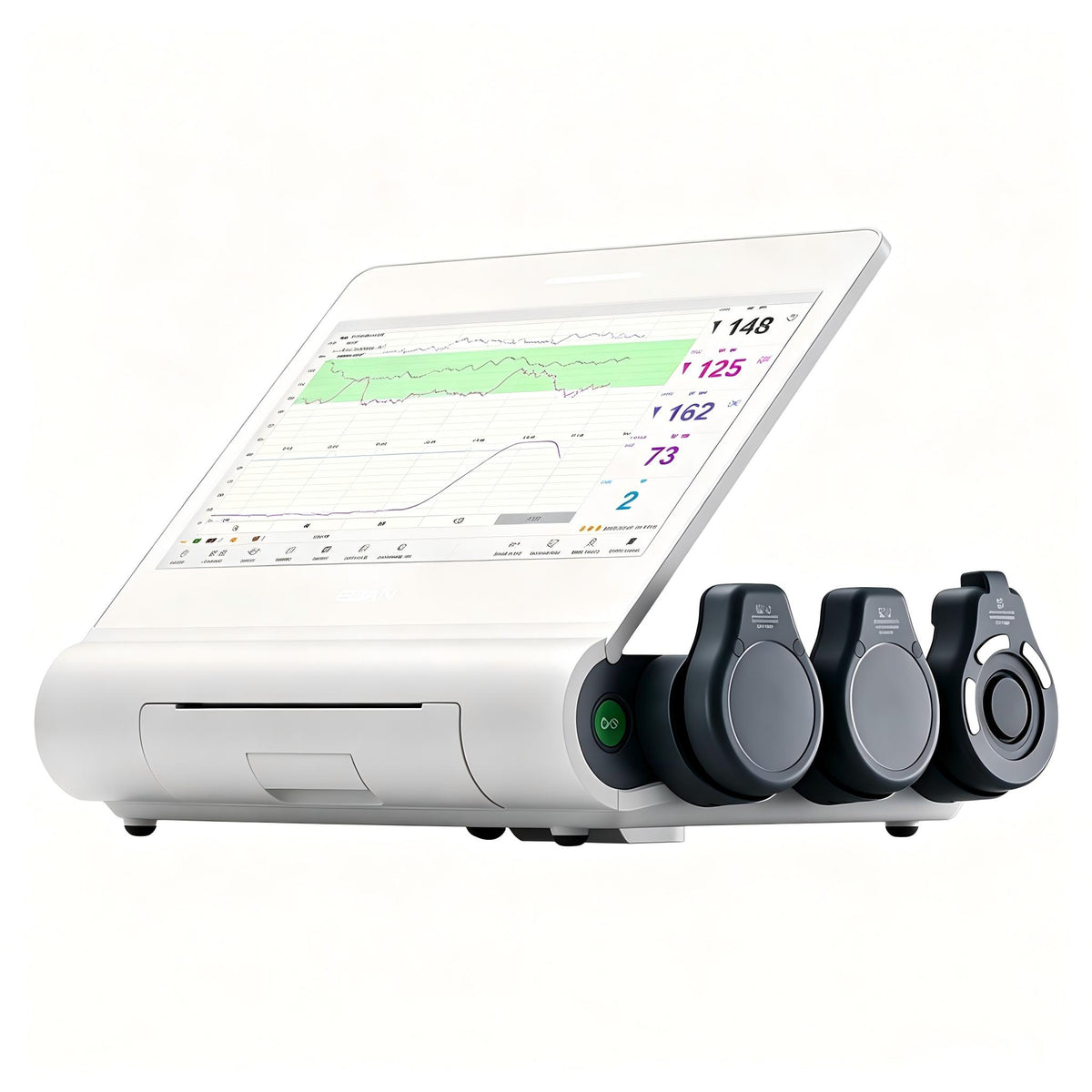

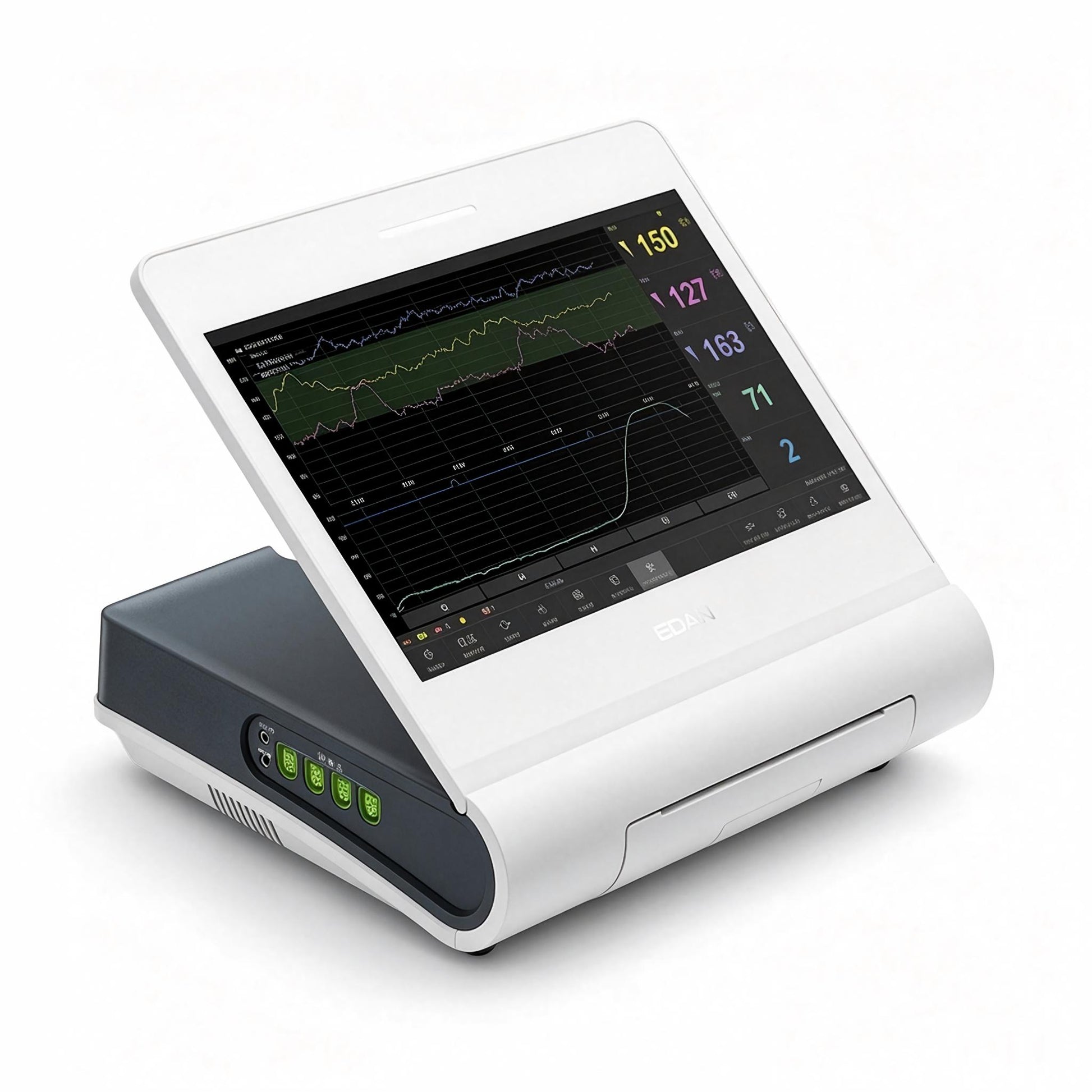

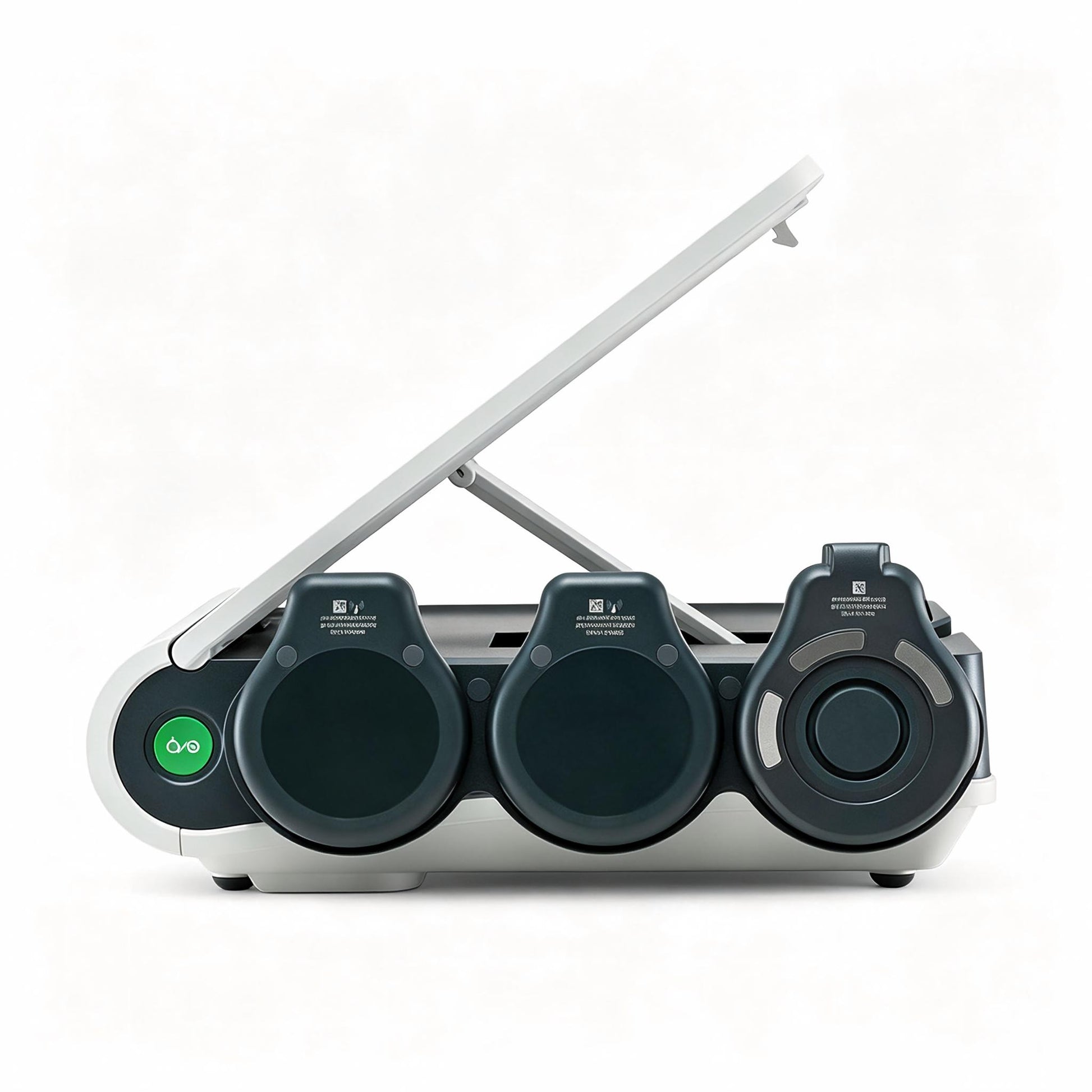

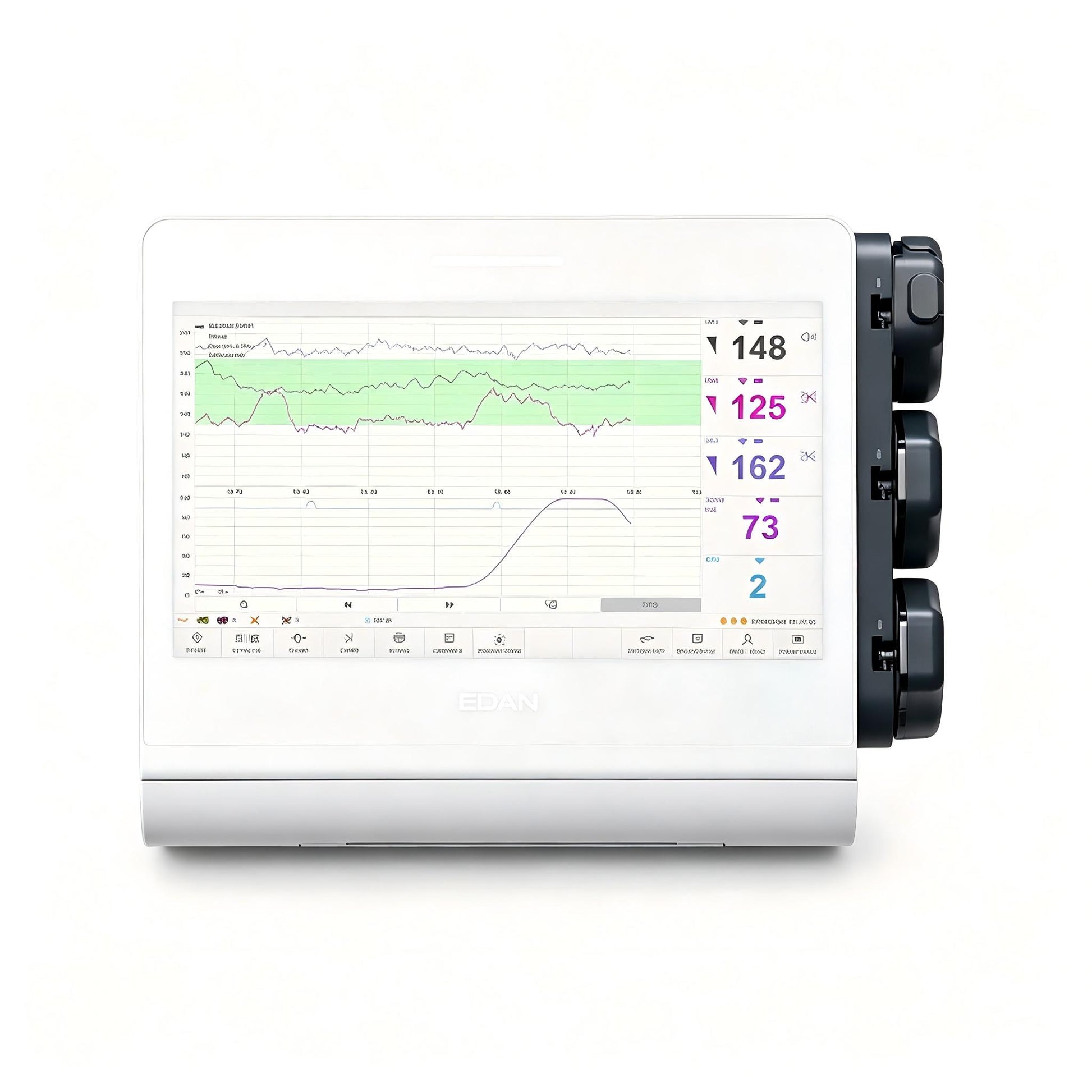

EDAN F12 Fetal & Maternal Monitor

The EDAN F12 is a next‑generation fetal and maternal monitor that combines a compact, lightweight design with advanced monitoring technologies to support accurate, real‑time assessment of fetal heart rate and uterine activity. Featuring a 13.3‑inch high‑resolution color touchscreen, the F12 delivers streamlined, high‑precision monitoring in a system ideal for antenatal clinics, labor wards, and tight clinical spaces. With a lightweight and compact design, this monitor is perfect for rooms with narrow spaces, bringing efficient workflow to obstetric clinics around the world.

The F12 supports twin FHR monitoring as standard, with triplet monitoring available as an option. It provides comprehensive monitoring parameters including FHR (fetal heart rate), TOCO (uterine activity), AFM (automatic fetal movement), and maternal parameters (ECG, NIBP, SpO₂, temperature, pulse rate). The F12 is available in two models: the wired F12 and the wireless F12 Air with cable‑free transducers.

Key Features & Benefits

Sophisticated CTG Alarm System for Early Intervention

The essential purpose of fetal monitoring is to recognize abnormal conditions in time. The F12 Series is integrated with an international CTG interpretation standard and will issue an alarm when dangerous FHR waveforms are recognized. The system automatically detects abnormal fetal heart rate patterns, including:

• Sinusoidal FHR – alerts clinicians to potential fetal distress

• Low Variability FHR – indicates possible fetal compromise

• Tachycardia Without Variability – triggers timely clinical intervention

• Delayed Decelerations – supports early recognition of fetal hypoxia

This intelligent alarm system reduces the risk of missed abnormalities and supports timely clinical decision‑making.

TOCO‑MHR Combined Electrode – Reducing Patient Burden

To alleviate the burden on the mother, the F12 Series features a TOCO‑MHR electrode that acquires both TOCO (uterine activity) and MHR (maternal heart rate) with a single reusable accessory. This design:

• Reduces patient discomfort by minimizing the number of accessories needed

• Simplifies clinical workflow with fewer cables and sensors to manage

• Includes SOV (Signal Overlap Verification) – alerts clinicians when there is confusion between maternal and fetal signals, ensuring accurate diagnosis

One‑Button Operation for Streamlined Workflow

Designed to optimize and simplify the clinical workflow, the F12 offers a single‑button operation. The START button allows the device to:

• Automatically assign a patient identifier if no patient information has been entered

• Archive previous monitoring data as a complete file, ensuring secure data storage

• Auto‑zero TOCO traces and clear fetal movement counts

• Start new monitoring with a single press

This streamlined approach significantly reduces training requirements and minimizes operator errors.

Powerful Data Management & Connectivity

The F12 Series offers robust data management capabilities for seamless integration into clinical workflows:

• Over 3,000 hours of built‑in storage – ample storage for high‑volume clinical environments

• Automatic CTG curve storage every 10 minutes – ensures no data loss during unexpected power outages or bed moves

• Bi‑directional MFM‑CNS communication – seamless patient monitoring and data sharing with central nursing stations

• Optional built‑in Wi‑Fi module – enables wireless data transmission and remote access

• HL7/GDT connectivity – integration with hospital information systems

• Seamless data transfer – transfer patient data between devices without interrupting monitoring

• USB port – for data export and storage expansion

Freedom and Mobility with Wireless Monitoring (F12 Air Model)

The F12 Air model features wireless FHR and TOCO transducers that free patients from traditional cable constraints:

• Patients can move freely during long‑term monitoring, enhancing comfort and compliance

• 15‑minute backup memory in the transducer – ensures all data are captured and stored even during signal interruption

• Easy transfer – with a simple click, patient data can be transferred to another device without repositioning the transducer

• Wireless and wired charging – simplifies operation and maintenance

• IP68‑rated transducers with no exposed metal parts – dustproof and waterproof, easy to clean and disinfect

Built‑In Thermal Printer with Flexible Options

The F12 includes a high‑resolution, long‑life built‑in thermal printer for on‑the‑spot documentation:

• Compatible with 150/152 mm recording paper (US and International standards)

• Real‑time printing speeds of 1, 2, or 3 cm/min

• Fast printing speed of 18.5 mm/sec for history traces – quickly print stored waveforms for review

• One‑hand accessible paper tray – easy to change recording paper

Portable & Flexible Mounting Options

• Compact dimensions: 345 × 300 × 80 mm (13.6 × 11.8 × 3.1 inches)

• Weight: Approx. 4.1 kg (without maternal module) / 4.3 kg (with maternal module)

• Rechargeable lithium‑ion battery – supports portable use with approximately 2 hours of autonomy

• Multiple mounting options: Trolley (MT-811, MT-300, MT-803), wall mounting, and rolling stand configurations available

Comprehensive Fetal & Maternal Monitoring

The F12 provides a complete spectrum of monitoring parameters for comprehensive obstetrical care:

Intended Use & Clinical Applications

The EDAN F12 is intended for monitoring physiological parameters of pregnant women during antepartum examination, labor, and delivery. It is specifically designed for:

• Maternity wards – continuous monitoring during labor and delivery

• Labour and delivery units – real‑time assessment of fetal well‑being

• Obstetric clinics – routine antenatal monitoring

• Antenatal monitoring – Non‑Stress Testing (NST) from the 28th week of gestation

The F12 is intended for use by trained and qualified personnel in clinical settings.
