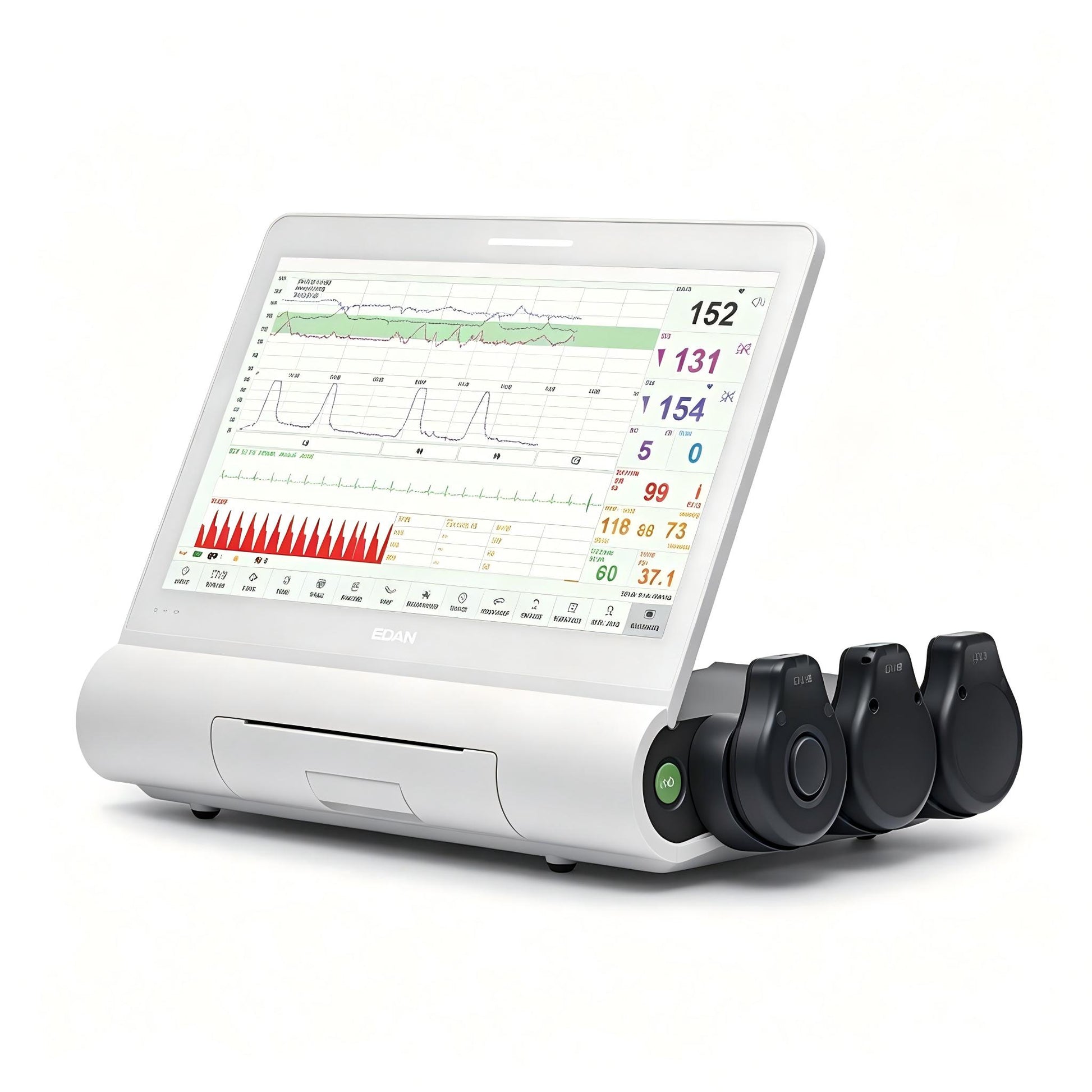

EDAN F15 Air Wireless Fetal & Maternal Monitor

The EDAN F15 Air is a premium wireless fetal and maternal monitor that represents the evolutionary generation of fetal monitoring technology. As an ultimate CTG machine, the F15 Air is the perfect combination of advanced technology and sophisticated algorithms for the new era of obstetrics. With state‑of‑the‑art design, elegant appearance, and a strong mechanical structure, the F15 Air is dedicated to bringing the most efficient and innovative workflow to clinics worldwide.

Featuring a 15.6‑inch full‑color touchscreen with 1920 × 1080 resolution, the F15 Air delivers comprehensive monitoring capabilities—including fetal heart rate (FHR), TOCO (uterine activity), AFM (automatic fetal movement), and maternal parameters (ECG, NIBP, SpO₂, pulse rate, and temperature). The system supports twin FHR monitoring as standard, with triplet monitoring available as an option. With built‑in Wi‑Fi and advanced wireless transducers, the F15 Air frees midwives and mothers from messy wires, enabling seamless, non‑stop monitoring throughout the entire labor journey.

Key Features & Benefits

Sophisticated CTG Alarm System for Early Intervention

The essential purpose of fetal monitoring is to recognize abnormal conditions in time. Integrated with an international CTG interpretation standard, the F15 Air will issue an alarm when dangerous FHR waveforms are recognized. The system automatically detects abnormal fetal heart rate patterns, including:

• Sinusoidal FHR – alerts clinicians to potential fetal distress

• Low Variability FHR – indicates possible fetal compromise

• Delayed Decelerations – supports early recognition of fetal hypoxia

• Tachycardia & Bradycardia – triggers timely clinical intervention

This intelligent alarm system reduces the risk of missed abnormalities and supports timely clinical decision‑making.

Innovative Wireless Application for Freedom and Mobility

The F15 Air offers comprehensive wireless solutions to clinics, freeing midwives and mothers from messy wires. Key wireless features include:

• Automatic probe activation – transducers are automatically activated when placed in the holder

• Wireless charging – simplifies operation and maintenance

• 15‑minute backup memory in the transducer – ensures all data are captured and stored even during signal interruption

• Non‑stop monitoring – when transferring mothers‑to‑be, data can be transferred seamlessly from one device to another

• Built‑in Wi‑Fi – enables real‑time data transmission to central nursing stations

TOCO‑MHR Combined Electrode – Reducing Patient Burden

To alleviate the burden on the mother, the F15 Air features a TOCO‑MHR electrode that acquires both TOCO (uterine activity) and MHR (maternal heart rate) with a single reusable accessory. This design:

• Reduces patient discomfort by minimizing the number of accessories needed

• Simplifies clinical workflow with fewer cables and sensors to manage

• Includes SOV (Signal Overlap Verification) – alerts clinicians when there is confusion between maternal and fetal signals, ensuring accurate diagnosis

15.6‑inch Full‑Color Touchscreen with Intuitive Interface

• 15.6‑inch full‑color touchscreen with 1920 × 1080 resolution

• Quick setup and brand‑new platform greatly simplifies workflow

• Multiple display formats with various curve combinations and scales

• Simultaneous display of waveforms and digital data

Integrated Maternal Parameters Module

The F15 Air supports a wireless maternal parameter module that provides:

• NIBP (Non‑Invasive Blood Pressure) – continuous blood pressure monitoring

• SpO₂ – oxygen saturation monitoring

• PR (Pulse Rate) – maternal pulse rate monitoring

• ECG – maternal electrocardiogram monitoring

This wearable device provides mothers with more choices regarding their ambulation and position during monitoring.

Built‑In Thermal Printer with Flexible Options

The F15 Air includes a high‑resolution, long‑life built‑in thermal printer for on‑the‑spot documentation:

• Compatible with 150/152 mm recording paper (US and International standards)

• Real‑time printing speeds of 1, 2, or 3 cm/min

• Support for US and International standard paper formats

Comprehensive Fetal & Maternal Monitoring

The F15 Air provides a complete spectrum of monitoring parameters for comprehensive obstetrical care:

FECG‑TA Module – Advanced Fetal ECG Technology (Optional)

As an advanced module for the F15 Air, FECG‑TA can acquire FHR and MHR from advanced surface electrodes using FECG and MECG technology, while also obtaining EHG (electrohysterography) simultaneously. With its all‑in‑one design, mothers and caregivers are bestowed with more choices when monitoring.

Key advantages of FECG‑TA:

Powerful Data Management & Connectivity

• Bi‑directional MFM‑CNS communication – seamless patient monitoring and data sharing with central nursing stations

• Built‑in Wi‑Fi – for wireless data transmission

• HL7 connectivity – integration with hospital information systems

• Seamless data transfer – transfer patient data between devices without interrupting monitoring

• Automatic probe identification – simplifies setup and reduces errors

• 15‑minute backup memory in transducers – ensures data integrity

Portable & Durable Design

• Dimensions: 389 × 296 × 82.5 mm

• Rechargeable lithium‑ion battery (10.8V, 5100mAh) – supports portable use

• Probe rack – for easy positioning of transducers

• Elegant appearance with strong mechanical structure

Intended Use & Clinical Applications

The EDAN F15 Air is intended for monitoring physiological parameters of pregnant women during antepartum examination, labor, and delivery. It is specifically designed for:

• Maternity wards – continuous monitoring during labor and delivery

• Labour and delivery units – real‑time assessment of fetal well‑being

• Obstetric clinics – routine antenatal monitoring

• Antenatal monitoring – Non‑Stress Testing (NST) from the 28th week of gestation
