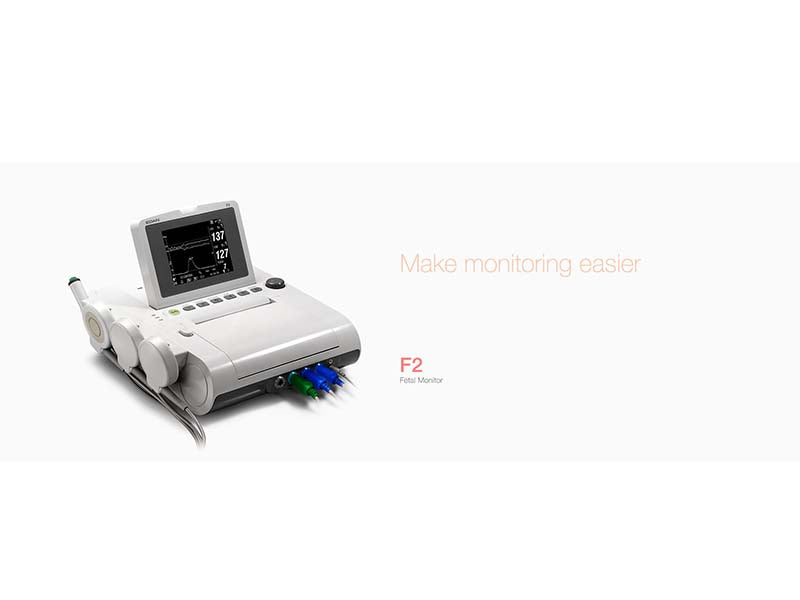

EDAN F2 Fetal Monitor

The EDAN F2 is a modern, portable fetal monitor designed to meet the needs of obstetrical departments in both clinics and hospitals. With its elegant design, foldable screen, and enhanced functionality, the F2 offers a comprehensive set of monitoring parameters—including Fetal Heart Rate (FHR), TOCO, Direct ECG (DECG), Intrauterine Pressure (IUP), and fetal movement. Its lightweight, compact form factor makes it especially suitable for outpatient services, while its advanced technology and flexible configuration options ensure reliable performance in labor and delivery settings.

Key Features & Benefits

Advanced FHR Detection Technology

The F2 incorporates sophisticated signal processing to ensure accurate fetal heart rate monitoring:

• Signals Overlap Verification – Differentiates between twins‘ FHR signals, providing clear and reliable data for multiple pregnancies

• FHR Signal Quality Indicator – Helps clinicians optimize probe placement for the best possible signal quality

• 1 MHz Waterproof FHR Probe – The use of a 1 MHz probe enlarges penetration and deepens the range of detection, which is especially beneficial for monitoring larger pregnant women. The probe is also waterproof to IPX7 standards (submersible up to 1.1m for 24 hours), supporting water birth

Simple and Efficient Workflow

The F2 is designed to streamline clinical workflows with minimal training required:

• 1‑Knob Operation – A single knob allows users to carry out every configuration and customize the machine according to actual clinical needs

• 1‑Button Operation – The start button can be configured to integrate patient information and initiate printing, simplifying the workflow to a single press

• Silicone buttons for intuitive, durable operation

Portable and Convenient Design

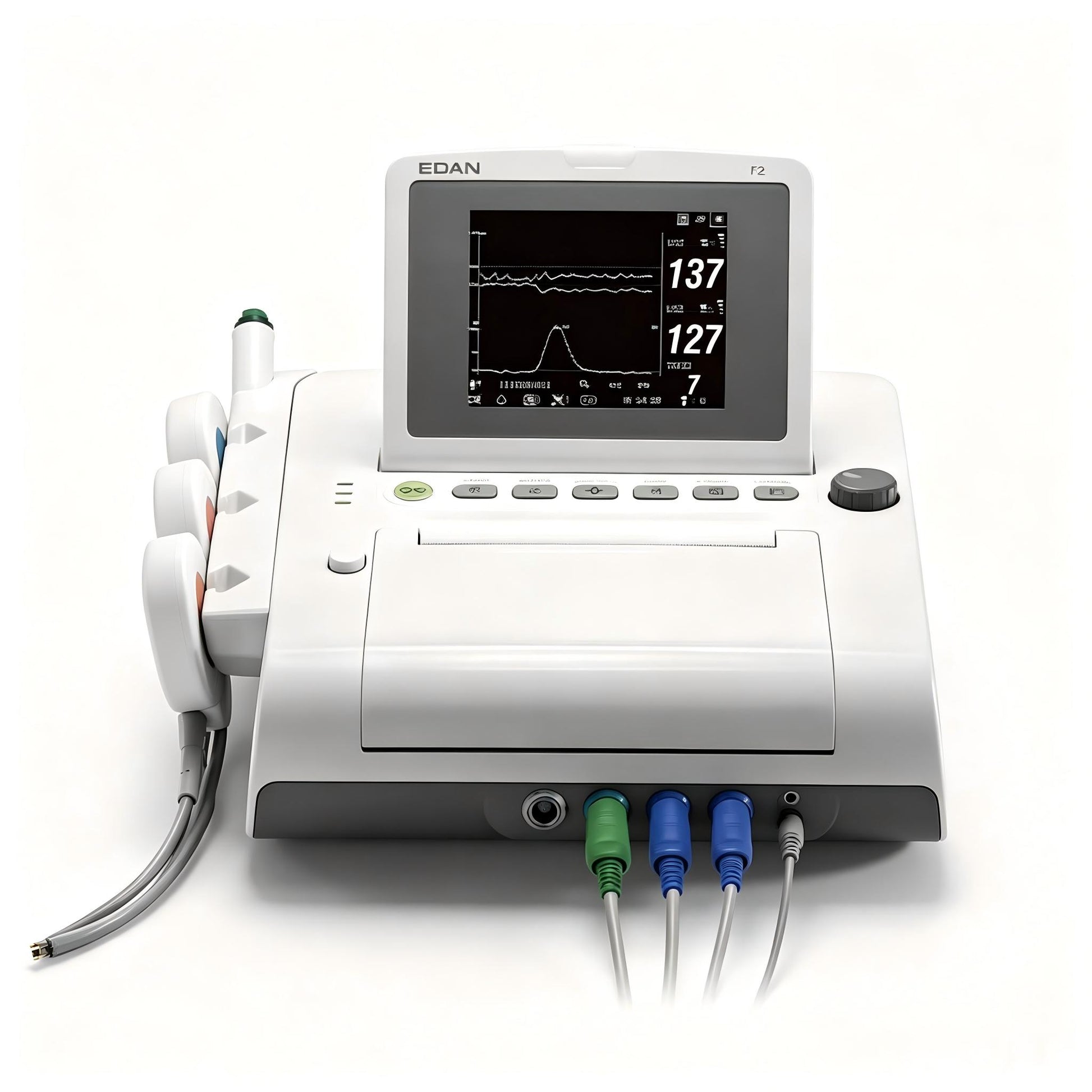

• 5.6‑inch foldable screen – Large numeric and waveform display with a 90° tilt range for easy reading in any setting

• Lightweight and compact – Easy to transport between departments or for outpatient use

• Long‑life Li‑ion battery – Guarantees mobility and uninterrupted monitoring during transport

• Convenient probe rack – Keeps transducers organized and readily accessible

Flexible Printing Options

The built‑in thermal printer provides versatile output options:

• Compatible with 150/152 mm width recording paper

• Real‑time printing speeds of 1, 2, or 3 cm/min

• Fast printing speed of 15 mm/sec for history traces

Powerful Data Management

• 60 hours of built‑in memory – Ensures seamless monitoring with backup memory for uninterrupted data collection

• MFM‑CNS network support – Enables remote monitoring and centralized data management

• MFM‑CNS Lite – PC‑based data management software for reviewing and archiving patient records

• USB port – Allows storage expansion to accommodate large patient volumes

Multi‑Display Modes

Users can switch among three display modes, choosing the most suitable one for clinical use, ensuring optimal visualization for different monitoring scenarios.

Comprehensive Monitoring Parameters

The F2 offers an extensive set of monitoring parameters for complete fetal assessment:

• Fetal Heart Rate (FHR) – Non‑invasive ultrasound Doppler monitoring

• TOCO – External uterine activity monitoring

• Direct ECG (DECG) – Invasive fetal ECG monitoring during labor

• Intrauterine Pressure (IUP) – Invasive pressure monitoring via catheter

• Fetal movement – Manual or automatic detection with display and printout of fetal activity charts

Technical Specifications

Why Choose the EDAN F2?
