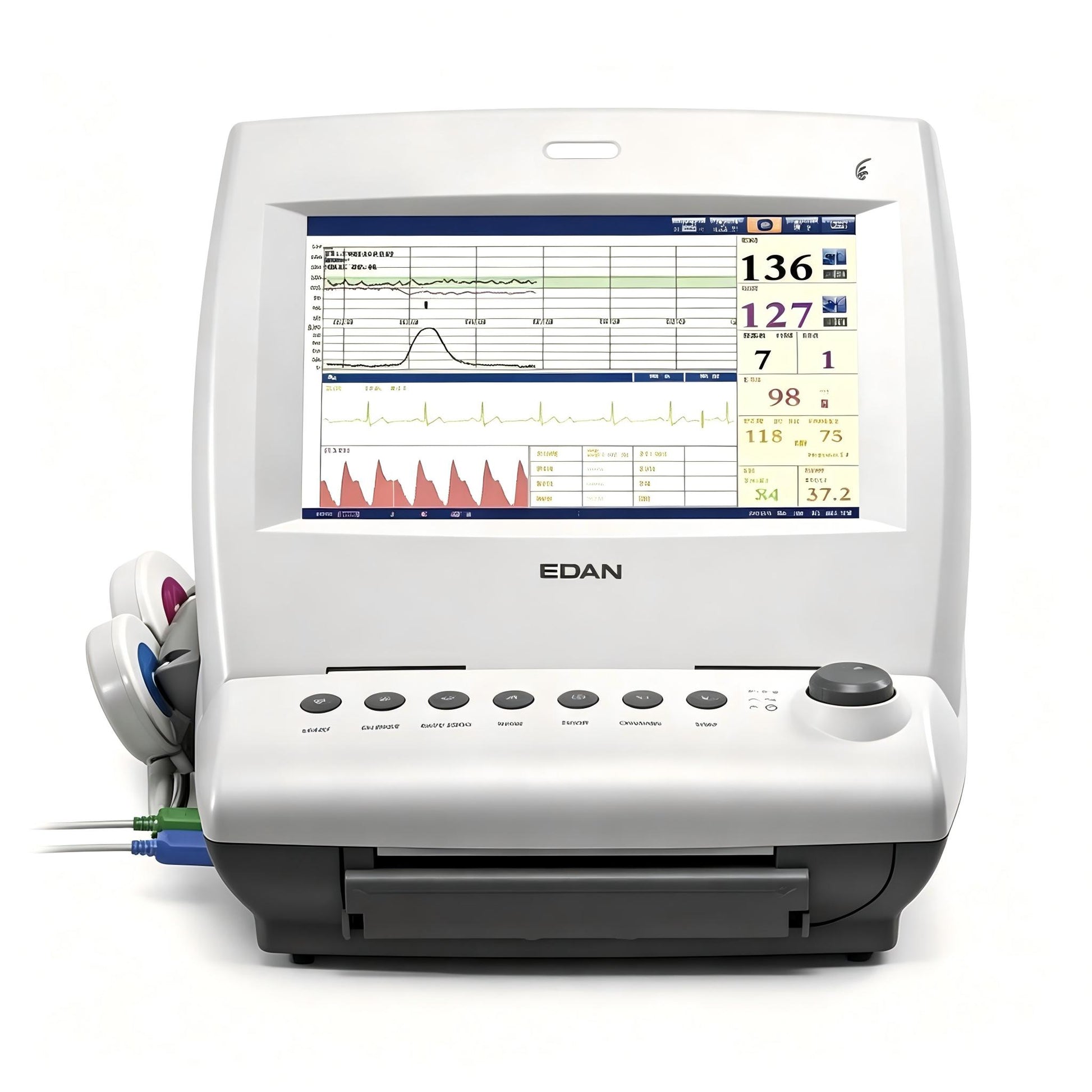

EDAN F6 Express Fetal & Maternal Monitor

The EDAN F6 Express is a high‑end, hospital‑grade fetal and maternal monitor designed for multi‑bed units with central station connectivity, yet simple enough for private practice. With its compact and portable design, foldable 10.1‑inch color TFT screen, and comprehensive monitoring capabilities—including fetal heart rate (FHR), TOCO, fetal movement, and maternal parameters (ECG, NIBP, SpO₂, pulse rate, respiration, temperature)—the F6 Express addresses the needs of obstetrical departments in both clinics and hospitals.

The F6 Express supports dual FHR monitoring for twin pregnancies, with Signals Overlap Verification technology to clearly differentiate between twins‘ heart rates. Its powerful data management capabilities, including 60 hours of built‑in memory and MFM‑CNS network support, ensure seamless monitoring and remote data access. The F6 Express is also FDA 510(k) cleared for non‑invasive and invasive monitoring of the fetus during antepartum examination, labor, and delivery.

Key Features & Benefits

Comprehensive Fetal & Maternal Monitoring

The F6 Express provides a full spectrum of monitoring parameters for complete obstetrical care:

• Fetal parameters: Fetal Heart Rate (FHR) with 1 bpm resolution and ±2 bpm accuracy, TOCO (uterine activity), fetal movement (manual/automatic detection with activity chart display and printout), and optional invasive parameters including Intrauterine Pressure (IUP) and Direct ECG (DECG)

• Maternal parameters: ECG, heart rate/pulse rate, Non‑Invasive Blood Pressure (NIBP), SpO₂, respiration, and temperature

• FHR range: 30–240 bpm (US standard) and 50–210 bpm (international standard)

• Pressure range: 0–100 mmHg

Advanced FHR Detection Technology

• Dual FHR monitoring with Signals Overlap Verification – clearly differentiates between twins‘ FHR signals with a +20/‑20 offset while printing

• Multi‑crystal pulse wave Doppler for reliable, high‑quality signal acquisition

• FHR signal quality indicator – helps clinicians optimize probe placement for the best possible signal quality

• 24‑hour waveform playback for retrospective review

User‑Friendly Design & Operation

• 10.1‑inch foldable color TFT screen with four viewing angles (15°, 30°, 45°, 60°) for optimal visibility from any position

• Three display modes: fetal only, maternal only, or combined fetal and maternal display

• Functional keys and knob provide various shortcuts for clinical use

• 1‑button operation – the START button can be configured to integrate patient information and initiate printing, simplifying the workflow to a single press

• Probe rack for easy positioning of transducers

• Compact and portable design with convenient handle – weighs just over 5 kg (dimensions: 34.7 × 33 × 12.6 cm)

Flexible Printing Options

• Built‑in thermal printer compatible with 150/152 mm width recording paper (American or International standard)

• Real‑time printing speeds of 1, 2, or 3 cm/min

• 15 mm/sec fast printing speed for history traces

• Recording information includes patient info, FHR waveform, TOCO waveform, fetal movement, and more

Powerful Data Management & Connectivity

• 60 hours of built‑in memory for seamless monitoring with backup memory for uninterrupted data collection

• 24‑hour waveform playback for comprehensive retrospective review

• MFM‑CNS network support – enables remote monitoring and centralized data management

• MFM‑CNS Life software for PC‑based data management

• USB port allows storage expansion to accommodate large patient volumes

• Supports FTS‑3 wireless monitoring system – uses domestic medical frequency band, avoiding民用 signal interference, with up to 100m coverage

• Software for data transmission to PC – connects to EDAN‘s Central Nursing System (cleared under K100358)

Antepartum CTG Analysis

The F6 Express features antepartum CTG analysis that provides objective and numerical assessment of CTG for caregivers‘ reference, ensuring easy access to read FHR patterns.

510(k) Cleared & Regulatory Compliance

The F6 Express is FDA 510(k) cleared under K173042 for fetal and maternal monitoring. It is intended for use by trained and qualified personnel in antepartum examination rooms, labor and delivery rooms.

Technical Specifications

Why Choose the EDAN F6 Express?
