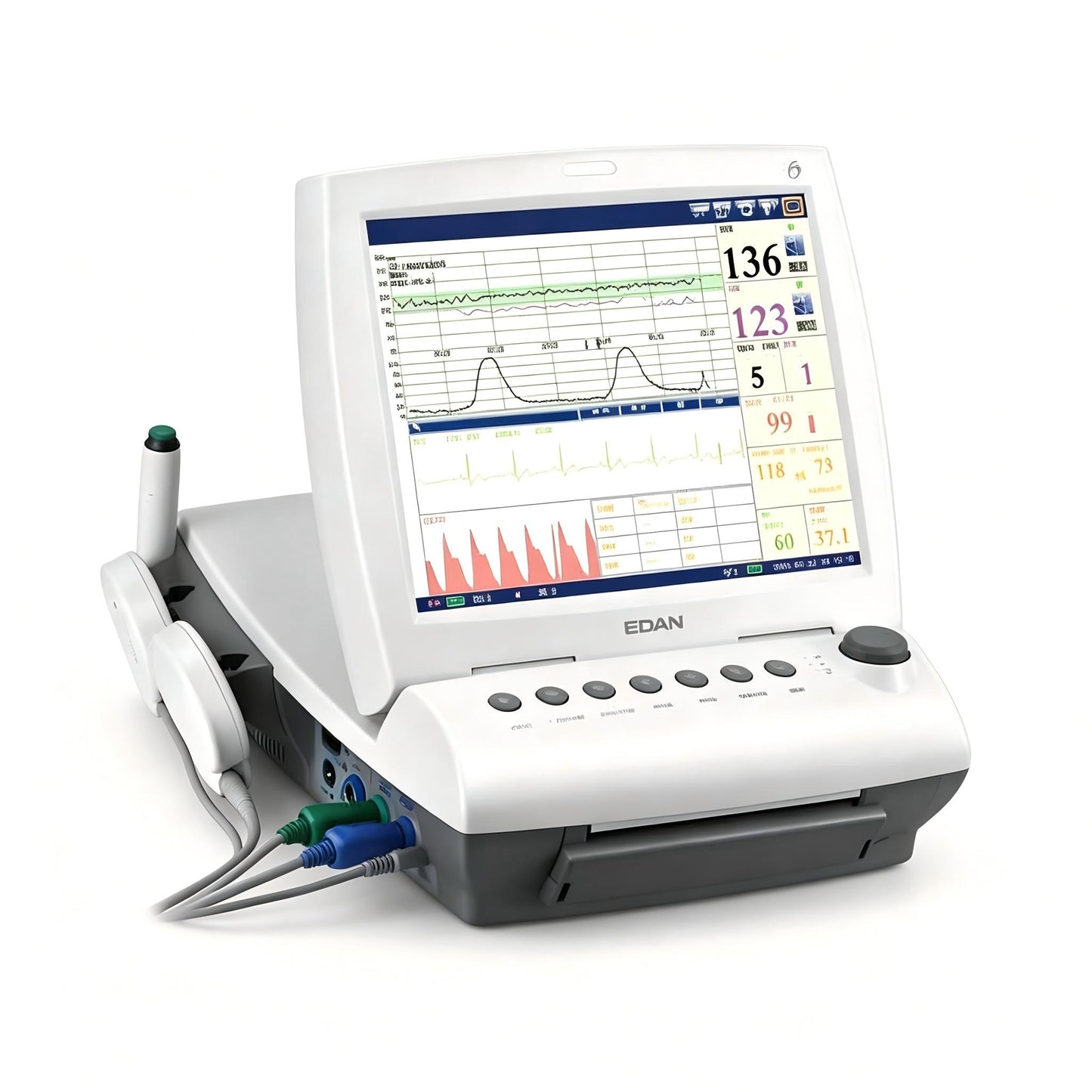

EDAN F9 Express Fetal & Maternal Monitor

The EDAN F9 Express is a high‑end, hospital‑grade fetal and maternal monitor designed for the most demanding clinical environments—from large hospital delivery rooms and private obstetrician offices to antepartum clinics. As a premium model in EDAN‘s fetal monitoring lineup, the F9 Express offers the most advanced integrated monitoring for the entire continuum of antepartum, intrapartum, and postpartum care.

Featuring a 12.1‑inch color touchscreen LCD, the F9 Express delivers comprehensive monitoring capabilities—including twin FHR (fetal heart rate) monitoring, maternal vital signs (ECG, NIBP, SpO₂, temperature), and optional invasive parameters (IUP and DECG). The system‘s advanced Signal Overlap Verification technology ensures clear differentiation between twins‘ heart rates, while the optional built‑in wireless module enables seamless integration with EDAN‘s central nursing station and telemetry systems.

The F9 Express is FDA 510(k) cleared and intended for use by trained and qualified personnel in antepartum examination rooms, labor and delivery rooms.

Key Features & Benefits

Comprehensive Fetal & Maternal Monitoring

The F9 Express provides a complete spectrum of monitoring parameters for comprehensive obstetrical care:

• Fetal parameters: Fetal Heart Rate (FHR) via 1 MHz pulsed wave ultrasound probes, TOCO (uterine activity), Event Mark, and AFM (automatic fetal movement)

• Twin FHR monitoring: Dedicated dual FHR monitoring capability

• Maternal parameters: ECG, NIBP (Non‑Invasive Blood Pressure), SpO₂, pulse rate, and temperature

• Internal parameters (optional): IUP (Intrauterine Pressure) and DECG (Direct ECG)

• FHR limit alarm for enhanced patient safety

12.1‑inch Color Touchscreen with Intuitive Interface

• 12.1‑inch high‑resolution color TFT‑LCD screen with touchscreen capability

• Touchable screen ensures ease of use and efficient operation

• Multiple display formats with various curve combinations and scales

Advanced FHR Detection Technology

• 12‑crystal pulse wave Doppler transducer for reliable, high‑quality signal acquisition

• Waterproof Doppler transducer for FHR detection—supports water delivery and provides flexibility in clinical settings

• Signal Overlap Verification technology clearly differentiates between twins‘ FHR signals with +20/‑20 offset printing options

• 24‑hour waveforms playback for comprehensive retrospective review

Built‑In Thermal Printer with Flexible Options

• Built‑in thermal printer for on‑the‑spot documentation

• Compatible with 150/152 mm recording paper

• Real‑time printing speeds of 1, 2, or 3 cm/min

• Quick printing for stored waveforms

Powerful Data Management & Connectivity

• 60‑hour built‑in memory for seamless monitoring and waveform storage

• 24‑hour waveforms playback for retrospective review

• Optional built‑in wireless module to connect to FTS‑3 telemetry system or central nursing station

• Insight Software and CNS Lite for real‑time and offline data transmission to PC

• Professional CTG analysis system for objective and numerical assessment

Portable & Durable Design

• Compact dimensions: 347 × 330 × 126 mm (13.6 × 12.9 × 4.96 inches)

• Weight: 6.3 kg (13.9 lbs)

• Long‑life rechargeable lithium battery: Up to 4 hours of continuous work

• Flat surface design and waterproof TOCO transducer

• Operating voltage: 100V – 240V, 50/60Hz

Intended Use & Clinical Applications

The F9 Express is intended for monitoring physiological parameters of pregnant women during antepartum examination, labor, and delivery. It is specifically designed for:

• Non‑Stress Testing (NST) or fetal monitoring for pregnant women from the 28th week of gestation

• Antepartum (before labor) monitoring in clinics and hospital wards

• Intrapartum (during labor) monitoring in delivery rooms

• Postpartum (after delivery) monitoring with continuous maternal vital signs

The F9 Express is intended for use only by trained and qualified personnel in antepartum examination rooms, labor and delivery rooms. It is not intended for use in intensive care units, operating rooms, or for home use.
