EDAN H100B Pulse Oximeter
EDAN H100B Pulse Oximeter

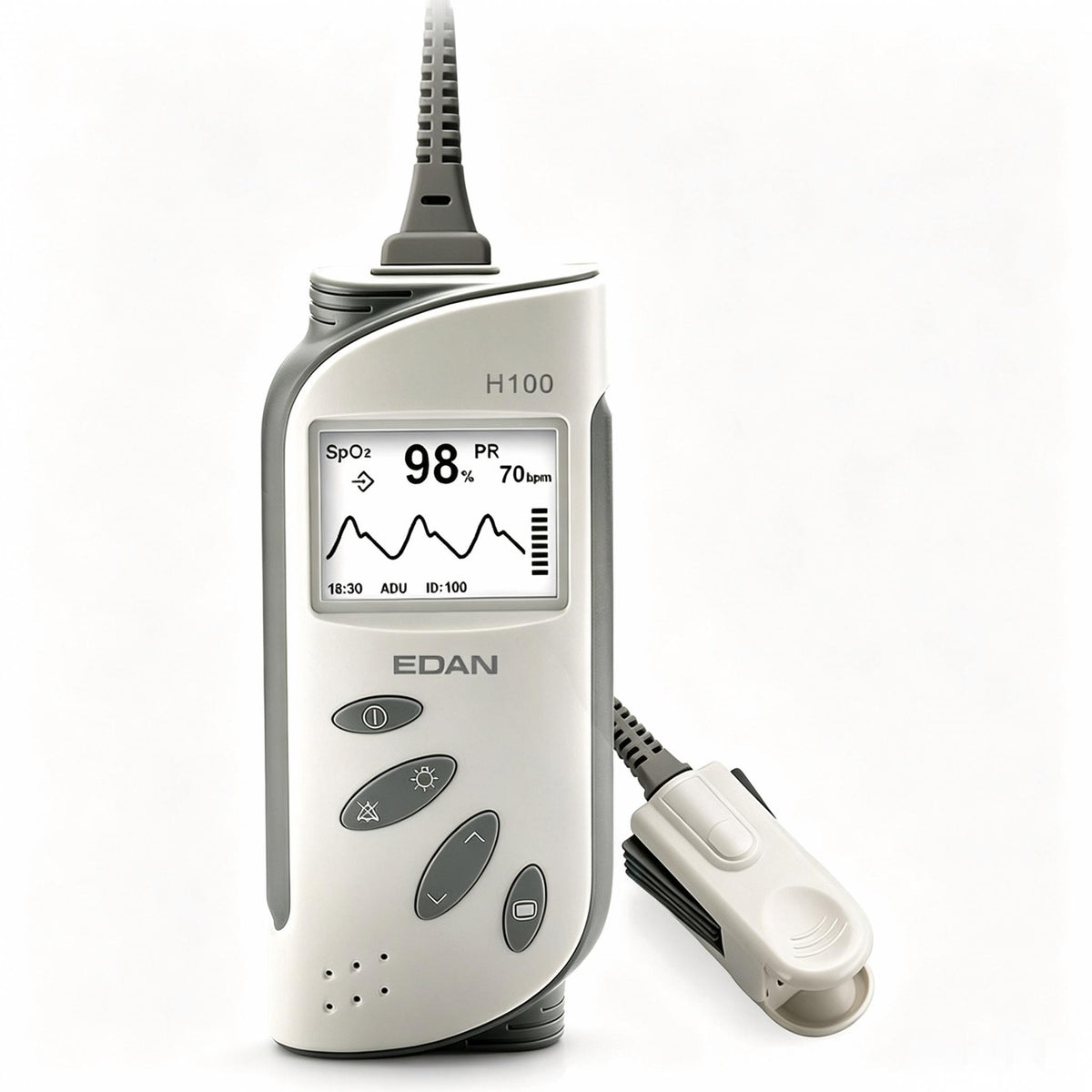

The EDAN H100B is a handheld pulse oximeter engineered to deliver reliable, accurate, and sensitive measurement of blood oxygen saturation even in harsh conditions. Designed for both continuous monitoring and spot-checking of functional arterial oxygen saturation (SpO₂) and pulse rate, the H100B is suitable for adult, pediatric, and neonatal patients in hospitals, intra-hospital transport, and hospital-type facilities.
The H100B integrates a parameter module, display, and data output functions into a single compact device, displaying SpO₂ value, pulse rate value, plethysmogram, bar graph, and temperature. With its large LCD display, powerful data storage capacity, and long battery life, the H100B is a practical solution for clinical environments requiring dependable oximetry monitoring.
Key Features & Benefits
Comprehensive Oximetry Monitoring
The H100B provides essential respiratory and oxygenation parameters in one device:
| Parameter | Description |
|---|---|
| SpO₂ | Functional arterial oxygen saturation measurement |
| PR | Pulse rate measurement |
| Plethysmogram | Real-time pulse waveform for signal quality verification |
| Bar Graph | Visual indicator for rapid SpO₂ assessment |
| Temperature | Temperature display (available on H100N model) |
The H100B is installed with the EDAN SpO₂ module inside, while the H100N variant features the Nellcor SpO₂ module and the manufacturer's temperature module.
Accurate and Sensitive Measurement
The H100B is designed to deliver accurate readings across diverse clinical conditions:
| Parameter | Measuring Range | Resolution | Accuracy |
|---|---|---|---|
| SpO₂ | 0 – 100% | 1% | ±2% (adult/pediatric, 70–100%); ±3% (neonate, 70–100%) |
| PR | 25 – 300 bpm | 1 bpm | ±3 bpm |
The H100 series oximeters adopt non-invasive double wavelength technology to measure SpO₂ and PR, ensuring reliable performance.
Large LCD Display with Backlight Control
The H100B features a large LCD display with backlight control, providing clear visualization of numeric values and plethysmogram waveforms. The Real Time Clock (RTC) display allows users to easily track the time of measurements.
Powerful Data Storage Capacity
The H100B offers substantial data management capabilities:
-
Up to 100 patient IDs for organized record keeping
-
300 hours of data storage for continuous monitoring
-
Trend review for up to the latest 10-minute SpO₂ or PR trend graph
-
PatientCare Viewer software for PC data management, enabling data transfer and review
Pulse-Tone Modulation (Pitch Tone)
The H100B features pulse-tone modulation (Pitch Tone) , which provides an audible indication of SpO₂ changes. The pitch of the tone varies with oxygen saturation levels, offering an additional sensory cue for clinicians monitoring patients.
Extended Battery Life
The H100B is designed for long-lasting operation:
| Battery Type | Operating Time |
|---|---|
| 4 × 1.5V AA alkaline batteries | Up to 48 hours |
| 4 × 1.2V Ni-MH rechargeable AA batteries (optional) | Up to 30 hours |
An automatic power-off function conserves battery life when the device is not in use. An optional charger stand is available for convenient recharging.
Portable and User-Friendly Design
-
Dimensions: 160 (L) × 70 (W) × 37.6 (H) mm
-
Weight: 165g (without batteries)
-
Lightweight and portable – easy to carry during ward rounds and patient transport
-
Intuitive interface – simple button controls for daily operation
-
Comprehensive alarm system – audible alarms for parameter limits and system conditions
Comprehensive Sensor Compatibility
The H100B is compatible with a range of EDAN and Nellcor sensors:
| Sensor Type | Description |
|---|---|
| SH1 Adult Reusable SpO₂ Sensor | Standard adult finger sensor |
| SH3 Neonate Wrap Sensor | Reusable wrap sensor for neonatal patients |
| SH4 Adult Silicone Soft-tip Sensor | Soft-tip sensor for adult patients |
| Nellcor Reusable Adult/Neonate Sensor | OXI-A/N OxiMax sensor with weak perfusion resistance |
An extension cable can be used between the oximeter and the SpO₂ sensor when needed.
Technical Specifications
| Specification | Detail |
|---|---|
| SpO₂ Range | 0 – 100%; resolution 1%; accuracy ±2% (adult/pediatric, 70–100%), ±3% (neonate, 70–100%) |
| PR Range | 25 – 300 bpm; resolution 1 bpm; accuracy ±3 bpm |
| Display | Large LCD with backlight control; RTC display |
| Displayed Parameters | SpO₂, PR, plethysmogram, bar graph, temperature (H100N) |
| Data Storage | Up to 100 patient IDs; 300 hours of continuous monitoring data |
| Trend Review | Latest 10-minute SpO₂ or PR trend graph |
| Software | PatientCare Viewer for PC data management |
| Pulse Tone | Pitch Tone modulation |
| Battery (Alkaline) | 4 × 1.5V AA batteries; up to 48 hours |
| Battery (Rechargeable) | 4 × 1.2V Ni-MH AA batteries (optional); up to 30 hours |
| Power Saving | Automatic power-off function |
| Dimensions | 160 (L) × 70 (W) × 37.6 (H) mm |
| Weight | 165g (without batteries) |
| Measurement Principle | Non-invasive double wavelength technology |
| Intended Use | Continuous monitoring or spot-checking of SpO₂ and PR in adult, pediatric, and neonatal patients |
| Regulatory | FDA 510(k) cleared (K092727) |
Why Choose the EDAN H100B?
| Consideration | H100B Solution |
|---|---|
| Accurate SpO₂ across patient types | Validated accuracy for adult, pediatric, and neonatal patients |
| Extended monitoring sessions | Up to 48 hours on AA batteries; 30 hours on rechargeable |
| Comprehensive data management | 300-hour storage, 100 patient IDs, and PC software |
| Quick trend assessment | Latest 10-minute SpO₂ or PR trend graph review |
| Audible SpO₂ indication | Pitch Tone modulation for changing saturation levels |
| Dependable in diverse conditions | Reliable, accurate, and sensitive measurement even in harsh conditions |
| Portable and easy to use | Lightweight 165g design with intuitive controls |
| Broad sensor compatibility | Supports EDAN and Nellcor sensor options for different patient needs |
