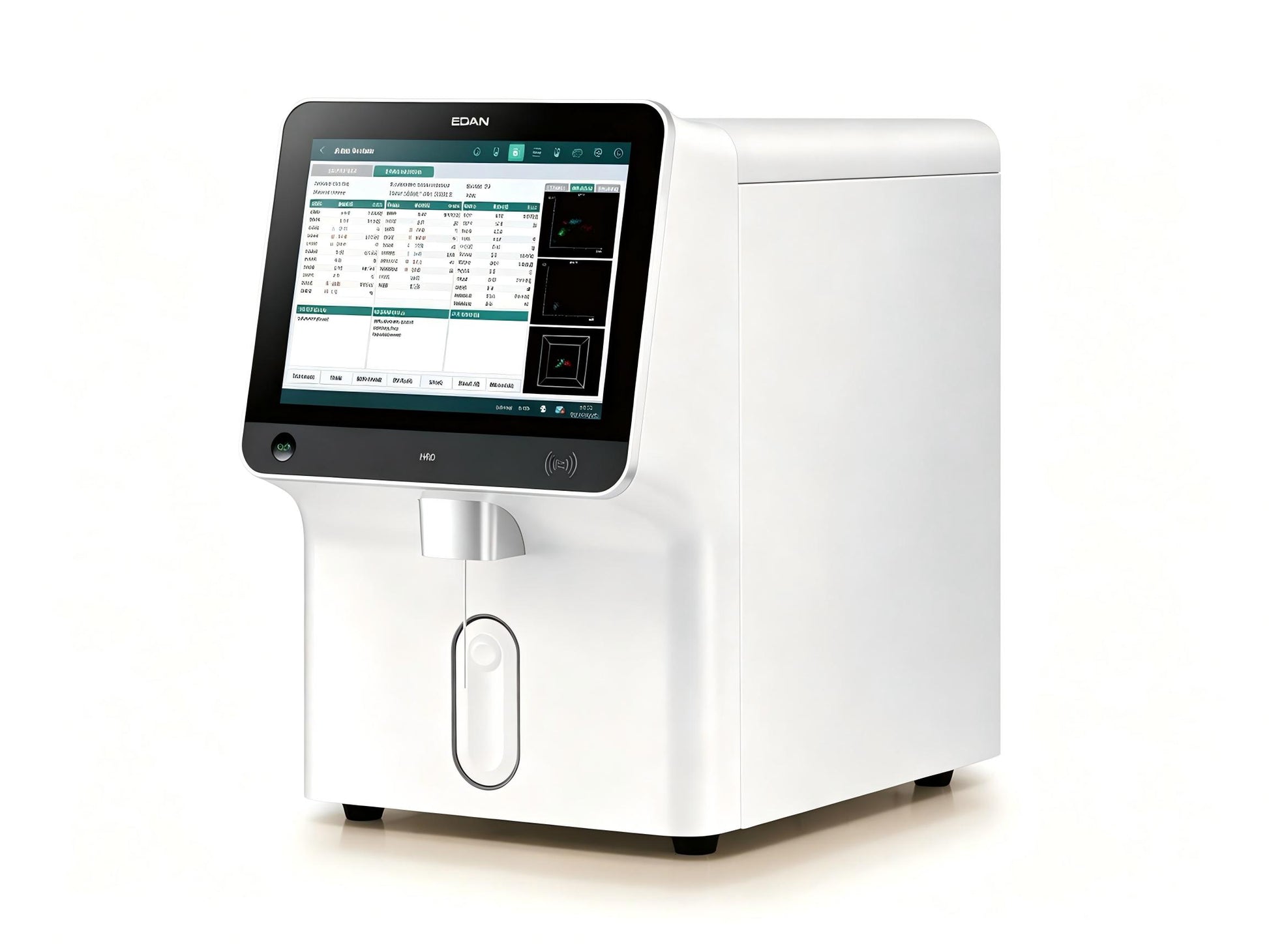

EDAN H60 5‑Part Hematology Analyzer

EDAN H60 5‑Part Hematology Analyzer

$16,000.00
$16,000.00
Sale Sold out
Shipping calculated at checkout.

Contact details

Enter both an email address and phone number to add products or continue to checkout.

Include your country code.

The EDAN H60 is a fully automated 5‑part differential hematology analyzer engineered for low‑ to moderate‑volume clinical laboratories. Combining tri‑angle laser flow cytometry for white blood cell differentiation with electrical impedance for red blood cell and platelet counting, this benchtop system delivers a comprehensive 33‑parameter complete blood count (CBC) including NRBC, NLR, and PLR—all with exceptional accuracy and minimal operator intervention.

Designed around an Android‑based operating system with a 12.1‑inch color touchscreen, the H60 offers the intuitive feel of a smartphone while providing the clinical rigor expected from a professional hematology platform. Whether you run a small veterinary clinic, a mid‑sized hospital lab, or a reference laboratory, the H60 adapts to your workflow with three sampling modes (whole blood, capillary whole blood, and pre‑diluted) and a throughput of 60 samples per hour.

Key Features & Benefits

5‑Part Differential with 33 Parameters

The H60 delivers 25 reportable parameters plus 8 research parameters—far beyond what 3‑part analyzers can offer. The 5‑part differential provides individual counts and percentages for:

  • Neutrophils (NEU%) – key indicator of bacterial infection

  • Lymphocytes (LYM%) – essential for viral infection and immune status

  • Monocytes (MON%) – elevated in chronic inflammation and certain infections

  • Eosinophils (EOS%) – critical for allergy and parasitic infection detection

  • Basophils (BAS%) – rare but valuable for allergic reactions and myeloproliferative disorders

Additional advanced parameters include NRBC%, NRBC# (nucleated red blood cells), ALY%, ALY# (atypical lymphocytes), LIC%, LIC# (large immature cells), NLR, and PLR—providing deeper insights into hematological conditions.

Advanced Flagging System for Clinical Confidence

Sensitive flagging alerts you to abnormal results that may require manual slide review. This intelligent system reduces the risk of missing critical findings while helping you prioritize workflow—especially valuable in high‑volume settings where efficiency is paramount.

Triple‑Laser Flow Cytometry Technology

The H60 employs tri‑angle laser flow cytometry for WBC differential and BASO counting, combined with electrical impedance for RBC and PLT counting, and a cyanide‑free colorimetric method for hemoglobin measurement. This multi‑technology approach ensures:

  • Accurate cell classification even in challenging samples

  • Reliable platelet counting with anti‑interference technology

  • Wide linearity ranges for abnormal clinical cases



Parameter Linearity Range Precision (CV%)
WBC 0.0 – 500.0 × 10⁹/L ≤ 3.0% (3.50–7.00) / ≤ 2.5% (7.01–15.00)
RBC 0.0 – 8.5 × 10⁹/L ≤ 1.5% (3.5–6.5)
HGB 0 – 250 g/L ≤ 1.5% (100–180)
PLT 0 – 4000 × 10⁹/L ≤ 5.0% (100–500)
MCV 70 – 120 fL ≤ 1.0%

Visual Data Interpretation

The H60 provides 1 three‑dimensional scattergram (DIFF) and 4 two‑dimensional scattergrams (DIFF, BASO), plus 3 histograms for WBC, RBC, and PLT. These graphical representations allow you to quickly visualize cell populations and identify abnormalities at a glance—reducing time spent on data interpretation.

Android‑Based OS – Smartphone Simplicity

The Android‑based operating system delivers a user experience that feels natural and responsive. The 12.1‑inch color touchscreen displays all parameters and graphs on a single page, and you can access any function within two taps. The intuitive interface minimizes training time and reduces operator errors—allowing your team to focus on patient care rather than instrument operation.

Flexible Connectivity & Data Management

  • 100,000 result storage including histograms and scattergrams

  • 60 QC files (100 data per file)

  • Bi‑directional LIS/HIS connectivity with standardized HL7 protocol

  • Flexible printing options – individual results, control tests, L‑J graphs, or QC lists with selectable parameters

Smart Reagent Management with RFID

Each reagent is equipped with an RFID card that regulates usage and provides full traceability. This intelligent system:

  • Prevents reagent errors

  • Tracks consumption in real time

  • Secures your reagent business model

  • Reduces operating costs through optimized inventory management

Low Sample Volume – 16 µL

With a sample aspiration volume of just 16 µL (whole blood and capillary modes) and 20 µL for pre‑diluted mode, the H60 is ideal for:

  • Pediatric and neonatal patients

  • Small animal veterinary applications

  • Critical care settings with limited blood availability

  • Serial monitoring in patients where blood conservation is important

Low Maintenance – Maximum Uptime

The H60 is engineered for long product life with minimal maintenance requirements. The system automatically reminds you when service is due, ensuring consistent performance and reducing unplanned downtime.

Technical Specifications



Specification Detail
Measurement Principles Tri‑angle laser flow cytometry (WBC DIFF & BASO); Electrical impedance (RBC & PLT); Cyanide‑free colorimetric (HGB)
Parameters 25 reportable + 8 research = 33 total
Histograms WBC, RBC, PLT
Scattergrams 1× 3D (DIFF) + 4× 2D (DIFF, BASO)
Throughput 60 samples per hour
Sample Volume 16 µL (whole blood / capillary) / 20 µL (pre‑diluted)
Sample Modes Whole blood, Capillary whole blood, Pre‑diluted
Display 12.1‑inch color touchscreen
Data Storage 100,000 results + 60 QC files
Connectivity Bi‑directional LIS/HIS, HL7 protocol
Reagents HD600 Diluent (20L), HL600 Lyse (500mL/1L), HC310 Cleaner (50mL)
Power Supply 100V – 240V, 50/60Hz
Operating Temperature 15°C – 32°C
Operating Humidity 30% RH – 85% RH
Air Pressure 70 kPa – 106 kPa
Dimensions 501(D) × 320(W) × 502.5(H) mm
Weight 29.3 kg

Why Choose the EDAN H60?



Challenge H60 Solution
Need for 5‑part differential 5‑part WBC differential with 33 total parameters including NRBC, NLR, PLR
Abnormal cell detection Sensitive flagging system + 3D/2D scattergrams for visual verification
High operating costs RFID reagent management + low reagent consumption
Complex operation Android‑based OS with 12.1″ touchscreen – smartphone‑like experience
Limited sample volume Only 16 µL sample aspiration – ideal for pediatric and small animal use
Data management 100,000‑result storage + bi‑directional LIS with HL7
Maintenance burden Automatic service reminders + long‑life design
Multi‑site consistency Standardized performance across instruments
