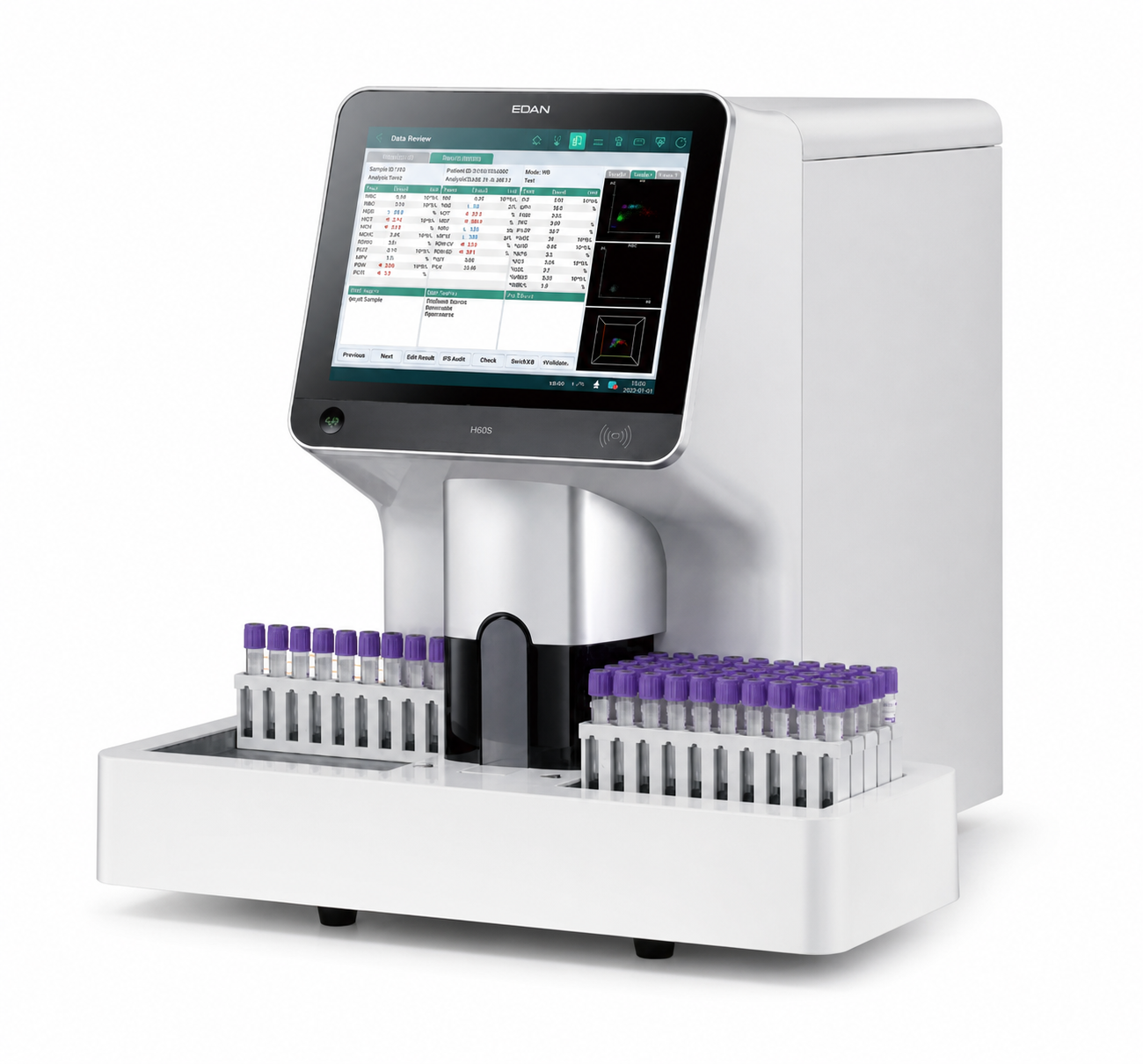

Edan H60S CRP&SAA 5‑Part Hematology Analyzer with Autoloader

The EDAN H60S CRP&SAA is a fully automated 5‑part differential hematology analyzer with integrated C‑reactive protein (CRP) and serum amyloid A (SAA) testing—combining complete blood count (CBC) and dual inflammatory marker analysis in a single, compact benchtop system. Designed for low‑ to moderate‑volume clinical laboratories, this innovative analyzer merges tri‑angle semiconductor laser flow cytometry for white blood cell differentiation with electrical impedance for RBC and PLT counting, plus a cyanide‑free colorimetric method for hemoglobin measurement.

The H60S CRP&SAA features an integrated 60‑sample autoloader with continuous loading and a STAT position for urgent sample prioritization. Its Android‑based operating system with a 12.1‑inch color touchscreen delivers the intuitive feel of a smartphone, while the integrated immunoturbidimetric CRP/SAA detection system provides reliable dual‑biomarker quantification—eliminating the need for separate instruments and streamlining your workflow.

Whether you run a hospital laboratory, a reference lab, or a primary care clinic, the H60S CRP&SAA adapts to your workflow with three sampling modes (whole blood, capillary whole blood, and pre‑diluted), a throughput of 60 samples per hour, and robust LIS/HIS connectivity via standardized HL7 protocol.

Key Features & Benefits

Integrated CRP and SAA Testing – One Sample, Dual Biomarkers

The H60S CRP&SAA sets itself apart with a reliable specific protein detection system that measures both C‑reactive protein (CRP) and serum amyloid A (SAA) using the immunoturbidimetric method. This dual‑biomarker integration enables:

• Simultaneous CBC + CRP + SAA from a single blood sample

• Rapid differentiation between bacterial and viral infections

• Enhanced diagnostic confidence for infection, inflammation, and sepsis

• Streamlined workflow—no separate analyzer or additional sample processing

• Five‑point calibration ensuring result accuracy

CRP and SAA are complementary inflammatory biomarkers. While CRP is a well‑established marker for bacterial infection and inflammation, SAA responds more rapidly and shows greater sensitivity in viral infections, making the combination particularly valuable for acute‑phase response assessment in emergency, pediatric, and general practice settings.

60‑Sample Autoloader with STAT Priority

The H60S CRP&SAA features an integrated 60‑sample carousel that supports continuous loading—you can add samples while the analyzer is running without interrupting the workflow. The STAT position allows immediate priority processing for urgent samples, with automatic tube size recognition and sample ID reading. This automation significantly reduces operator hands‑on time and maximizes laboratory efficiency.

5‑Part Differential with 33 Parameters

The H60S CRP&SAA delivers 25 reportable parameters plus 8 research parameters—far beyond what 3‑part analyzers can offer. The 5‑part differential provides individual counts and percentages for:

• Neutrophils (NEU) – key indicator of bacterial infection

• Lymphocytes (LYM) – essential for viral infection and immune status

• Monocytes (MON) – elevated in chronic inflammation

• Eosinophils (EOS) – critical for allergy and parasitic infection detection

• Basophils (BAS) – valuable for allergic reactions

Additional advanced parameters include NRBC%, NRBC# (nucleated red blood cells—helping diagnose aplastic anemia, erythroleukemia, and myelofibrosis), ALY%, ALY# (atypical lymphocytes), LIC%, LIC# (large immature cells), NLR, and PLR—providing deeper insights into hematological conditions.

Sensitive Flagging System for Clinical Confidence

The H60S CRP&SAA features a sensitive flagging system that automatically highlights clinically significant findings including NRBC, abnormal lymphocytes, eosinophilia, and DIFF abnormalities. This intelligent system reduces the risk of missing critical findings while helping you prioritize slide reviews—especially valuable in high‑volume settings where efficiency is paramount.

Triple‑Laser Flow Cytometry Technology

The H60S CRP&SAA employs tri‑angle semiconductor laser flow cytometry for WBC differential and BASO counting, combined with electrical impedance for RBC and PLT counting, and a cyanide‑free colorimetric method for hemoglobin measurement. This multi‑technology approach ensures accurate cell classification even in challenging samples, with wide linearity ranges for abnormal cases:

Visual Data Interpretation

The H60S CRP&SAA provides 3 histograms (WBC, RBC, PLT), 1 three‑dimensional scattergram (DIFF), and 4 two‑dimensional scattergrams (DIFF, BASO). These graphical representations allow you to quickly visualize cell populations and identify abnormalities at a glance—reducing time spent on data interpretation.

Android‑Based OS – Smartphone Simplicity

The Android‑based operating system delivers a user experience that feels natural and responsive. The 12.1‑inch color touchscreen displays all parameters, graphs, and CRP/SAA results clearly, and you can access any function within two taps. The intuitive interface minimizes training time and reduces operator errors—allowing your team to focus on patient care rather than instrument operation.

Smart Reagent Management with RFID

Each reagent is equipped with an RFID card that regulates usage and provides full traceability. This intelligent system:

• Prevents reagent errors

• Tracks consumption in real time

• Secures your reagent business model

• Reduces operating costs through optimized inventory management

• Supports on‑board reagent stability for extended periods

Low Sample Volume – 16 µL

With a sample aspiration volume of just 16 µL (whole blood and capillary modes) and 20 µL for pre‑diluted mode, the H60S CRP&SAA is ideal for:

• Pediatric and neonatal patients

• Critical care settings with limited blood availability

• Serial monitoring where blood conservation is important

Elegant Design – Modular and Reliable

Built with EDAN's "Elegant Design as USUAL" philosophy, the H60S CRP&SAA offers:

• Compact footprint (626.5 × 565 × 580 mm) that suits any laboratory environment

• Easy installation and maintenance

• Low failure rate with improved fluidic path design

• Long product life with automatic maintenance reminders

Flexible Connectivity & Data Management

• 100,000 result storage including histograms and scattergrams

• 60 QC files (100 data per file)

• Bi‑directional LIS/HIS connectivity with standardized HL7 protocol

• 5 USB ports and 1 LAN port for external printer, software upgrade, barcode scanner, keyboard, and mouse

• Flexible printing options – individual results, control tests, L‑J graphs, or QC lists

Automated Features for Maximum Efficiency

The H60S CRP&SAA is equipped with automation features that lighten your workload:

• Automatic rotation and recognition of sample ID

• Continuous loading without interrupting workflow

• Automatic tube size recognition compatible with multiple tube sizes (13 × 75 mm, 13 × 100 mm, 16 × 100 mm, capillary tubes, plain microtubes)

• Capillary blood automatic piercing for microsample testing

• Bionic intelligent vortex technology for efficient mixing

Technical Specifications

Why Choose the EDAN H60S CRP&SAA?
