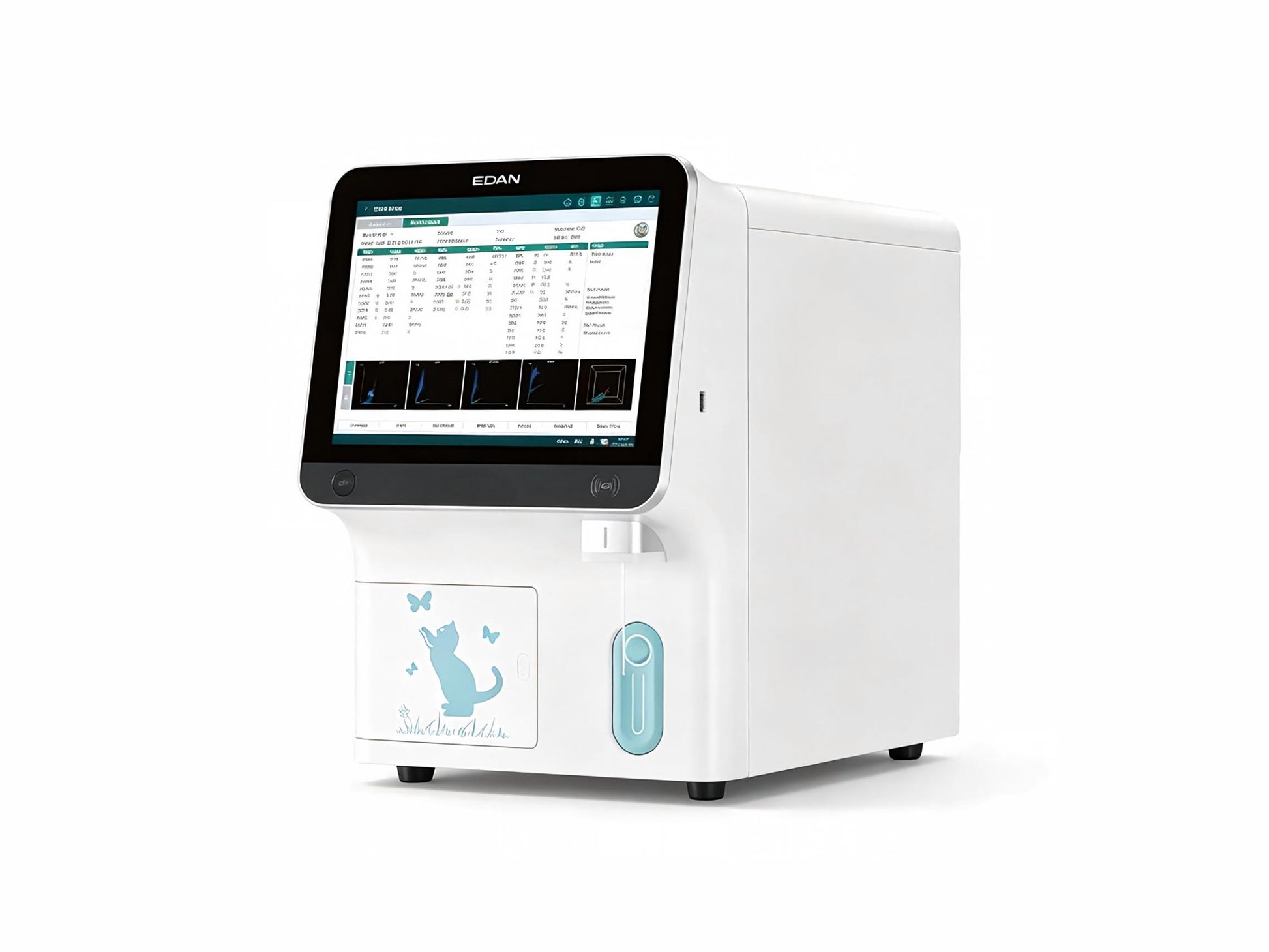

EDAN H90X Vet 6‑Part Veterinary Hematology Analyzer

The EDAN H90X Vet is a 6‑part differential veterinary hematology analyzer featuring fluorescent staining and 3D scattergram technology to deliver advanced CBC results for animal patients. Designed for veterinary clinics, animal hospitals, and reference laboratories, this benchtop system combines fluorescent flow cytometry for WBC differentiation and reticulocyte analysis with electrical impedance for RBC and platelet counting.

The H90X Vet delivers a comprehensive set of parameters including 6‑part WBC differential (NEU, LYM, MON, EOS, BAS + IG), automated NRBC reporting, optical platelet count (PLT‑O), and 7 reticulocyte‑related parameters—including RHE (Reticulocyte Hemoglobin) , HFR (High Fluorescent Ratio) , and LFR (Low Fluorescent Ratio) . These advanced markers provide deeper insights into anemia, bone marrow function, and inflammation in animals. With RFID reagent management and an intuitive user interface, the H90X Vet is designed to streamline veterinary diagnostic workflows.

Key Features & Benefits

6‑Part Differential with Immature Granulocytes (IG)

The H90X Vet goes beyond traditional 5‑part differentials by providing a true 6‑part differential that includes Immature Granulocytes (IG) . The six WBC subpopulations reported are:

• Neutrophils (NEU) – key indicator of bacterial infection

• Lymphocytes (LYM) – essential for viral infection and immune status

• Monocytes (MON) – elevated in chronic inflammation

• Eosinophils (EOS) – critical for allergy and parasitic infection detection

• Basophils (BAS) – valuable for allergic reactions

• Immature Granulocytes (IG) – the sixth population, providing early warning of inflammation and bone marrow response

Reticulocyte Analysis – A Diagnosing Tool for Anemia‑Related Disease

Reticulocytes are immature red blood cells found in the peripheral blood and are an important indicator of bone marrow hematopoietic function. The H90X Vet provides 7 RET‑related parameters that mirror comprehensive anemia information:

• RHE (Reticulocyte Hemoglobin) – a sensitive indicator of iron utilization during RBC generation

• HFR (High Fluorescent Ratio) and LFR (Low Fluorescent Ratio) – used to distinguish different types of anemia

• IRF (Immature Reticulocyte Fraction) – indicator of reticulocyte production

When do you need reticulocyte parameters?

• The diseased pet shows symptoms of anemia

• As part of a complete blood count test

• There is a need to evaluate bone marrow hematopoietic function

• RBC, HGB, and HCT results are low

These parameters help determine the type of anemia—such as hemolytic anemia or iron deficiency anemia—and serve as an indicator of treatment efficacy.

Automated NRBC Reporting

The H90X Vet reports Nucleated Red Blood Cells (NRBCs) automatically—no additional steps or reagents required. NRBCs can serve as a negative prognostic marker for evaluating RBC and bone marrow abnormalities, as well as severe diseases in animals. Automated NRBC reporting prevents falsely elevated WBC and lymphocyte counts caused by undetected NRBCs.

BAND Flagging

BAND flagging is of great significance for evaluating the degree of inflammation in animals. This intelligent flagging system alerts veterinarians to the presence of band neutrophils, helping to identify inflammatory conditions early.

Optical Platelet Count (PLT‑O)

Optical platelet count (PLT‑O) is a complementary parameter to impedance platelet counting, assisting in diagnosis when PLT count is too low or when interferences are present. This dual‑method approach ensures accurate platelet results even in challenging samples.

Fluorescent Staining & 3D Scattergram Technology

The H90X Vet utilizes fluorescent staining to classify animal leukocytes more accurately. Combined with three‑angle scatter plots, this technology provides:

• Precise WBC differentiation across animal species

• Clear visualization of cell populations

• Additional clinical significance through scattergram analysis

The scattergram is the most visual presentation of the blood test—each dot represents a cell. Looking at the distribution of cells on the scatterplot helps veterinarians quickly identify abnormal cells as well as diseases.

Individual Hatch Design

The individual hatch design provides convenient functionality for veterinary workflow, making sample loading and handling straightforward.

RFID Reagent Management

The H90X Vet features RFID recognition for secure, traceable reagent management. This intelligent system:

• Prevents reagent errors

• Tracks consumption in real time

• Secures your reagent business model

• Reduces operating costs through optimized inventory management

Intuitive Operation & Convenient Functionality

Built with intuitive operation and convenient functionality at its core, the H90X Vet is designed for veterinary professionals who need reliable results without complex training.

High Clinical Value Parameters

The H90X Vet is equipped with high clinical value parameters—including reticulocyte analysis, NRBC, BAND flagging, and PLT‑O—so veterinarians can face diagnosis with confidence.
