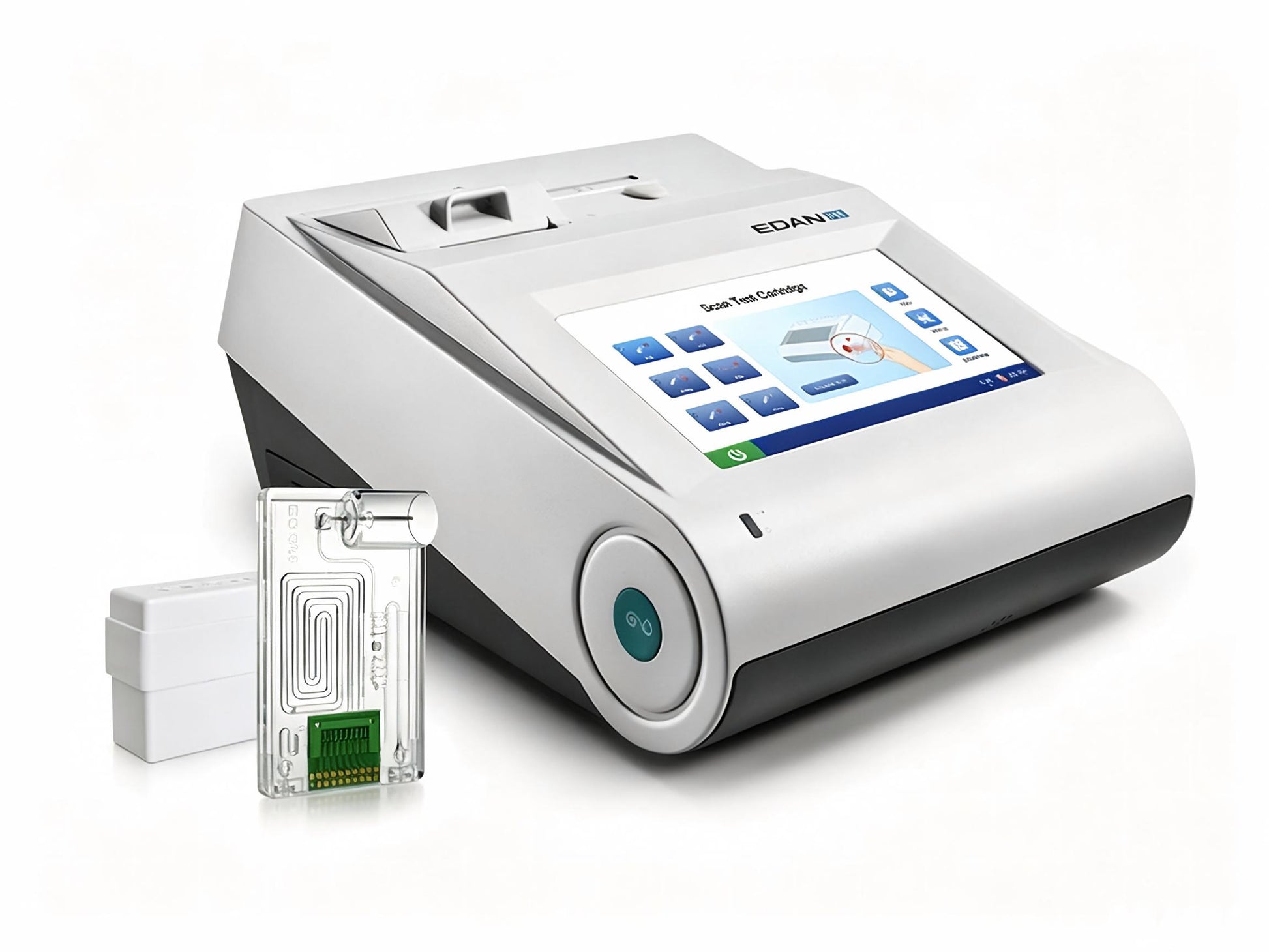

• EDAN i15 portable blood gas and chemistry analyzer with 7-inch touchscreen
1 1

WhatsApp USA: +1 6032769350 | WhatsApp HK: +852 63697831

Global Healthcare Medical

EDAN i15 Blood Gas and Chemistry Analyzer

EDAN i15 Blood Gas and Chemistry Analyzer

$9,600.00
$9,600.00
Sale Sold out
Shipping calculated at checkout.

Contact details

Enter both an email address and phone number to add products or continue to checkout.

Include your country code.

The EDAN i15 is a portable, cartridge‑based blood gas and chemistry analyzer designed for point‑of‑care testing (POCT) in emergency departments, intensive care units, operating rooms, and field settings. Weighing just 3.65 kg and featuring a 7‑inch color touchscreen, this fully automated system delivers critical blood gas, electrolyte, and metabolite results within one minute of sample aspiration.

Using innovative microchip liquid control technology and micro‑sensor multifunction membrane technology, the i15 provides laboratory‑quality accuracy with zero maintenance and minimal training requirements. Its single‑use, room‑temperature‑stable test cartridges eliminate cross‑contamination and support flexible testing panels—from basic blood gas (pH, pCO₂, pO₂) to comprehensive panels including electrolytes (Na⁺, K⁺, Cl⁻, Ca²⁺), metabolites (glucose, lactate), and hematocrit.

With multi‑parameter cartridges, barcode/QR code patient data entry, wireless connectivity, and a rechargeable battery capable of running 50 samples on a single charge, the i15 empowers clinicians to make fast, informed decisions anywhere—at the patient’s bedside, in the exam room, or out in the field.

Key Features & Benefits

Portable, Lightweight Design for Point‑of‑Care Testing

  • Weighs only 3.65 kg (including battery) with compact dimensions of 315 × 238 × 153 mm

  • Built‑in 5000mAh rechargeable lithium‑ion battery supports up to 50 samples of continuous testing

  • Ideal for emergency departments, ICUs, operating rooms, ambulances, and remote field settings

Fast Results in One Minute

  • Results are ready within 1 minute after sample aspiration

  • Auto‑sampling minimizes hands‑on time and reduces operator variability

  • Built‑in multimedia tutorials guide users through each step

Zero Maintenance – No Fluidics, No Hassle

  • Dry‑chemistry cartridge design eliminates complex fluidic paths

  • No maintenance required—reduces downtime and service costs

  • Minimizes training requirements and operator errors

Multi‑Parameter Cartridges – One Sample, Multiple Insights

  • Single‑use cartridges prevent cross‑contamination

  • Room‑temperature storage with long shelf life—no refrigeration needed

  • Flexible cartridge configurations available:



Cartridge Type pH pCO₂ pO₂ Na⁺ K⁺ Cl⁻ Ca²⁺ Hct Glu Lac
Microsample BG3/BG3 ● ● ●
Microsample BG8/BG8 ● ● ● ● ● ● ● ●
Microsample BG4/BG4 ● ● ● ● ● ● ●
Microsample BG9/BG9 ● ● ● ● ● ● ● ● ●
Microsample BG10/BG10 ● ● ● ● ● ● ● ● ● ●

Calculated parameters include: cH⁺, HCO₃⁻(act), HCO₃⁻(std), BE(ecf), BE(B), BB(B), ctCO₂, sO₂(est), Ca⁺⁺(7.4), AnGap, tHb(est), pO₂(A‑a), RI, pO₂/FIO₂, and temperature‑corrected values

Triple Quality Control System – Guaranteed Accuracy

The i15 features a Triple Guarantee quality control system:

  • Calibrator – ensures sensor accuracy

  • Control – verifies system performance

  • External Electronic Simulator – provides independent validation

Flexible Data Management

  • Barcode/QR code scanning for rapid patient data entry

  • Up to 10,000 patient results storage

  • 4 USB ports, LAN, and WiFi for seamless data transfer

  • Optional data management software for comprehensive reporting

  • Built‑in thermal printer for on‑the‑spot result printing

Technical Specifications



Specification Detail
Sample Volume 140 μL / 80 μL
Throughput Results in 1 minute after sample aspiration
Quality Control 3 or 5 levels QC, External electronic simulator
Display 7‑inch color LCD, 800×480 resolution
Interfaces 4× USB 2.0 host, 1× RS232, WLAN
Power Supply 100–240VAC, 50/60Hz
Battery 5000mAh rechargeable lithium‑ion, 50 samples continuous
Dimensions (W×H×D) 315 × 238 × 153 mm
Weight 3.65 kg (including battery)
Operating Environment 10°C–31°C; 25%–80% RH; 57–106.6 kPa

Performance Specifications



Parameter Linearity Range Resolution Measurement Method
pH 6.5 – 7.80 0.001 Potentiometric sensor
pO₂ 10 – 700 mmHg 0.1 Amperometric sensor
pCO₂ 10 – 150 mmHg 0.1 Potentiometric sensor
Na⁺ 100 – 180 mmol/L 0.1 Potentiometric sensor
K⁺ 2.0 – 9.0 mmol/L 0.01 Potentiometric sensor
Ca²⁺ 0.25 – 2.50 mmol/L 0.01 Potentiometric sensor
Cl⁻ 65 – 140 mmol/L 0.1 Potentiometric sensor
Glucose 20–700 mg/dL / 1.1–38.9 mmol/L 1 / 0.1 Amperometric sensor
Lactate 2.7–180 mg/dL / 0.3–20 mmol/L 0.1 / 0.01 Amperometric sensor
Hct 10–72% / 0.10–0.72 1% / 0.01 Conductance sensor

Why Choose the EDAN i15?



Clinical Challenge i15 Solution
Need for rapid critical results Results in 1 minute—supports fast clinical decisions
Limited laboratory access Portable, battery‑operated—use anywhere, from ER to field
Complex maintenance requirements Zero maintenance—no fluidics, no service calls
Cross‑contamination risks Single‑use cartridges—eliminate contamination
Varying testing needs Multi‑parameter cartridges—choose the panel you need
Training and operator errors Auto‑sampling + touchscreen tutorials—minimal training
Data management 10,000‑result storage + wireless LIS/HIS connectivity
Quality assurance Triple QC system—calibrator, control, electronic simulator
